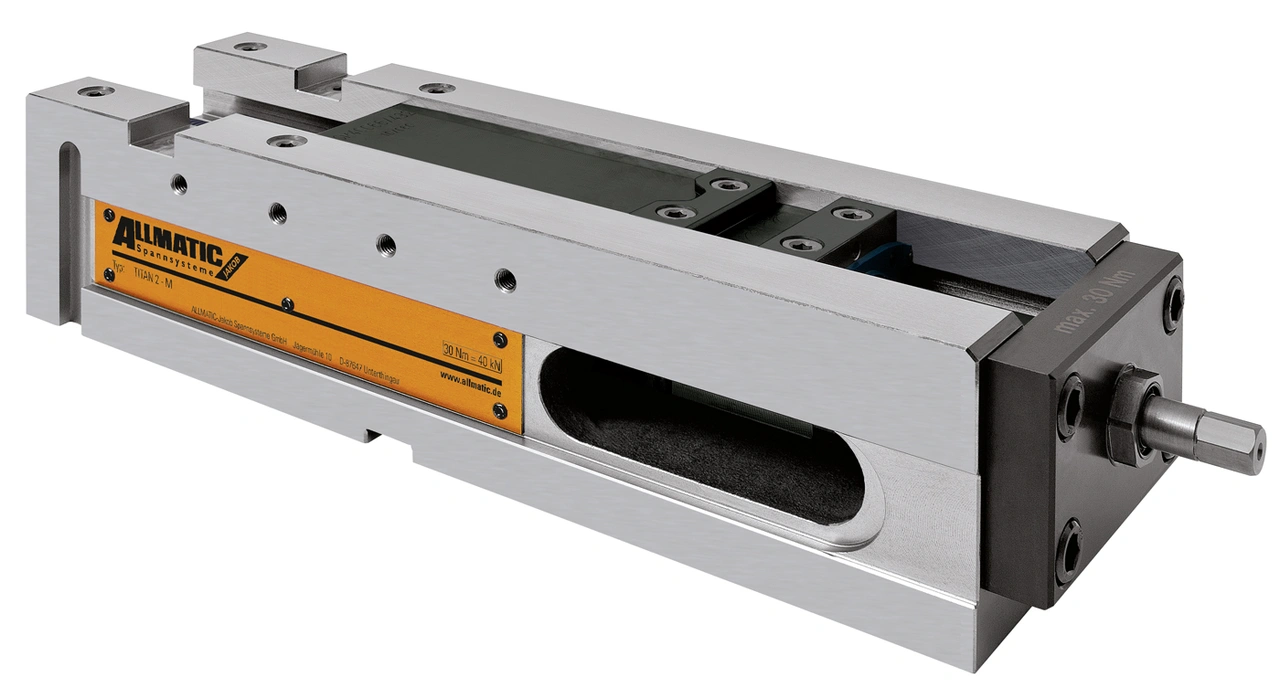

Titan 2 M
Titan 2 M

Allmatic

Artikelnr: 6921838000755

Product features:

  • High versatility – the modular clamping system combines practically all the possibilities of our tried-and-tested models
  • The TITAN 2 M is ground an polisched on all sides
  • High-pressure spindle with force amplifier. Clamping force does not slacken
  • Enlarged clamping span for secure clamping of unmachined parts
  • Lost clamping margin 8 mm with pull-down, 3 mm with Gripp
  • Clamping near to neutral axis
  • Clamping jaws of forerunner are compatible
  • Standard with mounting holes for zero point clamping system, Pitch 200
  • Clamping with torque wrench – max. 30 Nm. This makes it possible to work above the table with an unfavour able clamping arrangement on the tool

Scope of Supply:

  • 1x Vice TITAN 2M without jaws
  • 3x Socket screw wrenches
  • 4x Side clamps
  • 1x Socket wrench insert 14 - 12kt - 3/8"
  • 2x Transport plate
  • 2x Flat headed screw w. J6kt 8x12
  • 1x Operating manual
  • (Please order clamping jaws separately)
Titan 2 M
Logga in för pris

Har du inte redan ett konto? Ansök om kundkonto

  • Beskrivning

    Product features:

    • High versatility – the modular clamping system combines practically all the possibilities of our tried-and-tested models
    • The TITAN 2 M is ground an polisched on all sides
    • High-pressure spindle with force amplifier. Clamping force does not slacken
    • Enlarged clamping span for secure clamping of unmachined parts
    • Lost clamping margin 8 mm with pull-down, 3 mm with Gripp
    • Clamping near to neutral axis
    • Clamping jaws of forerunner are compatible
    • Standard with mounting holes for zero point clamping system, Pitch 200
    • Clamping with torque wrench – max. 30 Nm. This makes it possible to work above the table with an unfavour able clamping arrangement on the tool

    Scope of Supply:

    • 1x Vice TITAN 2M without jaws
    • 3x Socket screw wrenches
    • 4x Side clamps
    • 1x Socket wrench insert 14 - 12kt - 3/8"
    • 2x Transport plate
    • 2x Flat headed screw w. J6kt 8x12
    • 1x Operating manual
    • (Please order clamping jaws separately)
  • Specifikation
    Max åtdragningsmoment (Nm) 30
    Max spännkraft (kN) 40
    Uppbyggnad Mechanical
    Användningsområde Raw parts, Pre-machined parts
    Backbredd (mm) 125
    Max spännvidd (mm) 504
    Min spännvidd (mm) 0

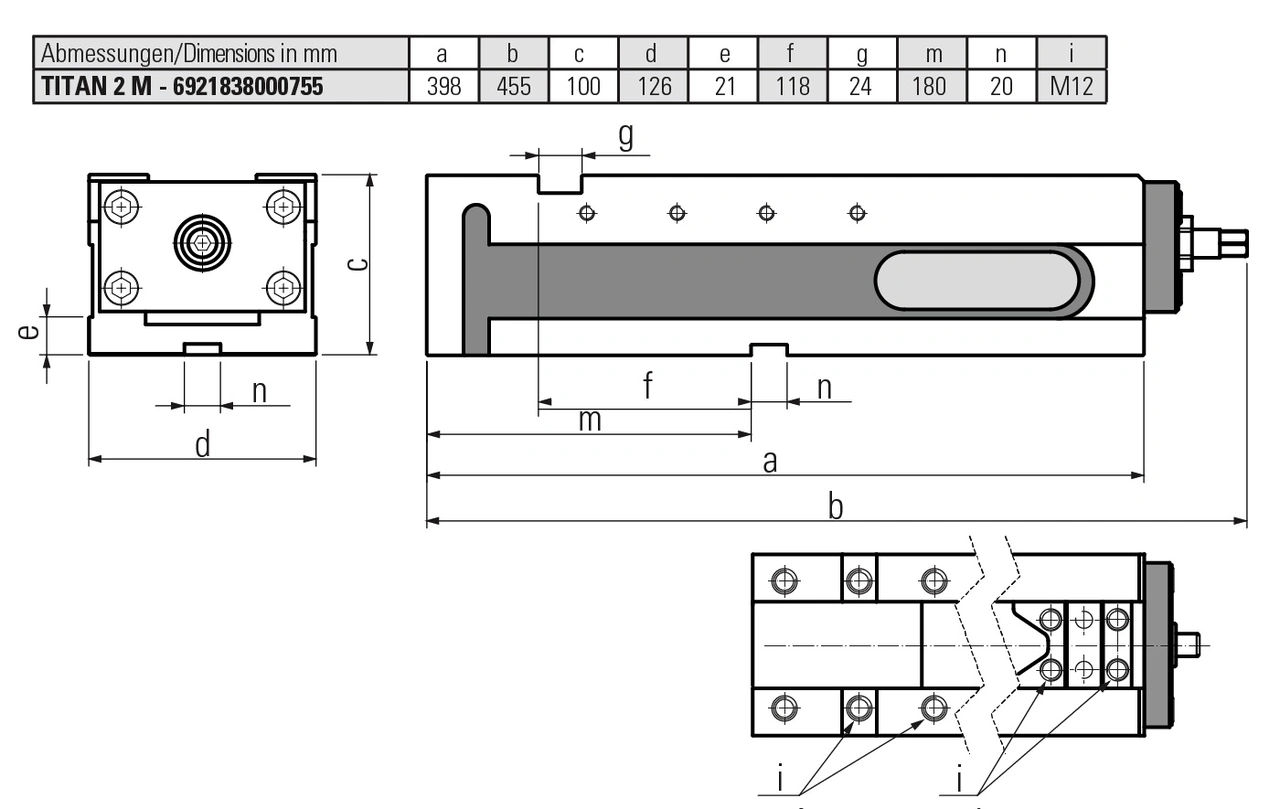

    Dimension, a 398
    Dimension, b 455
    Dimension, c 100
    Dimension, d 126
    Dimension, e 21
    Dimension, f 118
    Dimension, g 24
    Dimension, i M12
    Dimension, m 180
    Dimension, n 20
