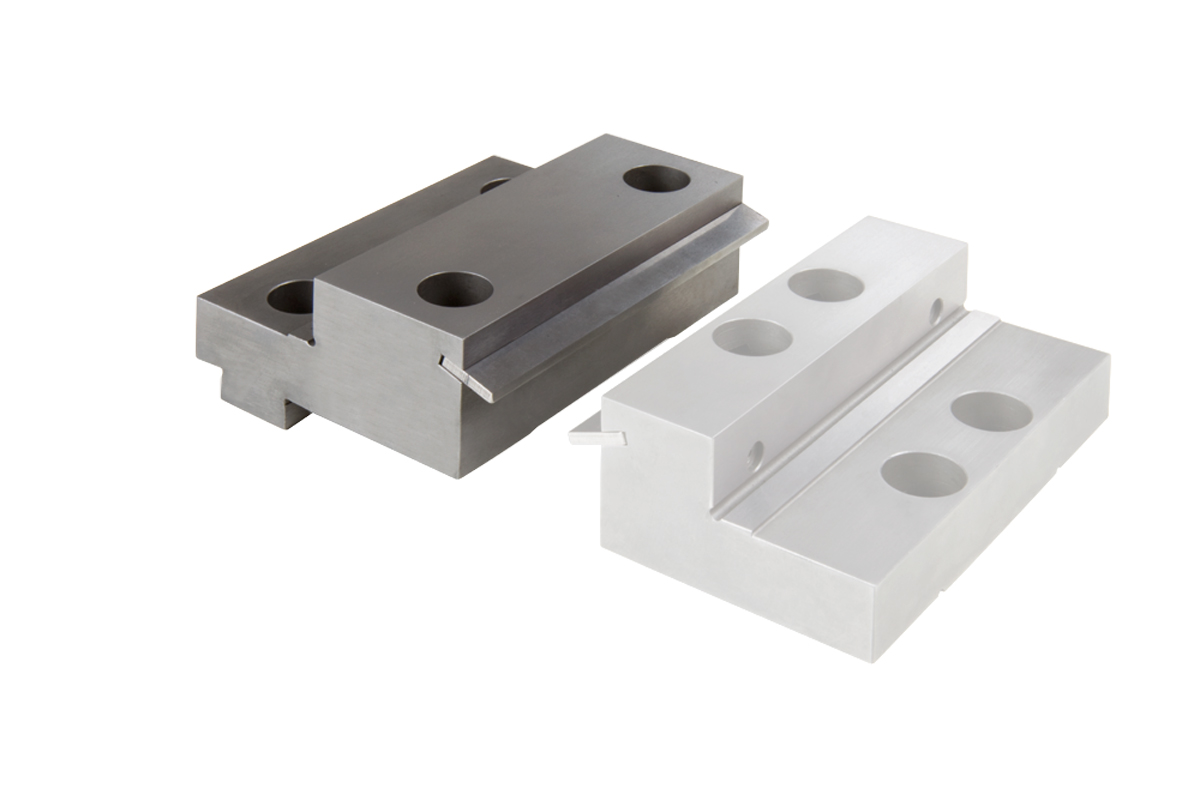

Allmatic
Artikelnr: 6921684106031
Description:
- Material: hardened steel
- Case-hardened and tempered 680 + 80 HV30; hardening depth 0,5 + 0,3
- Pull-down with ground and polished spring leaves for machined and pre-machined clamping surfaces
- Ground and polished workpices
- High clamping accuracy for parallel and accurate angle machining
- Click system on the high side
Scope of Supply:
- 1x Pull-down jaw fixed
- 2x Cylinder head screws DIN 912 M12x25
- 2x Cylinder head screws DIN 912 M12x45
-

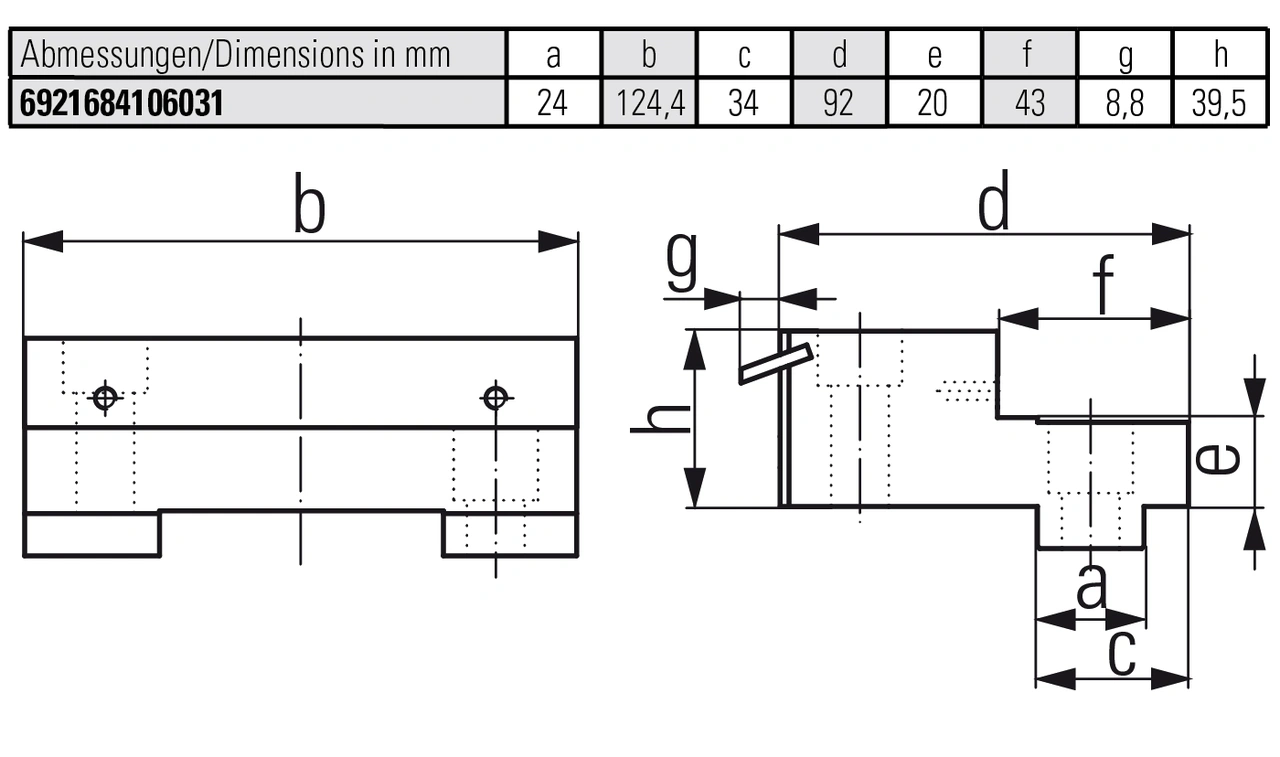

Specifikation
Dimension, a 24 Dimension, b 124.4 Dimension, c 34 Dimension, d 92 Dimension, e 20 Dimension, f 43 Dimension, g 8.8000000000000007 Dimension, h 39.5
