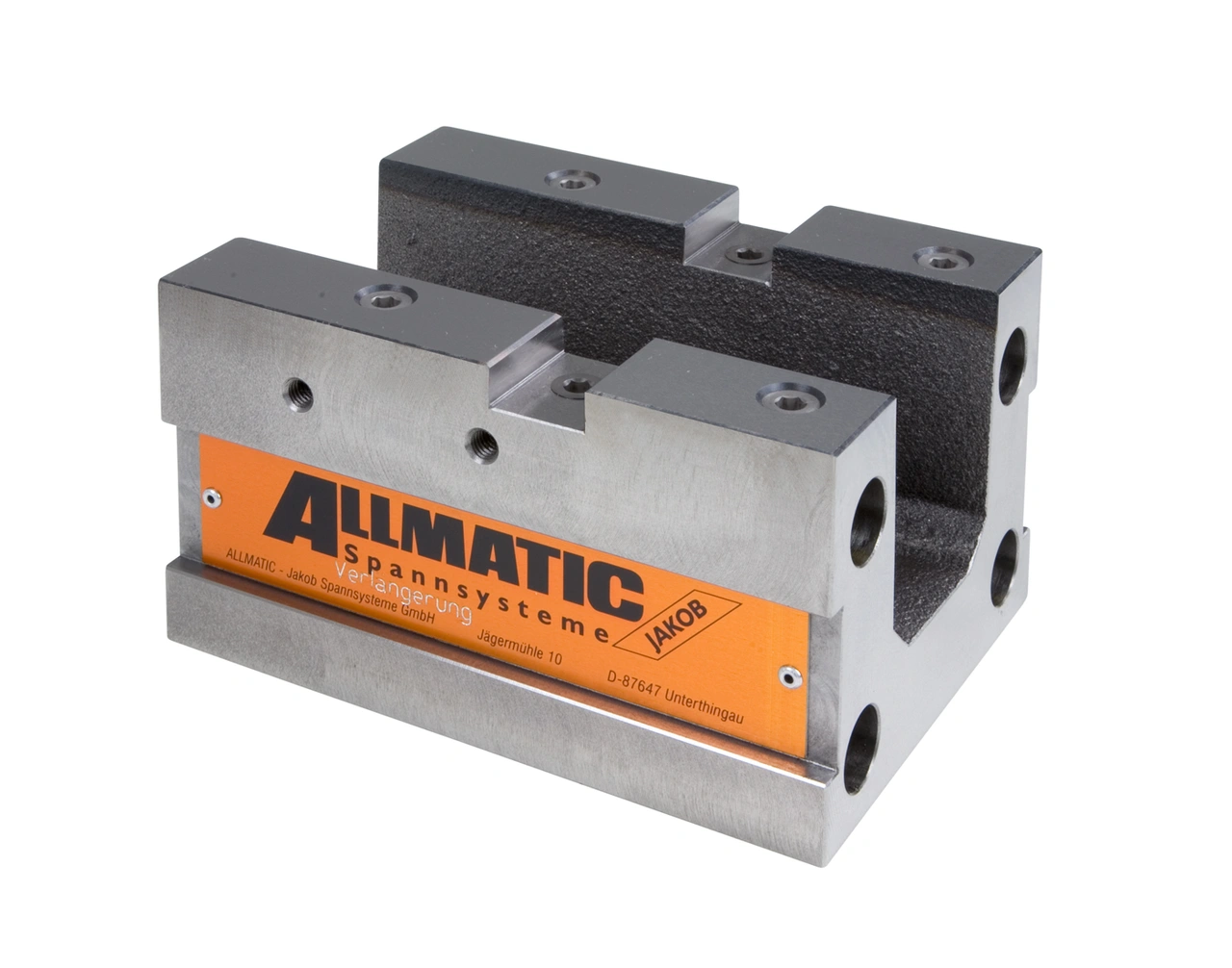

Allmatic
Artikelnr: 6921685008055
Description:
- For increasing the clamping range of the NC vice NC8 version /of the GRIPP vice TITAN 2K, M & L
- Is attached to the end of the vices
- No transmission of clamping forces to the machine table
Scope of Supply:
- 1x Pair side clamps
- 4x Cylinder head screw M15x150
-
Specifikation

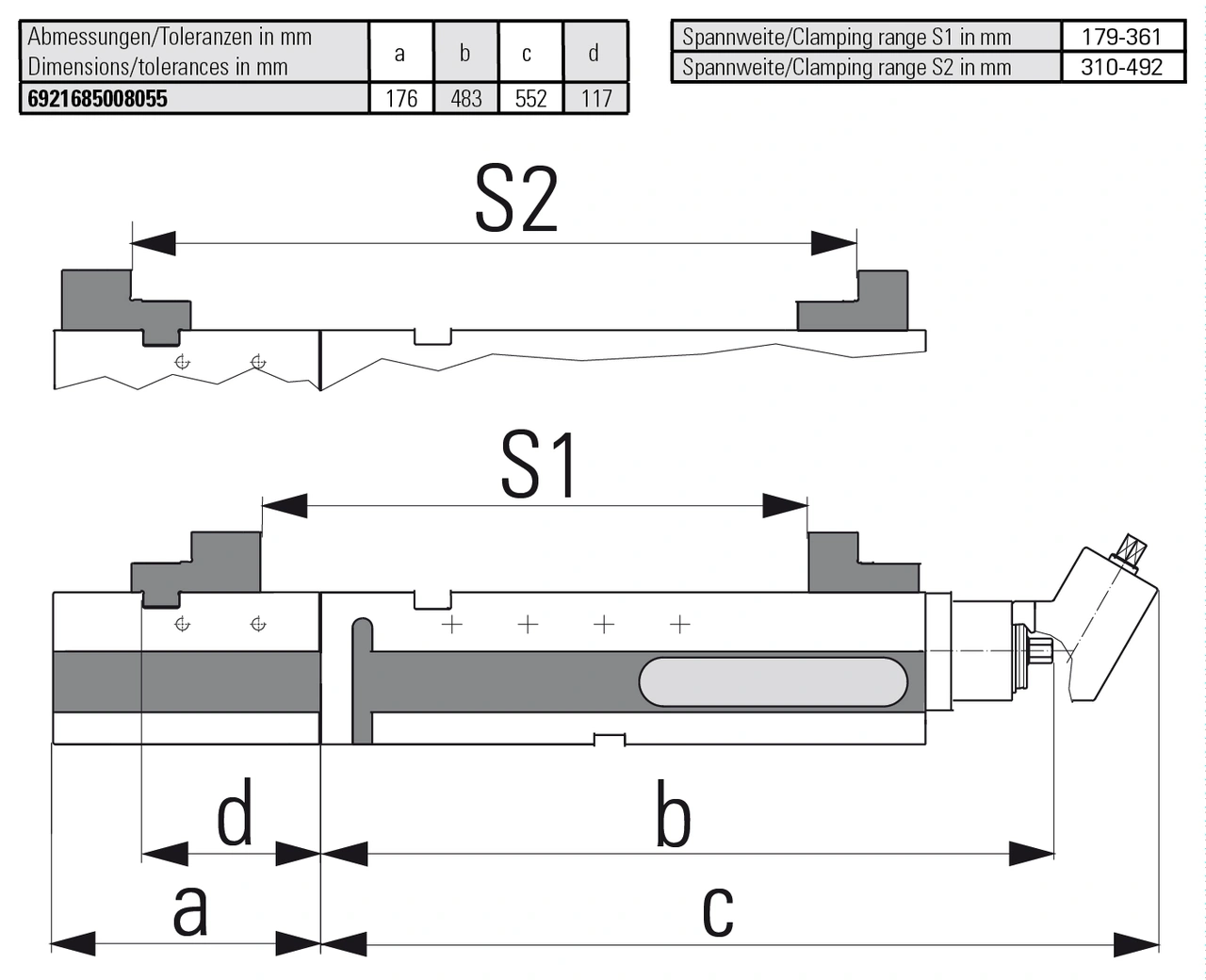

Spännområde, S1 (mm) 179-361 Spännområde, S2 (mm) 310-492 Dimension, a 176 Dimension, b 483 Dimension, c 552 Dimension, d 117
