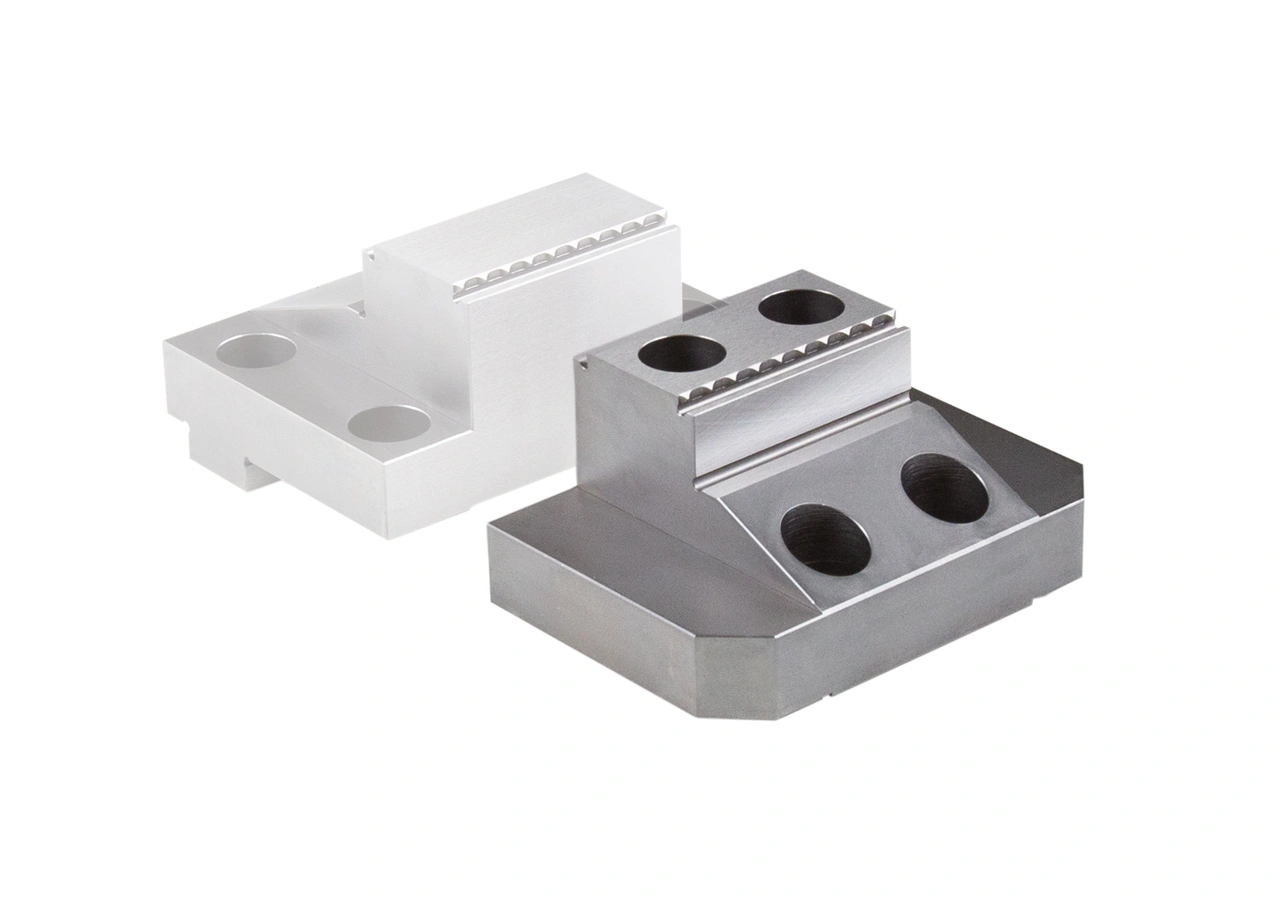

Allmatic
Artikelnr: 6921834036231
Description:
- For five-sided machining, ensuring best possible accessibility to the workpiece
- For rectangular workpieces (sawn material) <= 0,5 mm
- Hardened 720 + 50 HV10; hardening depth: 0,7 + 0,2
- Minimal lost clamping margin of 3mm
- Positive locking through penetration of the centres into the material without preprint
- Integrated gripper row, rigid design to prevent vibrations especially when parts are clamped upright
- Additional clamping surfaces, ground on both sides
- Suitable for material strength of up to 1000N/mm²
Scope of Supply
- 1x Jaw 64 mm, movable with integrated gripper row
- 2x Cylinder head screws DIN 912 M12x30
- 2x Cylinder head screws DIN 912 M12x60
-
Specifikation
Dimension, a 36 Dimension, b 96 Dimension, b1 64 Dimension, c 12 Dimension, d 14 Dimension, h 35 Dimension, l 62.5 Dimension, h1 52 Dimension, h2 55 Dimension, l1 4 Dimension, l2 7
