Allmatic
Artikelnr: 6921484002731
Description:
- Material: hardened steel
- Case-hardened and tempered 680 + 80 HV30; hardening depth 0,5 + 0,3
- High and step sides with thread for parallels
- Ground and polished clamping surfaces
- Additional thread on the high side for mounting HD jaws (Types 125 - 200)
- Click system on the high side
Scope of Supply:
- 1x Step jaw movable
- 2x Cylinder head screws DIN 912 M12x25
- 2x Cylinder head screws DIN 912 M12x45
-

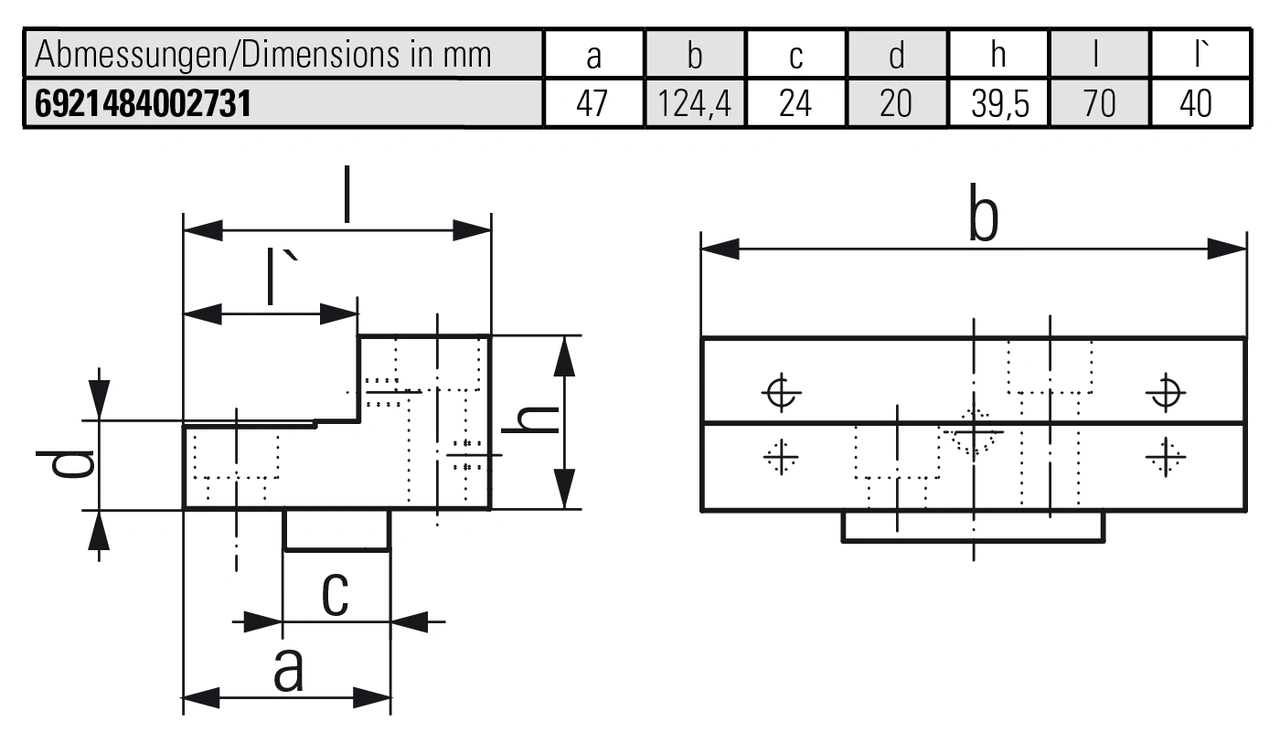

Specifikation
Dimension, a 47 Dimension, b 124.4 Dimension, c 24 Dimension, d 20 Dimension, h 39.5 Dimension, l 70 Dimension, l` 40
