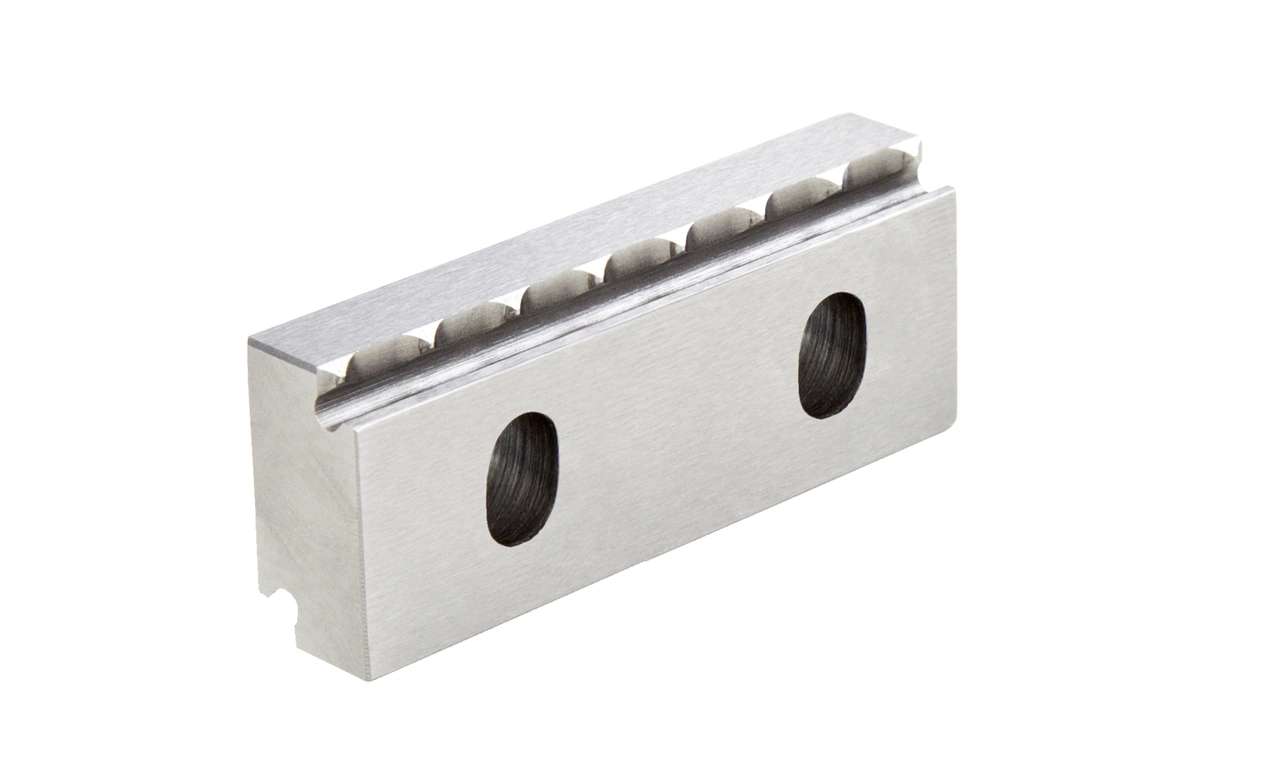

Allmatic
Artikelnr: 6921734036031
Description:
- For clamping unmachined parts close to the edge, 3 or 5 mm
- Gripper studs suitable for materials with a strength of up to approx. 1000N/mm²
- Gripper strip can be reversed for mounting on the 5-sided machining jaw (4 of them are required)
Scope of Supply:
- 1x Gripp-strip reversible
- 2x Bolts M 6x6 each
-

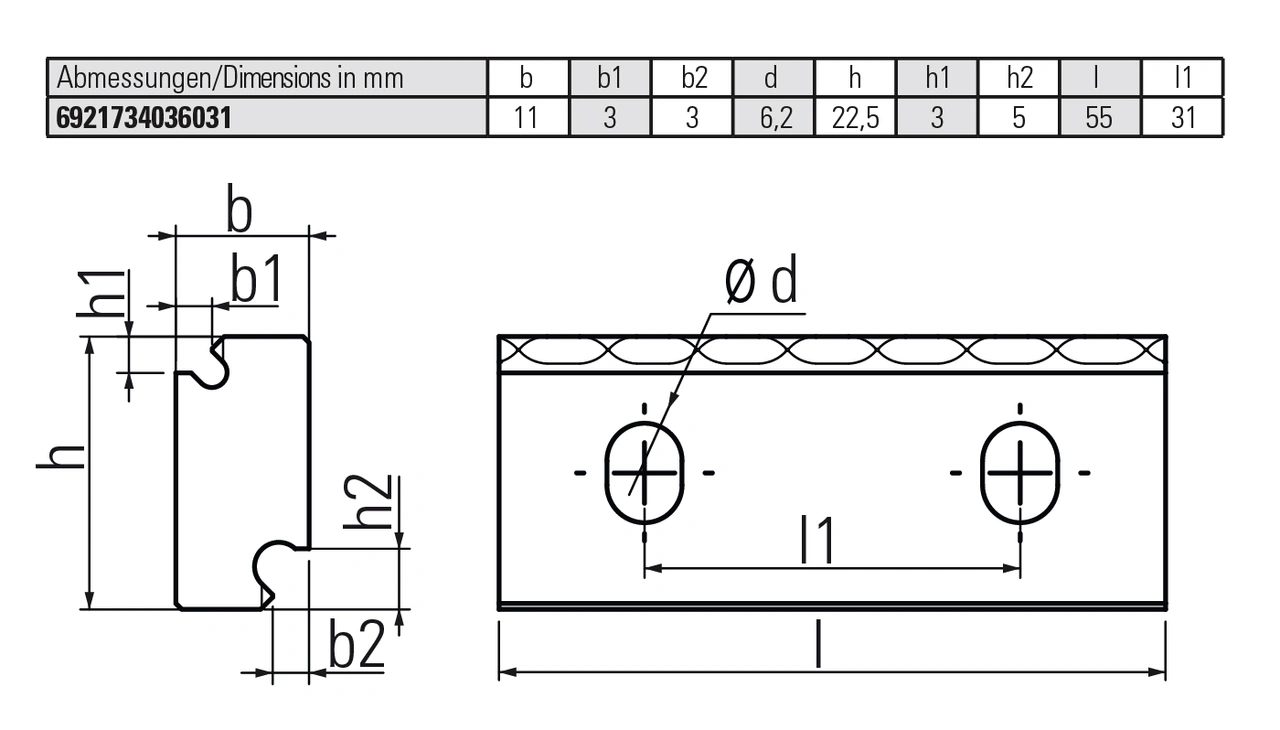

Specifikation
Dimension, b 11 Dimension, b1 3 Dimension, b2 3 Dimension, d 6.2 Dimension, h 22.5 Dimension, l 55 Dimension, h1 3 Dimension, h2 5 Dimension, l1 31
