Allmatic
Artikelnr: 6921734047031

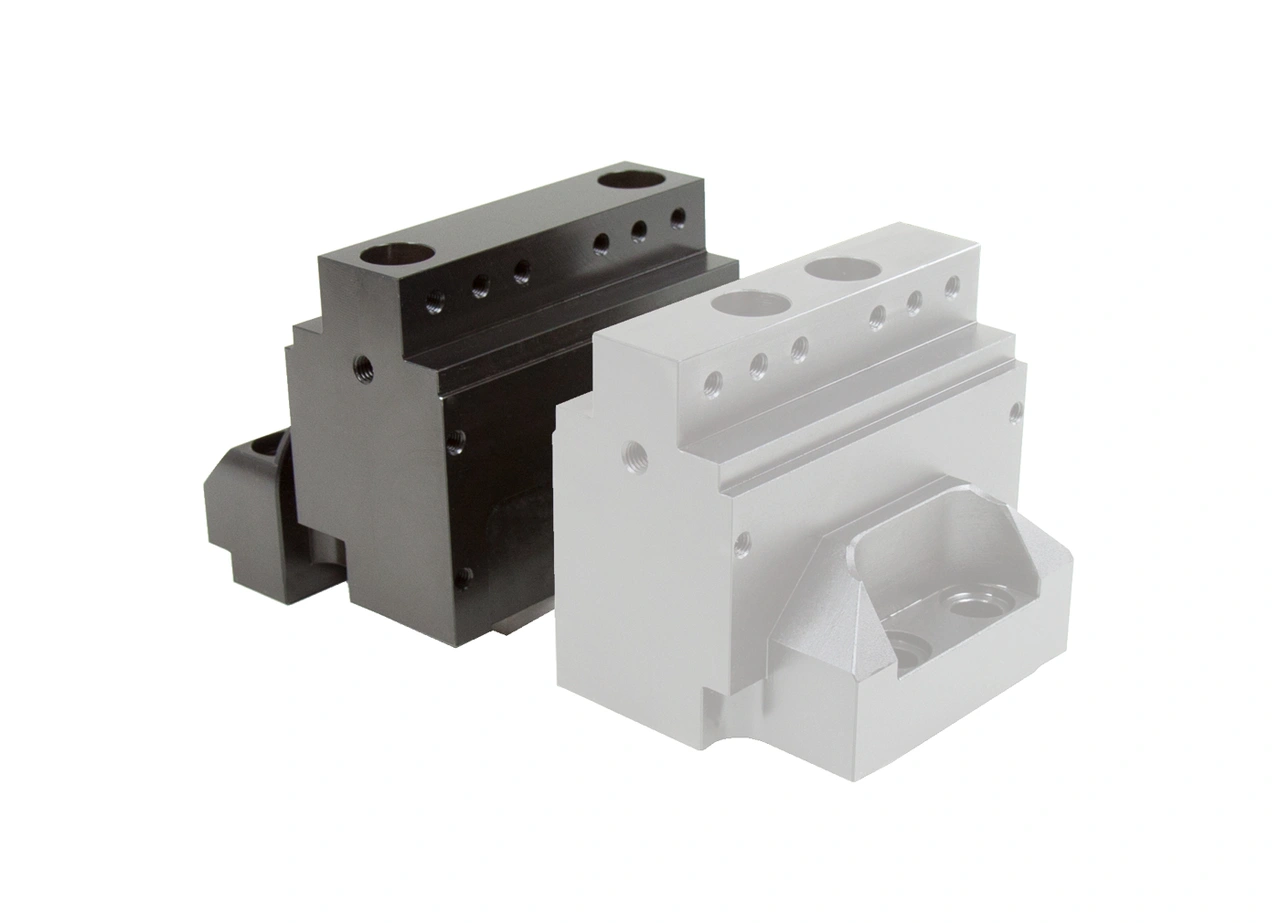

Description:
- Material: plasma-nitrided steel
- Particularly suitable for five-side machining
- Better accessibility for tools
- Ground clamping surfaces
- Additional thread for parallels
- Accuracy through pull-down
- Stability through form-locking
Scope of Supply:
- 2x Cylinder head screws DIN 912 M12x50
- 2x Cylinder head screws DIN 912 M12x100
-

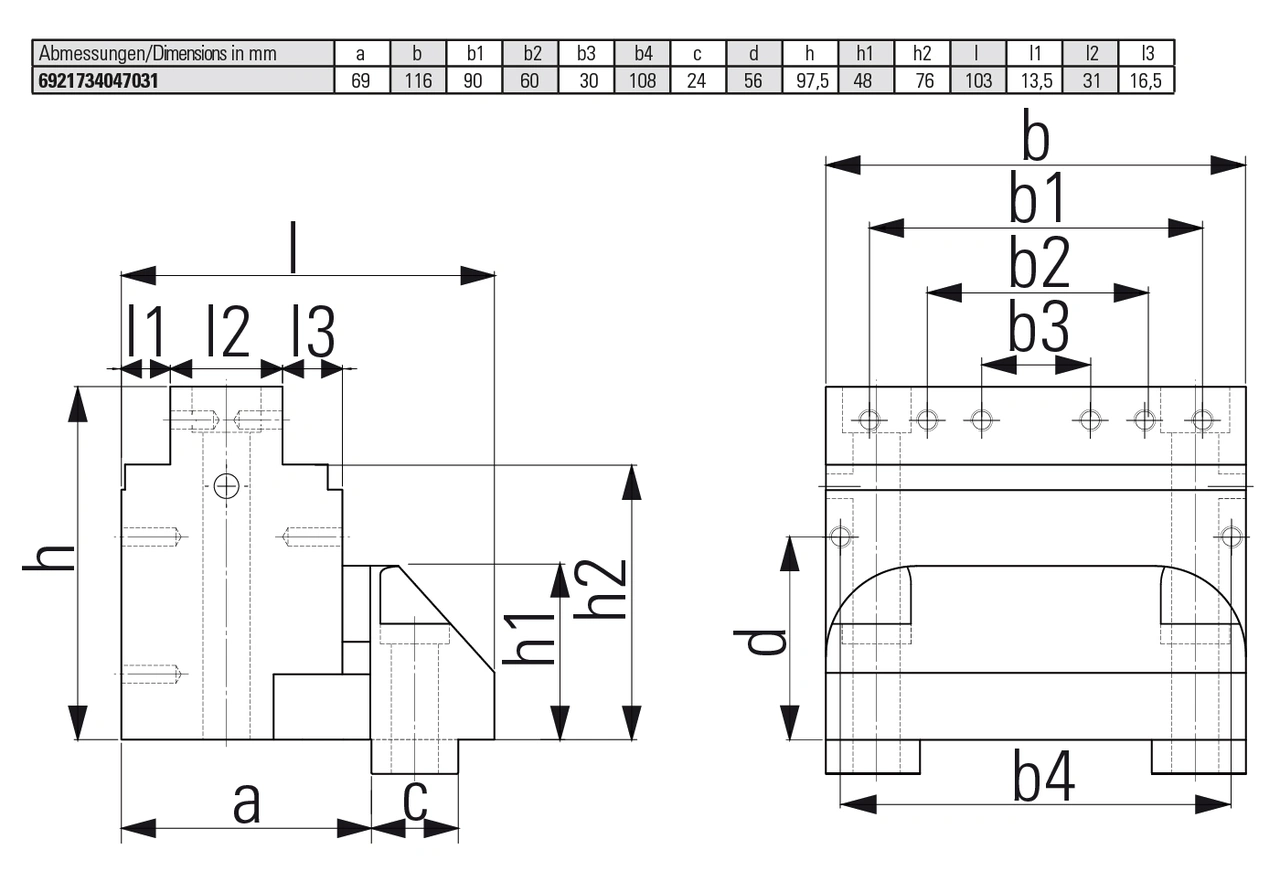

Specifikation
Dimension, a 69 Dimension, b 116 Dimension, b1 90 Dimension, b2 60 Dimension, b3 30 Dimension, b4 108 Dimension, c 24 Dimension, d 56 Dimension, h 97,5 Dimension, l 103 Dimension, h1 48 Dimension, h2 76 Dimension, l1 13,5 Dimension, l2 31 Dimension, l3 16,5
