Allmatic
Artikelnr: 6921284011231
Description:
- Material: hardened steel
- Case-hardened and tempered 680 + 80 HV30; hardening depth 0.5 + 0.3
- Additional thread for mounting HD jaws
- Ground and polished clamping surfaces
- Click system on the high side
Scope of Supply:
- 1x Master jaw adapter movable
- 2x cylinder head screws DIN 912 M12x25
- 2x cylinder head screws DIN 912 M12x60
-
Specifikation

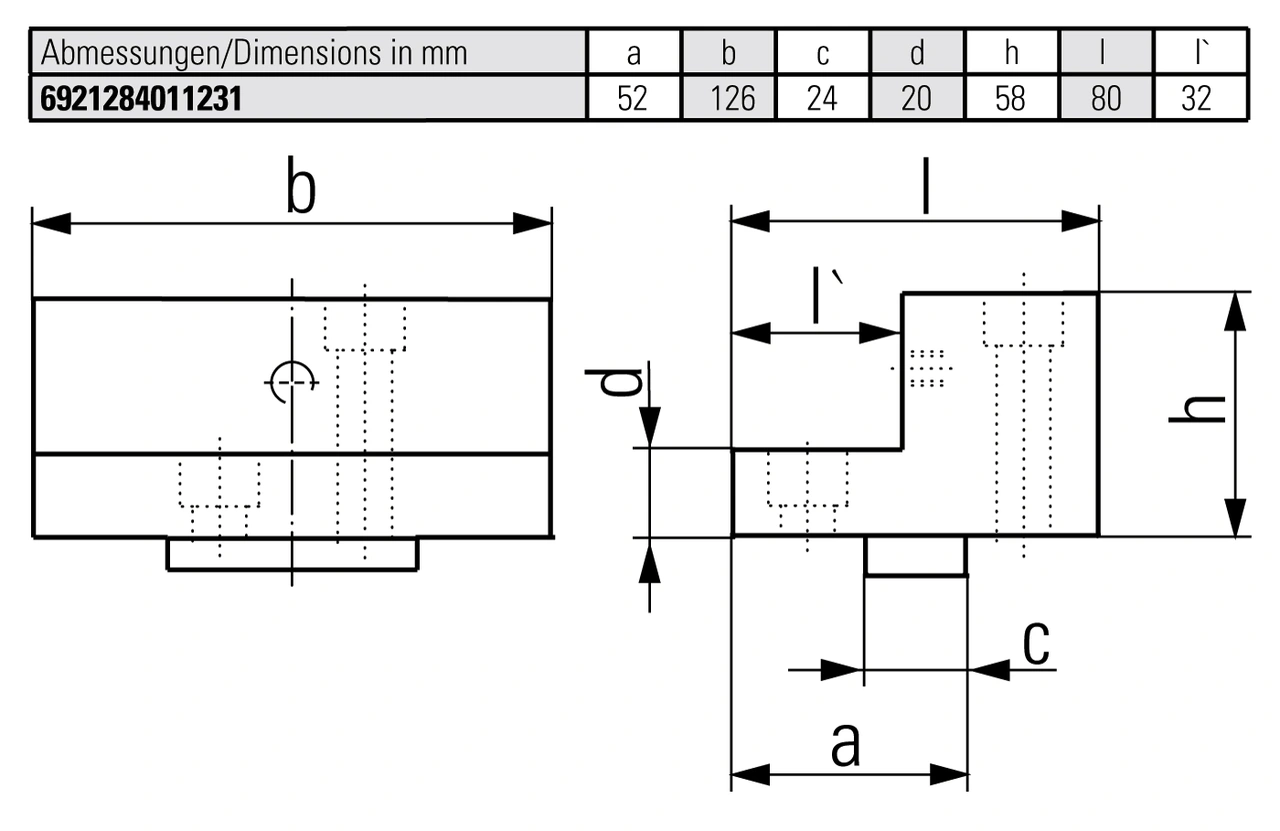

Dimension, a 52 Dimension, b 126 Dimension, c 24 Dimension, d 20 Dimension, h 58 Dimension, l 80 Dimension, l` 32
