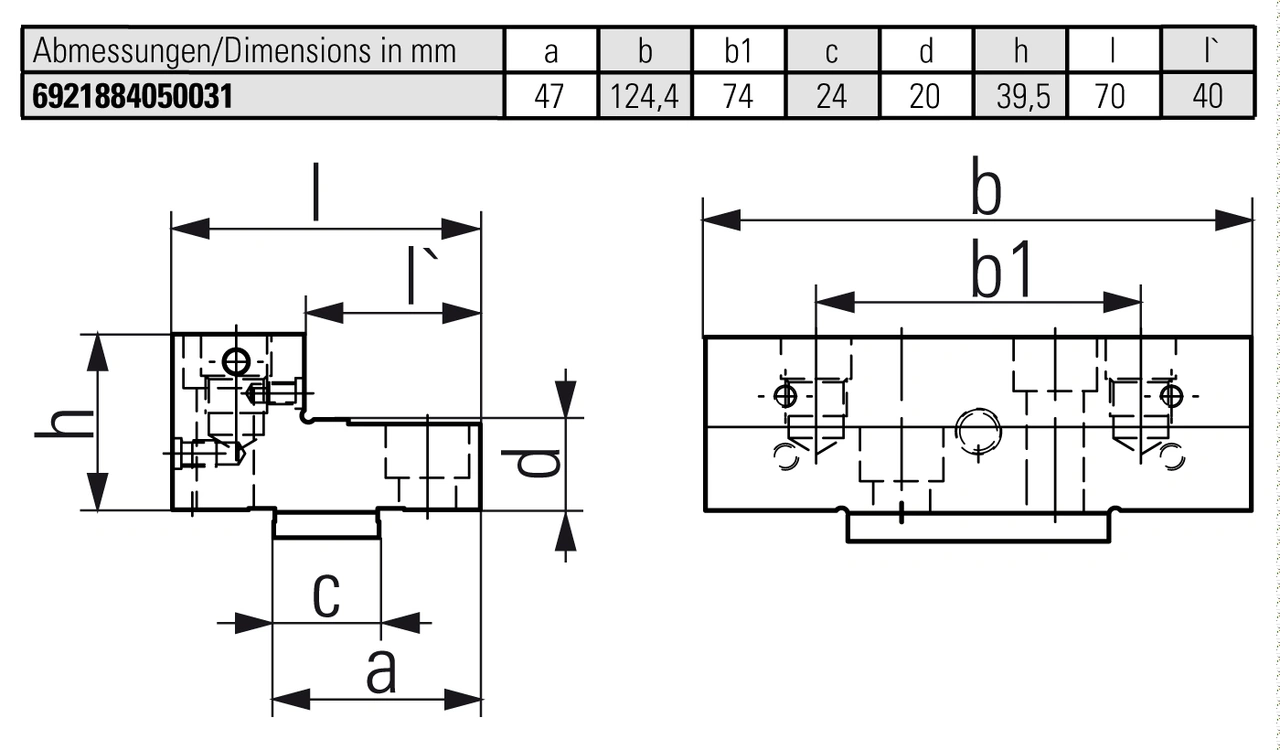

Artikelnr: 6921884050031

Description:

• Material: hardened steel
• Hardened 680 + 80 HV30; hardening depth: 0,5 + 0,3
• High and step sides with thread for parallels
• Ground clamping surfacesz
• Additional thread on the high side for mounting the HD jaws (Type 125 - 200)
• Suitable for screw-in gripp-studs
• First and second clamping steps are possible without changing jaws
• Click system on the high side
• Note: because the jaws have no pendulum, they are only suitable for rectangular workpieces (Saw cuts) // <= 0,5 (Parallelism less or equal 0,5 mm) respectively cylindrical workpieces 0 <= 0,5 (unitless or equal 0,5)

Scope of Supply:

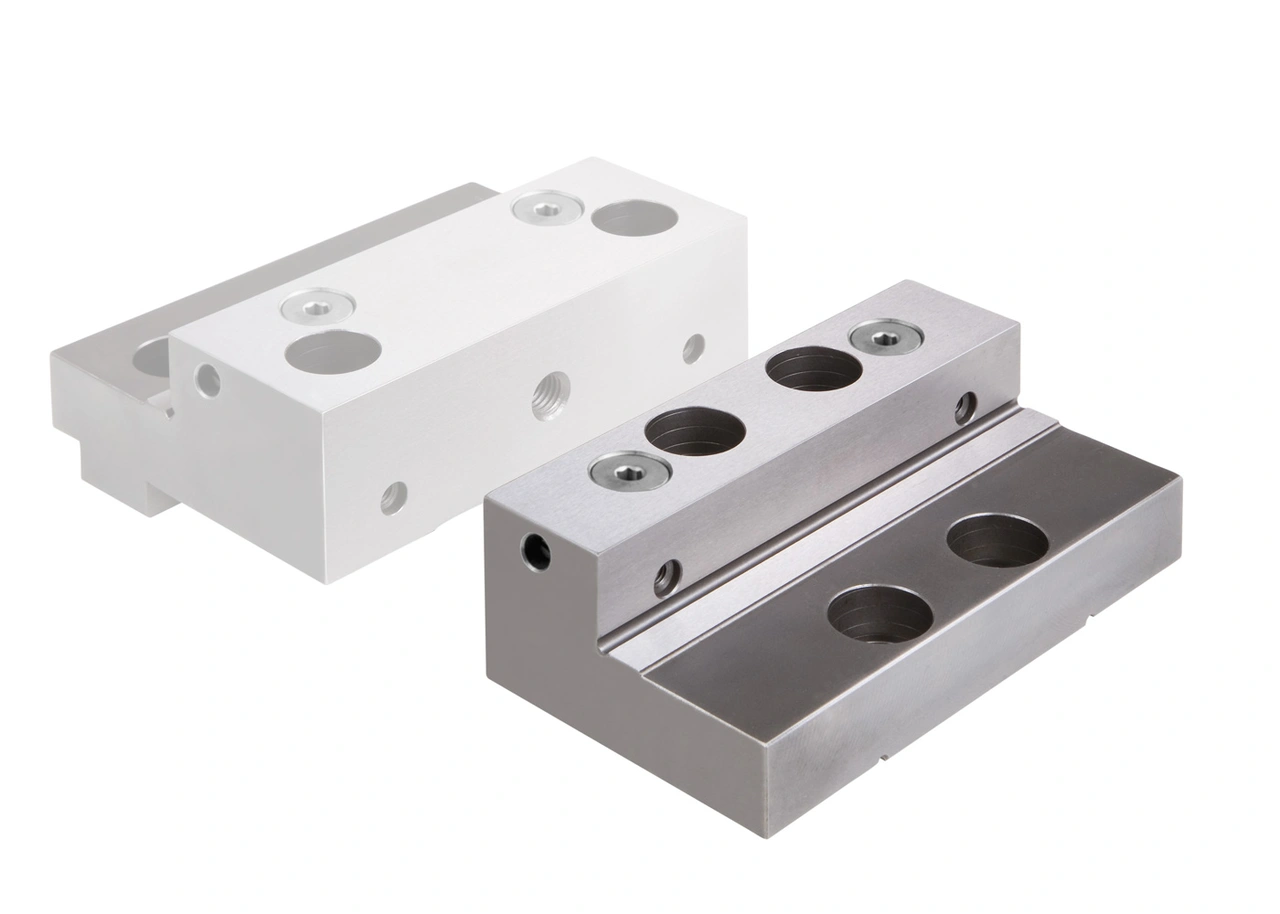

• 1x Step jaw movable for gripper studs
• 2x Cylinder head screws DIN 912 M12x25
• 2x Cylinder head screws DIN 912 M12x45
