Allmatic
Artikelnr: 6921884004842
Description:
- Material: hardened steel
- Case-hardened and tempered 600 + 50 HV10; hardening depth = 0,2
- For mounting various studs (pointed/smooth) or a universal gripper set
- Front surface can be used as a clamping surface (hardened, ground and polished)
- Studs (pointed/smooth) and gripper set not included
- For three-point clamping
Scope of Supply:
- 1x Support jaw movable, rigid
- 4x Cylinder head screws DIN 912 M12x25
-
Specifikation

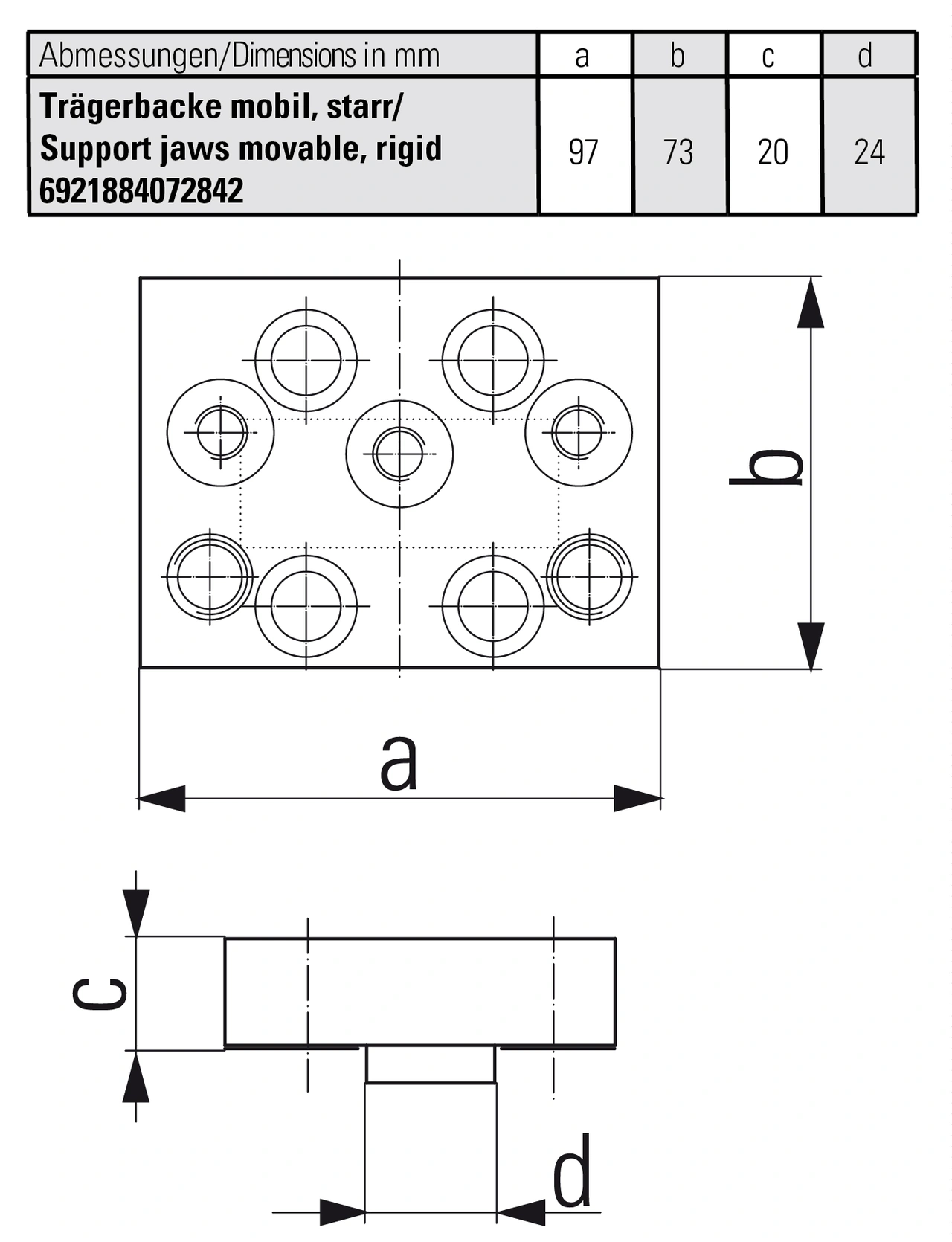

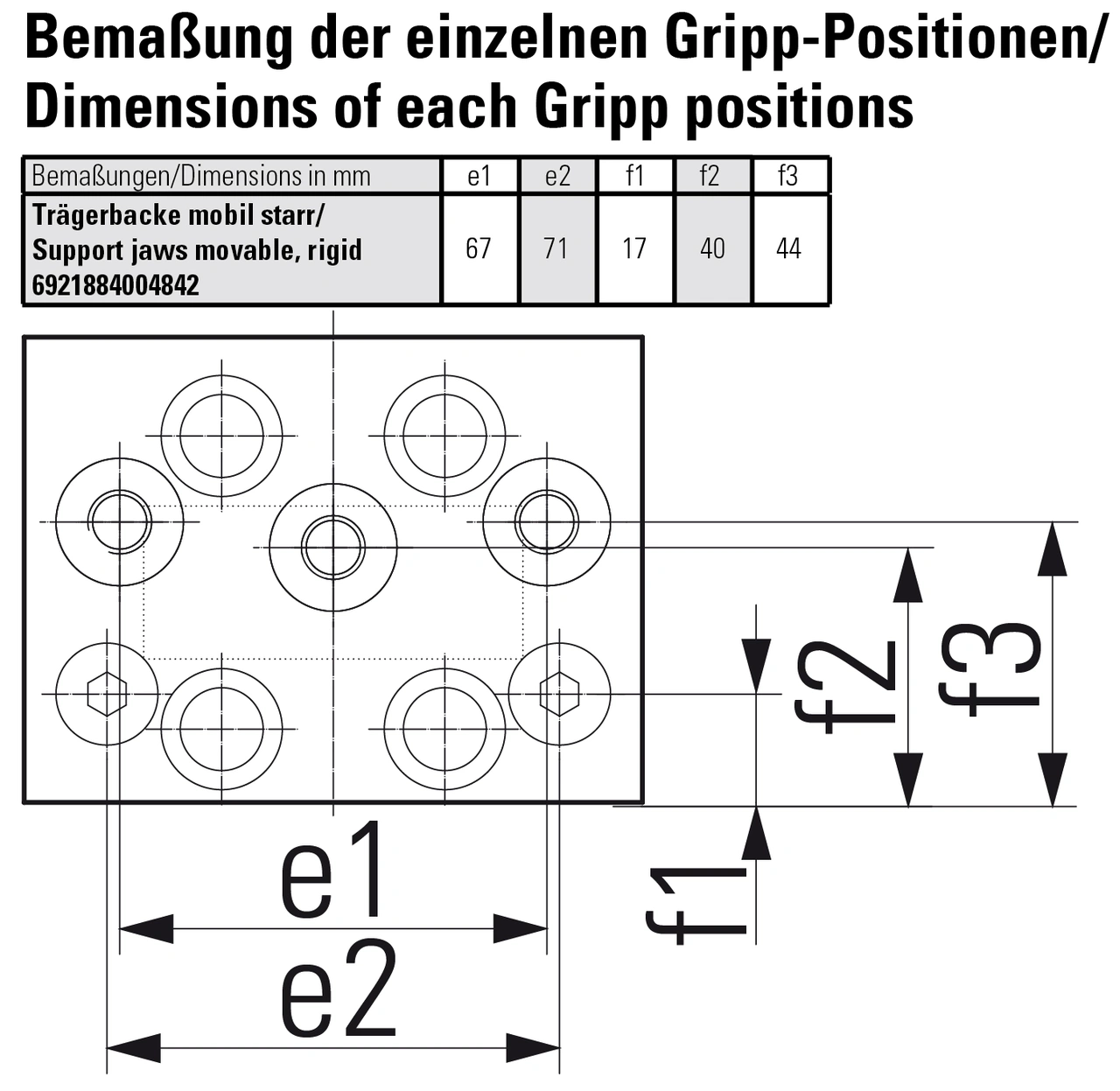

Dimension, a 97 Dimension, b 73 Dimension, c 20 Dimension, d 24 Dimension, e1 67 Dimension, e2 71 Dimension, f1 17 Dimension, f2 40 Dimension, f3 44
