Artikelnr: 6921684102031

Description:

• Material: hardened steel
• Case-hardened and tempered 680 + 80 HV30; hardening depth 0,5 + 0,3
• Pull-down with ground and polished spring leaves for machined and unmachined clamping surfaces
• Ground and polished clamping surfaces
• High clamping accuracy for parallel and accurate angle machining
• Click system on the high side

Scope of Supply:

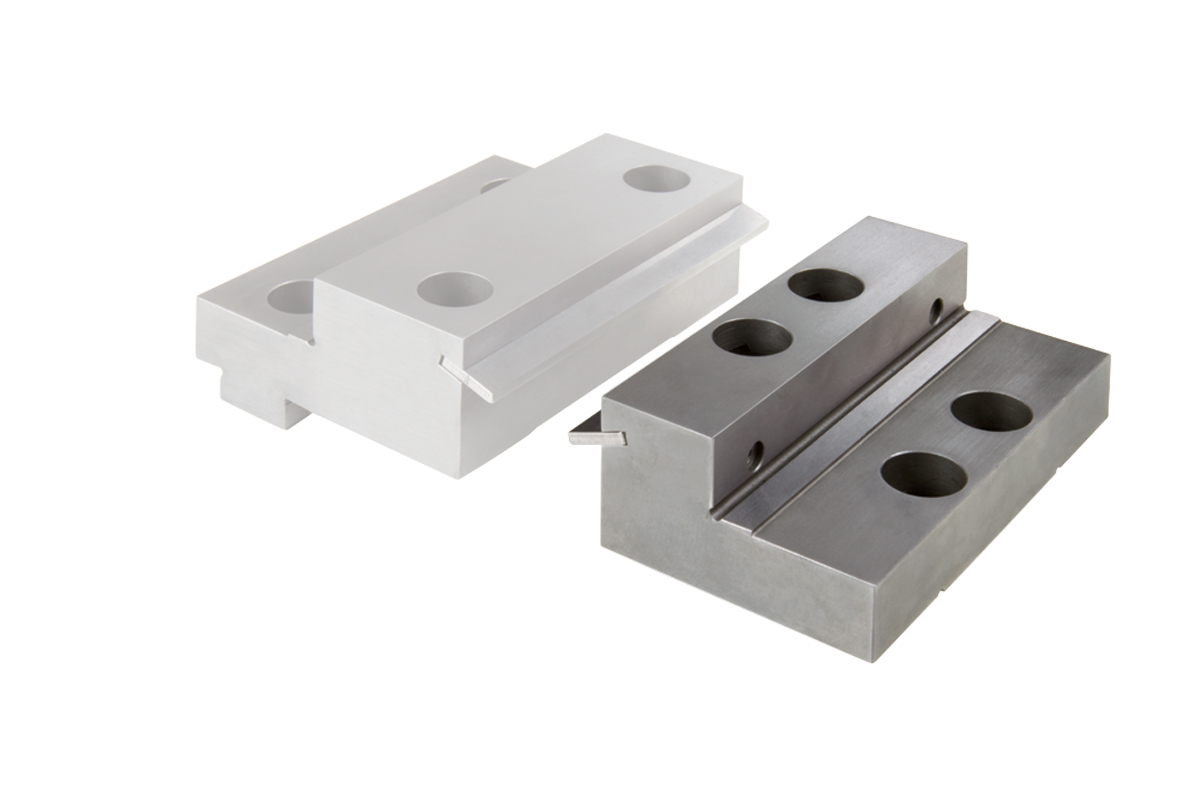

• 1x Pull-down jaw movable
• 2x Cylinder head screws DIN 912 M12x25
• 2x Cylinder head screws DIN 912 M12x45
