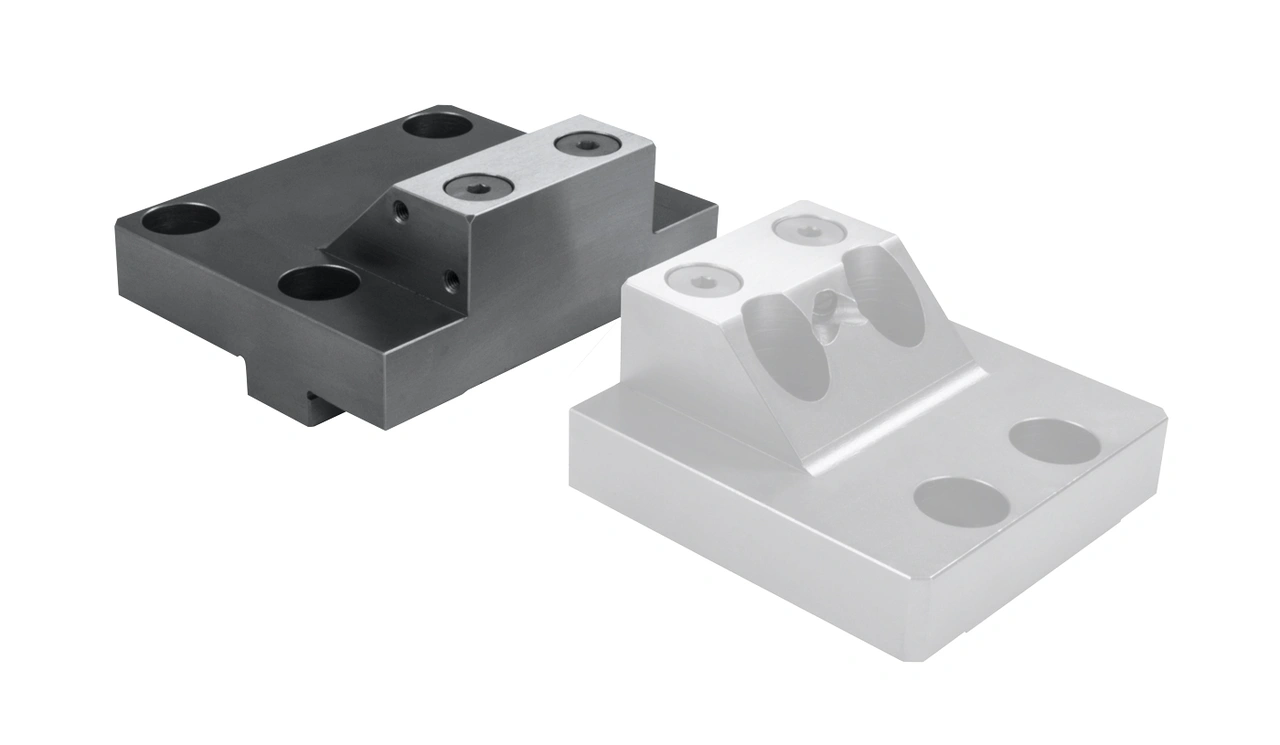

Artikelnr: 6921834040140

Description:

• Material: hardened steel
• Case-hardened and tempered 600 + 50 HV10; hardening depth = 0,2
• Allows unhindered access to the workpiece, even with short tools
• For clamping small to medium-sized workpieces
• Suitable for screw-in gripp-studs
• First and second clamping steps are possible without changing jawsli>Click system on the high side
• Note: The movable jaw has no pendulum compensation. It is suitable for rectangular workpieces (saw cuts) / / <= 0,5 (concurrency less or equal to 0,5 mm) or cylindrical workpieces 0 <= 0,5 (roundness less or equal to 0,5 mm)

Scope of Supply:

• 1x Reduced-width jaw fixed for gripper studs
• 2x Cylinder head screws DIN 912 M12x25
• 2x Cylinder head screws DIN 912 M12x35
