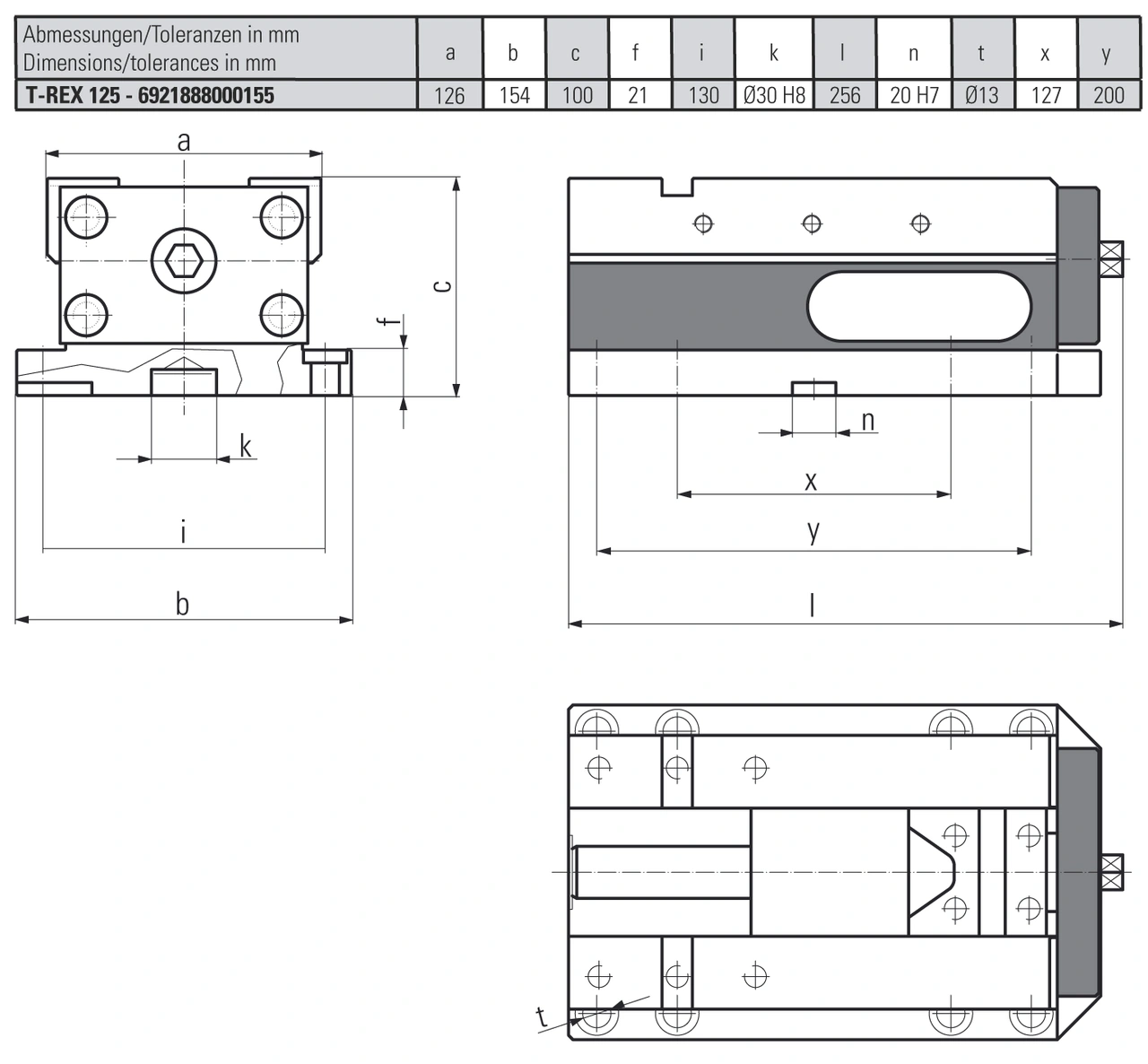

Artikelnr: 6921888000155

Description:

Product features:

• Standard with mounting holes for zero point clamping system, Pitch 200
• Optimal accessibility for 5-sided machining thanks to the combination of compact base and large clamping width
• Stamping and clamping in a single process, in the working area itself, without any additional accessories

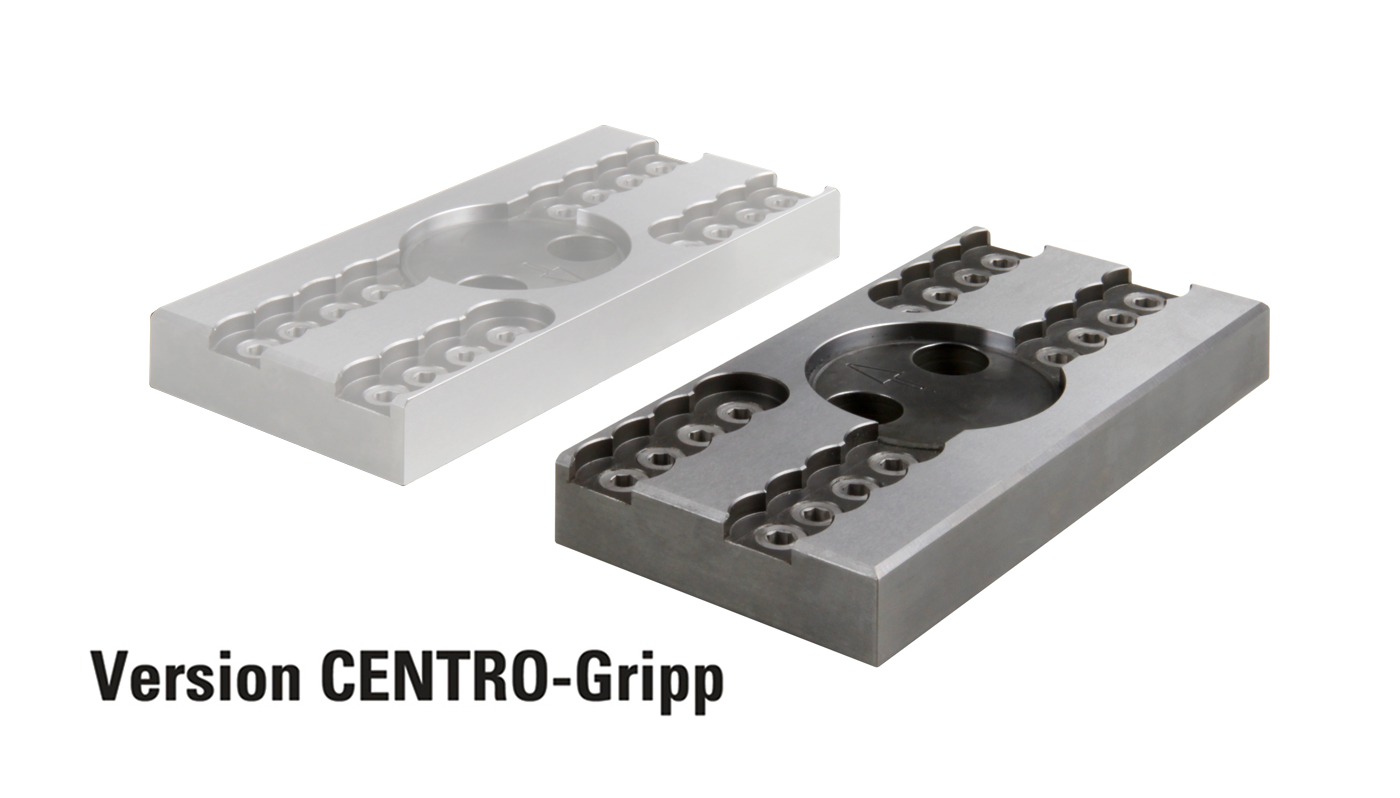

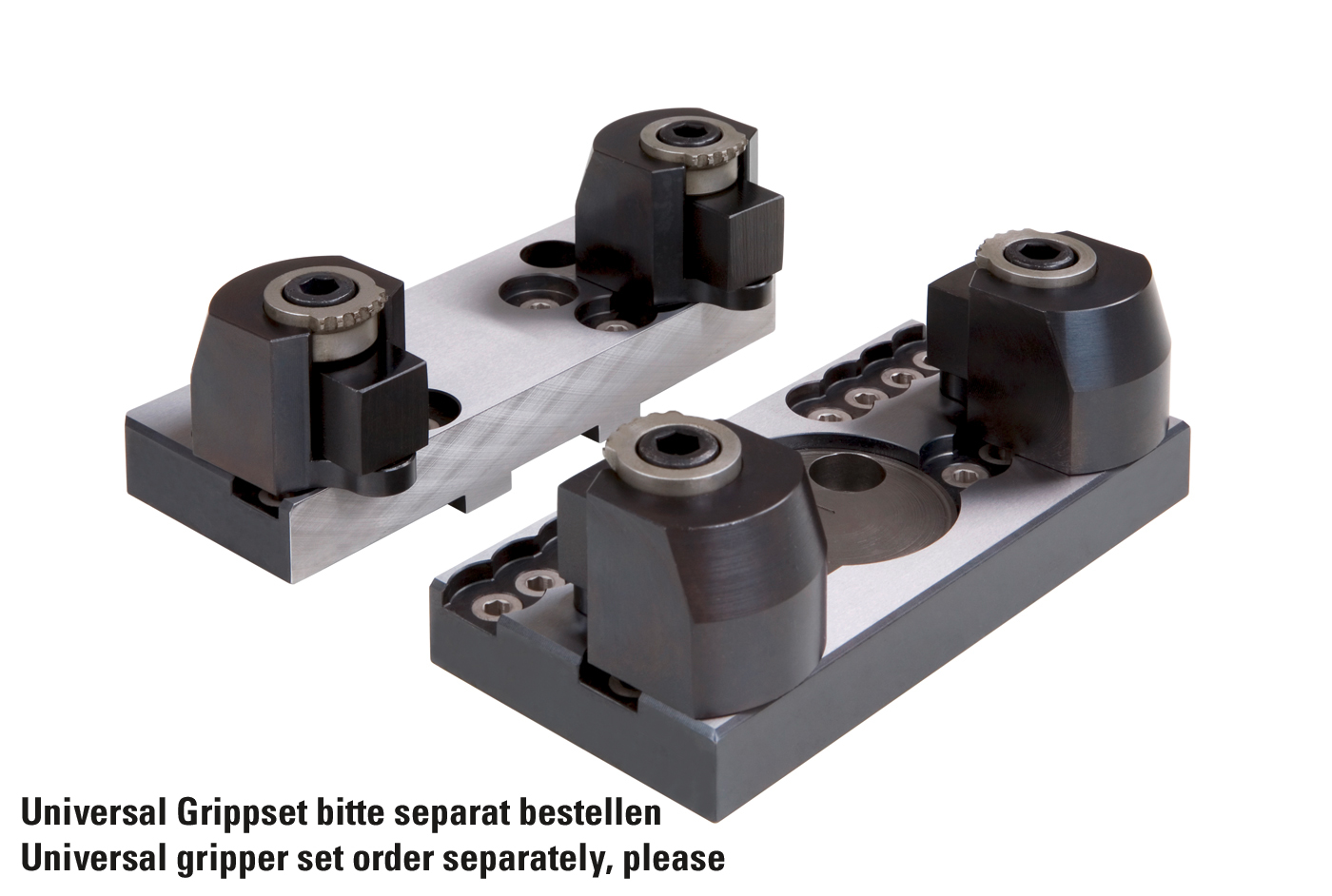

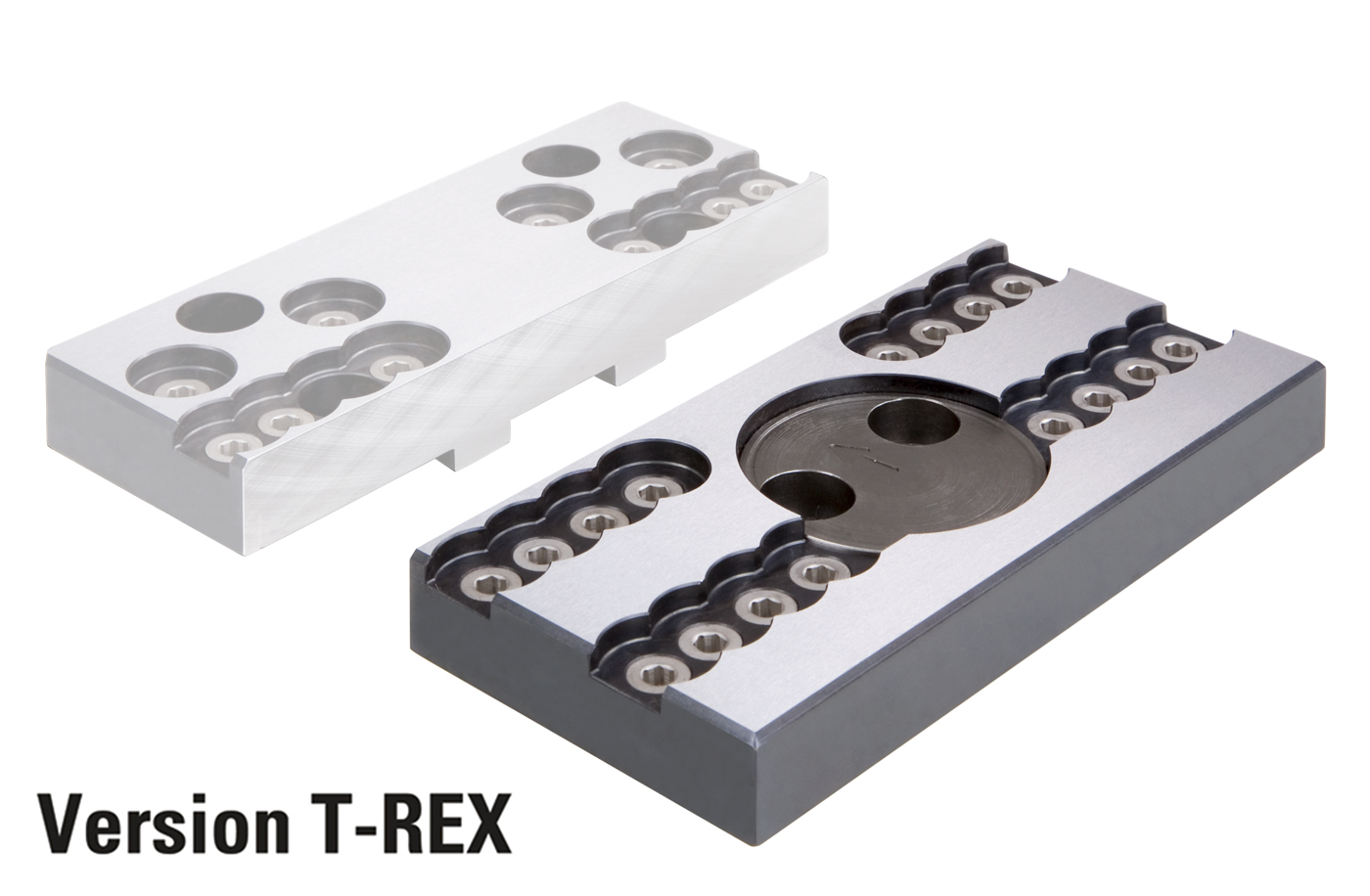

• The movable/pivot support jaw allows different workpiece contours to be clamped
• Gripper studs can be changed without tools and are easy to adjust by hand
• Operation with a torque wrench – max. 30 Nm
• High-pressure spindle with force amplifier
• Fixing via the hole grid on both sides or alternative with side clamps
• Horizontal installation – suitable for vertical CNC-controlled milling machines
• Ideal for use on 5-axis machining centres

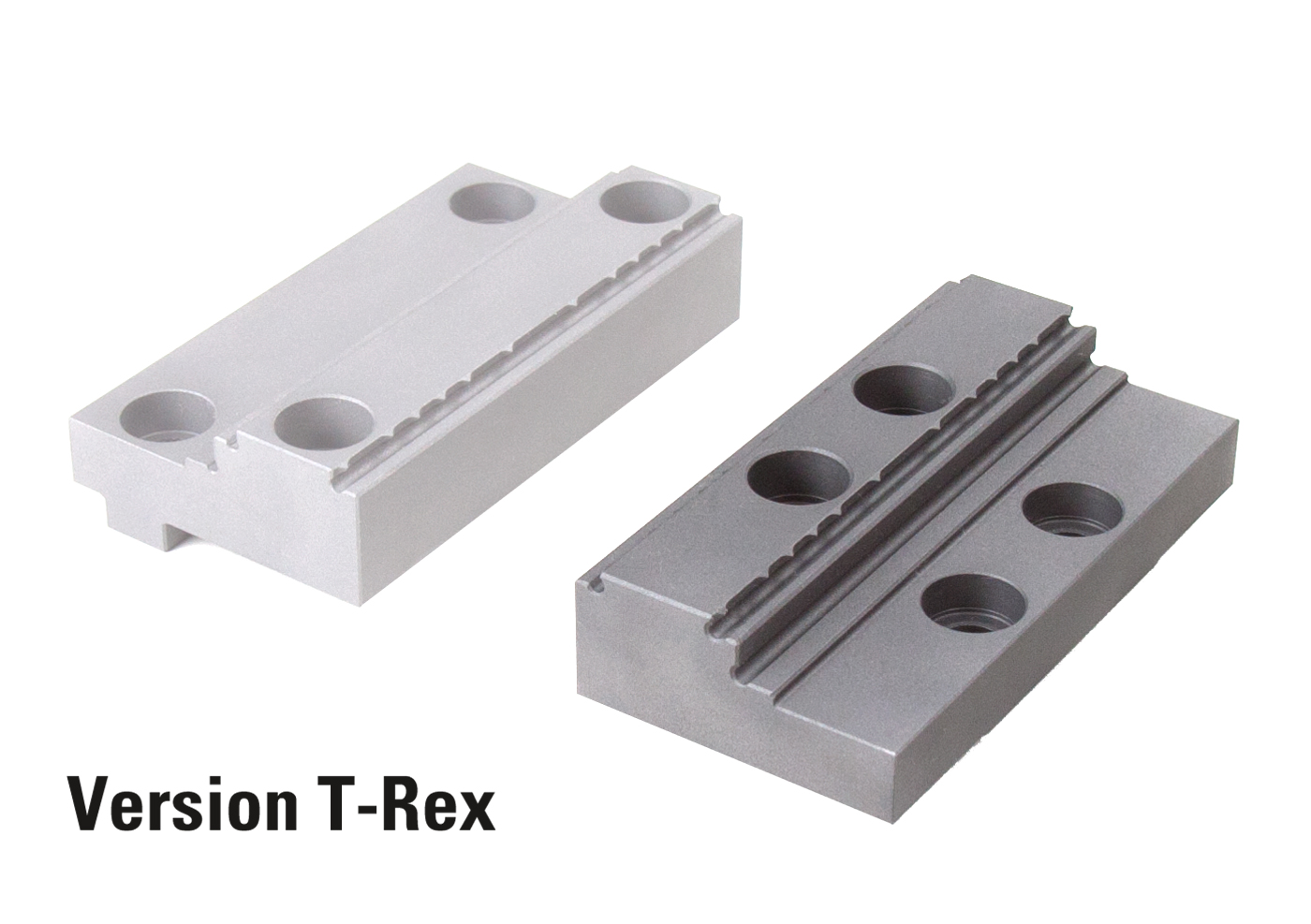

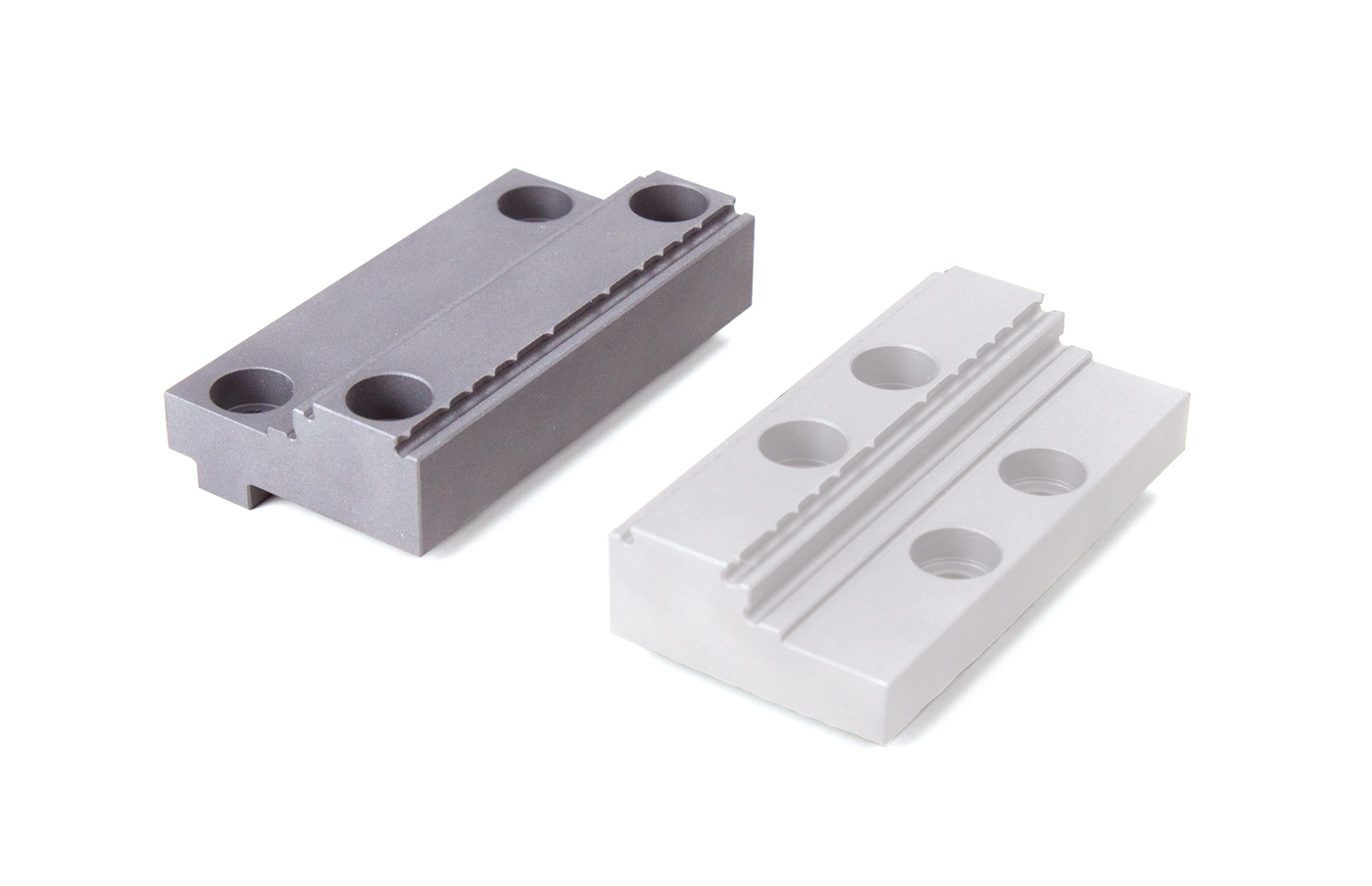

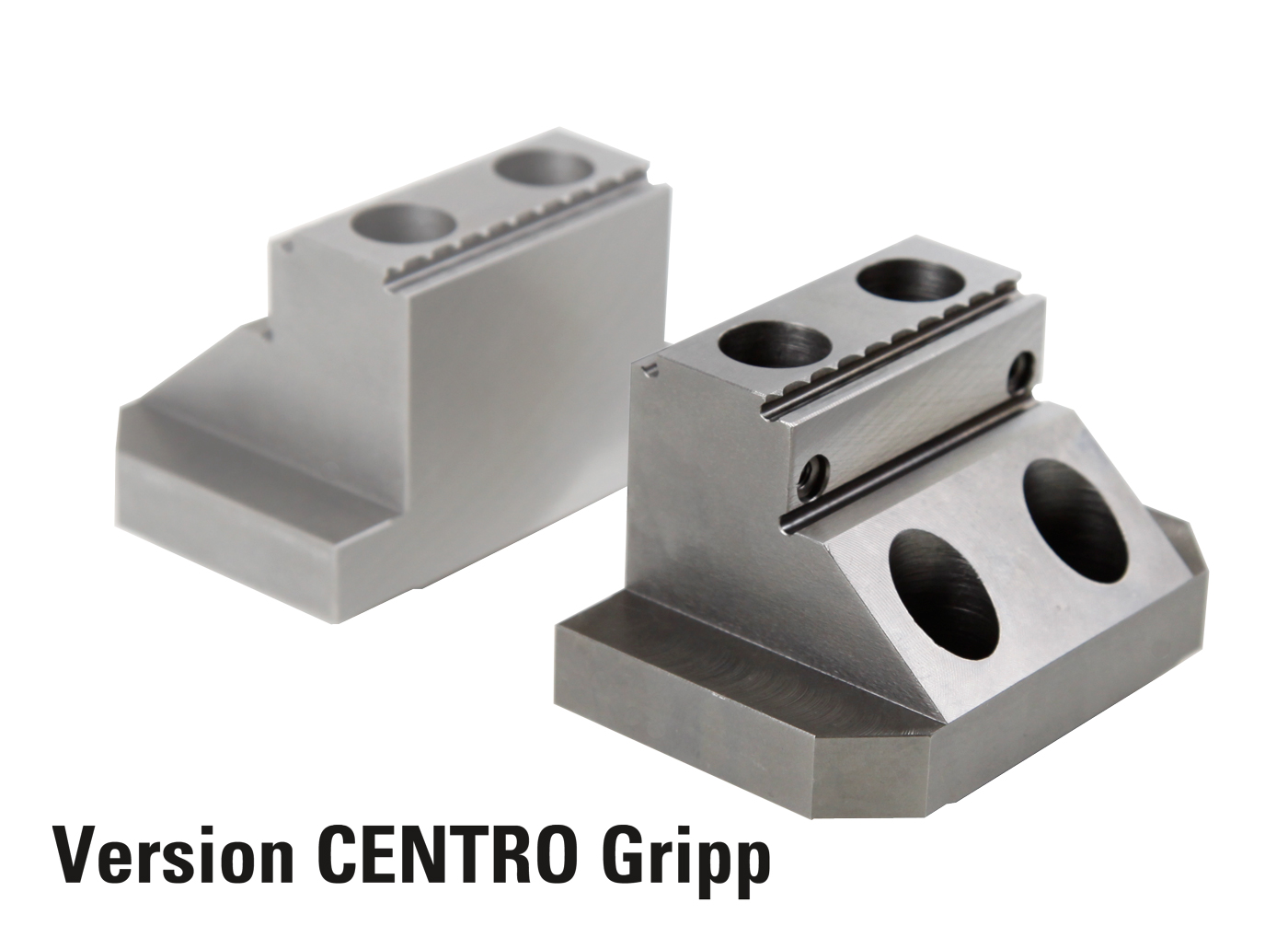

• Reliable and fast clamping of unmachined parts, flame cut and sawn materials with gripp jaws

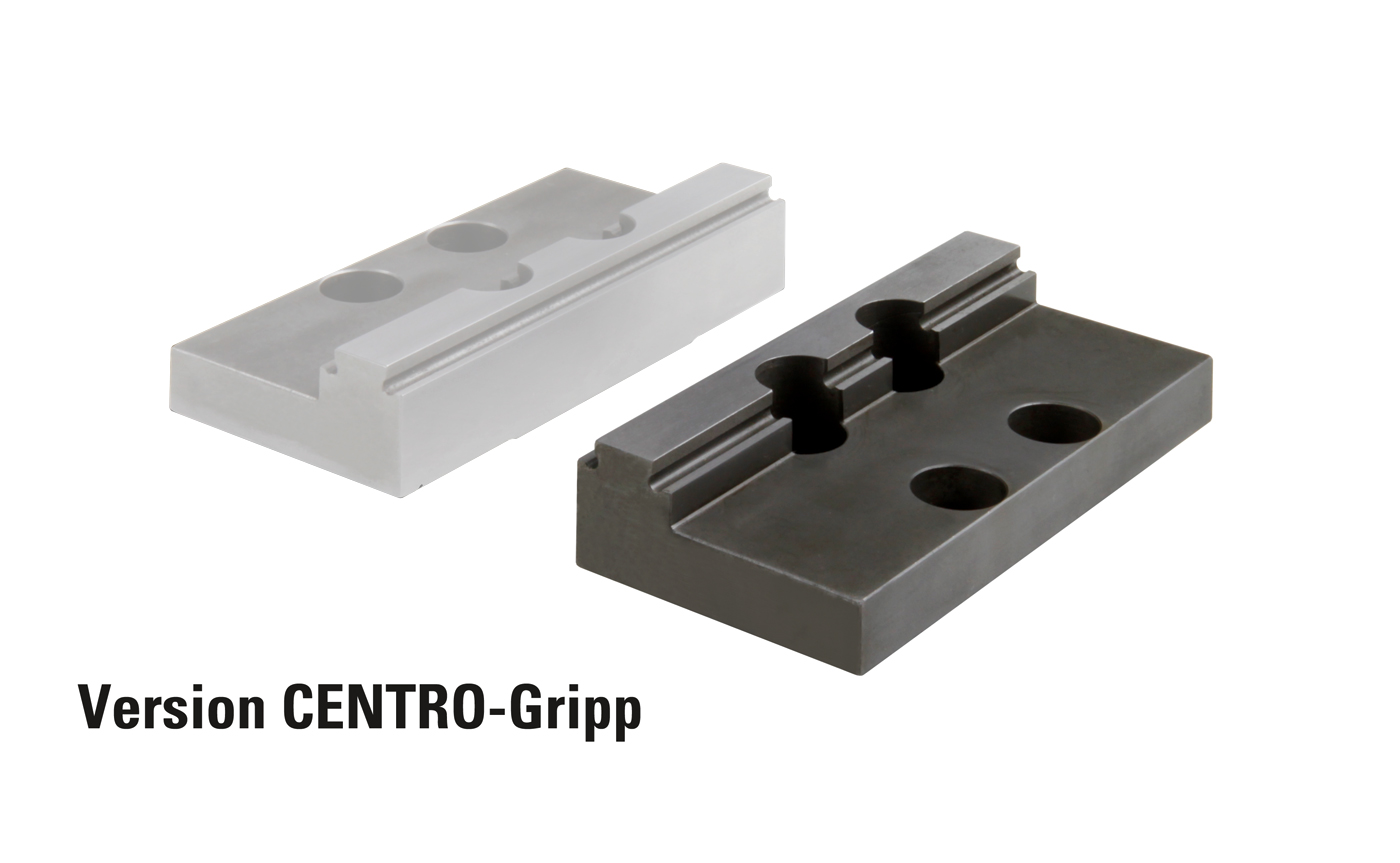

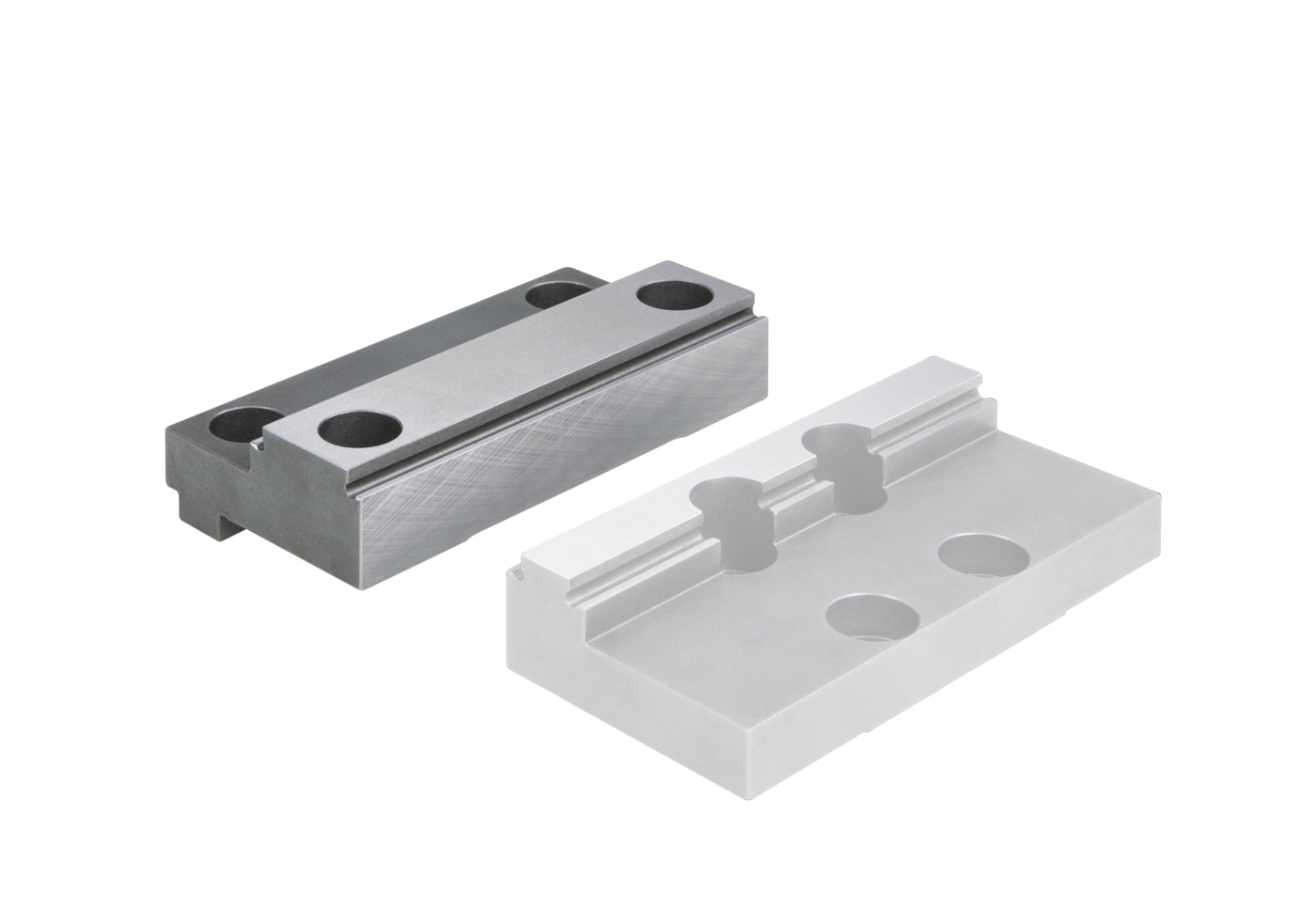

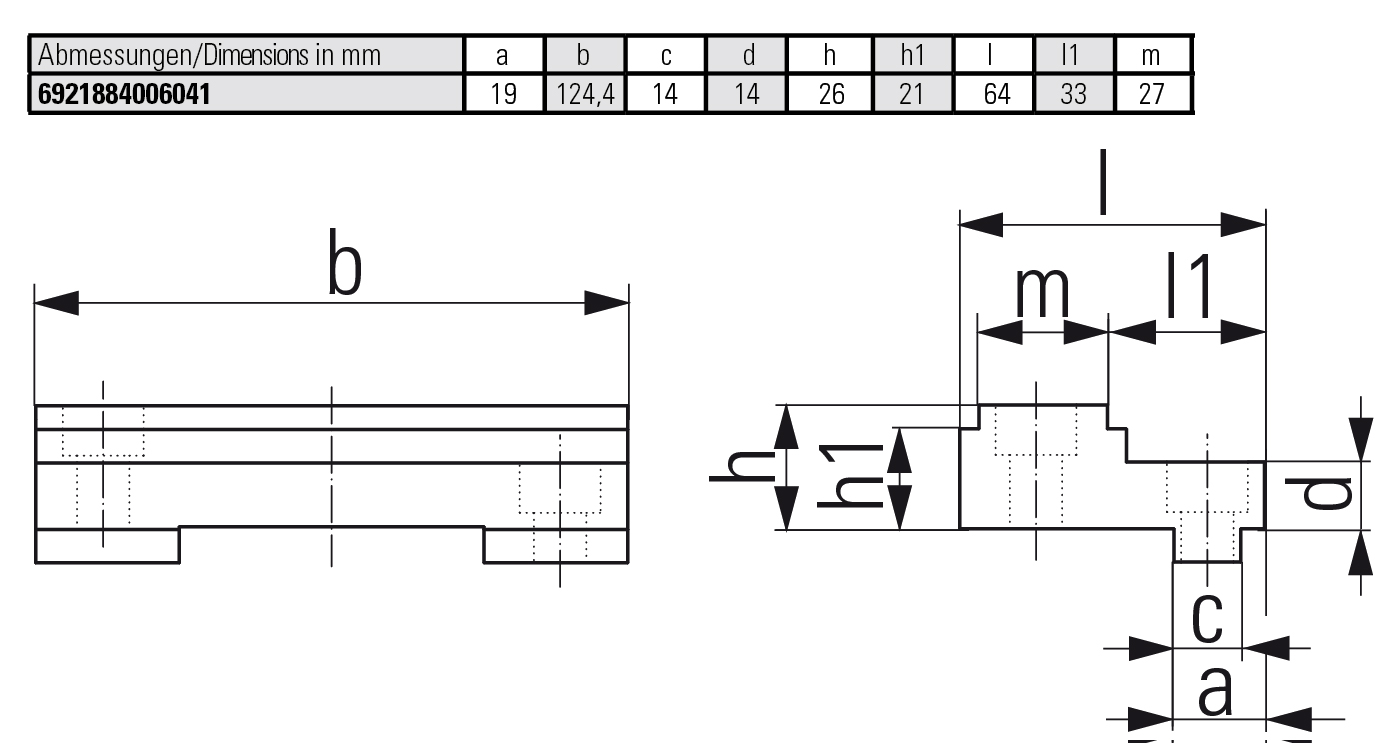

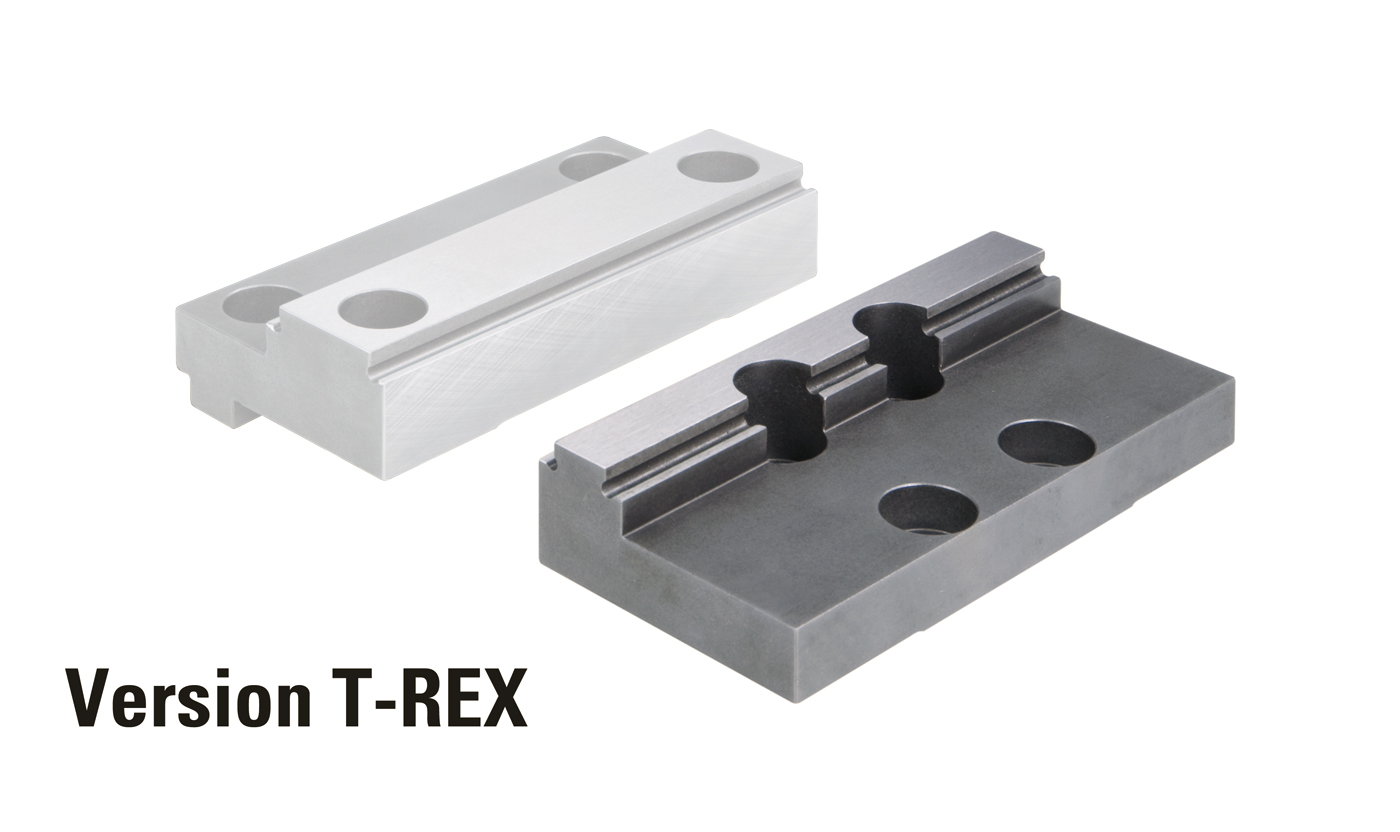

• Clamping of parallel pre-machined workpieces with optional step jaws, Gripping studs suitable for materials with a strength of up to approx. 1400N/mm², depending on accessories


Scope of Supply:

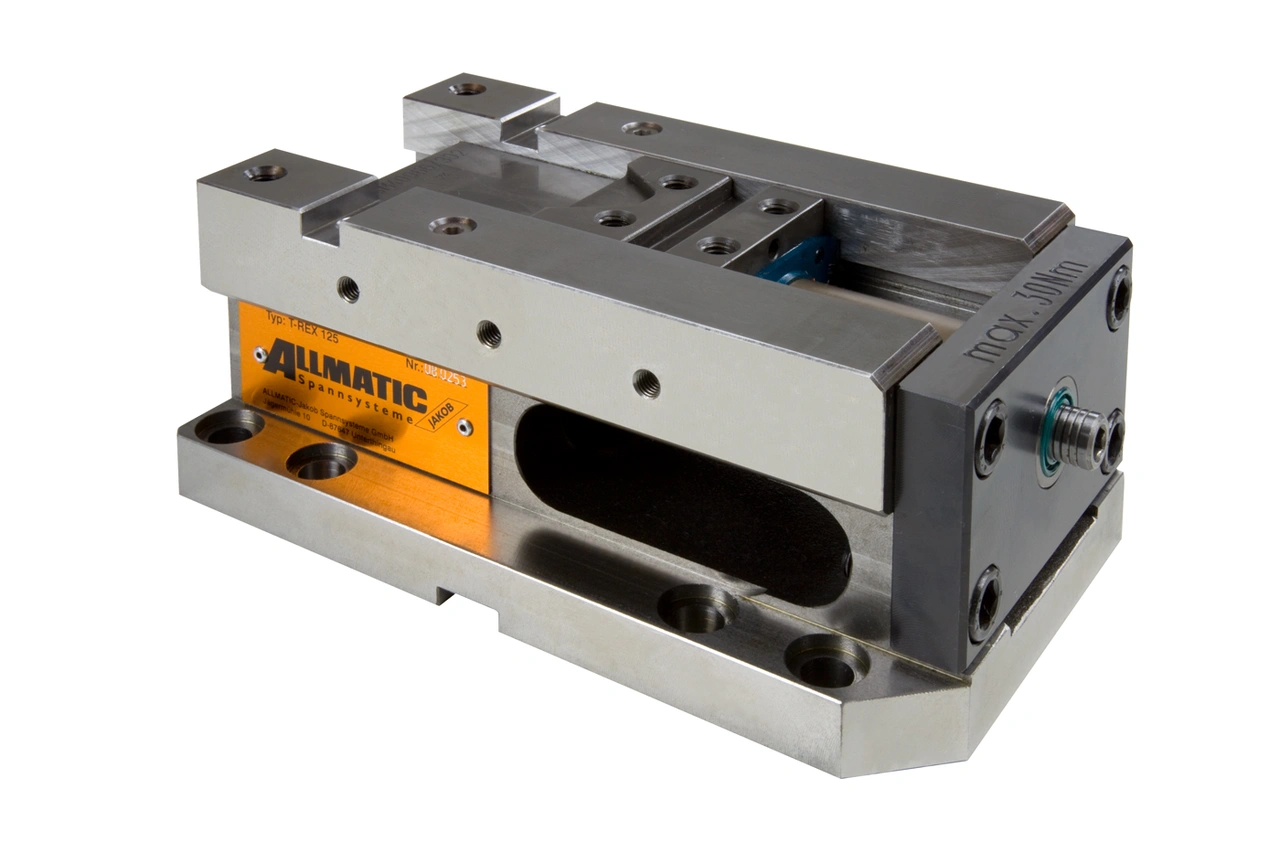

• 1x Vice T-Rex without jaws
• 1x Hexagonal wrench 10-long
• 1x Hexagonal wrench 8-long
• 1x Hexagonal wrench 5-short
• 4x Cylinder head screw m.J6kt.
• 1x Hexagon screwdriver with grip 6kt.
• 1x Operating manual
