Artikelnr: 6921884034931

Description:

• For rectangular workpieces (sawn material) <= 0,5 mm
• Hardened 720 + 50 HV10; hardening depth: 0,7 + 0,2
• Rigid design to prevent vibrations when parts are clamped upright
• Additional clamping surfaces, ground on both sides
• For five-sided machining, ensuring best possible accessibility to the workpiece
• Positive locking through penetration of the centres into the material
• Minimal lost clamping margin of Approx. 4mm
• Suitable for material strength of up to 1000N/mm²

Scope of Supply:

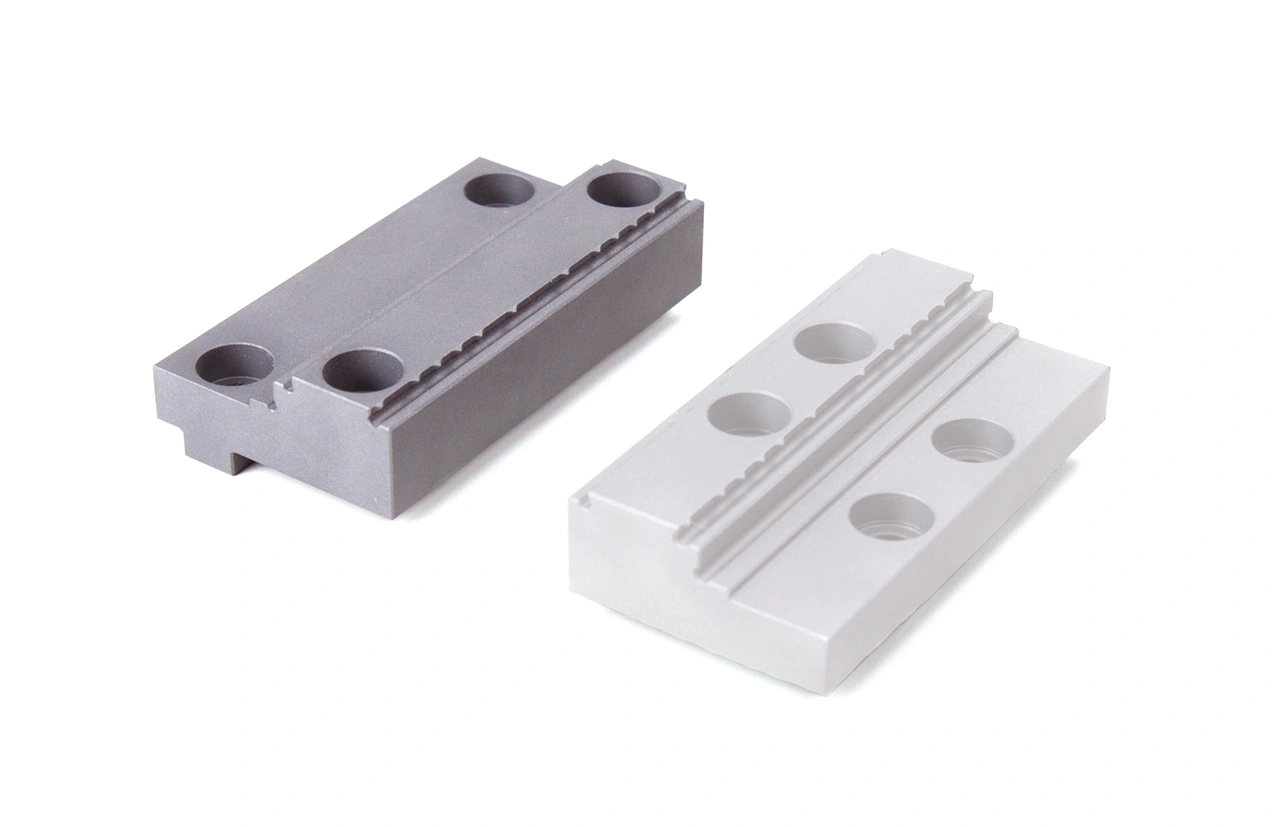

• 1x Gripper jaw fixed with integrated gripper row
• 4x Cylinder head screws DIN 912 M10x30
