Allmatic
Artikelnr: 6921884002041
Description:
- Material: hardened steel
- Hardened 680 + 80 HV30; hardening depth: 0,5 + 0,3
- For clamping parallel pre-machined workpieces
- Clamping surfaces (step) additionally carbide-coated to ensure secure clamping - holding force increased by at least a factor of 2 compared to smooth clamping surfacesPlease note:

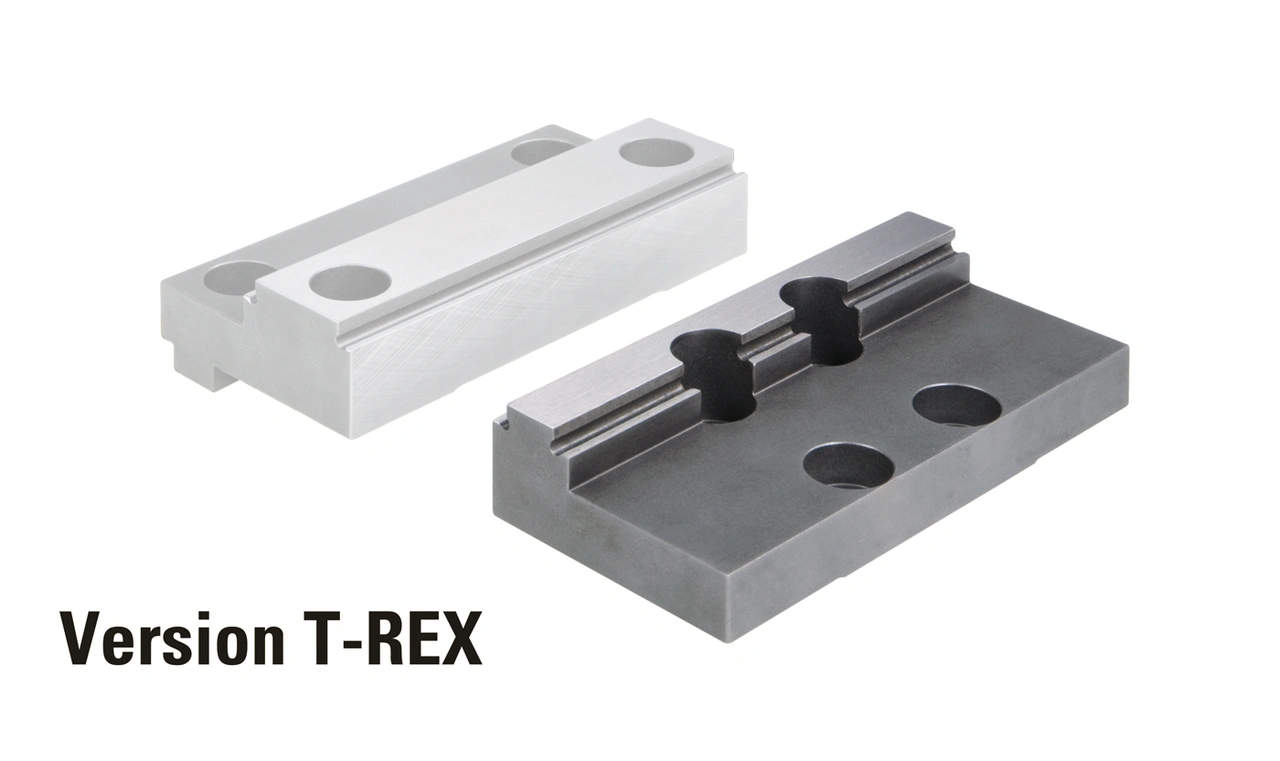

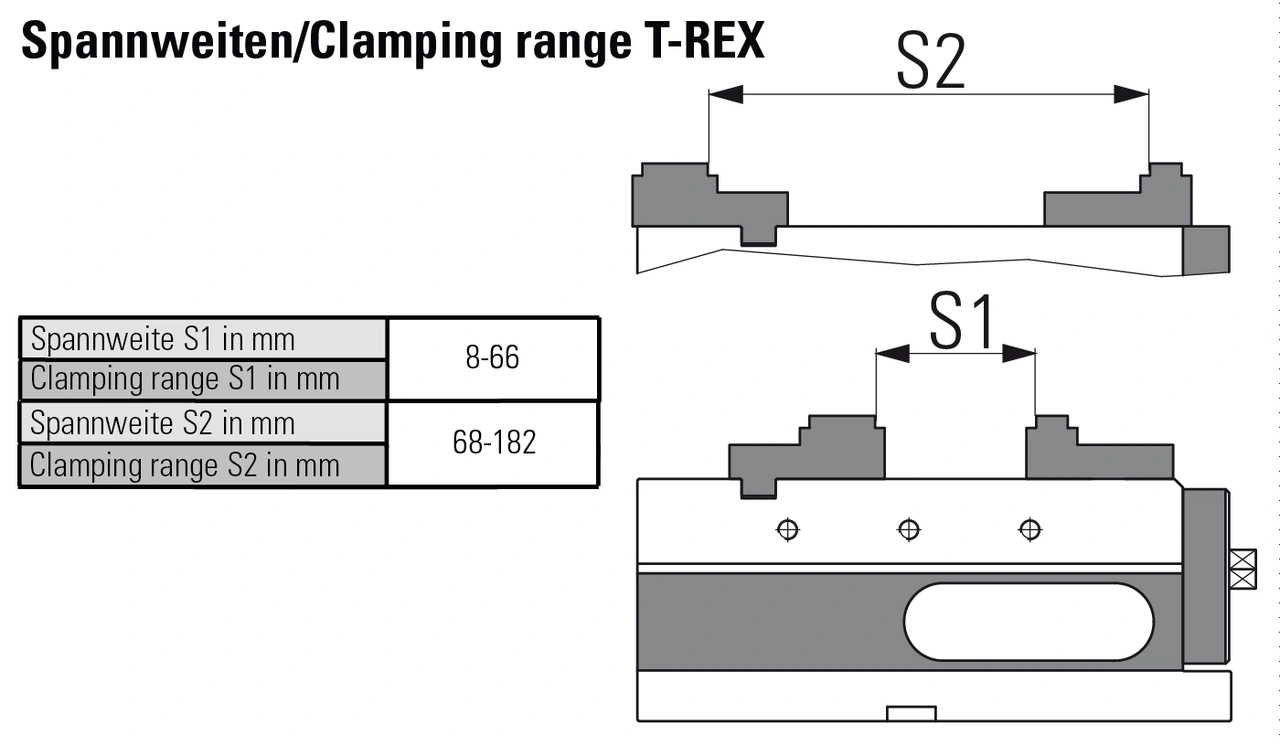

- For the version T-REX you also need the fixed jaw: 6921884006041

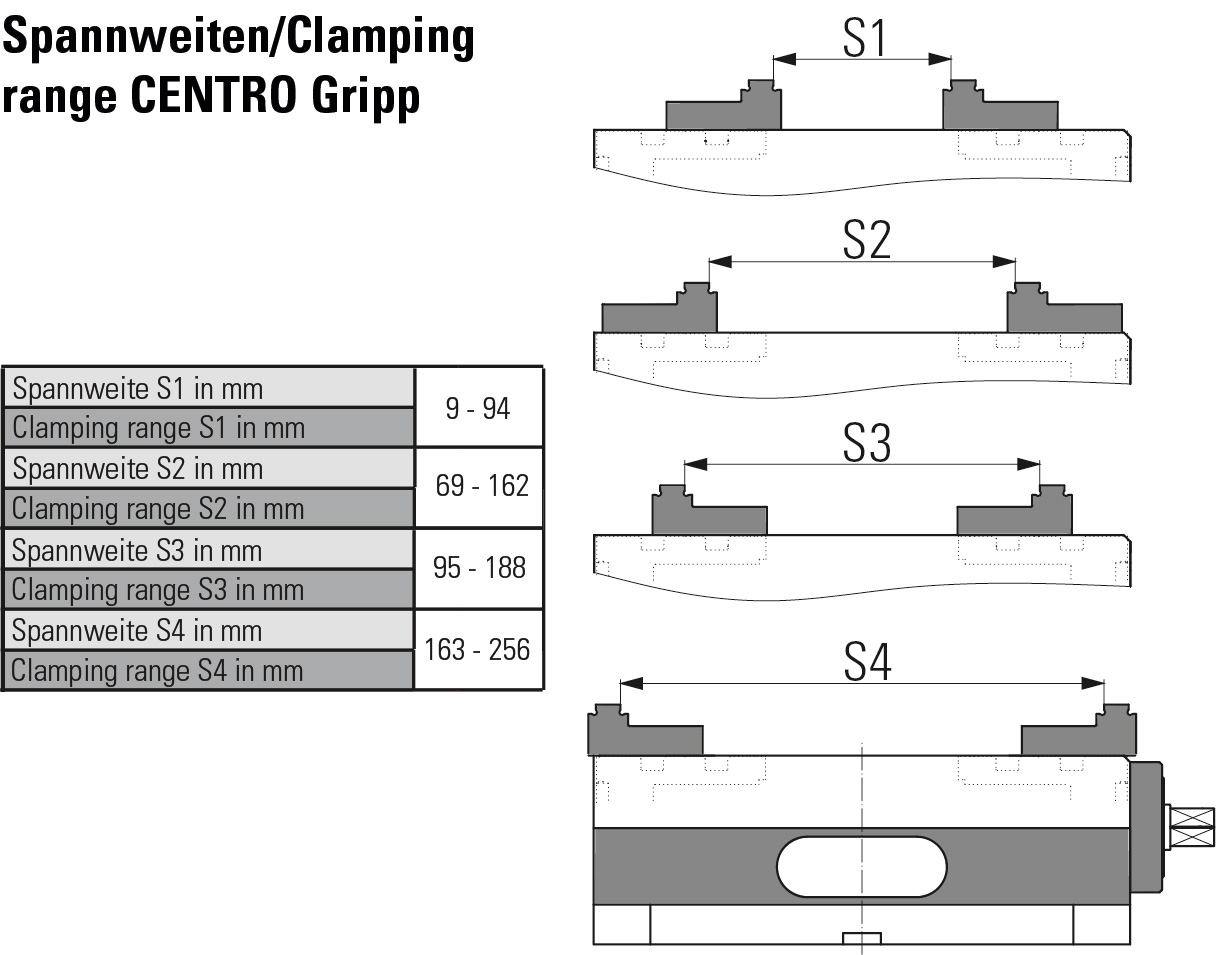

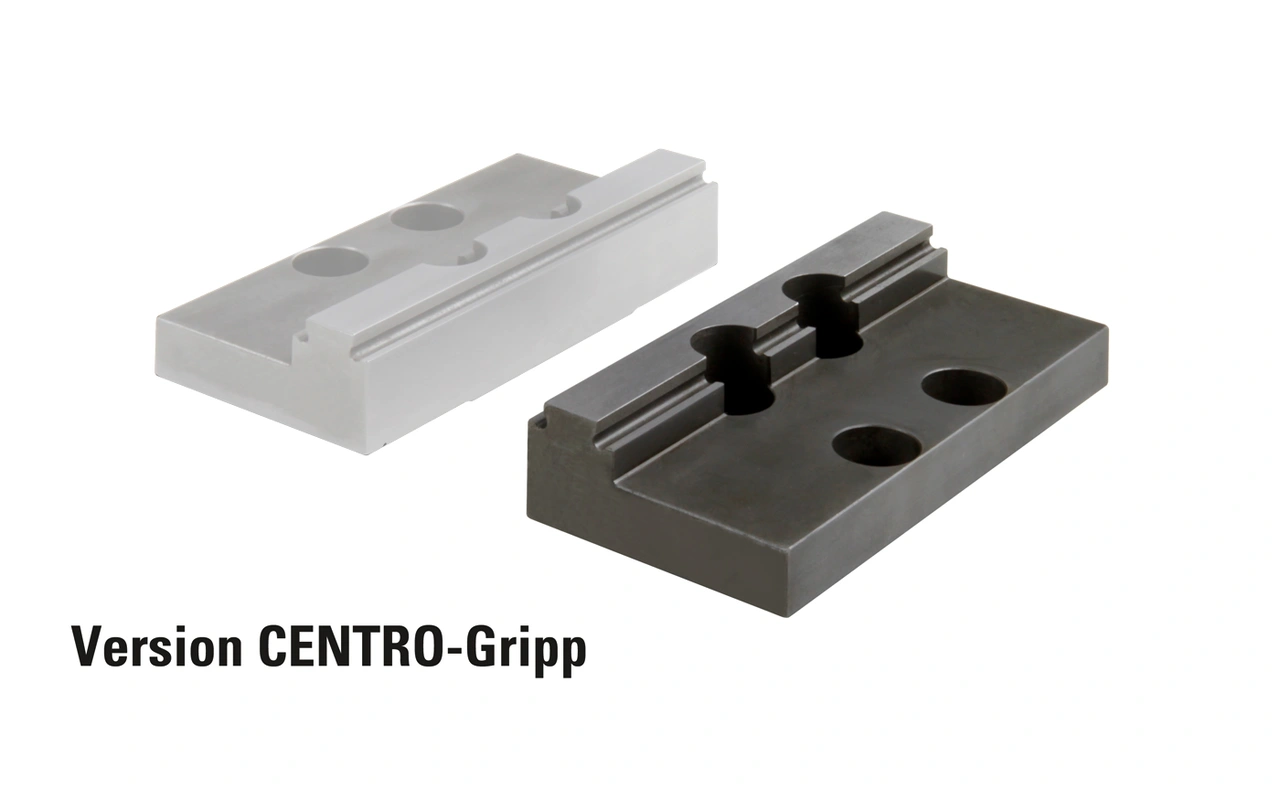

- For the version CENTRO Gripp the mobile jaw is required twice
Scope of Supply:
- 1x Step jaw movable, carbied - coated
- 4x Cylinder head screws DIN 912 M10x20
-

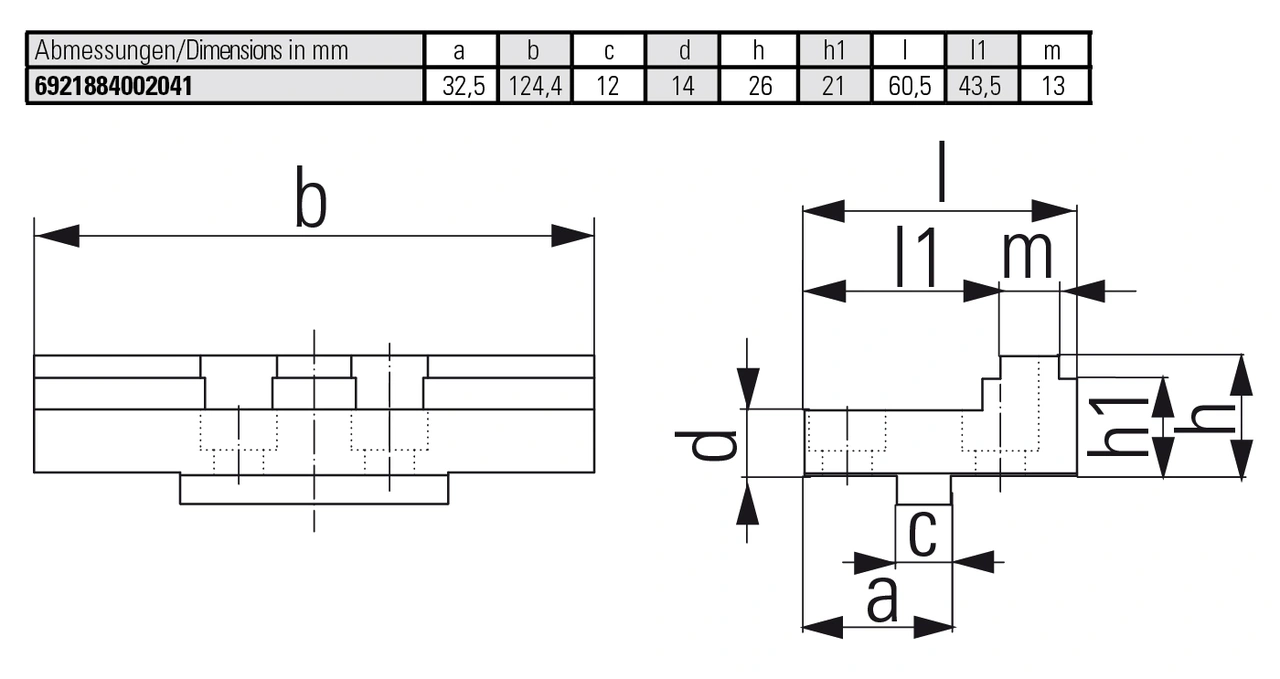

Specifikation
Dimension, a 32.5 Dimension, b 124.4 Dimension, c 12 Dimension, d 14 Dimension, h 26 Dimension, l 60.5 Dimension, m 13 Dimension, h1 21 Dimension, l1 43.5
