Artikelnr: 6921884072242

Description:

• Material: hardened steel
• Case-hardened and tempered 600 + 50 HV10; hardening depth = 0,2
• Front surface can be used as clamping surface (hardened, ground and polished)Pivot jaw:
• For clamping uneven workpieces
• To compensate for non-parallel clamping surfaces
• Studs (pointed/smooth) not included

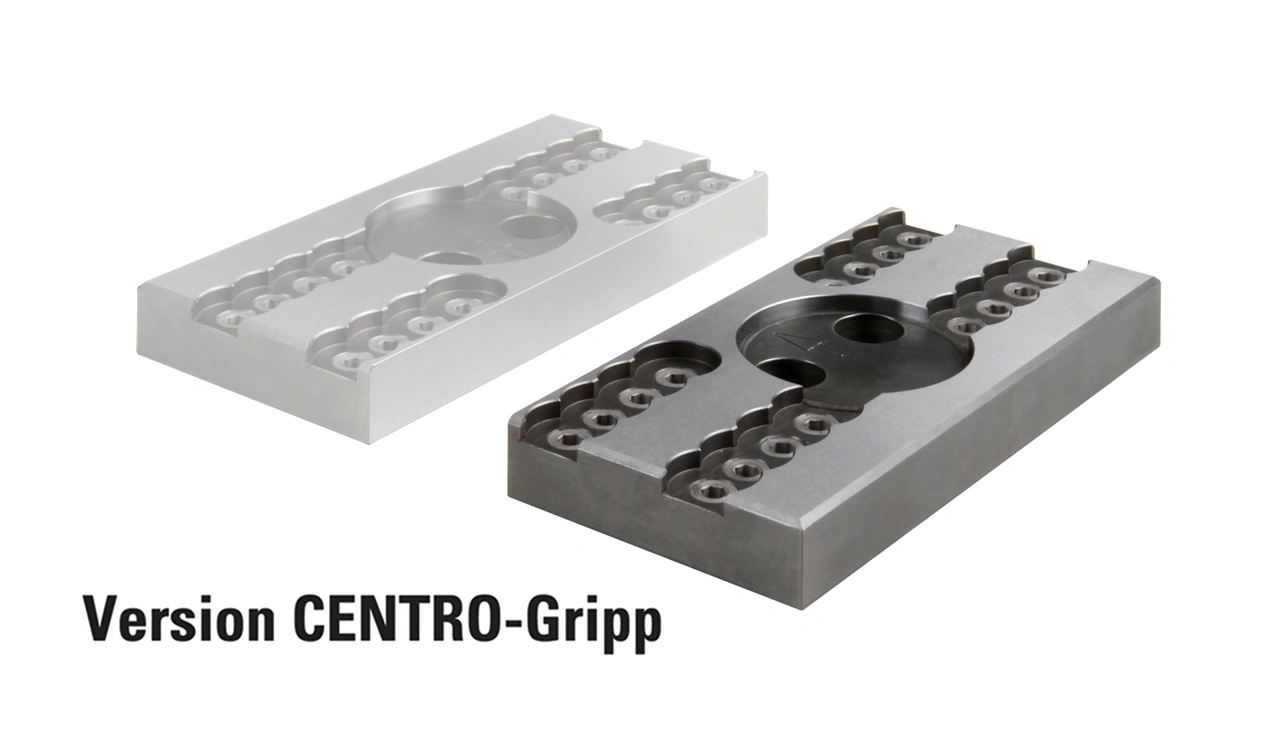

Centro Gripp:

• If using 2 pivot jaws, one pivot jaw must be manually aligned and blocked

Please note:

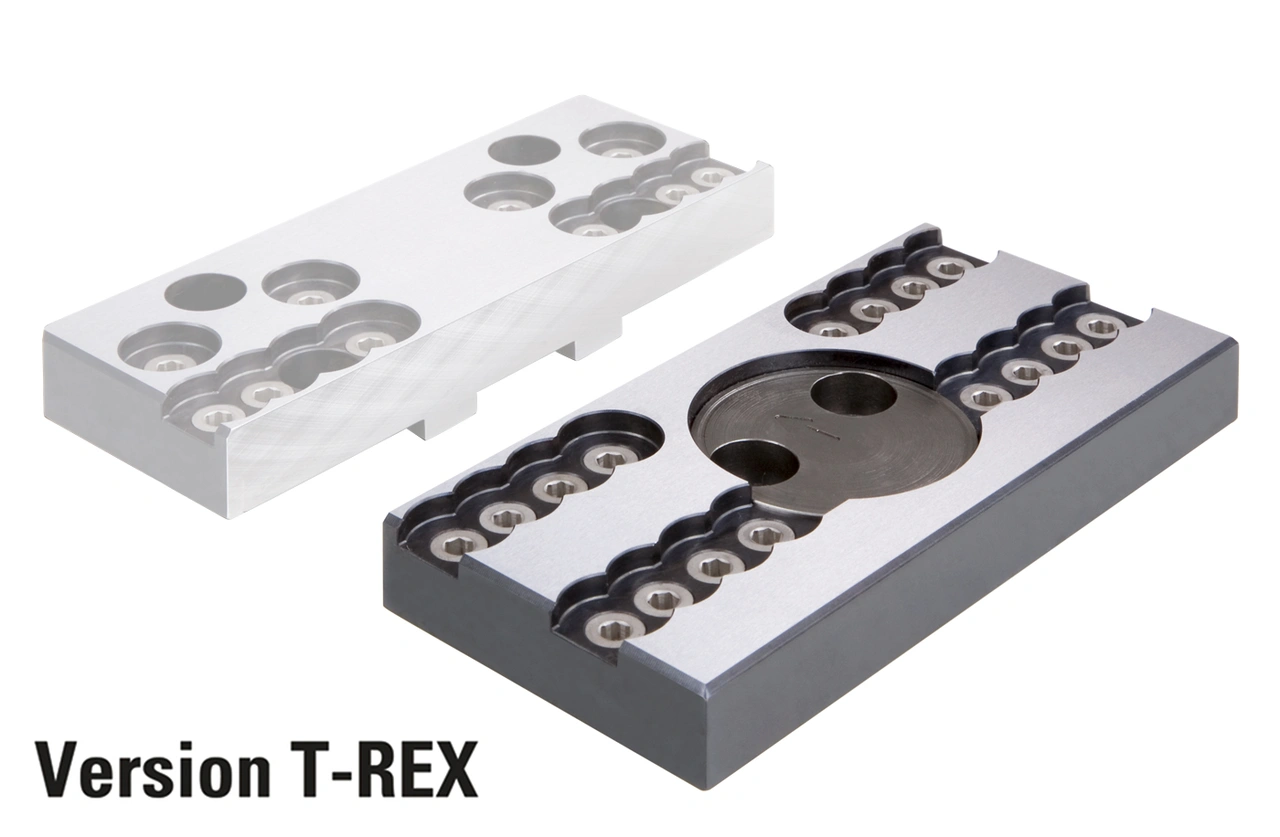

• For the version T-REX you also need the fixed jaw 6921884005242
• For the version CENTRO Gripp the mobile jaw is required twice

Scope of Supply:

• 1x Support jaw for universal gripper set movable, pivot
• 2x Cylinder head screws DIN 912 M10x20
