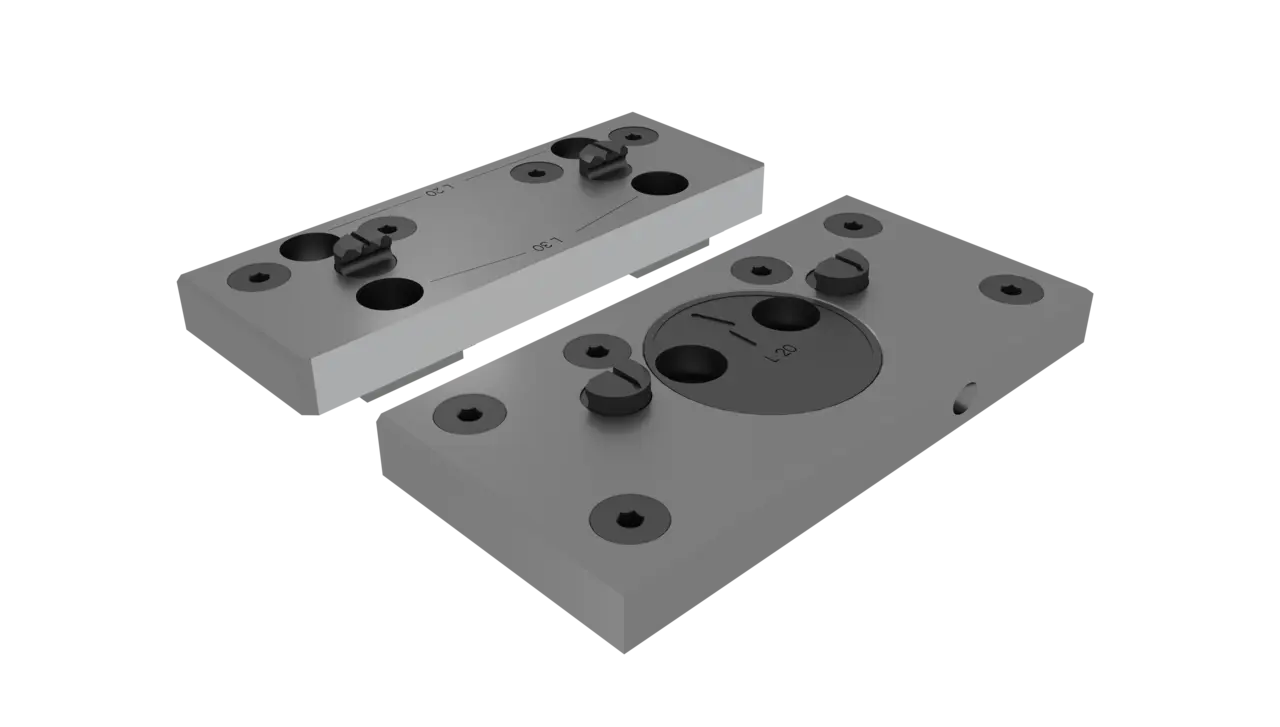

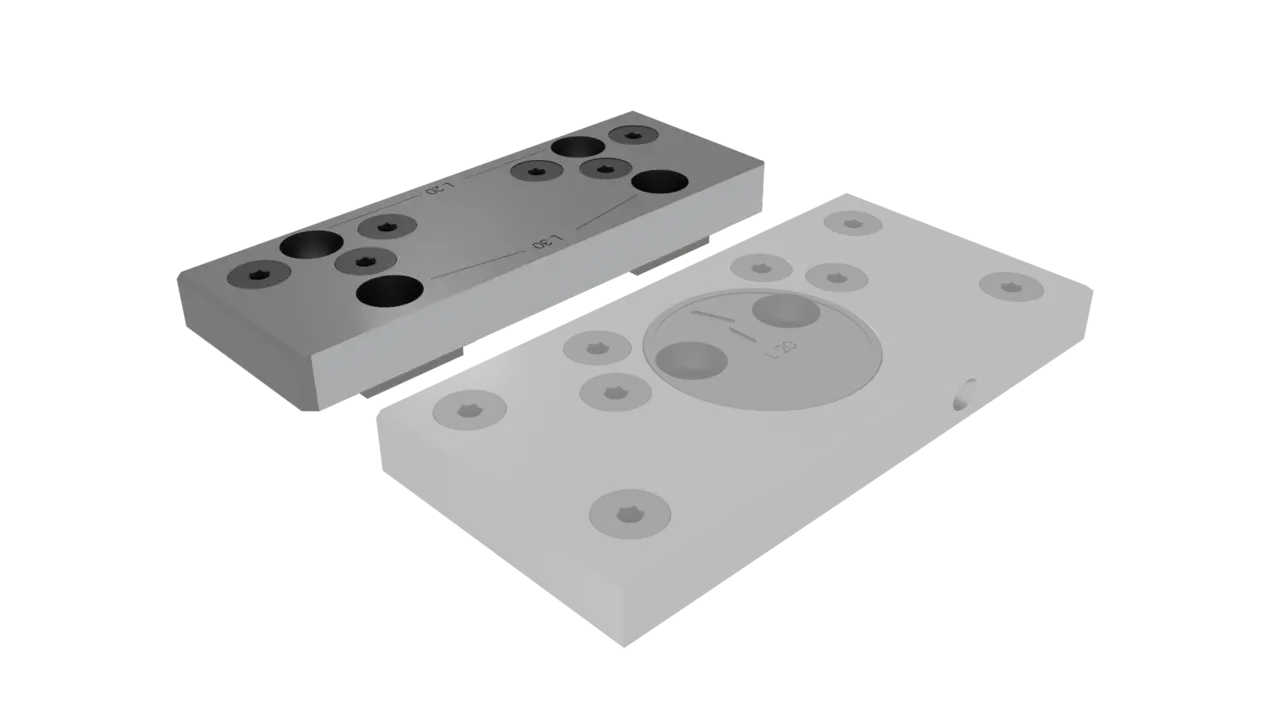

Allmatic
Artikelnr: 6921884005042
Description:
- Material: hardened steel
- Case-hadened and tempered 600 + 50 HV10; hardening depth = 0,2
- For mounting various studs (pointed/smooth)
- Front surface can be used as clamping surface (hardened, ground and polished)
Scope of Supply:
- 1x Support jaws for gripper studs fixed
- 2x Cylinder head screws DIN 912 M10x20
- 2x Cylinder head screws DIN 912 M10x30
-
Specifikation

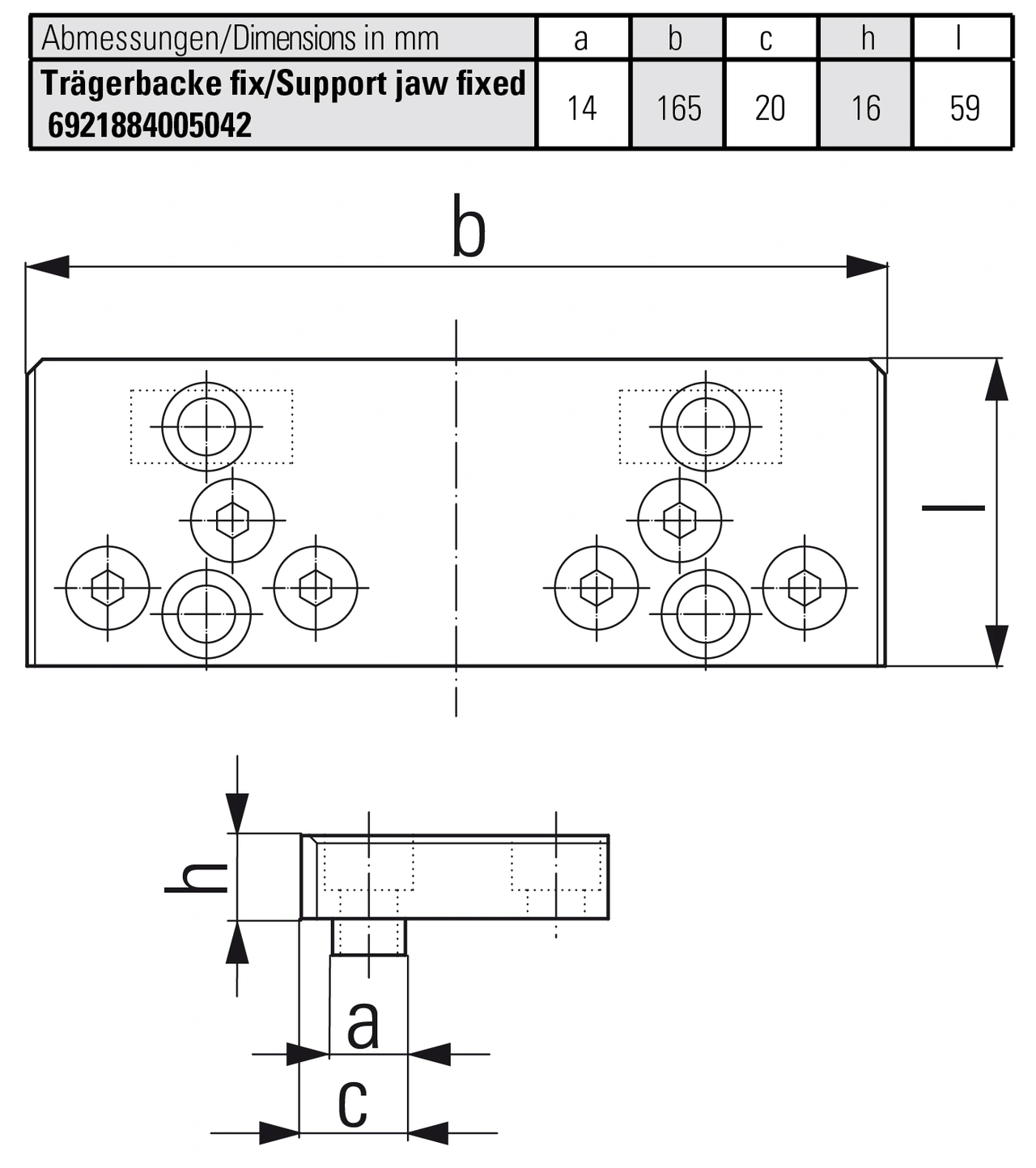

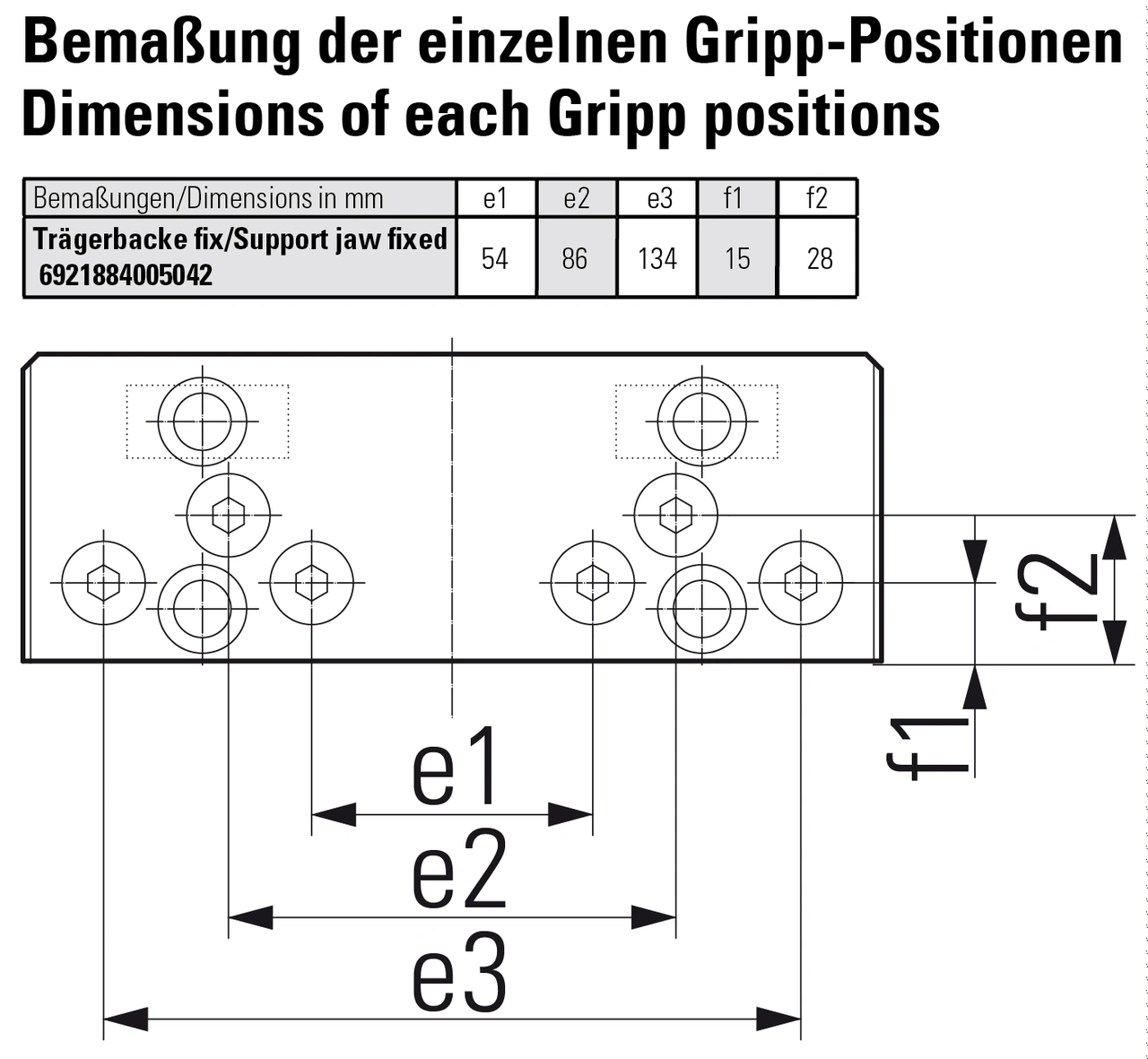

Dimension, a 14 Dimension, b 165 Dimension, c 20 Dimension, e1 54 Dimension, e2 86 Dimension, e3 134 Dimension, f1 15 Dimension, f2 28 Dimension, h 16 Dimension, l 59
