Allmatic
Artikelnr: 6921884041141
Description:
- Material: hardened steel
- Hardened 680 + 80 HV30; hardening depth: 0,5 + 0,3
- For clamping parallel pre-machined small workpieces
- Further enhanced accessibility to the workpiece thanks to slim, tall shape - also optimal for short tools
- Front surface (step) additionally carbide-coated to ensure secure clamping - holding force increased by at least a factor of 2 compared to smooth clamping surfaces
Scope of Supply:
- 1x Reduced-width jaw, 20 mm fixed
- 2x Cylinder head screws DIN 912 M10x20
- 2x Cylinder head screws DIN 912 M10x30
-
Specifikation

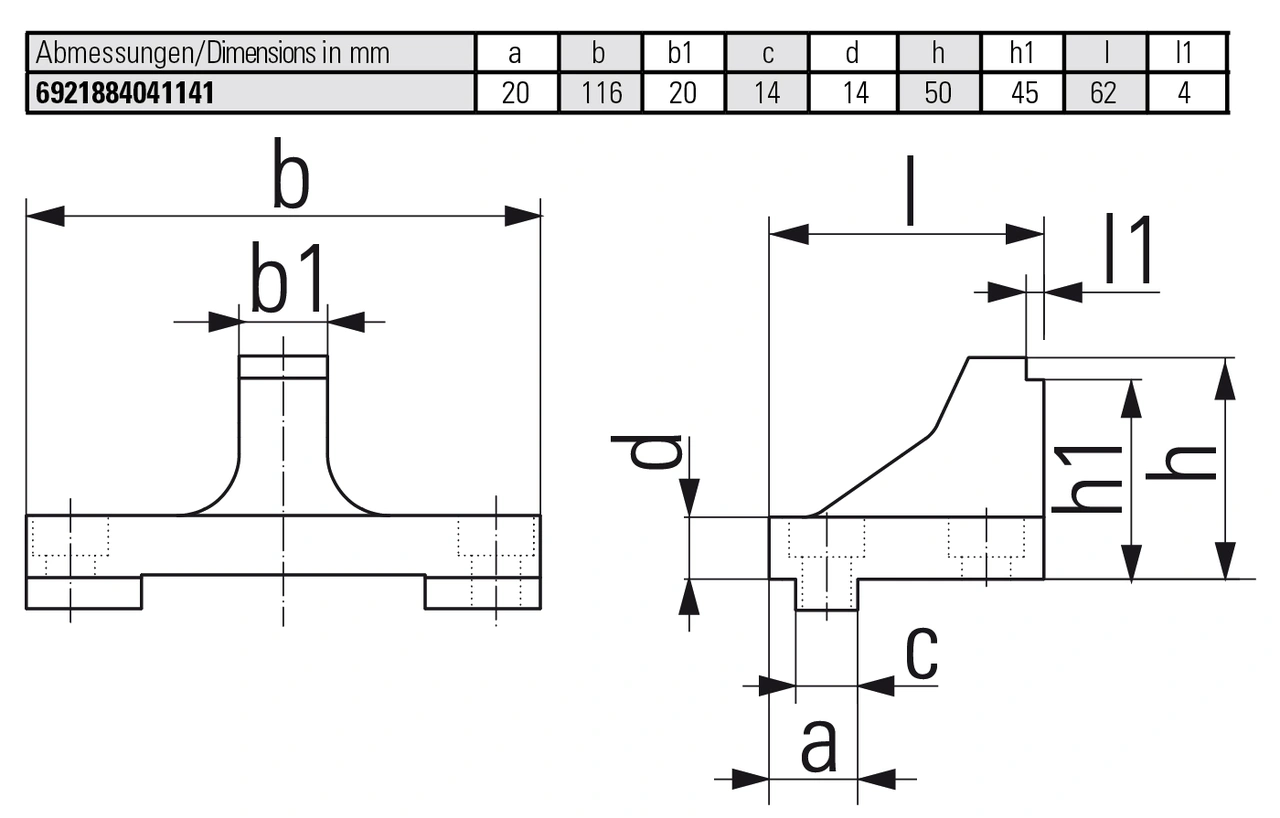

Dimension, a 20 Dimension, b 116 Dimension, b1 20 Dimension, c 14 Dimension, d 14 Dimension, h 50 Dimension, l 62 Dimension, h1 45 Dimension, l1 4
