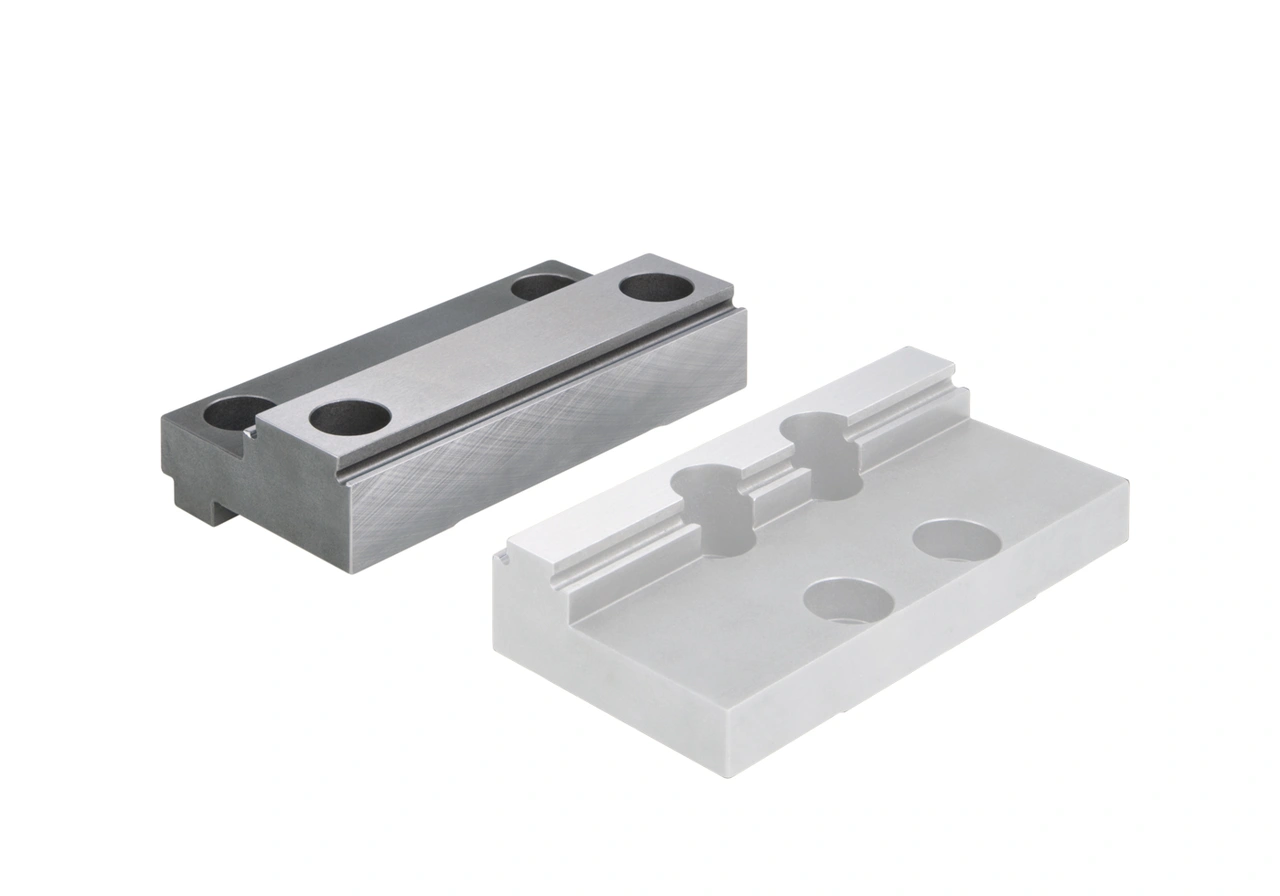

Allmatic
Artikelnr: 6921884006041
Description:
- Material: hardened steel
- Hardened 680 + 80 HV30; hardening depth: 0,5 + 0,3
- For clamping parallel pre-machined workpieces
- Clamping surfaces (step) additionally carbidecoated to ensure secure clamping - holding force increased by at least a factor of 2 compared to smooth clamping surfaces
Scope of Supply:
- 1x Step jaw fixed, carbide - coated
- 4x Cylinder head screws DIN 912 M10x30
-

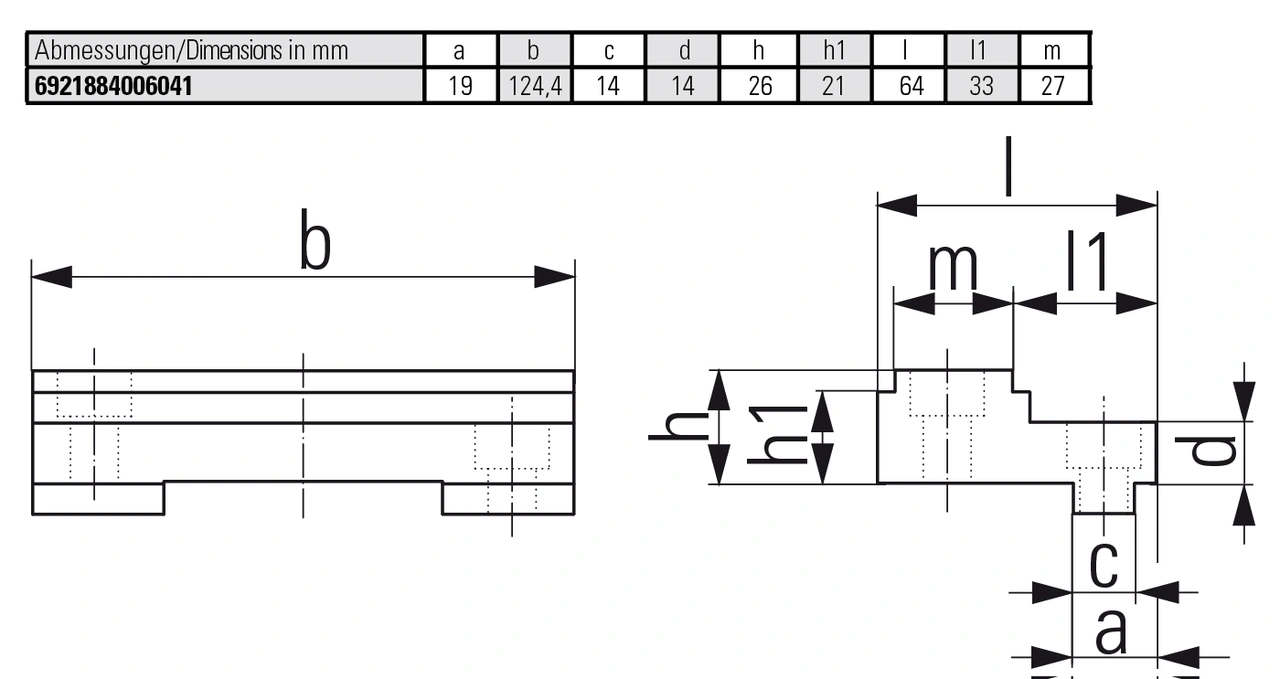

Specifikation
Dimension, a 19 Dimension, b 124.4 Dimension, c 14 Dimension, d 14 Dimension, h 26 Dimension, l 64 Dimension, m 27 Dimension, h1 21 Dimension, l1 33
