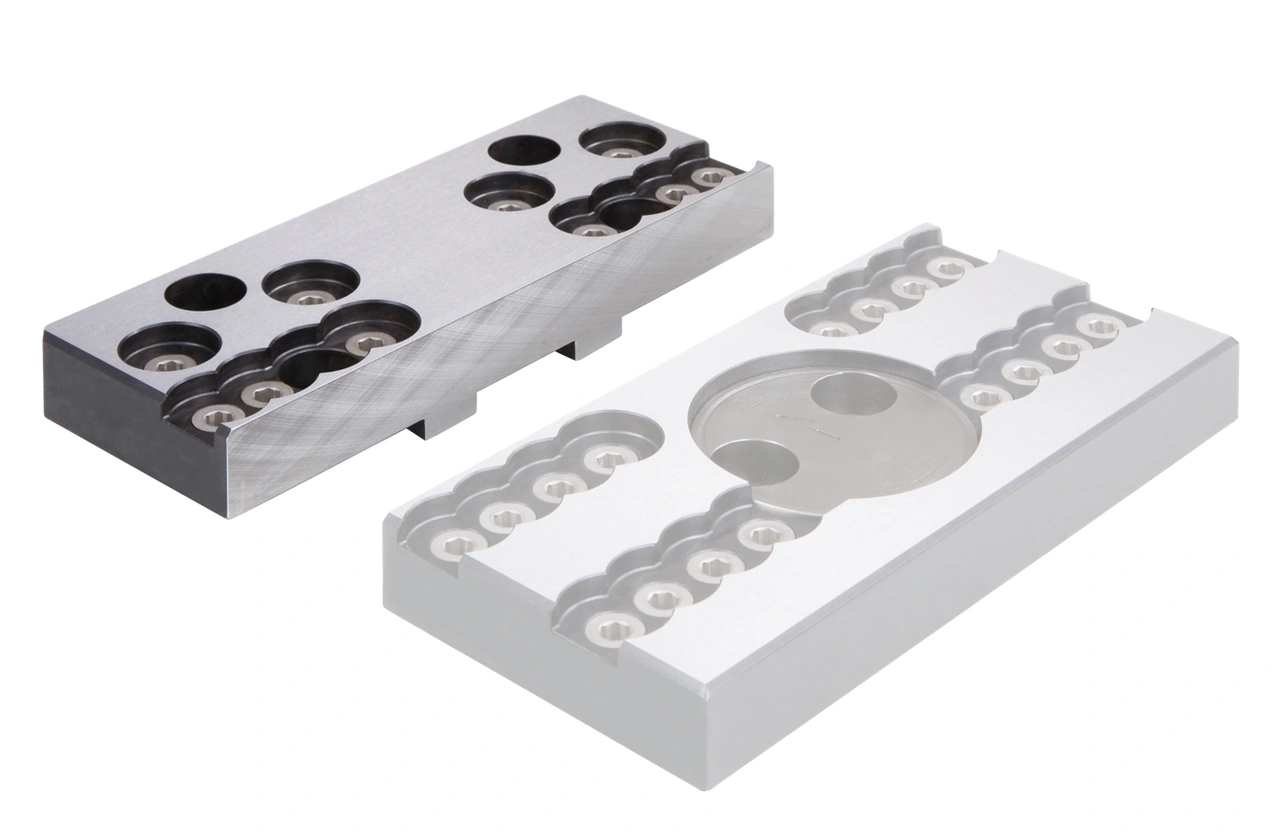

Allmatic
Artikelnr: 6921884005242
Description:
- Material: hardened steel
- Case-hardened and tempered 600 + 50 HV10; hardening depth = 0,2
- Front surface can be used as a clamping surface (hardened, ground and polished)
Scope of Supply:
- 1x Support jaw for Universal Grippset fix
- 2x Cylinder head screws DIN 912 M10x20
- 2x Cylinder head screws DIn 912 M10x30
-

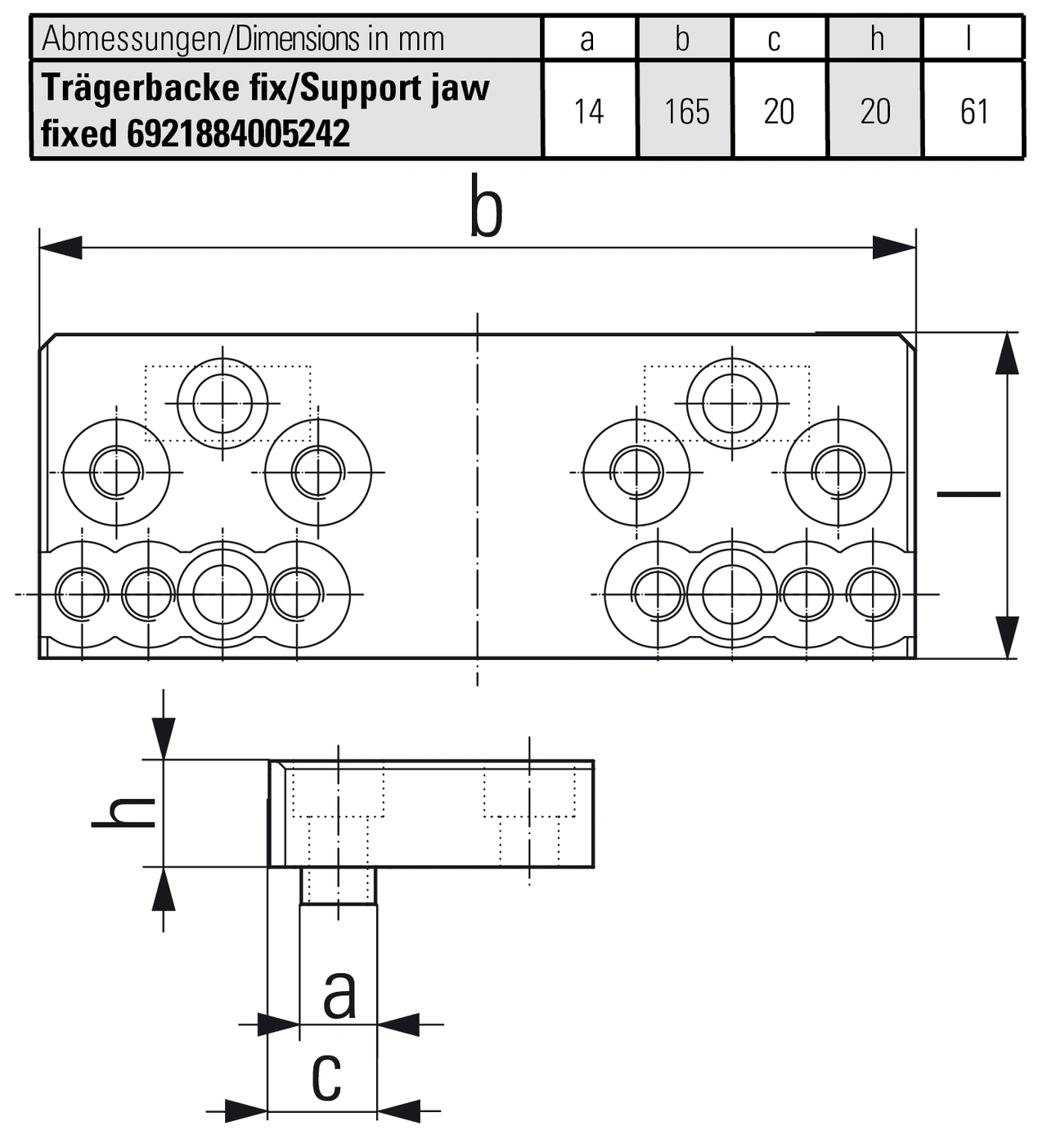

Specifikation

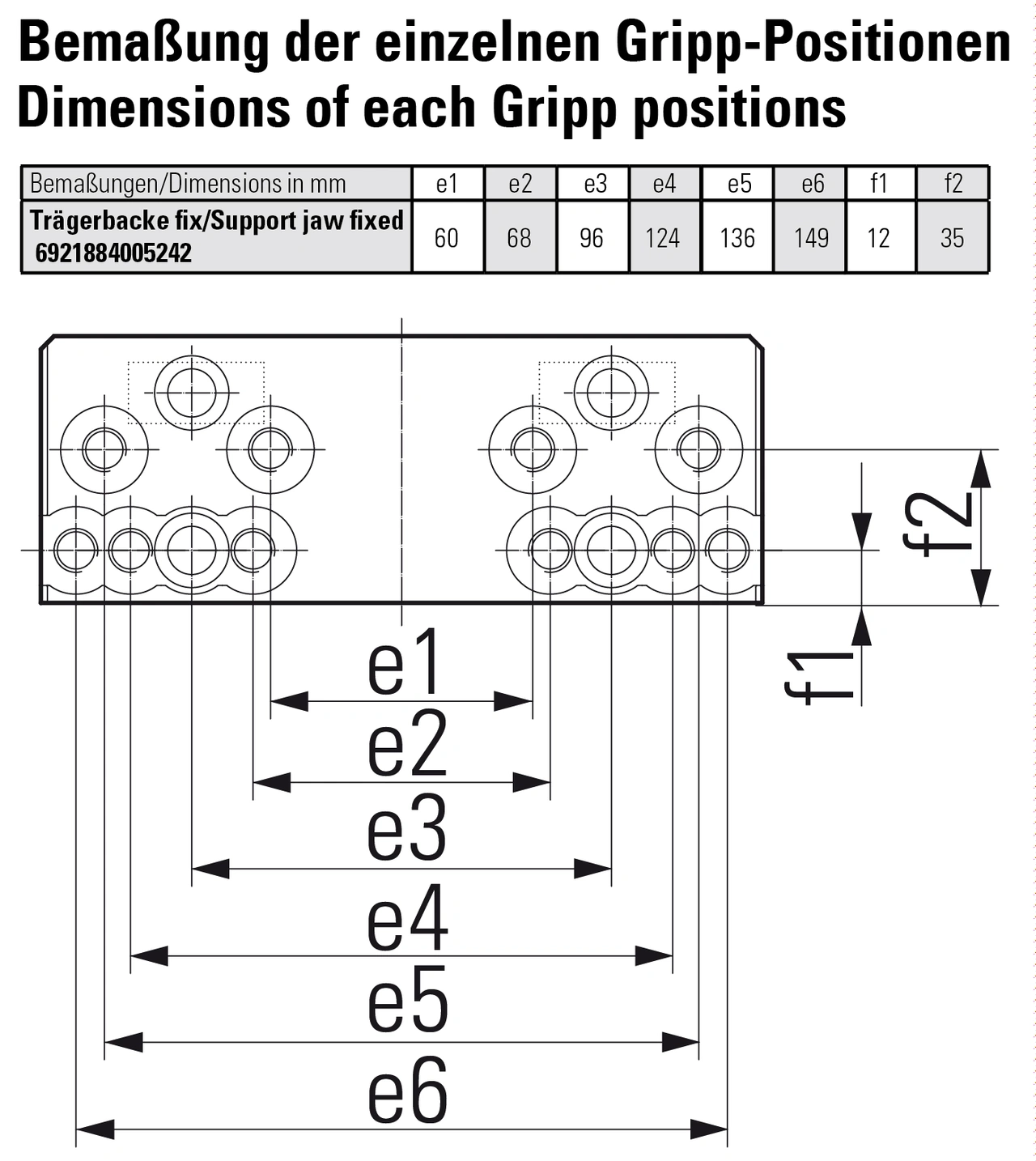

Dimension, a 14 Dimension, b 165 Dimension, c 20 Dimension, e1 60 Dimension, e2 68 Dimension, e3 96 Dimension, e4 124 Dimension, e5 136 Dimension, e6 149 Dimension, f1 12 Dimension, f2 35 Dimension, h 20 Dimension, l 61
