Artikelnr: 6921534036931

Description:

• For rectangular workpieces (sawn material) ? 0,5 mm
• Hardened 720 + 50 HV10; hardening depth 0,7 + 0,2
• Rigid design to prevent vibrations when parts are clamped upright
• Additional clamping surfaces, ground on both sides
• For five-sided machining, ensuring best possible accessibility to the workpiece
• Positive locking through penetration of the centres into the material
• Minimal lost clamping margin of approx. 4 mm
• Suitable for material strenght of up to 1000 N/mm²

Please note:

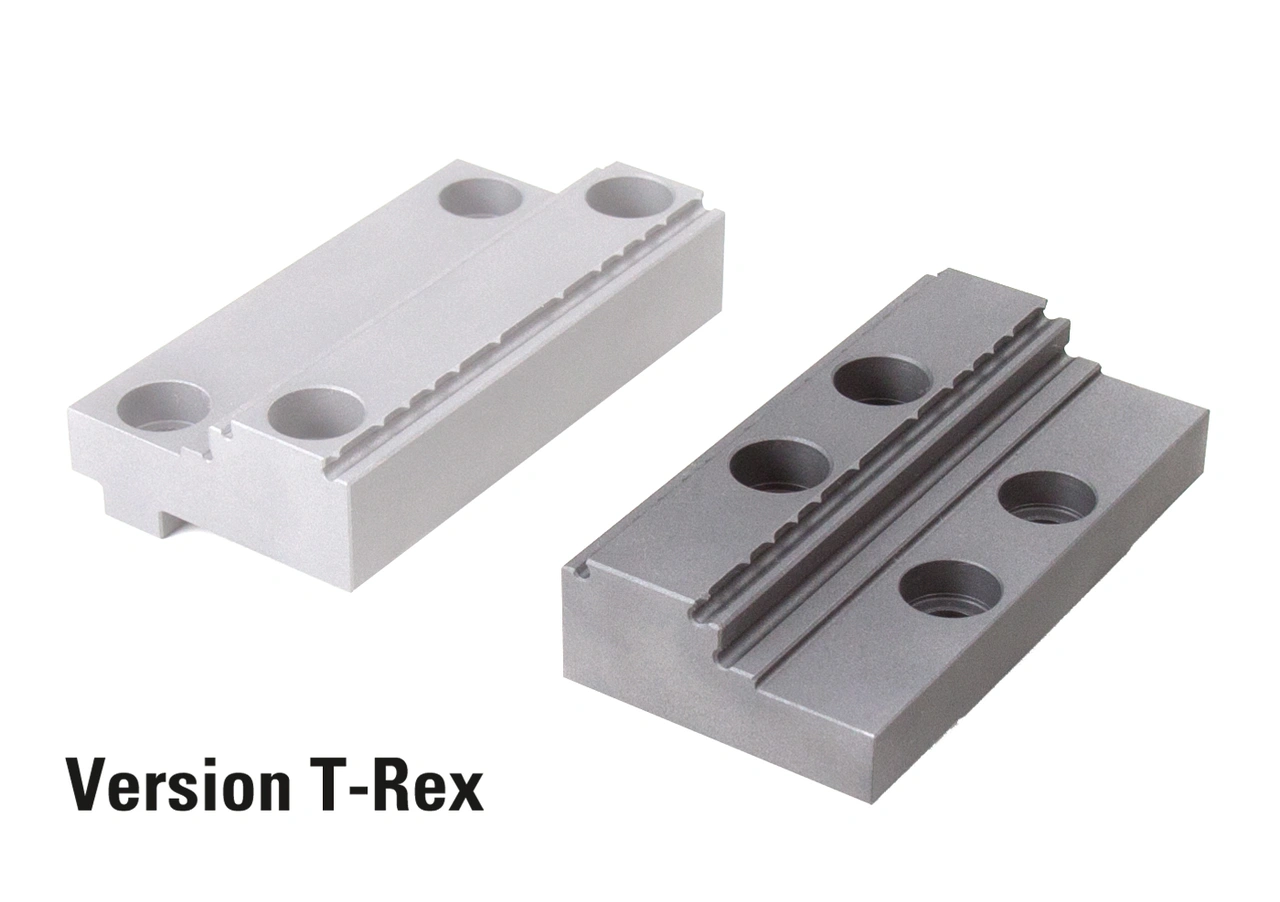

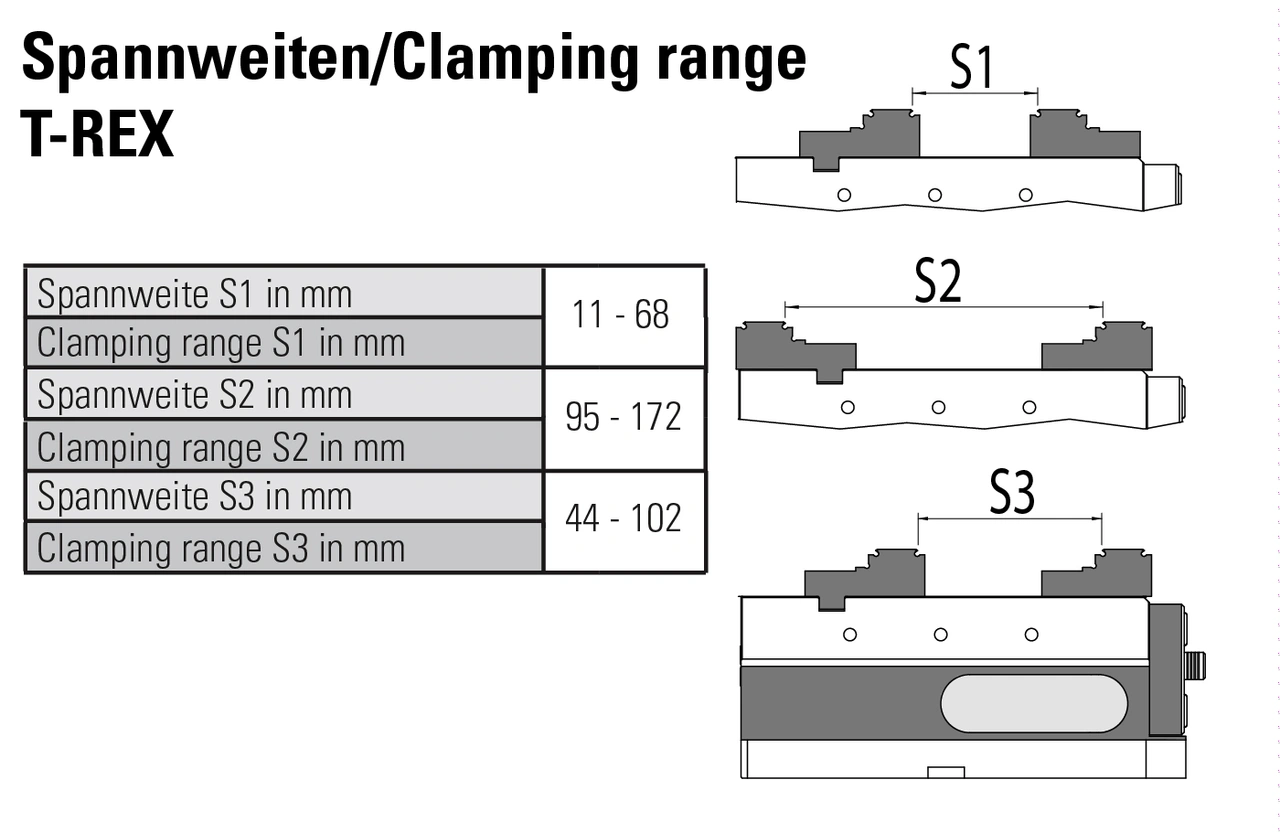

• For the version T-REX you also need the fixed jaw: 6921884034931

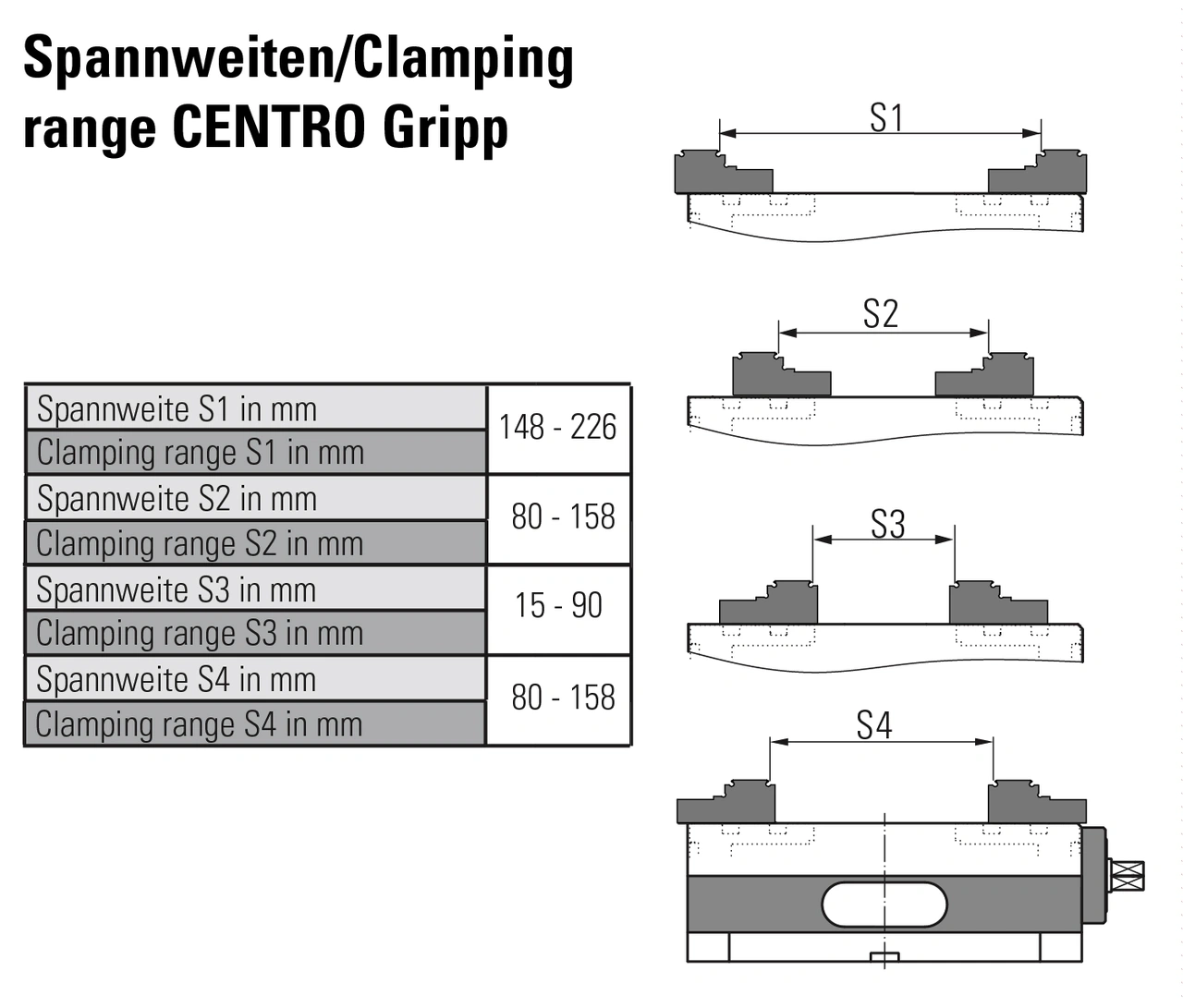

• For the version CENTRO Gripp the mobile jaw is required twice

Scope of Supply:

• 1x Gripper jaw movable with integrated gripper row
• 2x Cylinder head screws DIN 912 M10x20
• 2x Cylinder head screws DIN 912 M10x30
