Artikelnr: 6921884102031

Description:

• Material: hardened steel
• Hardened and tempered 680 + 80 HV30; hardening depth = 0,5 + 0,3
• Reduced-width jaws, 90 mm
• Ground and polished clamping surfaces
• Pull-down with ground and polished spring leaves for unmachined and pre-machined clamping surfaces
• Jaw can be used with or without spring leaves
• Spring leaves plugged with 1-Click
• High clamping accuracy for parallel and accurate angle machining
• Threaded holes for screw-on parallels
• Click system on the high side

Please note:

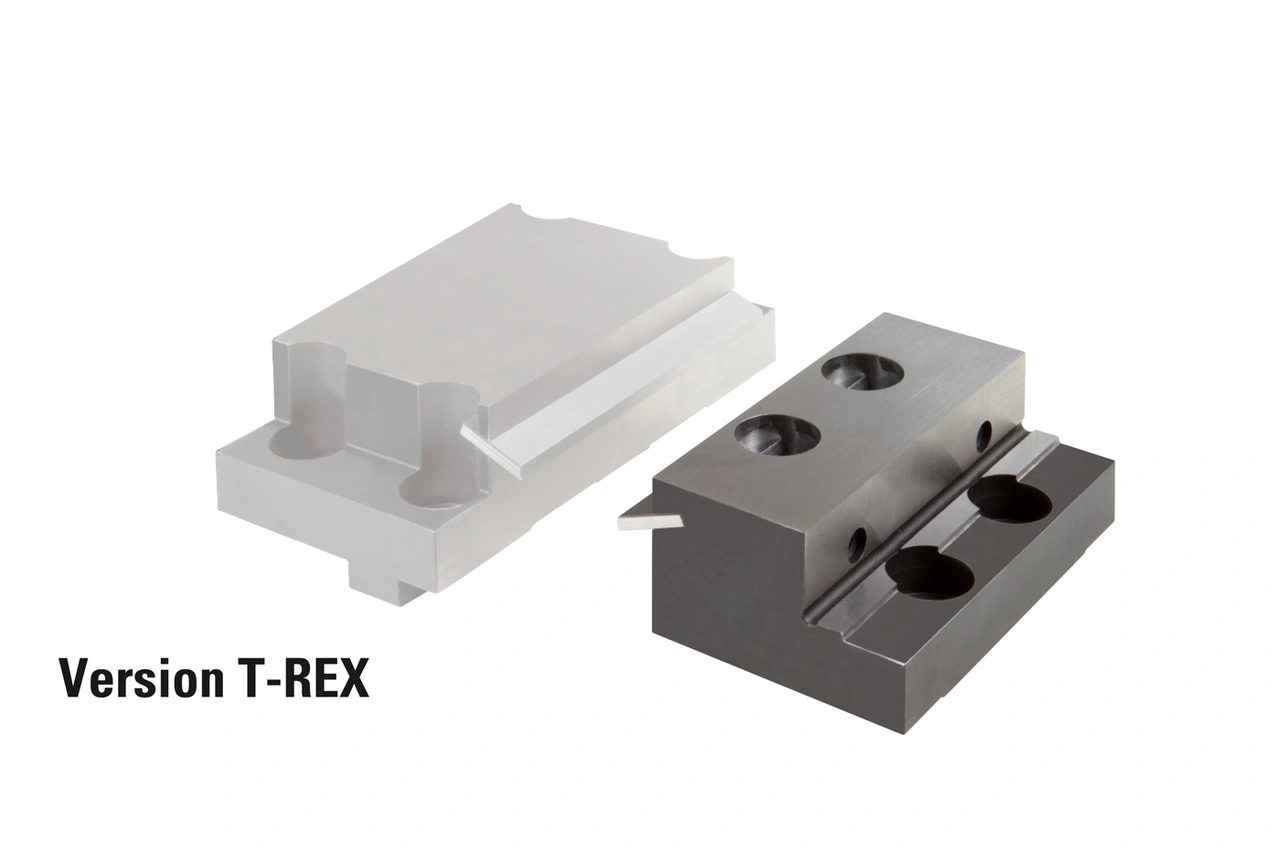

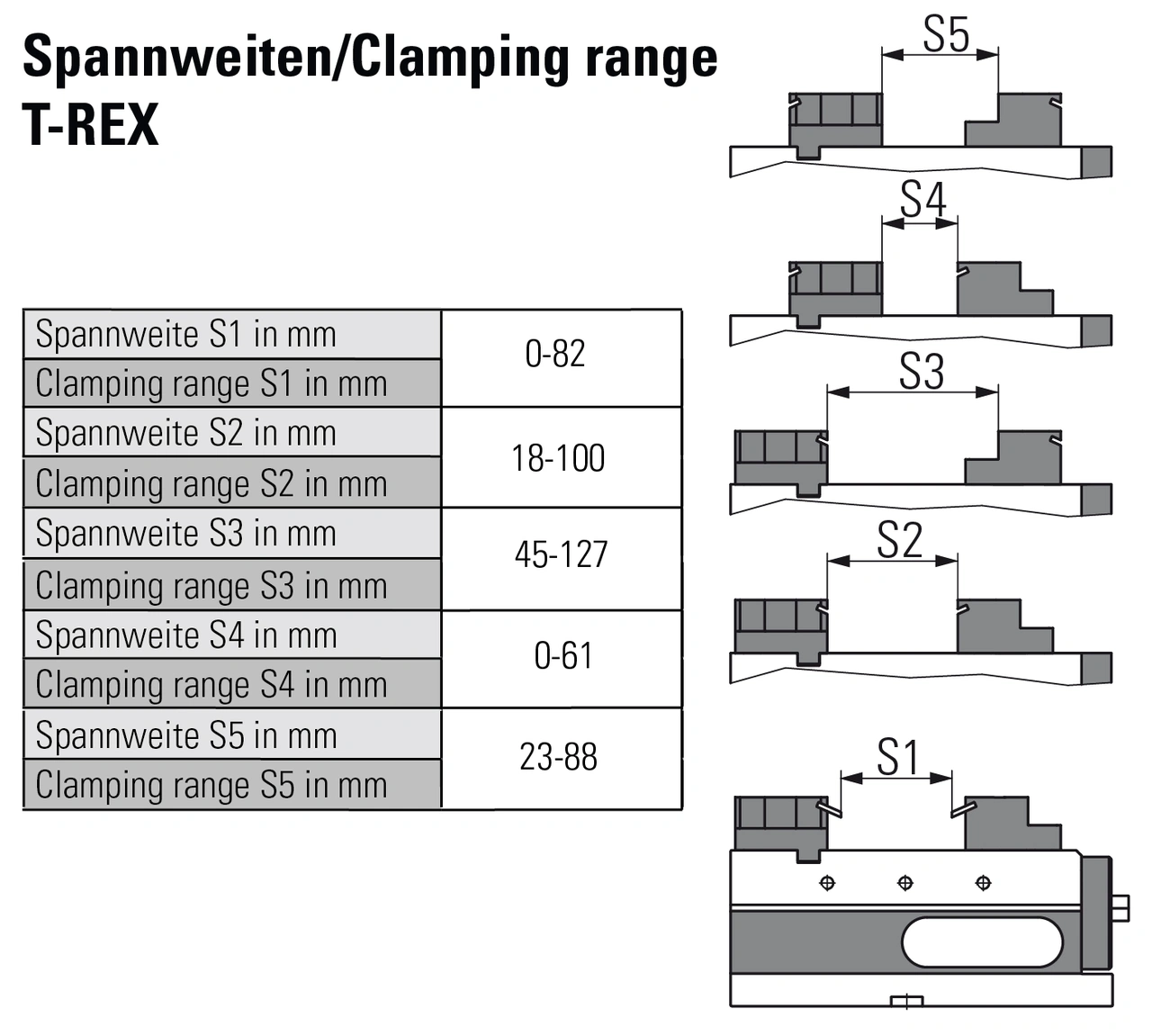

• For the version T-REX you also need the fixed jaw 6921884106031

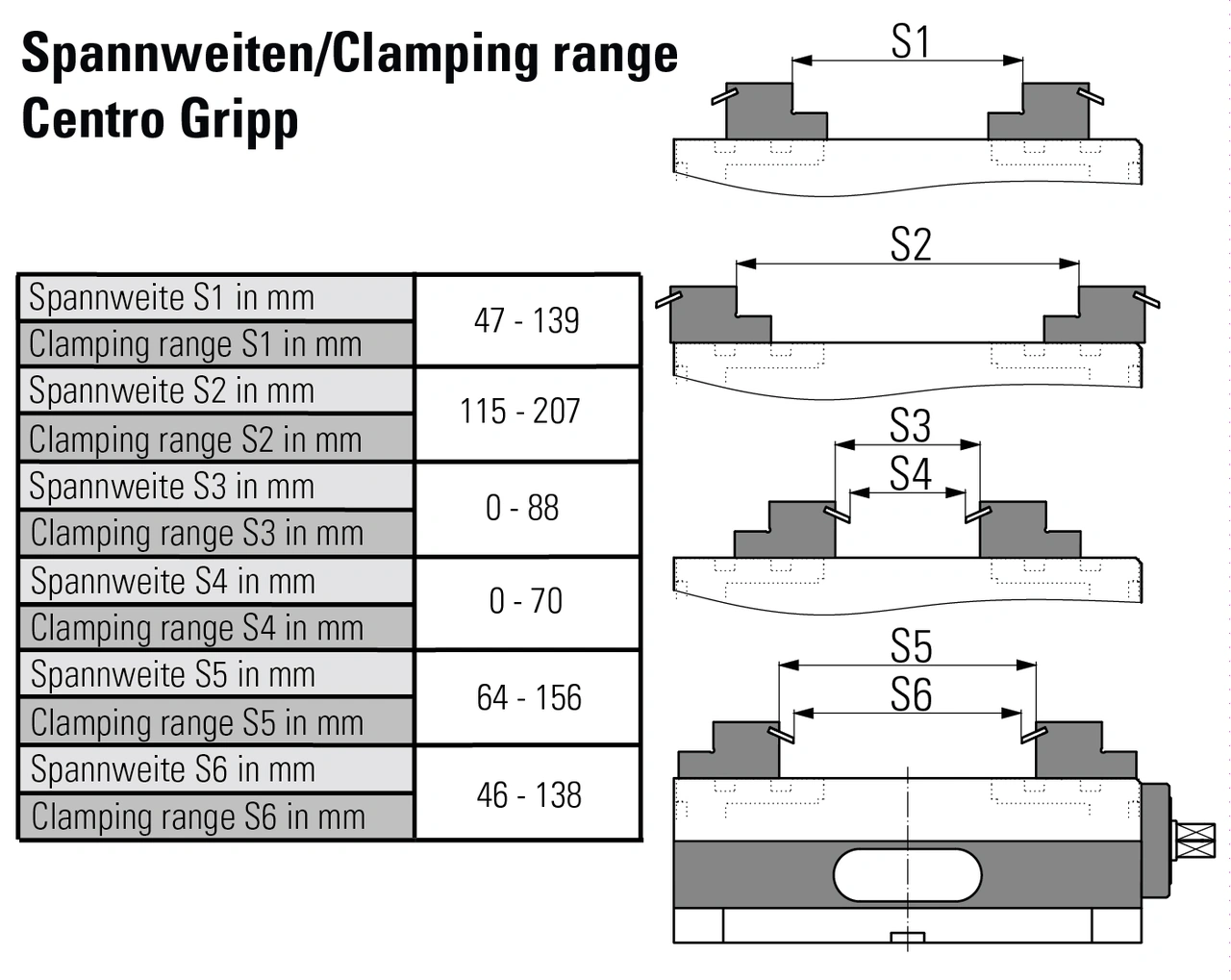

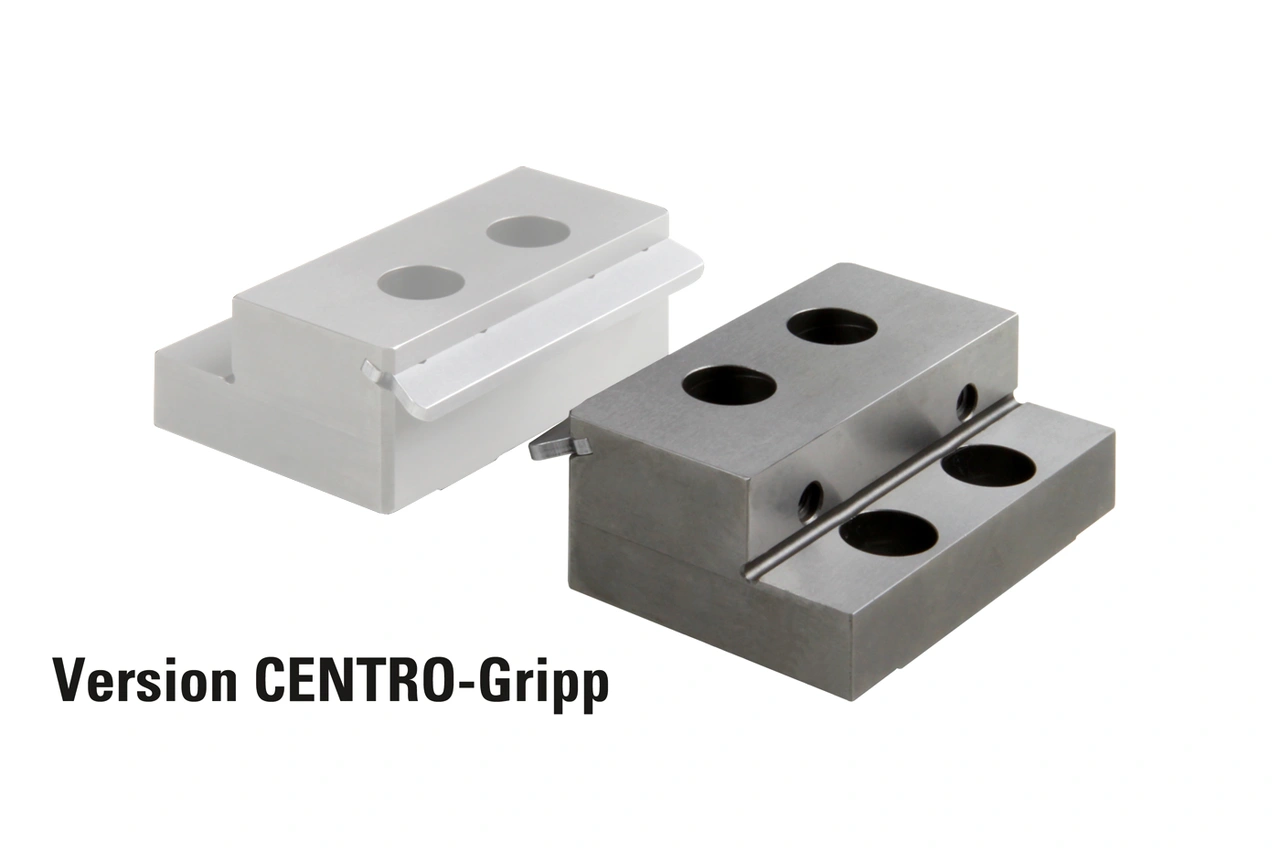

• For the version CENTRO Gripp the mobile jaw is required twice

Scope of Supply:

• 1x Universal pull-down jaw movable
• 2x Cylinder head screws DIN 912 M10x20
• 2x Cylinder head screws DIN 912 M10x35
