Artikelnr: 6921848000055

Description:

Product features:

• High versatility – the modular clamping system combines practically all the possibilities of our tried-and-tested models

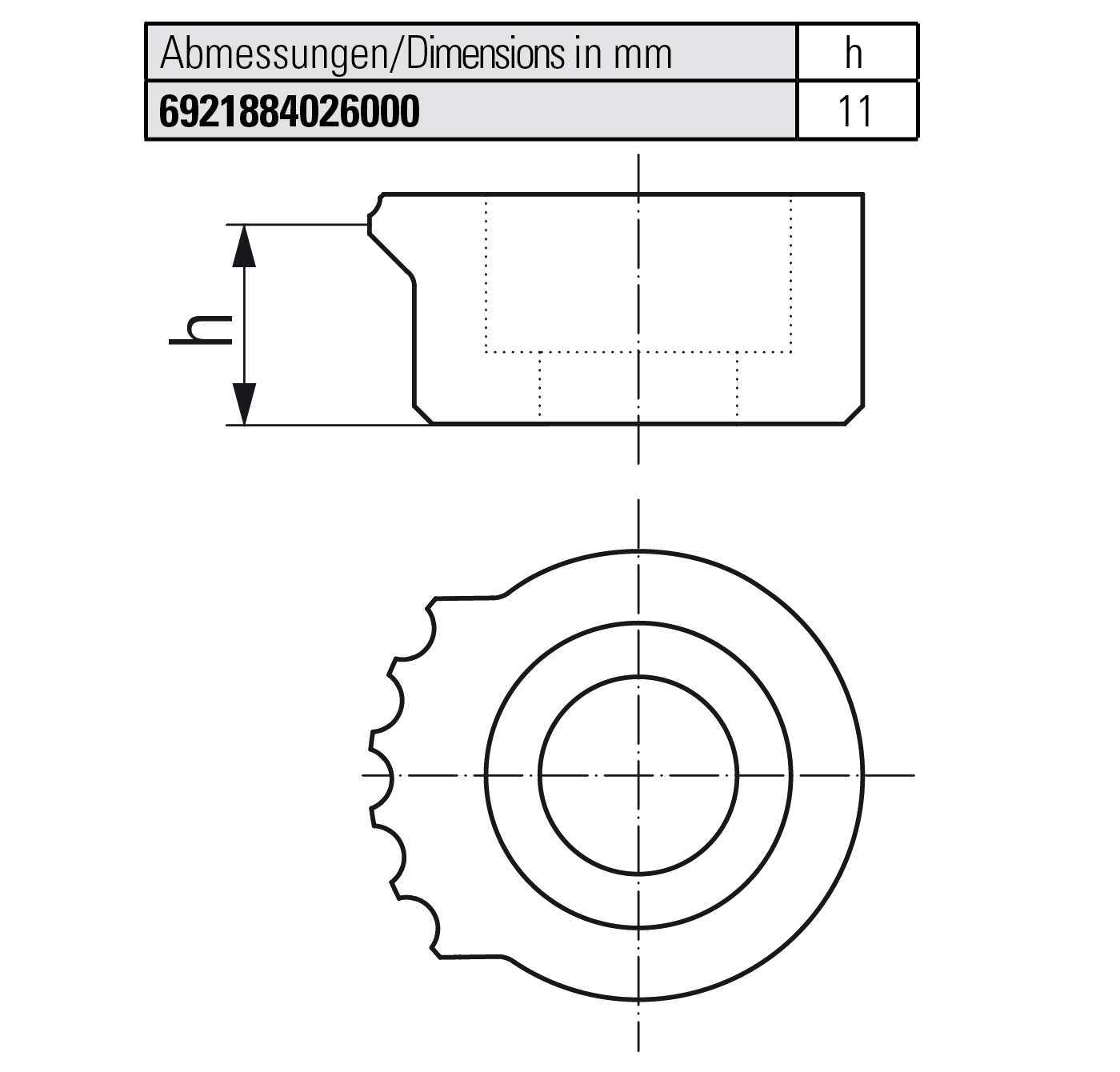

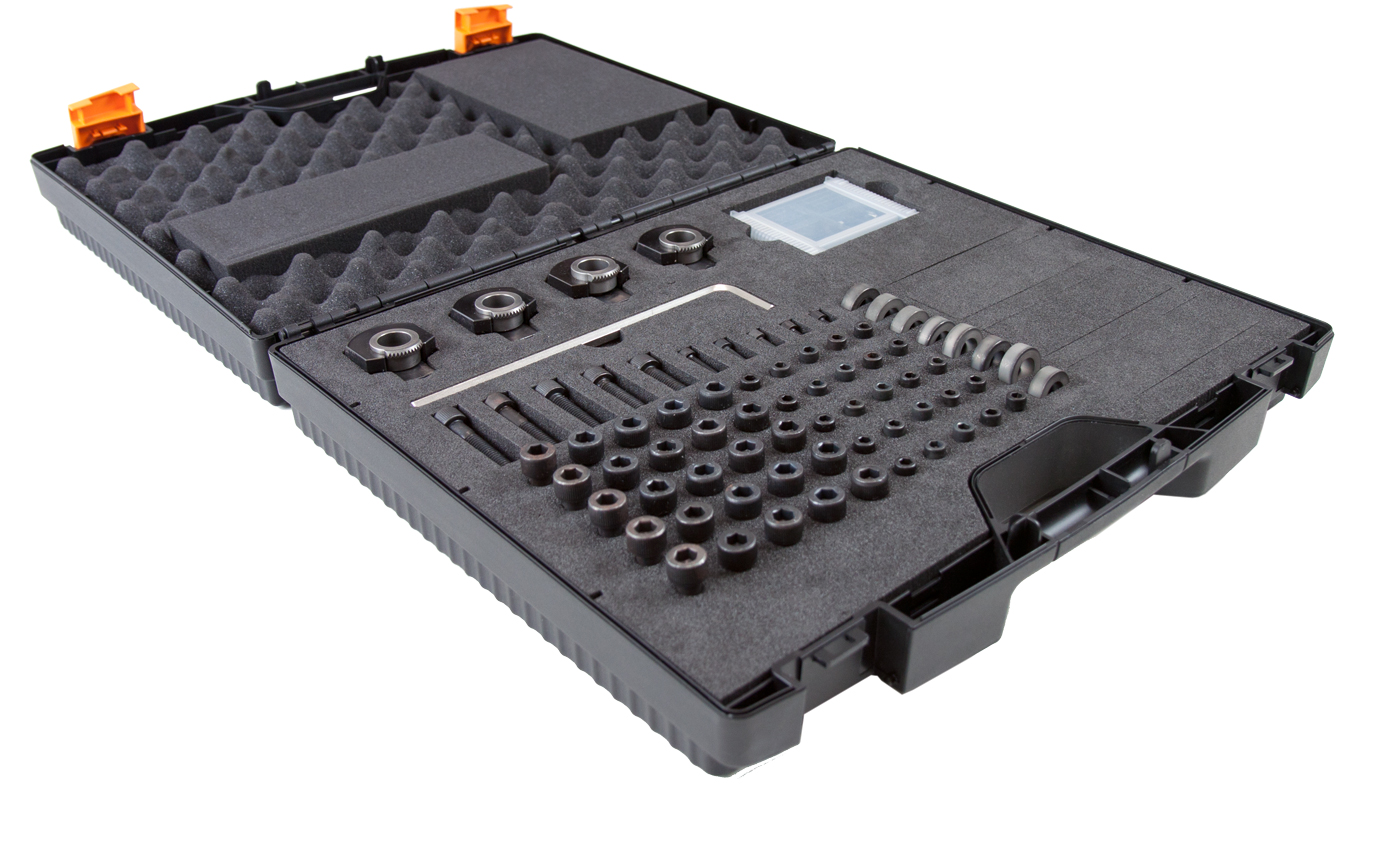

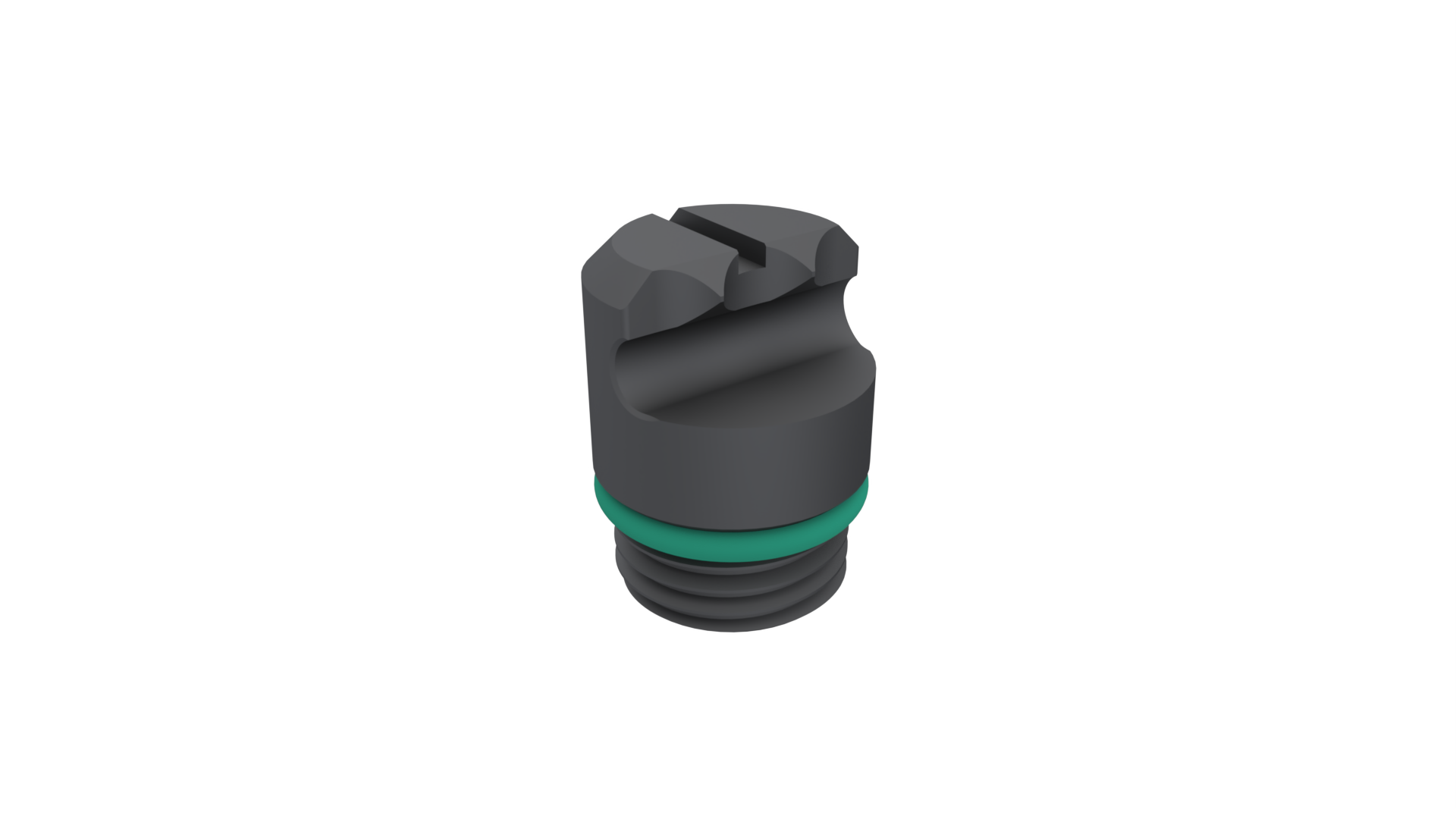

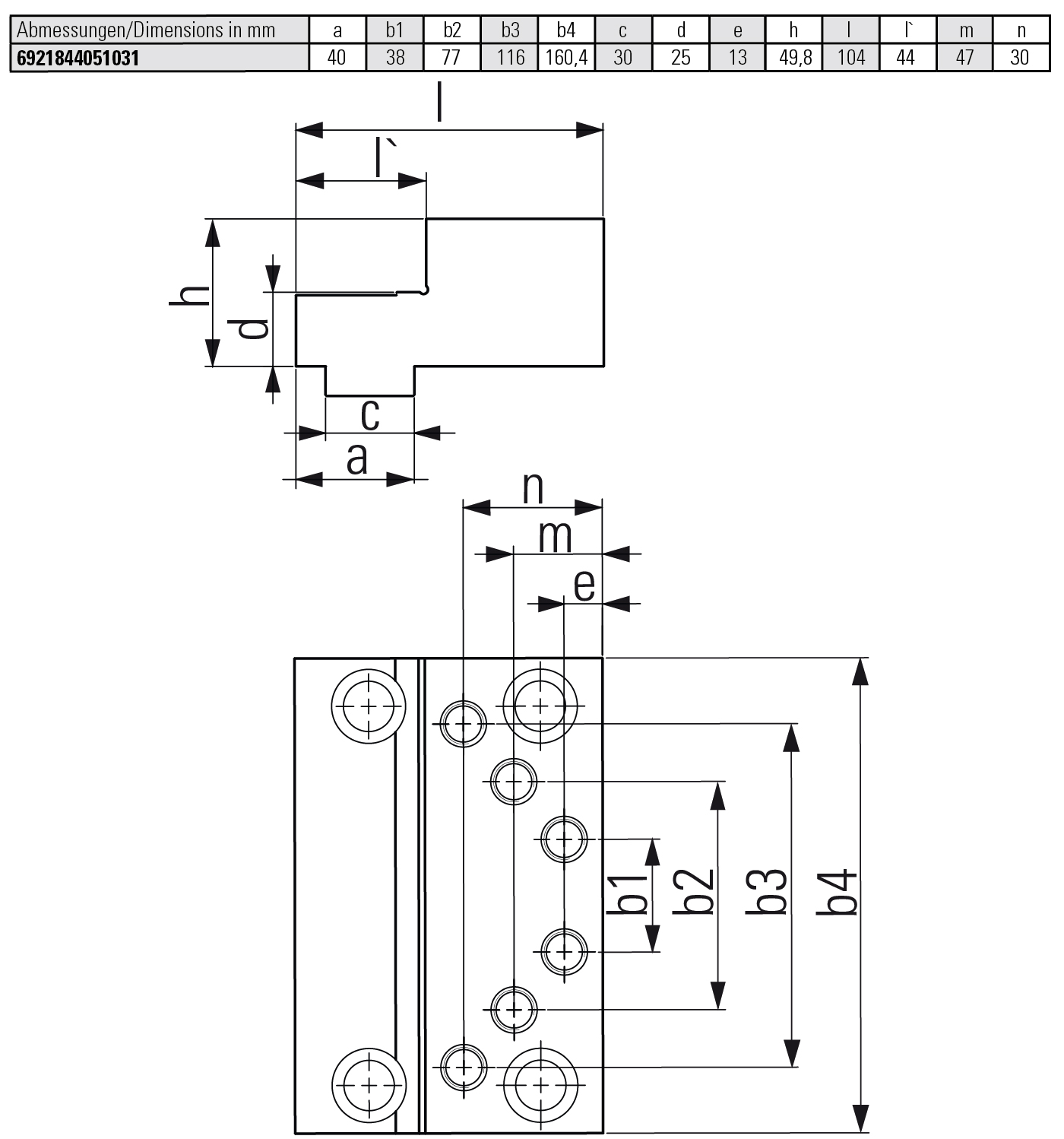

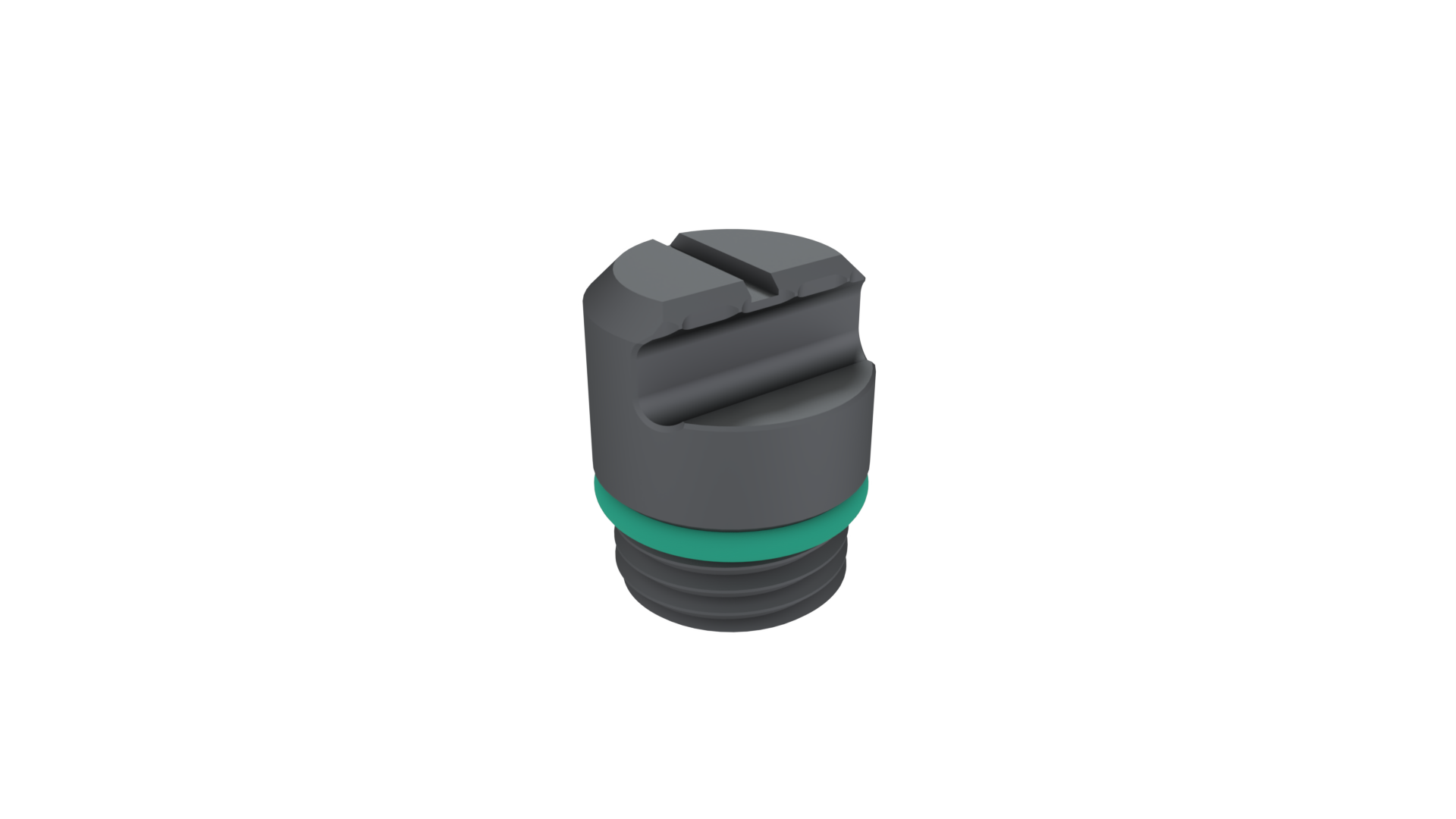

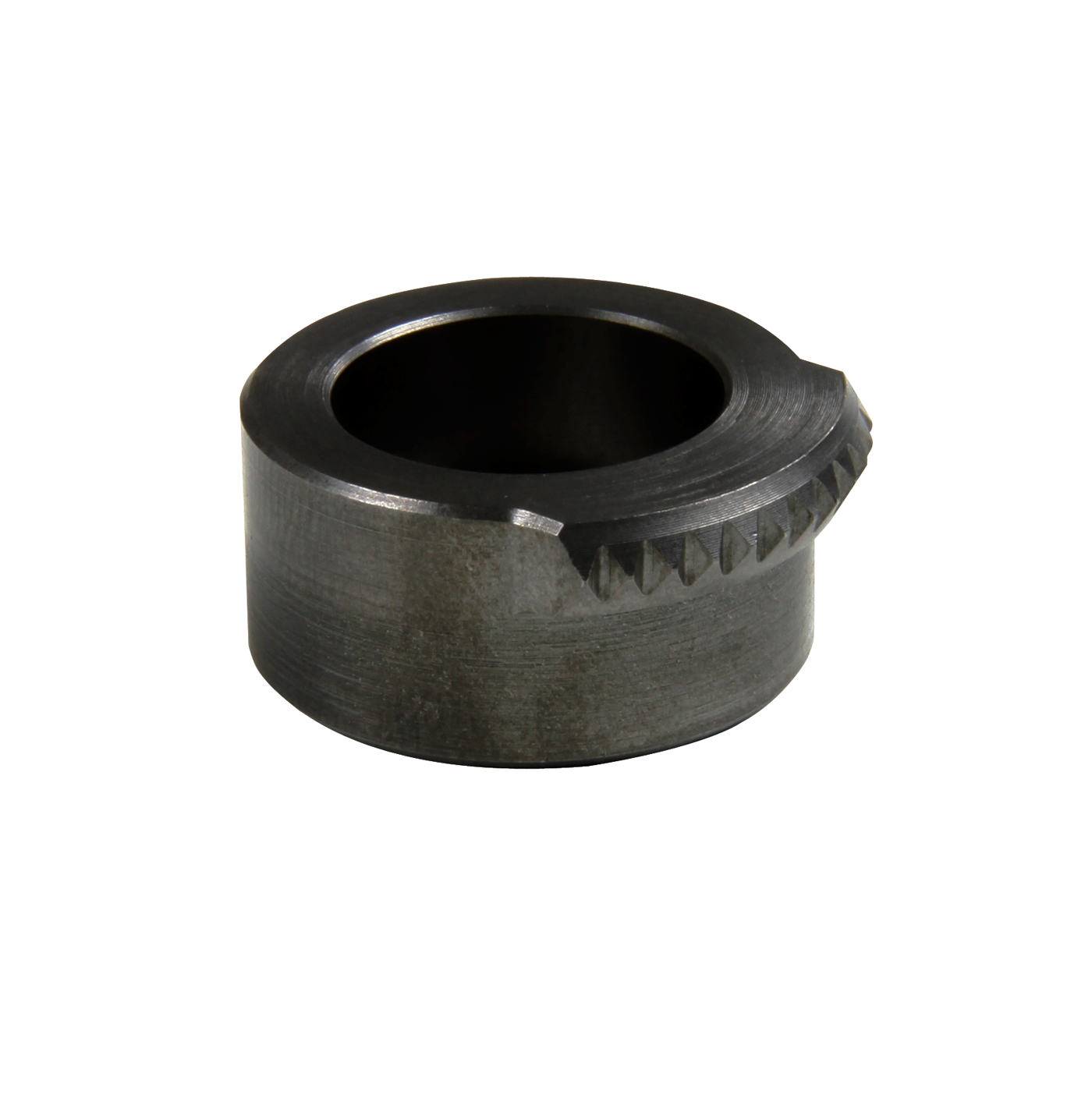

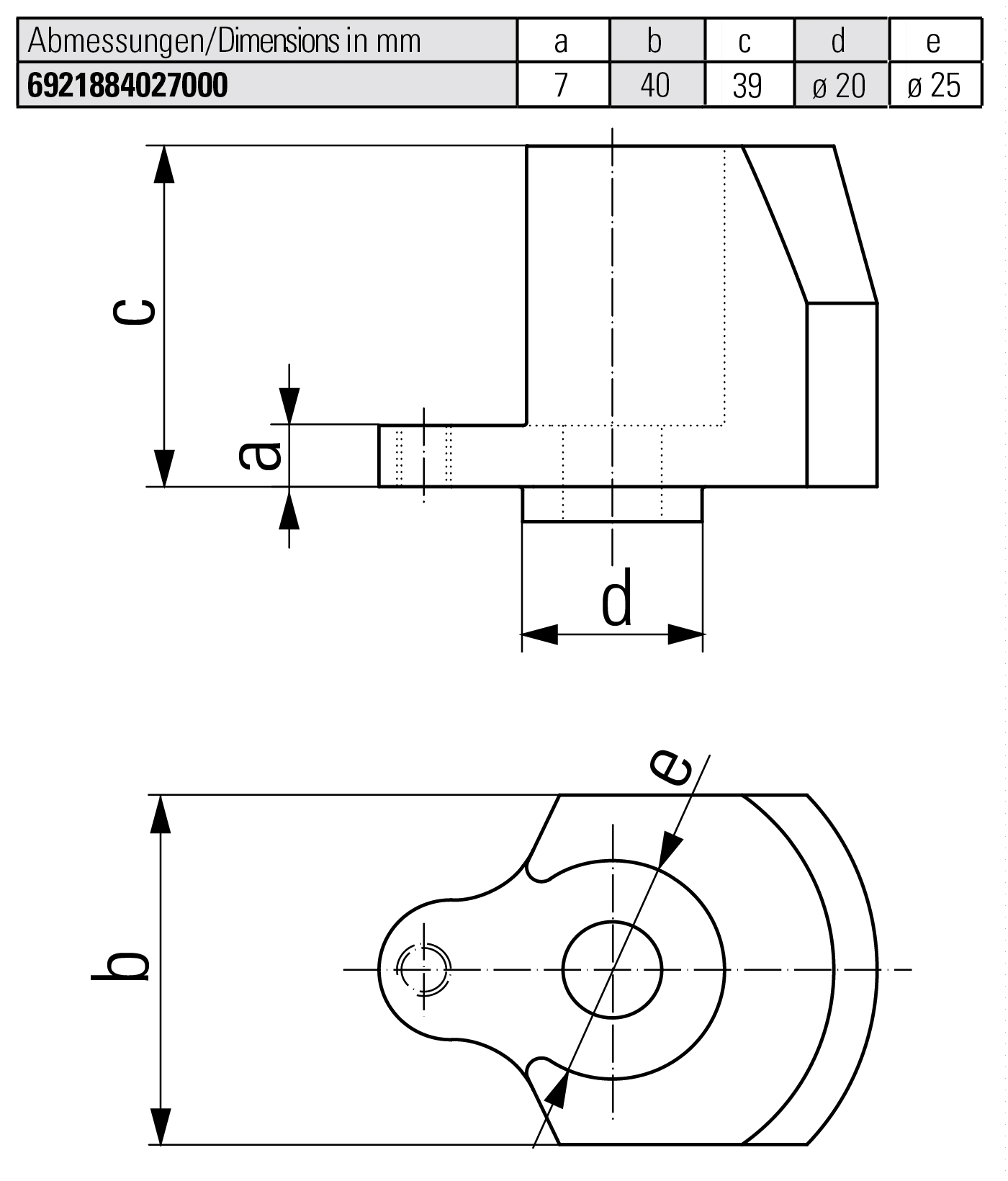

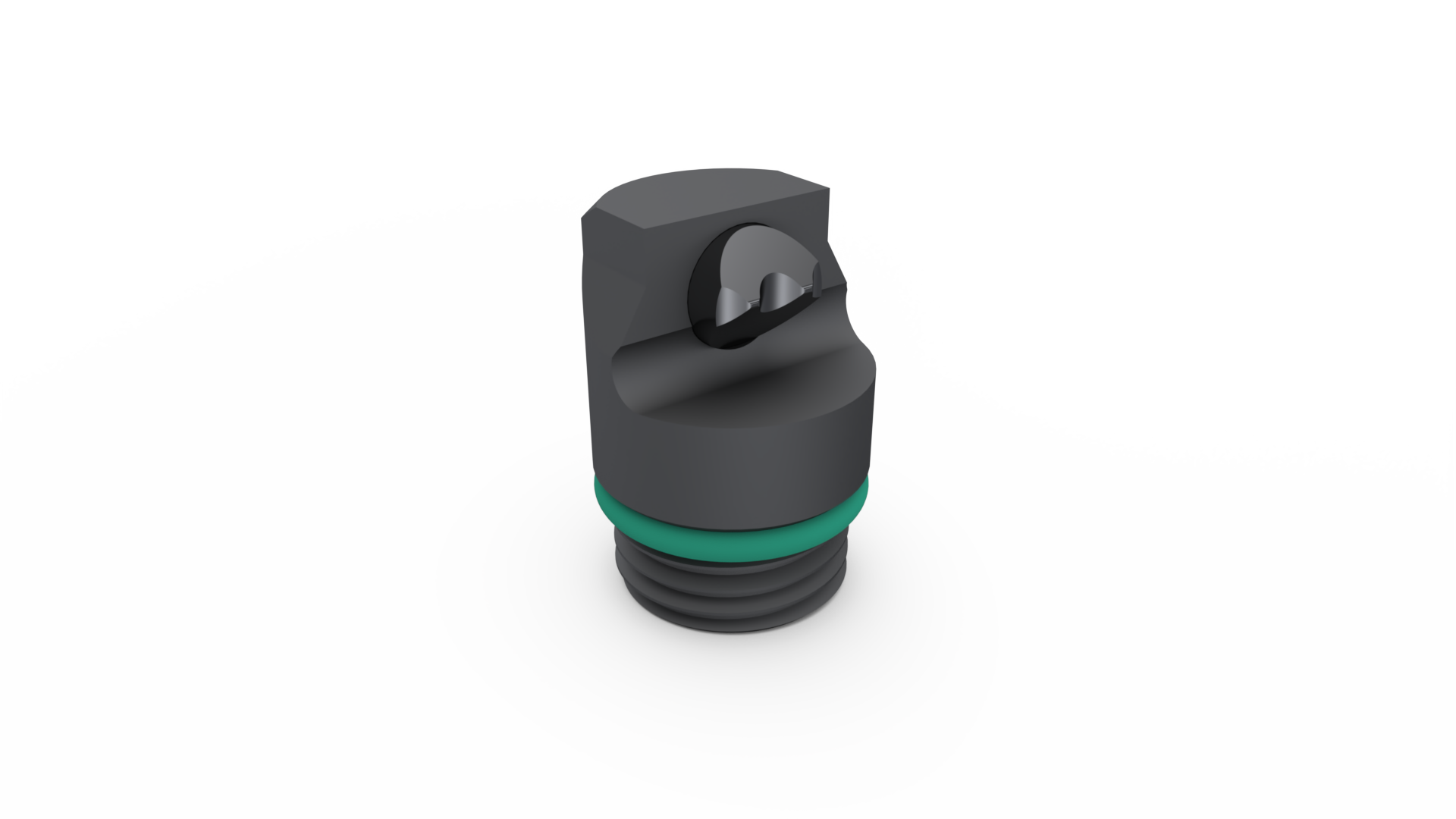

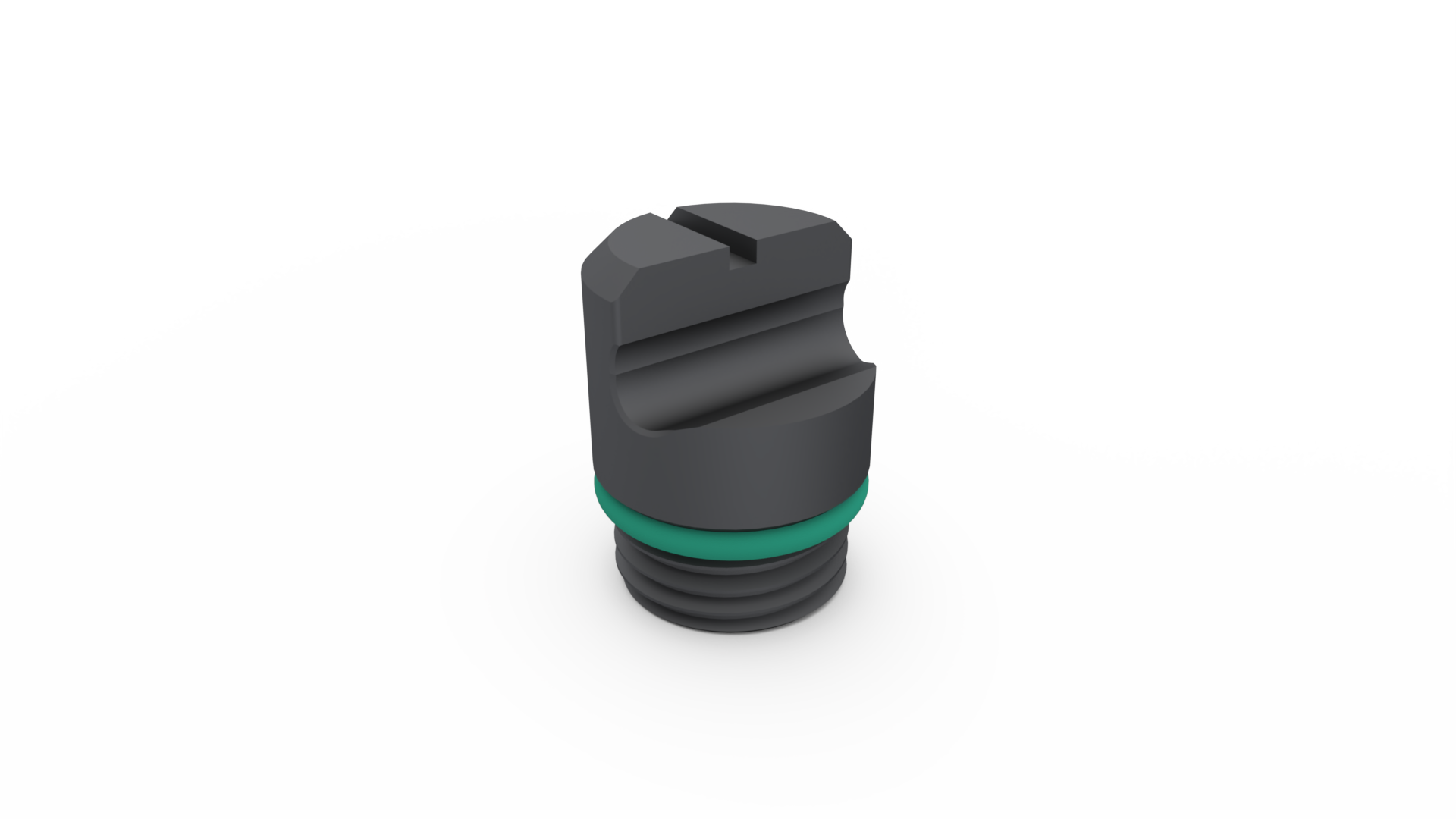

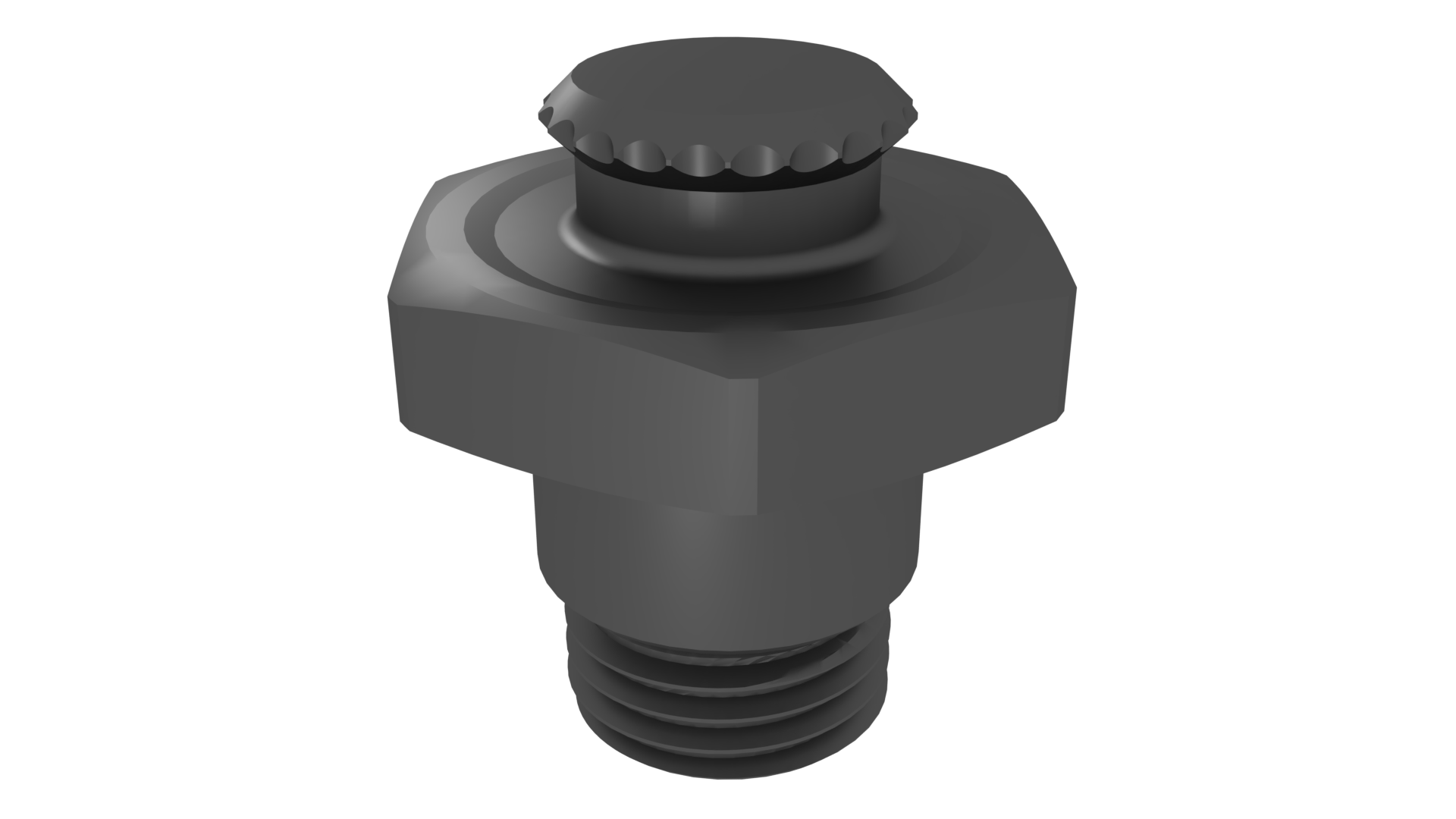

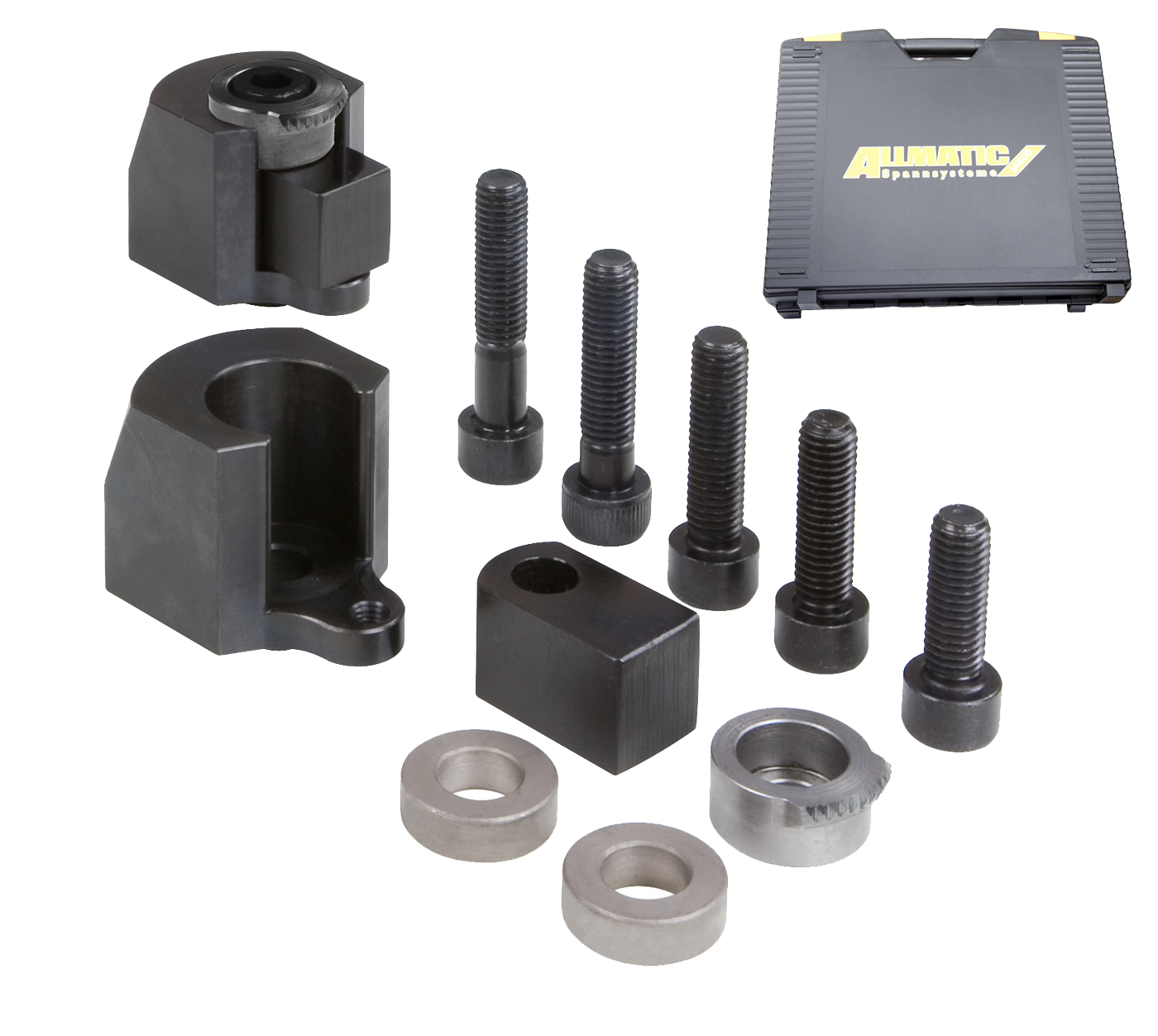

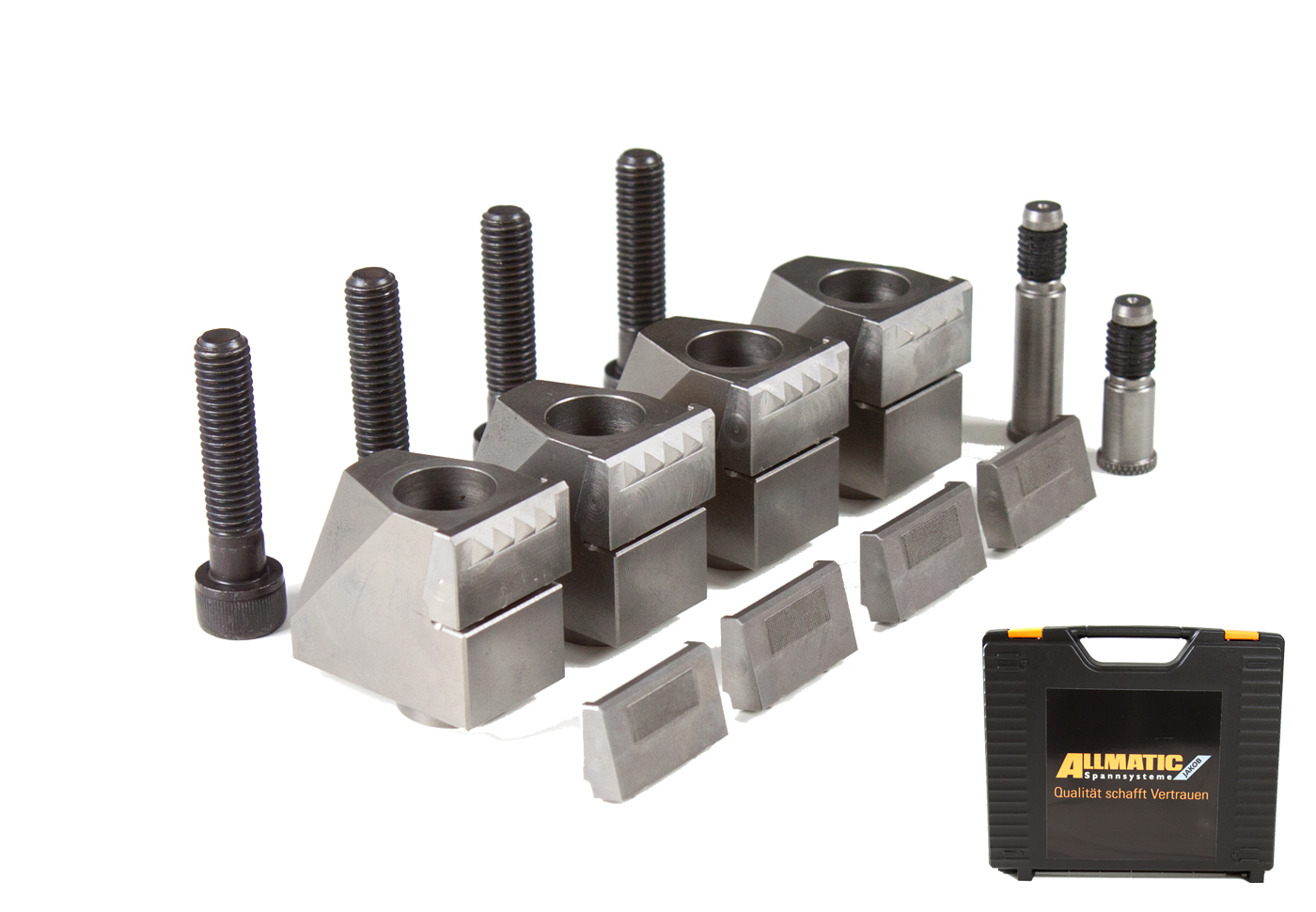

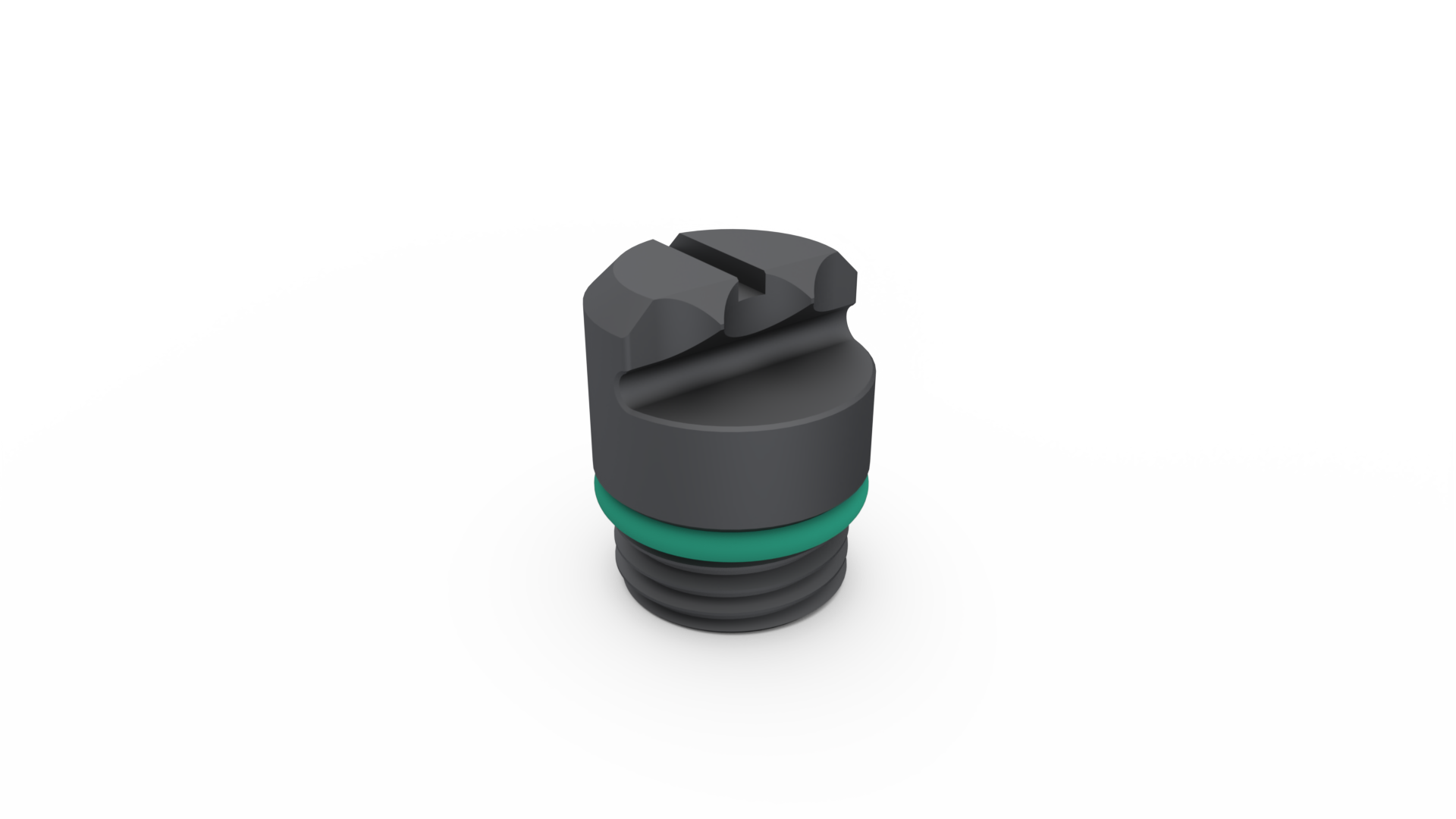

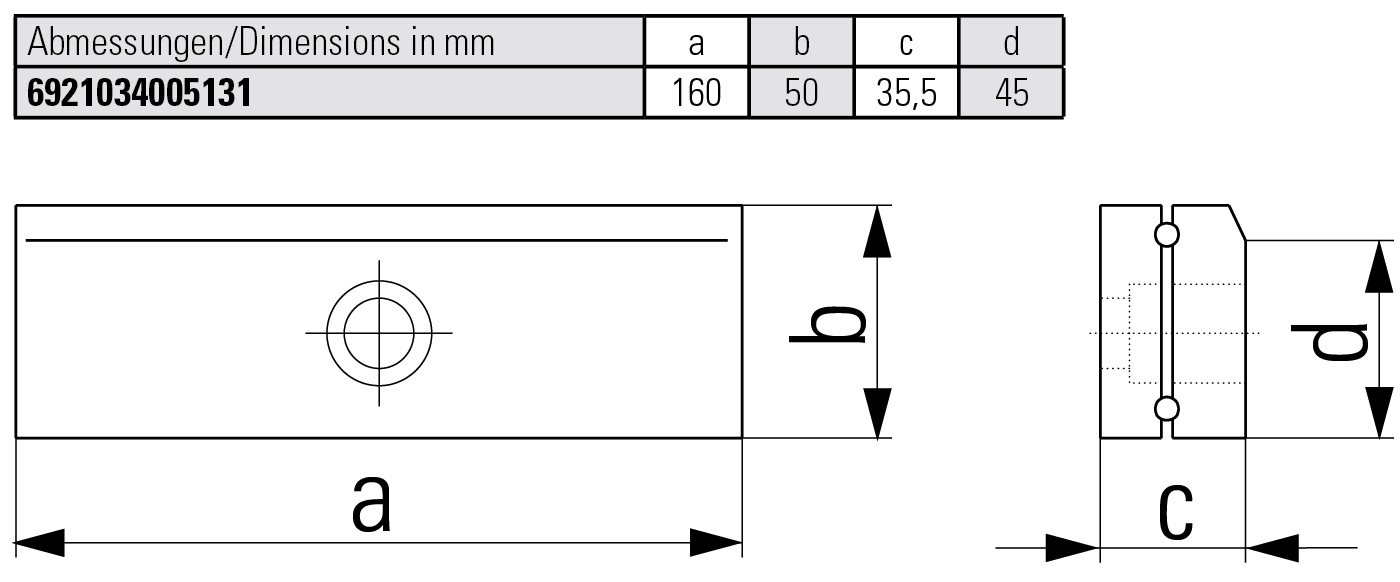

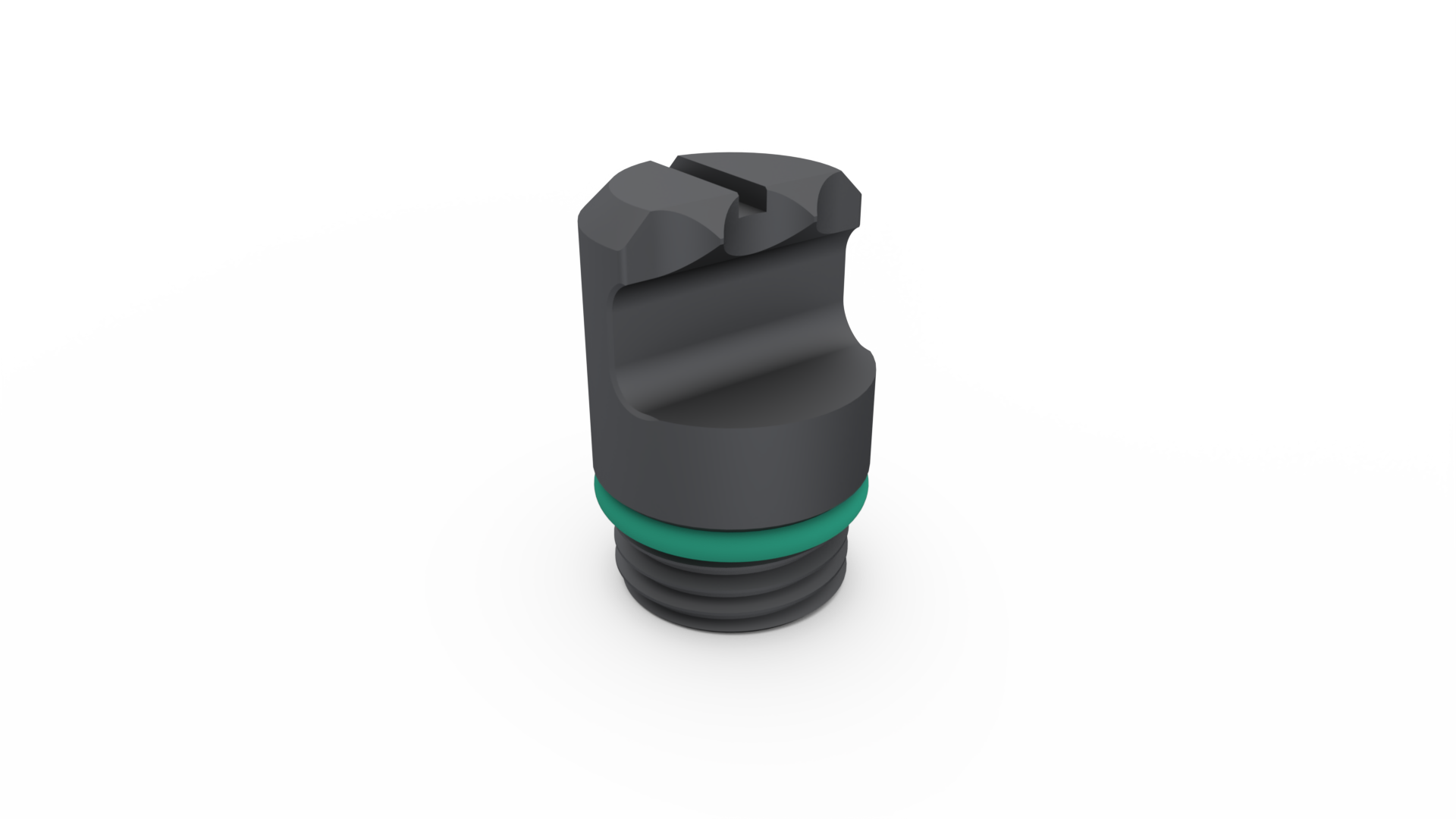

• Fully compatible with the accessories of the LC/TC 160 series, for example gripper studs, universal gripper set and pull down sets
• Grounded sides so that all sides can be used

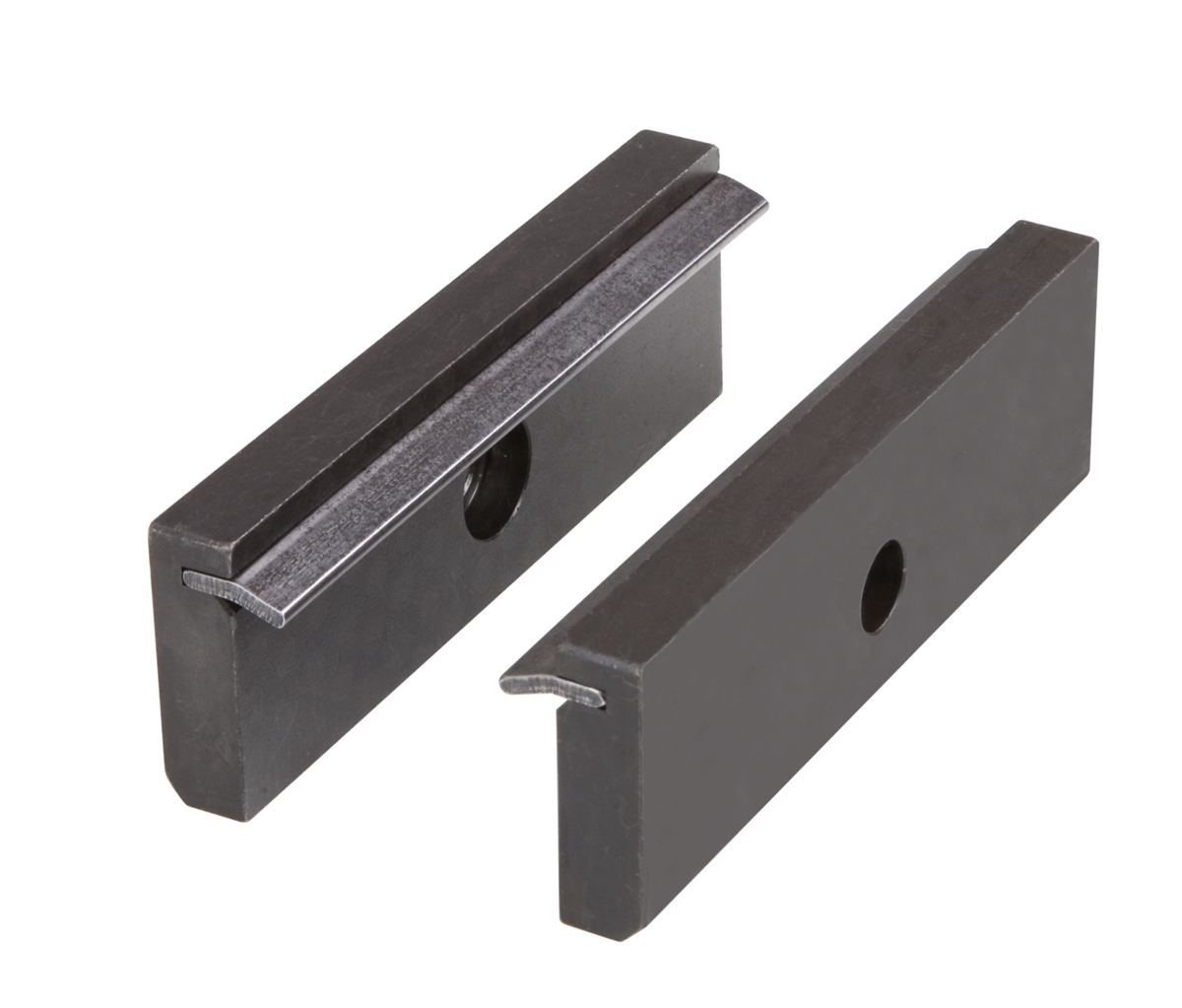

• High-pressure spindle with mechanical force amplifier (increased power stroke) for the safe clamping of raw parts in combination with gripping and pull down spring function
• Lost clamping margin 8 mm with pull-down, 3 mm with  GRIPPER

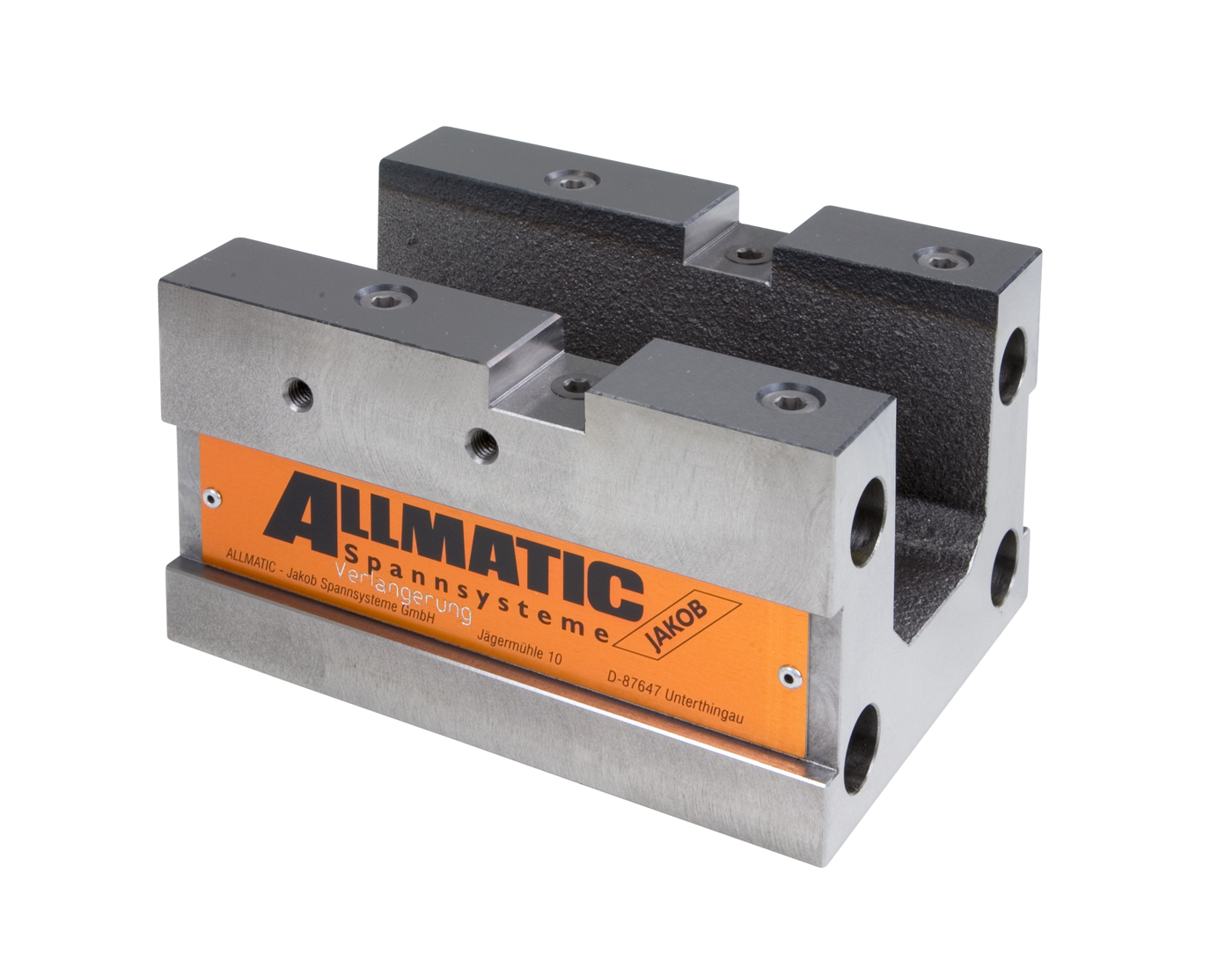

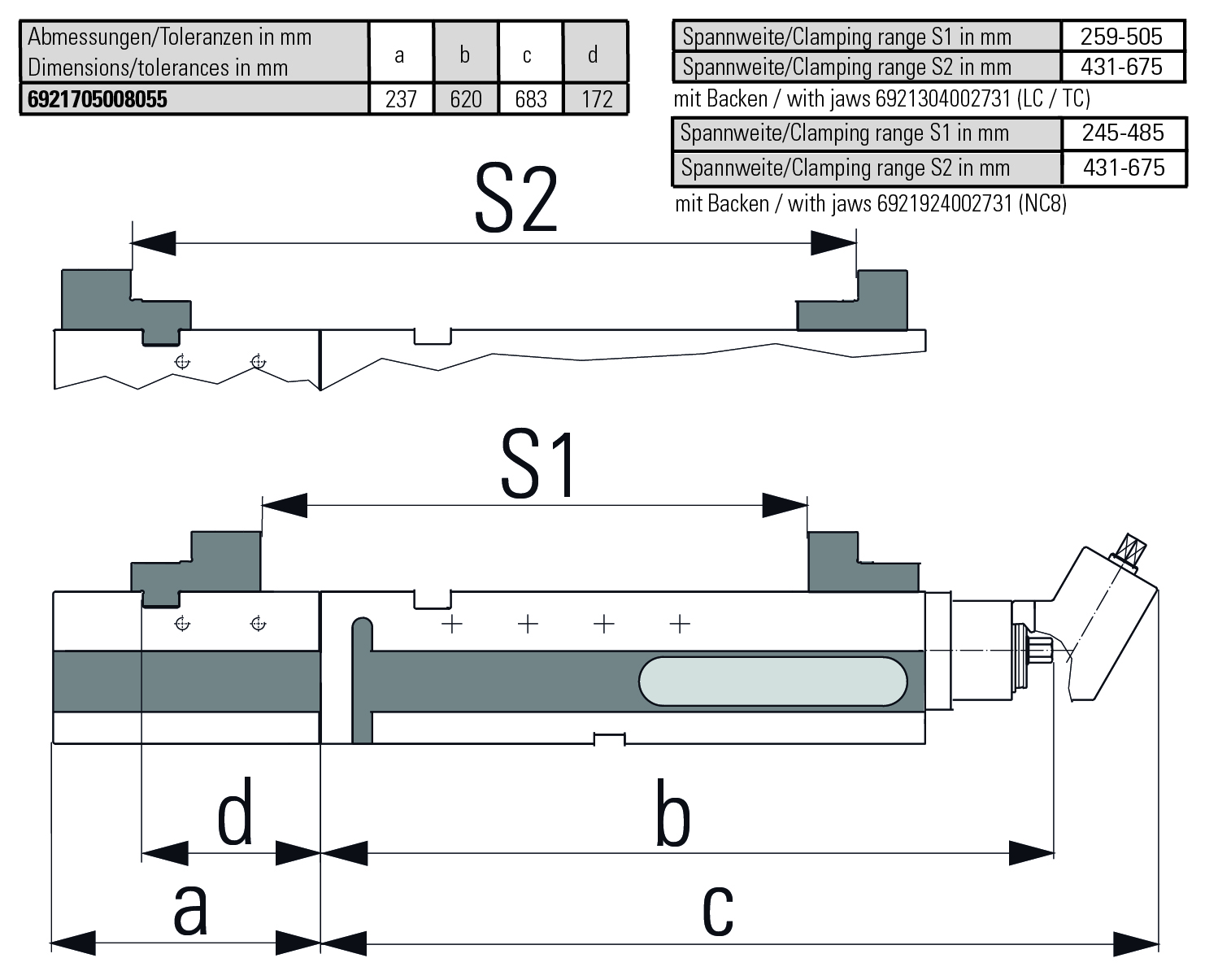

• Clamping extension possible (Is attached to the TITAN 2 - 160 vice on the front side)

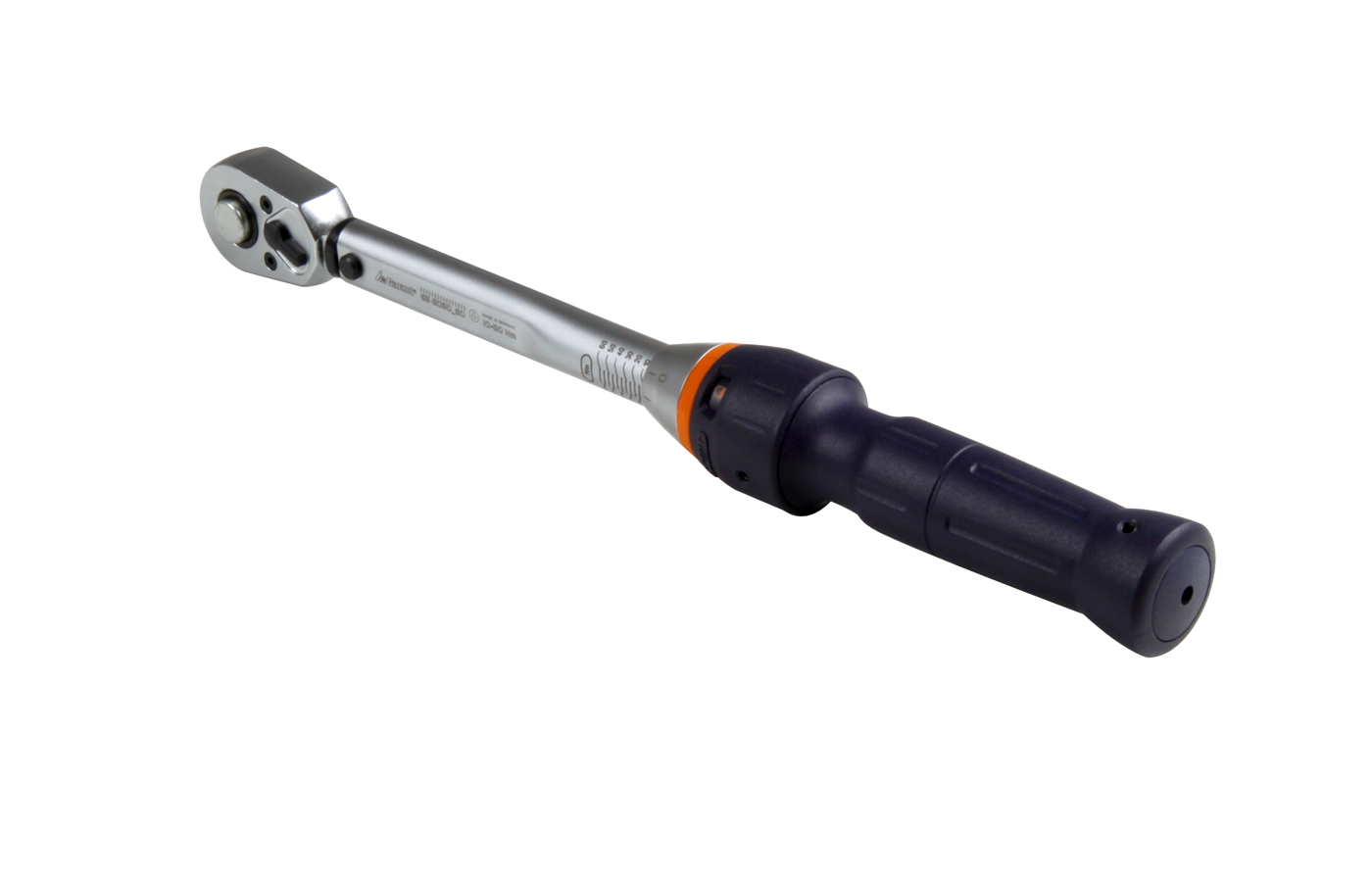

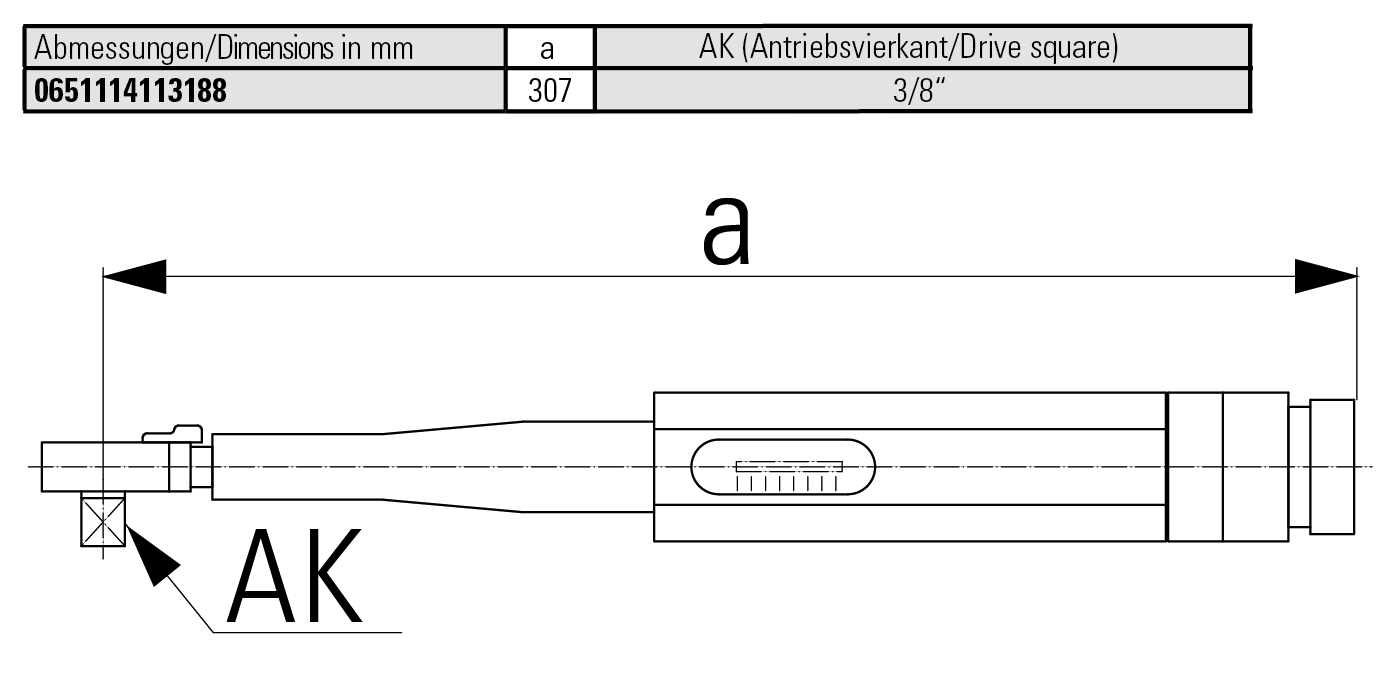

• Clamping with torque wrench – max. 30 Nm. This makes it possible to work above the table with an unfavour able clamping arrangement on the tool

Scope of Supply:

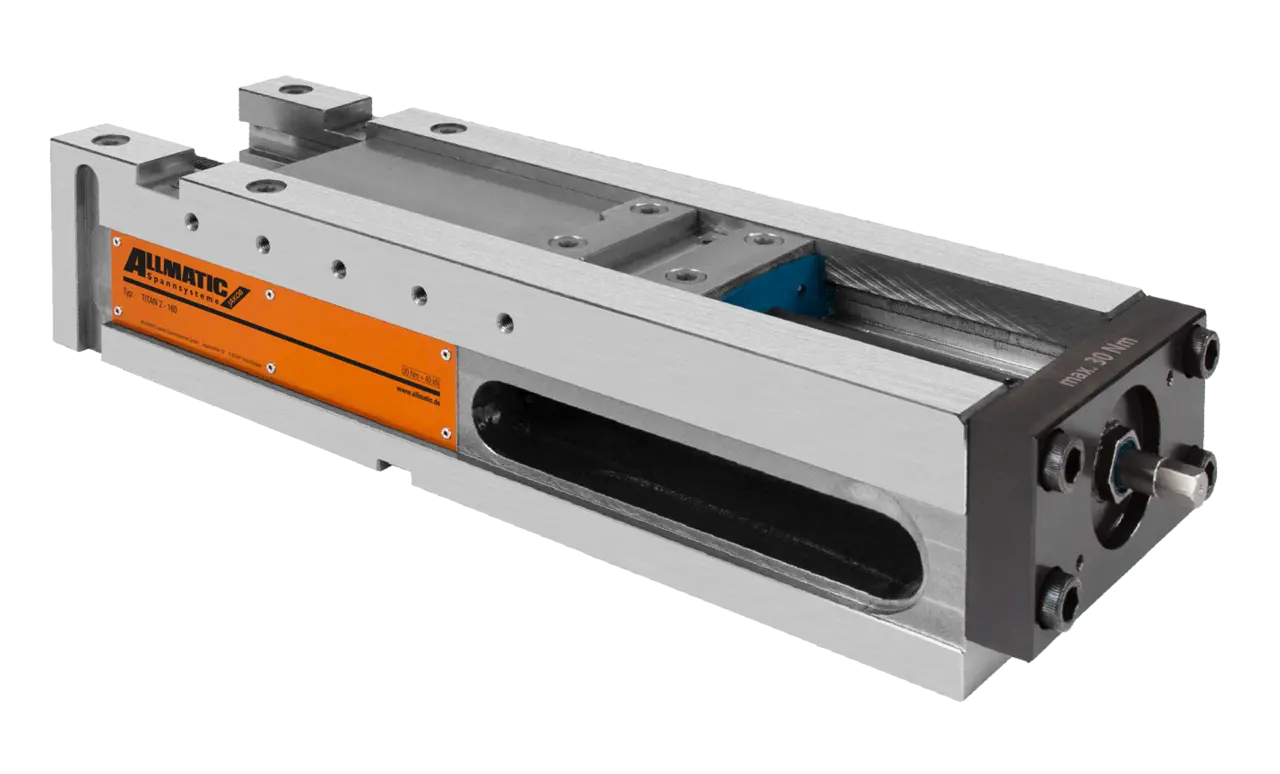

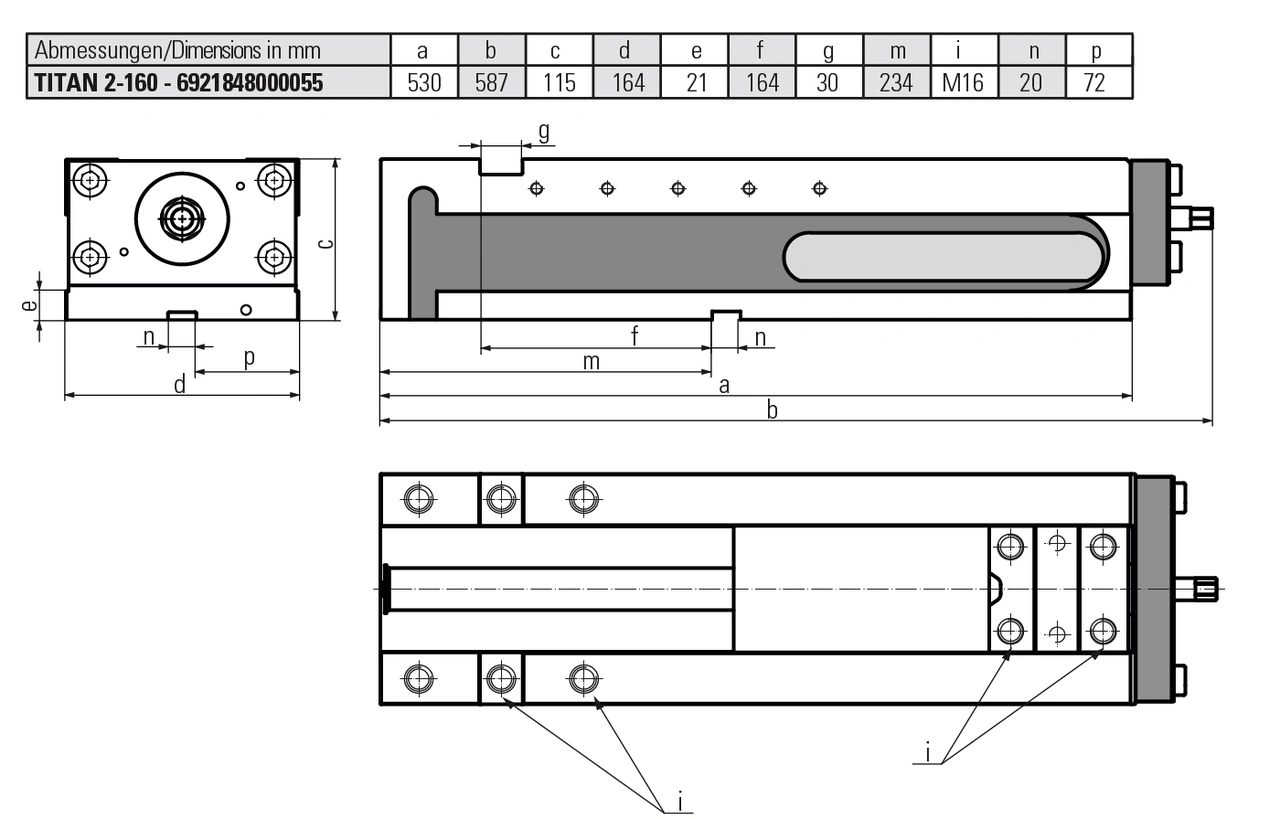

• 1x Vice TITAN 2-160 without jaws
• 5x Socket screw wrenches

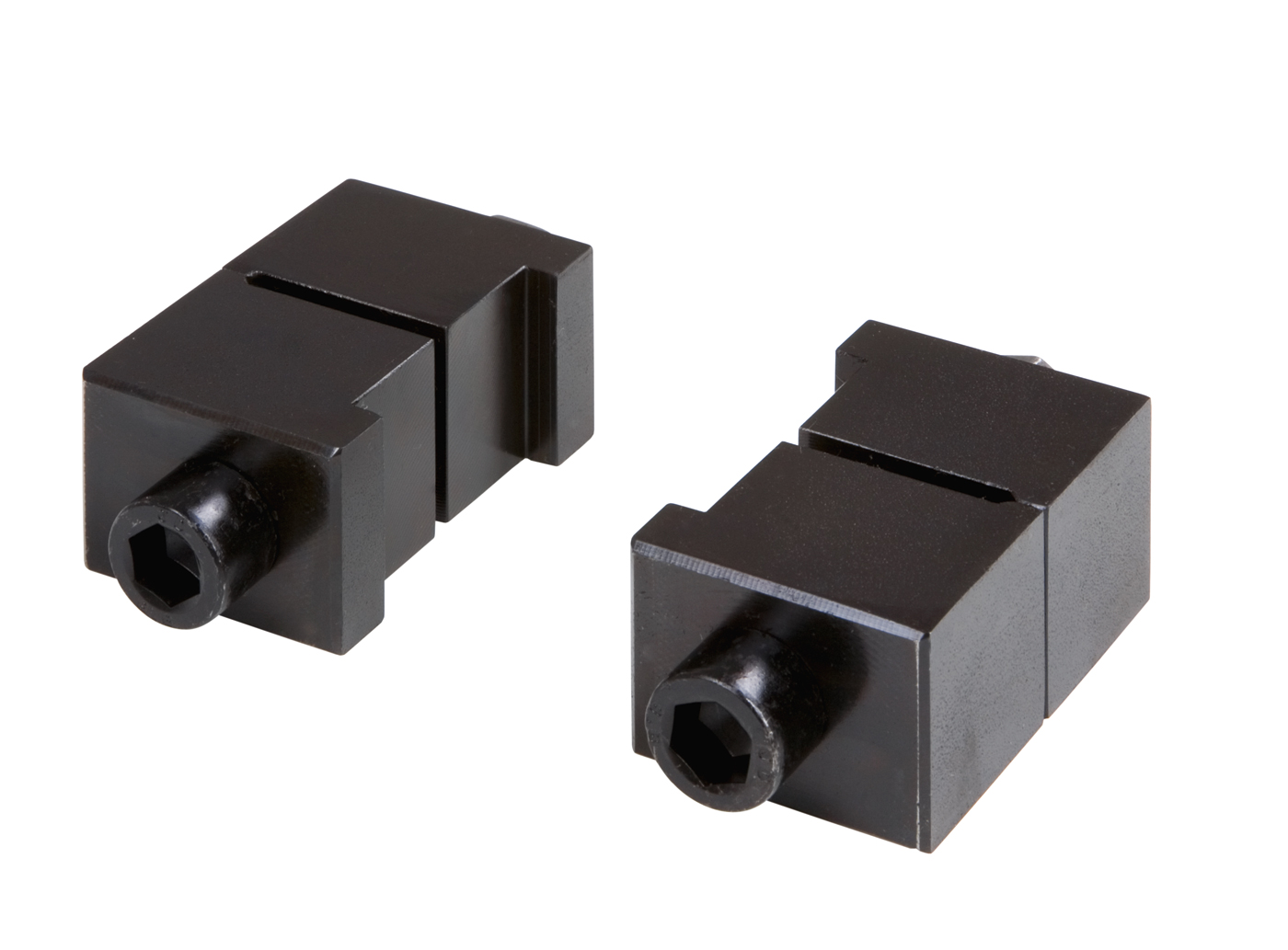

• 4x Side clamps
• 1x Socket wrench insert 14 - 12kt - 3/8"
• 2x Transport plate
• 2x Flat headed screw w. J6kt 8x12
• 1x Operating manual

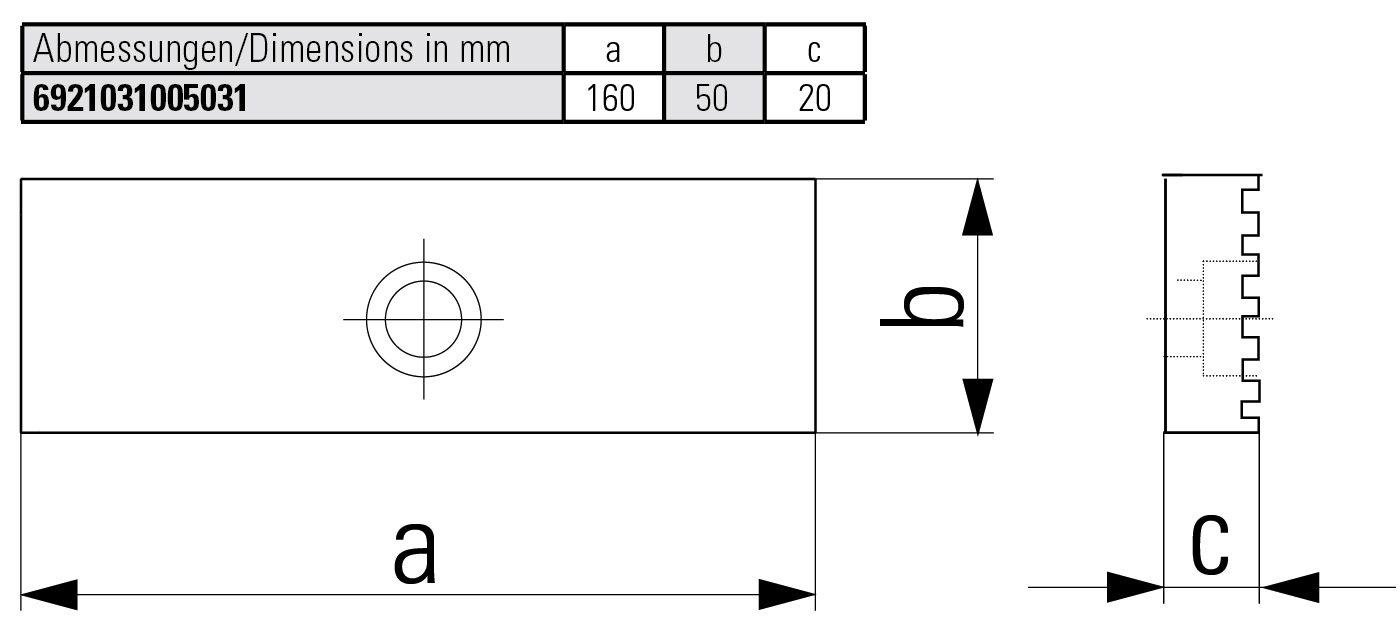

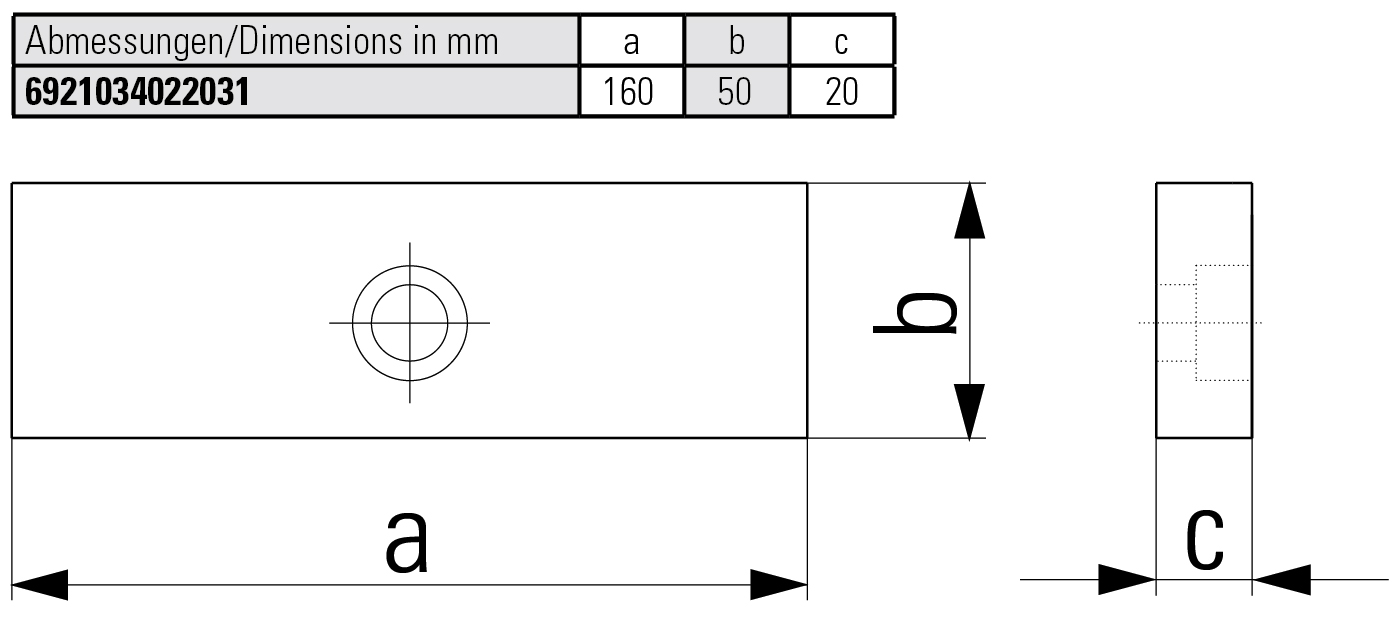

• (Please order clamping jaws separately)
