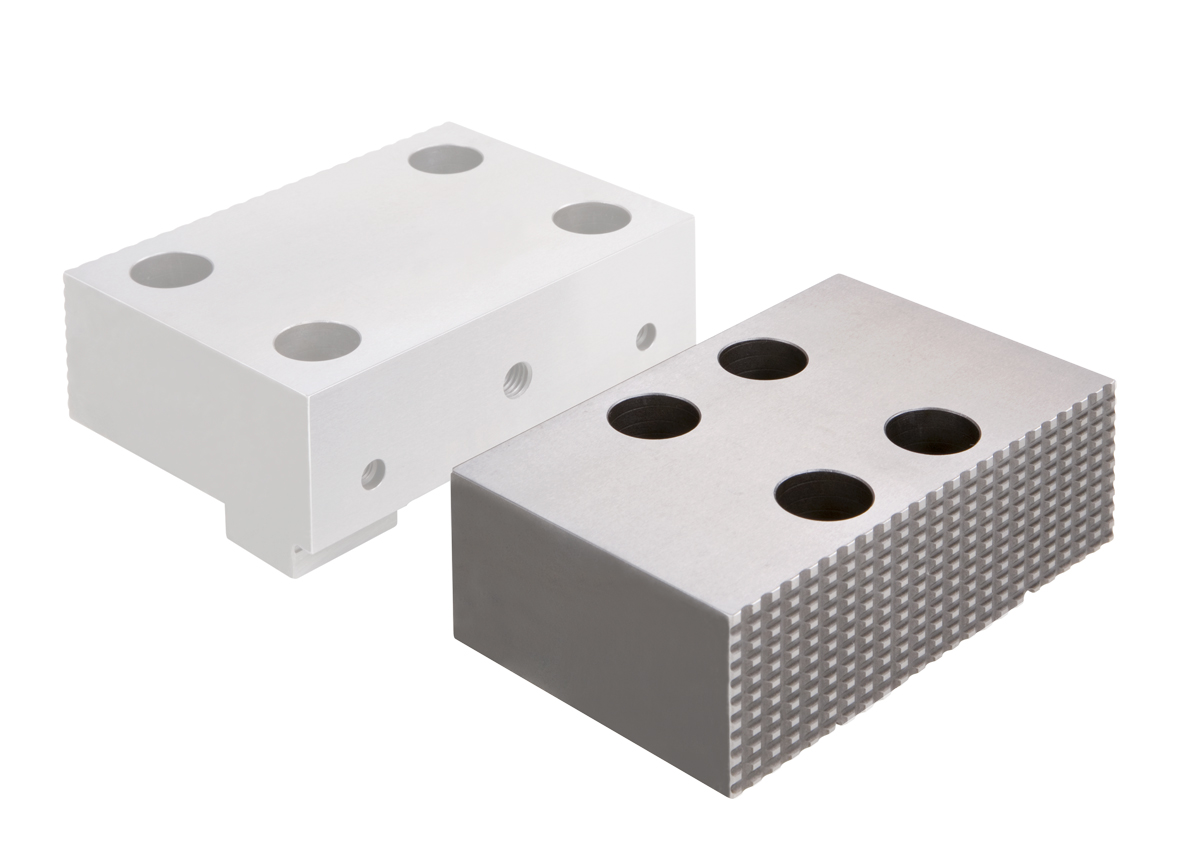

Allmatic
Artikelnr: 6921704004731
Description:
- Material: hardened steel
- Case-hardened and tempered 680 + 80 HV30; hardening depht 0.5 +0.3
- One side smooth, ground and polished; one side serrated
- Additional thread for parallels and for mounting HD jaws on the smooth side
- Mounts for Click system on both sides of the jaw
Scope of Supply:
- 1x Hard basic jaw movable
- 4x cylinder head screws DIN 912 M16x55
-
Specifikation

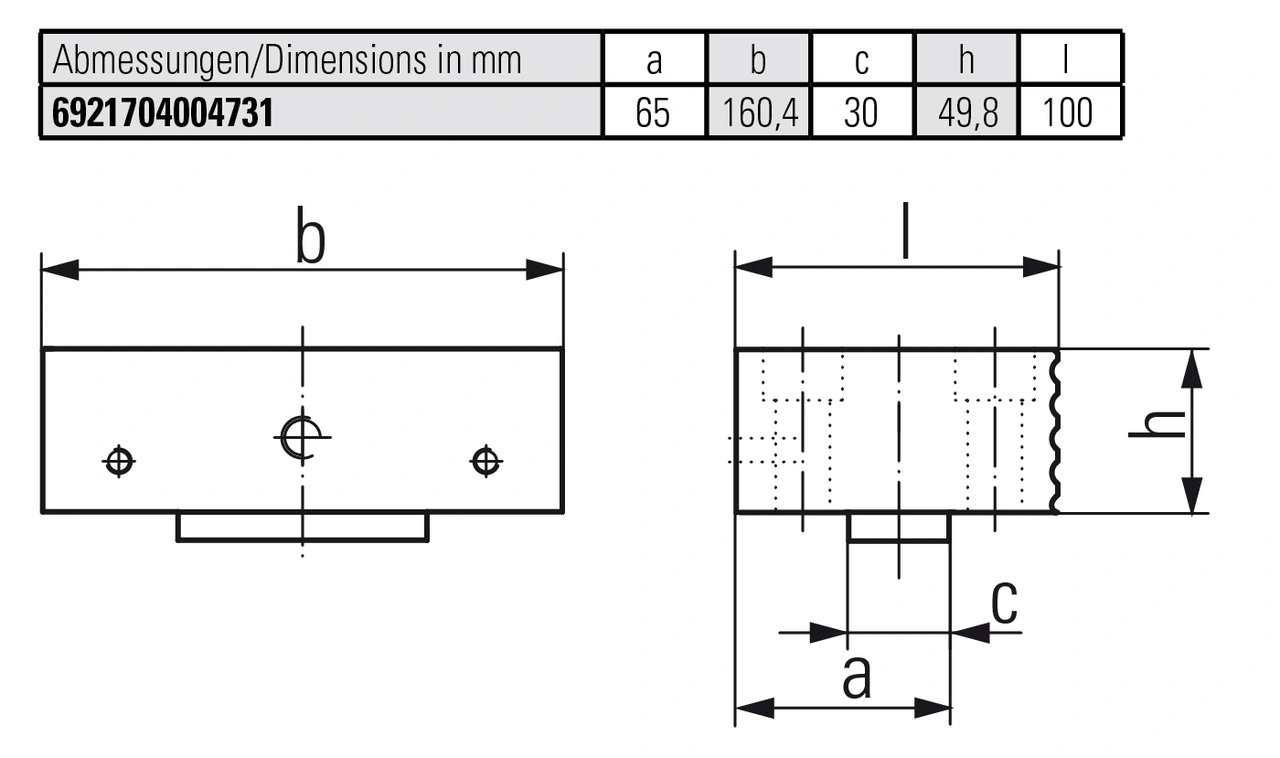

Dimension, a 65 Dimension, b 160,4 Dimension, c 30 Dimension, h 49,8 Dimension, l 100
