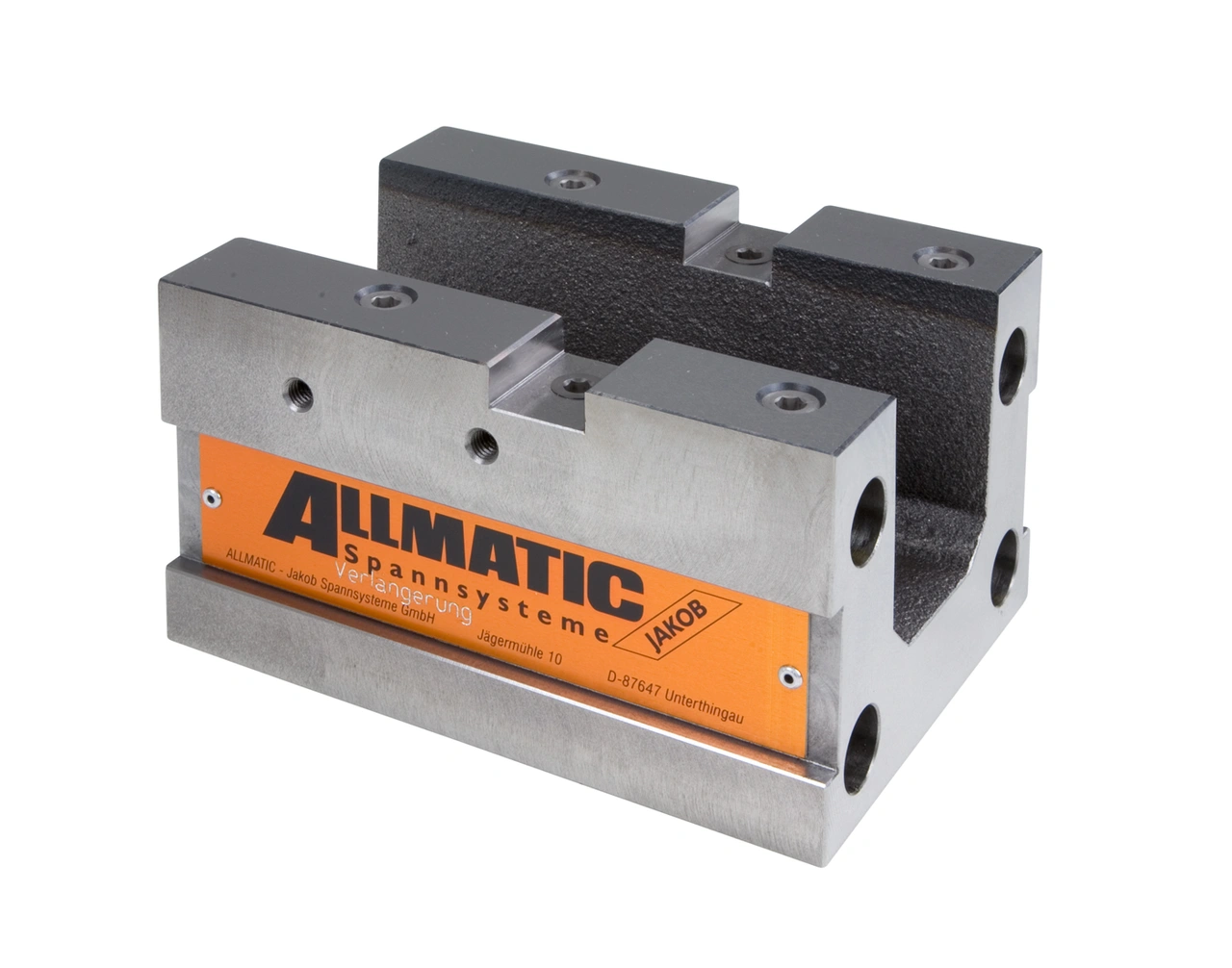

Allmatic
Artikelnr: 6921705008055
Description:
- For increasing the clamping range of the NC vice TC version and the Gripp vice TITAN 2-160
- Is attached to the end of the vices
- No transmission of clamping forces to the machine table
Scope of Supply:
- 1x Clamping range enlargement 160
- 2x Side clamps
- 4x Cylinder head screw M160x200
-

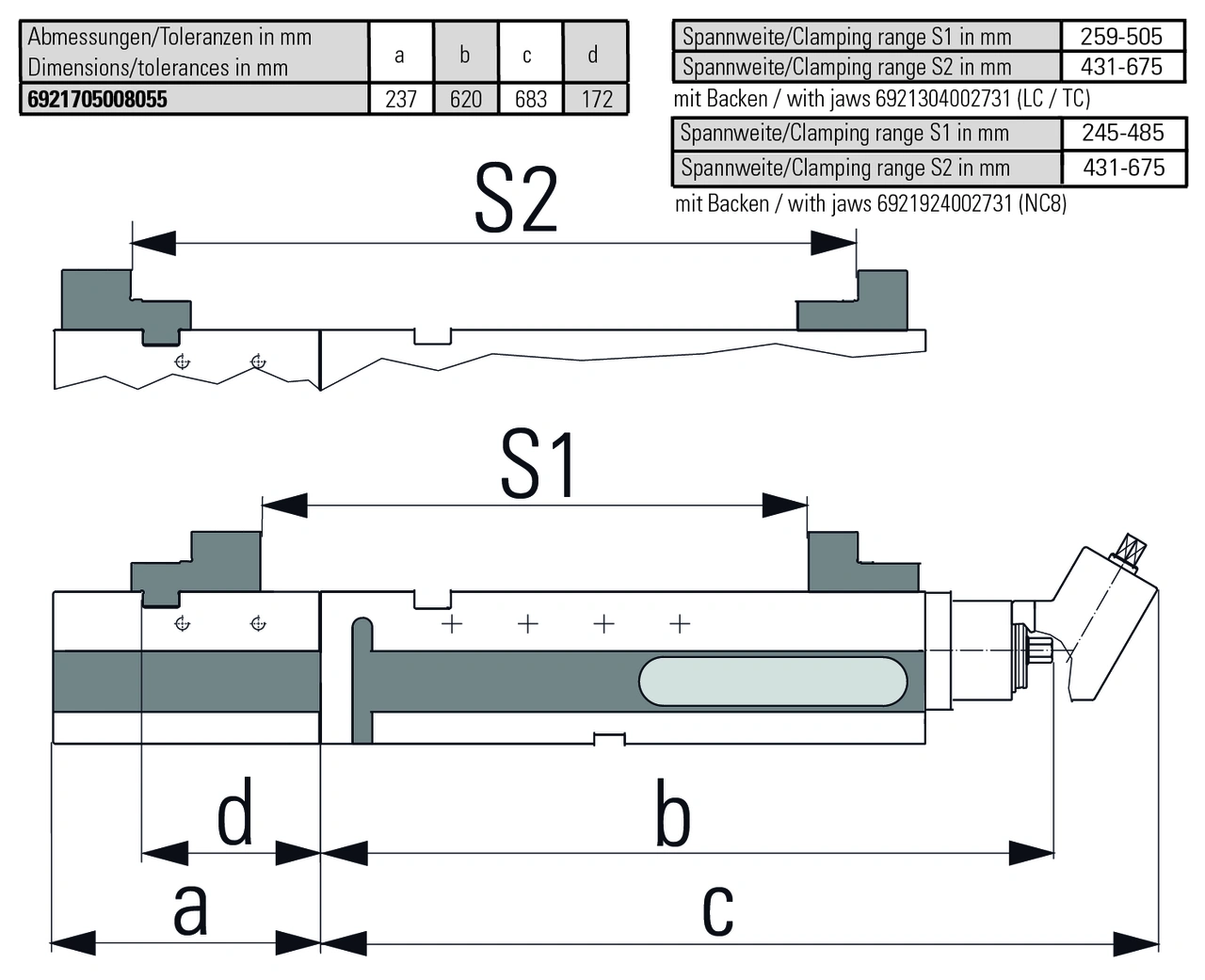

Specifikation
Spännområde, S1 (mm) 245-485 Spännområde, S2 (mm) 431-675 Dimension, a 237 Dimension, b 620 Dimension, c 683 Dimension, d 172
