Artikelnr: 6921844072042

Description:

• Material: hardened steel
• Case-hardened and tempered 600 + 50 HV10; hardening depth = 0,2
• For Mounting various pull-down wedge elements (the pull-down clamping we recommend only for the TITAN 2-160), universal gripper set and gripper studs with thread (pointed/smooth)
• Front surface can be used as clamping surface (hardened and ground)

Pivot jaw:

• For clamping uneven workpieces
• To compensate for non-parallel clamping surfaces
• Supplied without clamping elements

Scope of Supply

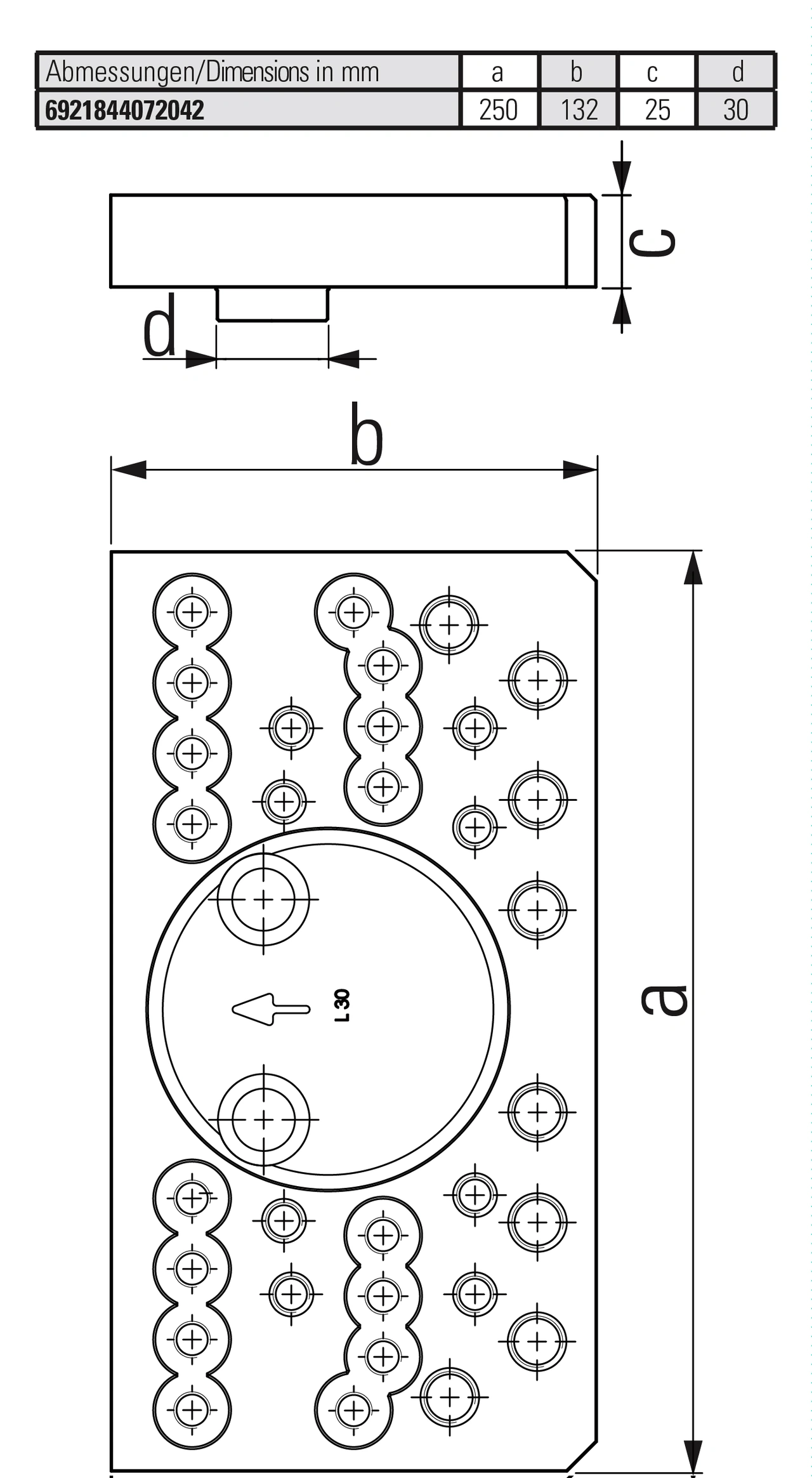

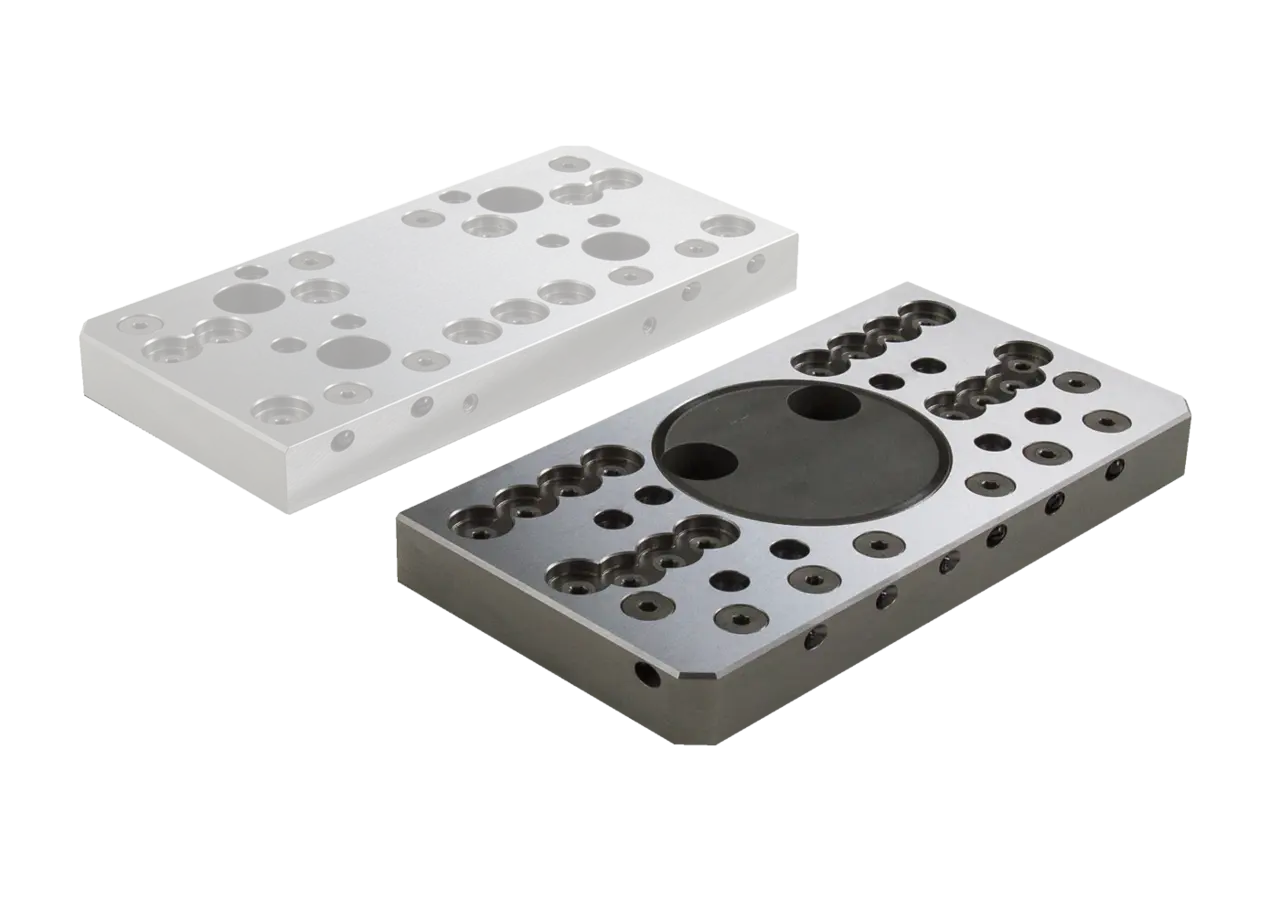

• 1x Support jaw movable, pivot 160
• 2x Cylinder head screws DIN 912 M16x30
