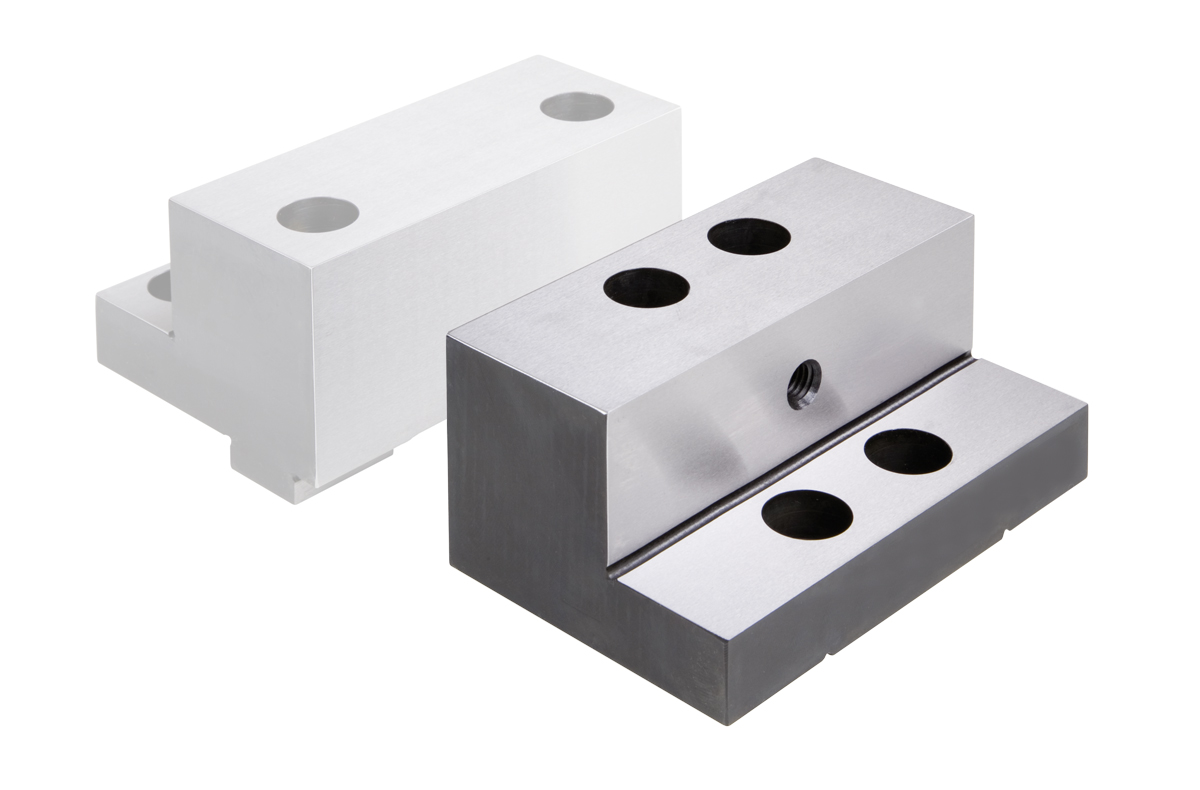

Allmatic
Artikelnr: 6921304011231
Description:
- Material: hardened steel
- Case-hardened and tempered 680 + 80 HV30; hardening depth 0,5 + 3
- Additional thread for mounting HD jaws
- Ground and polished clamping surfaces
- Click system on the high side
Scope of Supply:
- 1x Master jaw adapter movable
- 2x Cylinder head screws DIN 912 M16x30
- 2x Cylinder head screws DIN 912 M16x70
-

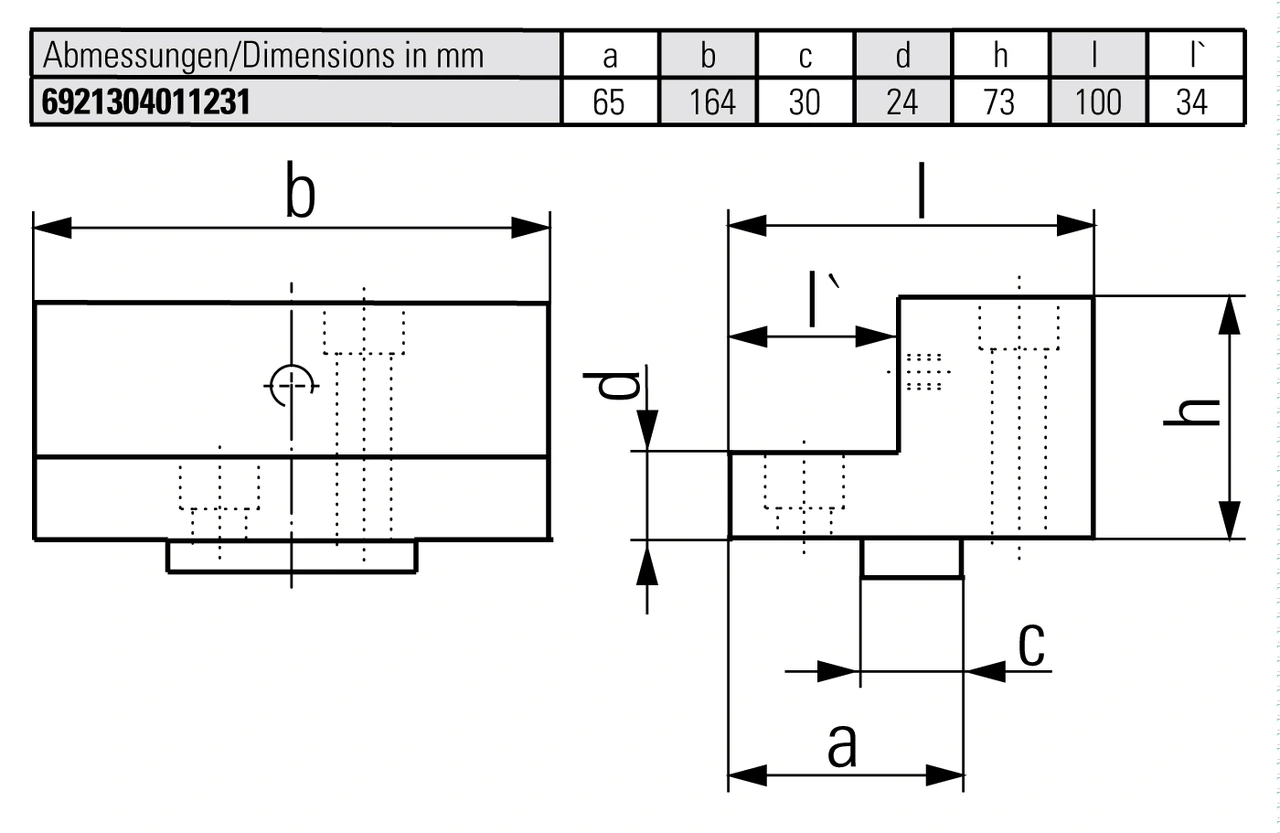

Specifikation
Dimension, a 65 Dimension, b 164 Dimension, c 30 Dimension, d 24 Dimension, h 73 Dimension, l 100 Dimension, l` 34
