Allmatic
Artikelnr: 6921844051031
Description:

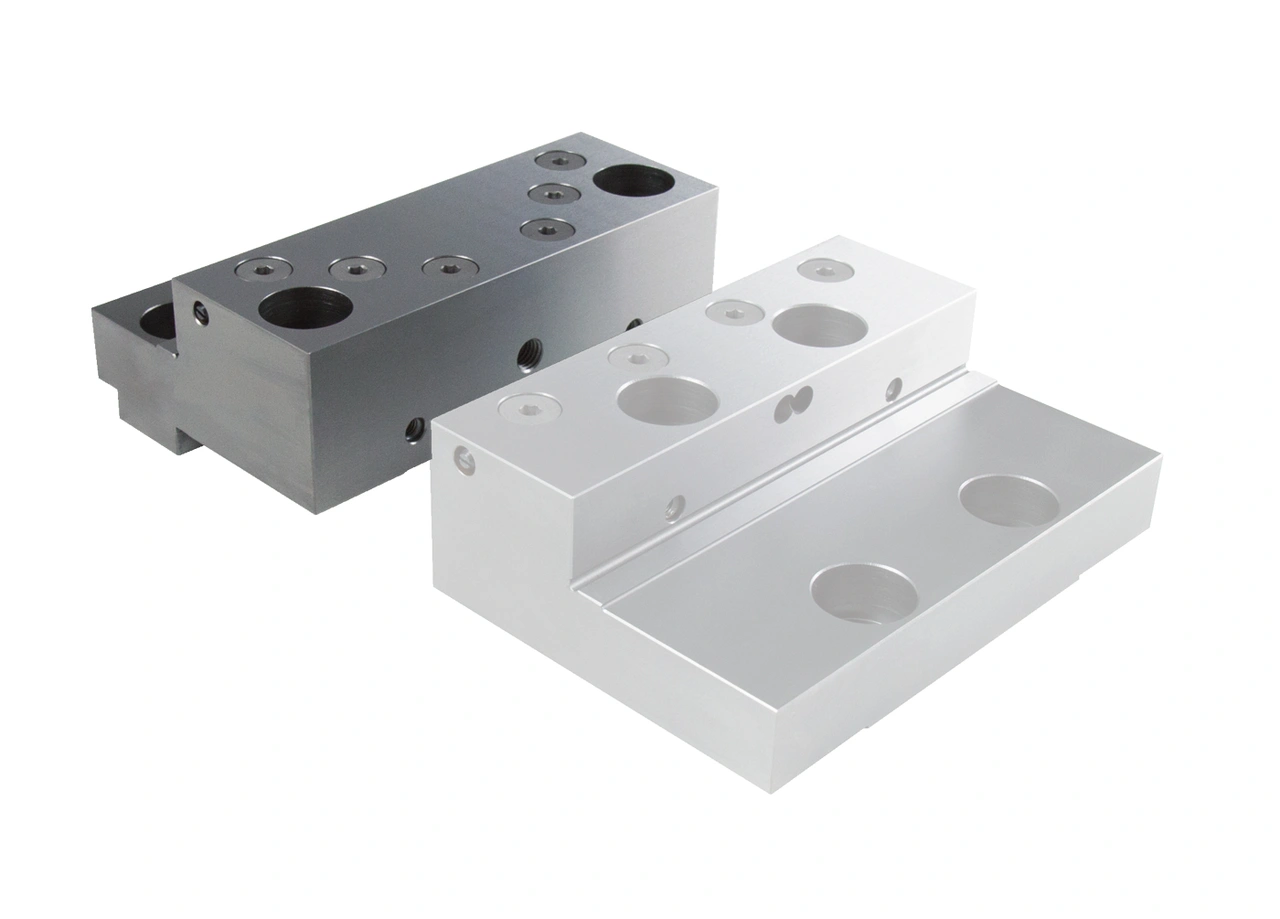

- Material: hardened steel
- Hardened 680 + 80 HV30; hardening depth: 0,5 + 0,3
- High and step sides with thread for parallels
- Ground clamping surfacesli>Additional thread on the high side for mounting the HD jaws (Type 125 - 200)
- Suitable for screw-in gripper studs
- First and second clamping steps are possible without changing jaws
- Click system on the high side
- Note: because the jaws have no pendulum, they are only suitable for rectangular workpices (Saw cuts) // <= (Parallelism less or equal 0,5 mm) respectively cylindrical workpieces 0 <= 0,5 (unitless or equal 0,5)
Scope of Supply:
- 1x Step jaw fixed for gripper studs 160
- 2x Cylinder head screws DIN 912 M16x30
- 2x Cylinder head screws DIN 912 M16x55
-

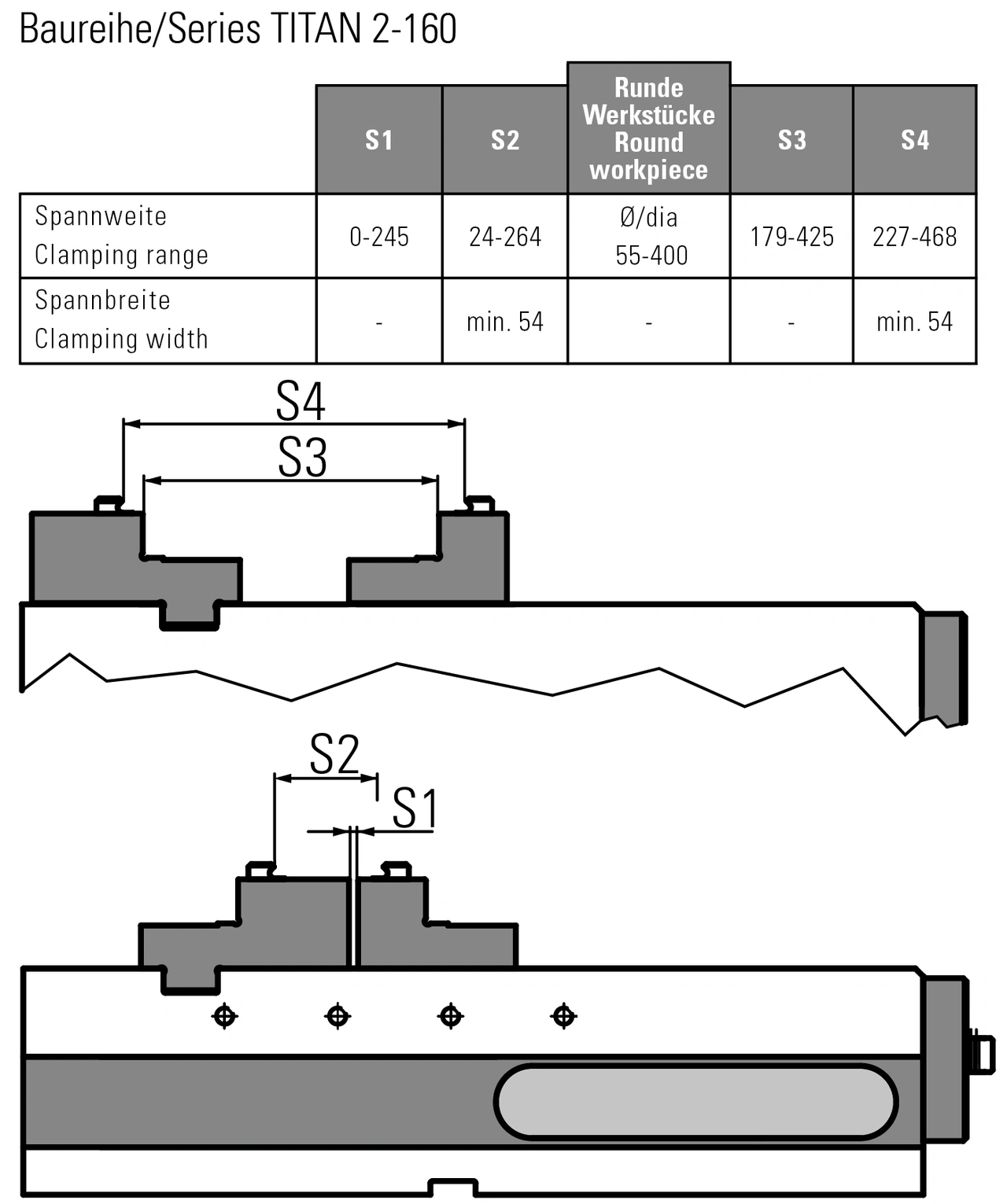

Specifikation

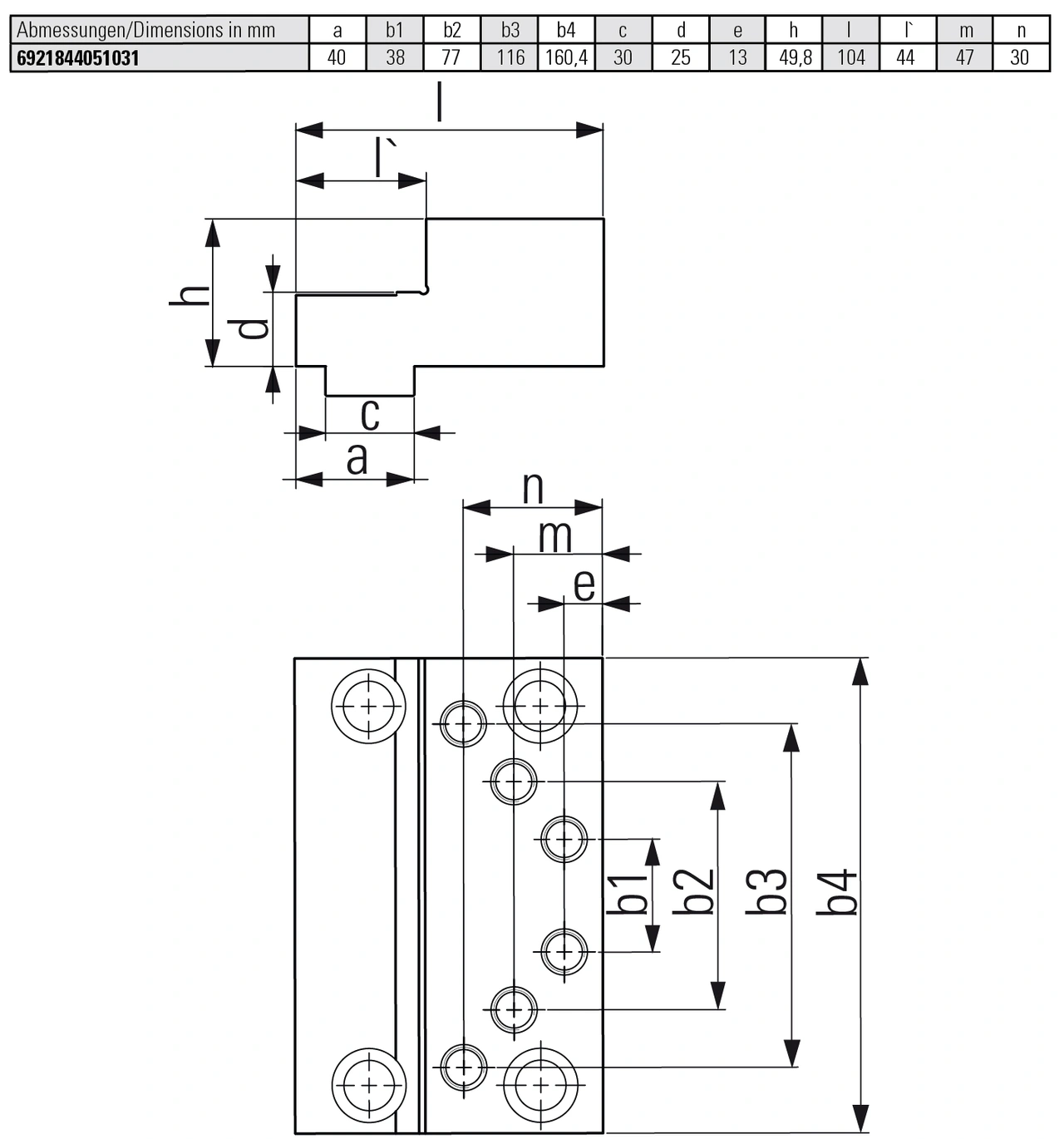

Dimension, a 40 Dimension, b1 38 Dimension, b2 77 Dimension, b3 116 Dimension, b4 160.4 Dimension, c 30 Dimension, d 25 Dimension, e 13 Dimension, h 49.8 Dimension, l 104 Dimension, l` 44 Dimension, m 47 Dimension, n 30
