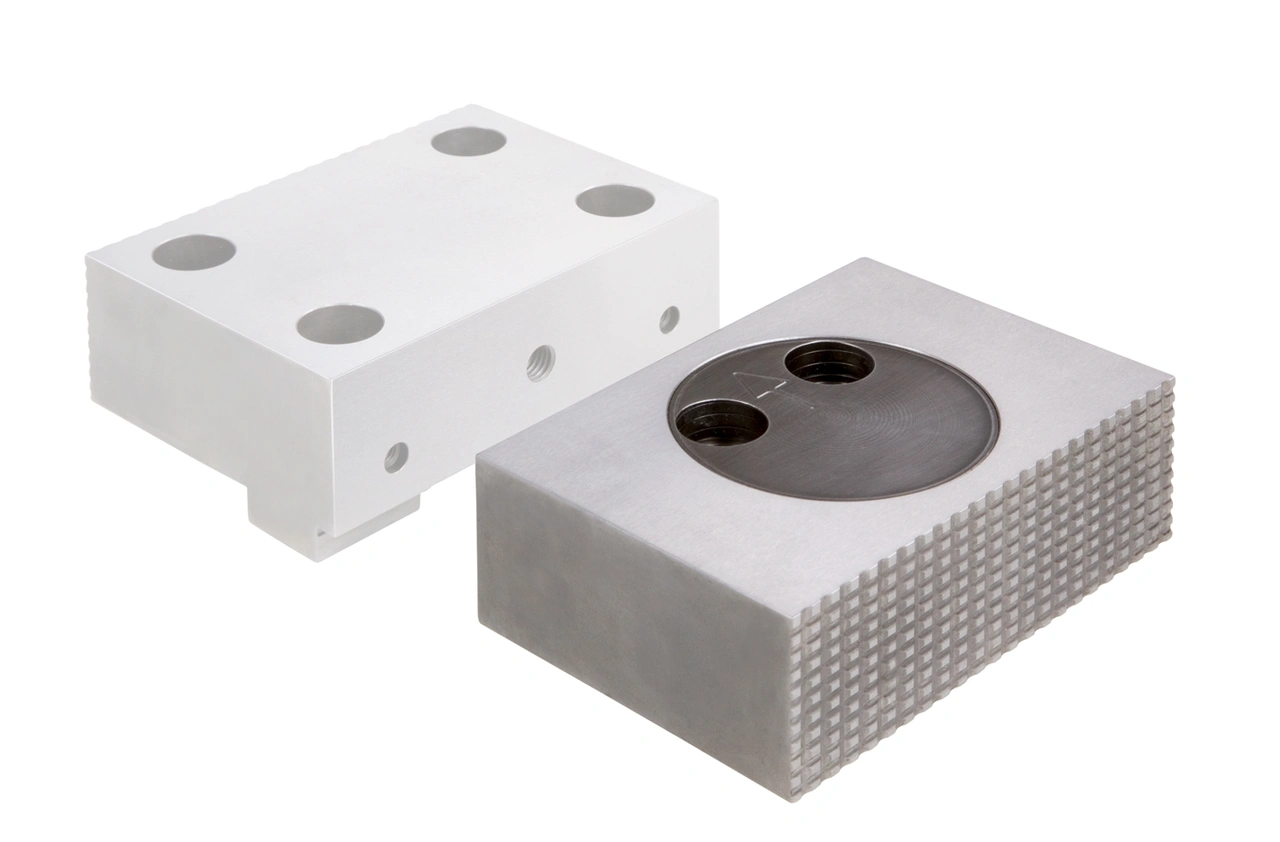

Allmatic
Artikelnr: 6921704020042
Description:
- Material: hardened steel
- Case-hardened and tempered 680 + 80 HV30; hardening depth 0,5 + 0,3
- With thread for parallels
- One side smooth, ground and polished; one side serrated
- Rotatable through 360°
- Picture with hard basic jaw (See order no. 6921704005731)
Scope of Supply:
- 1x Pivot jaw, movable
- 2x Cylinder head screws DIN 912 M16x55
-
Specifikation

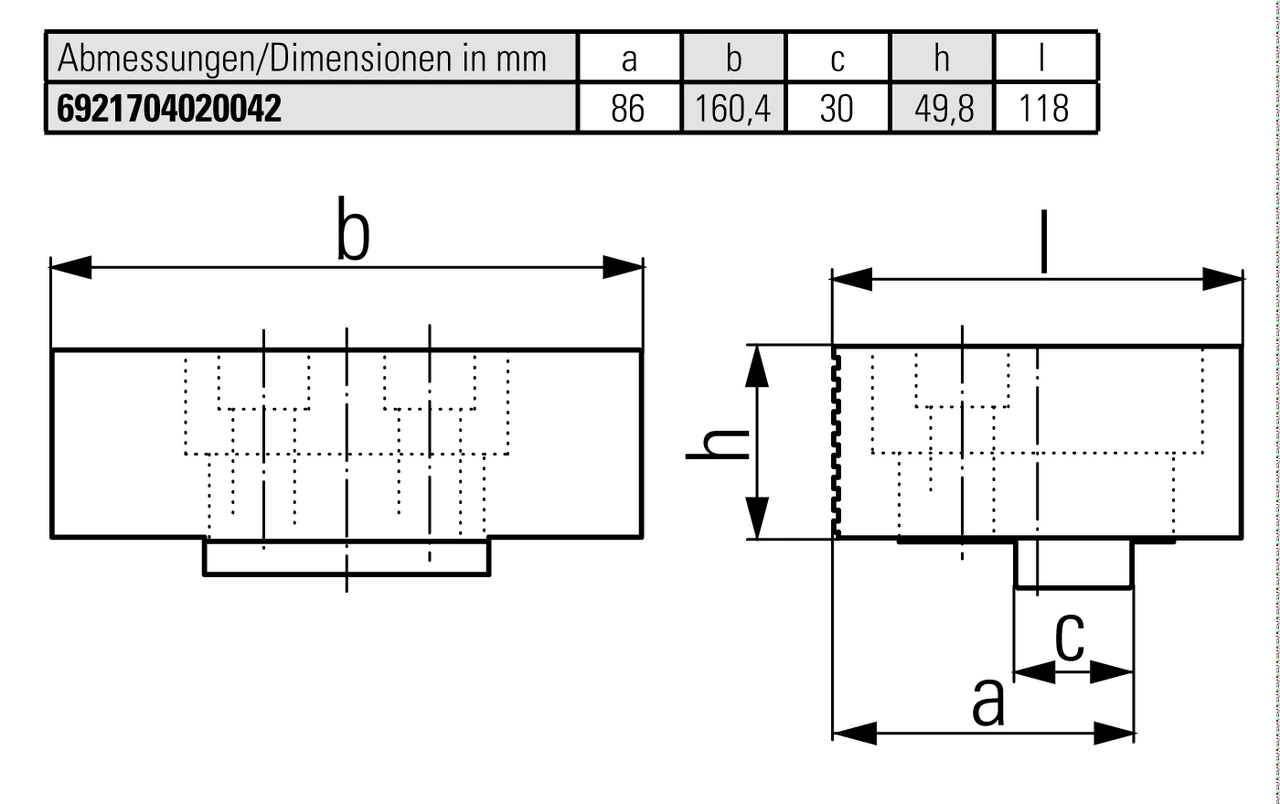

Dimension, a 86 Dimension, b 160.4 Dimension, c 30 Dimension, h 49.8 Dimension, l 118
