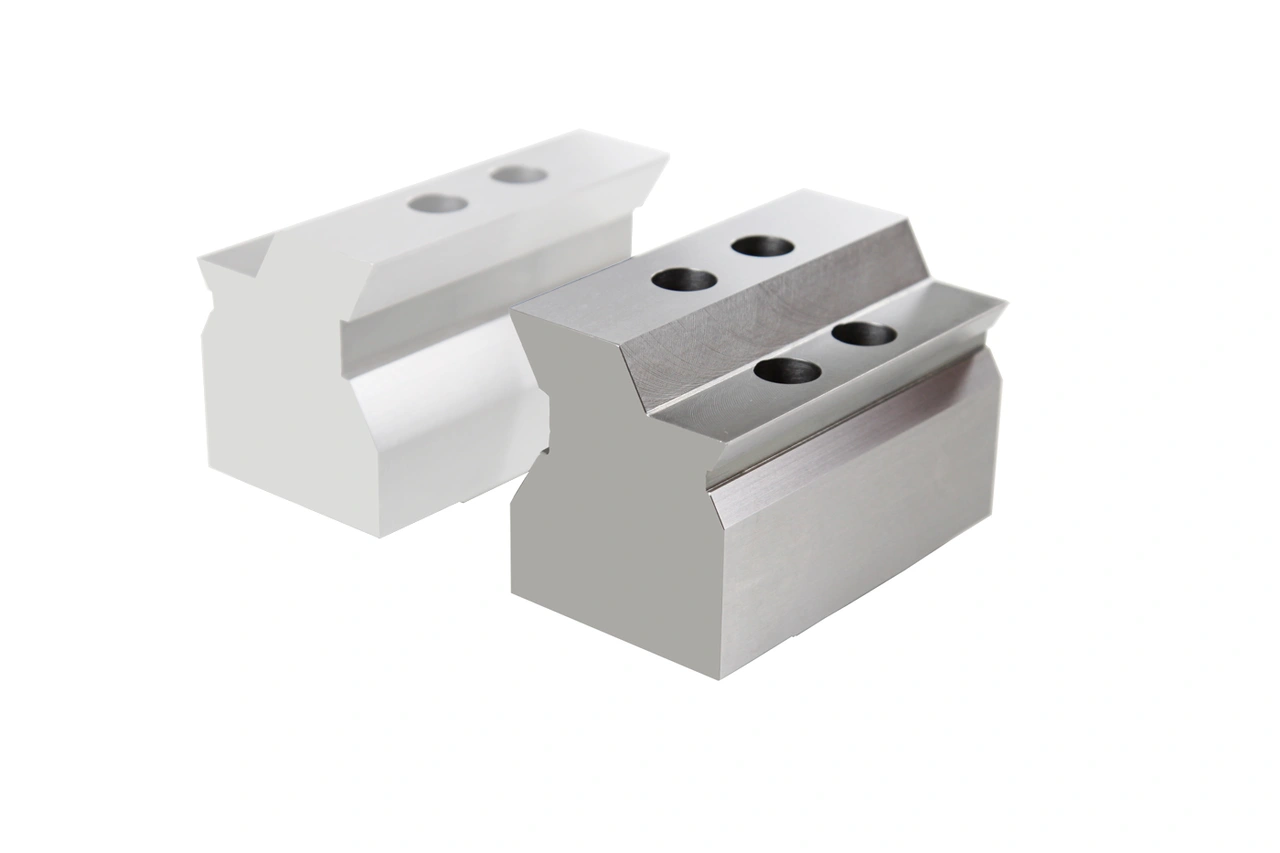

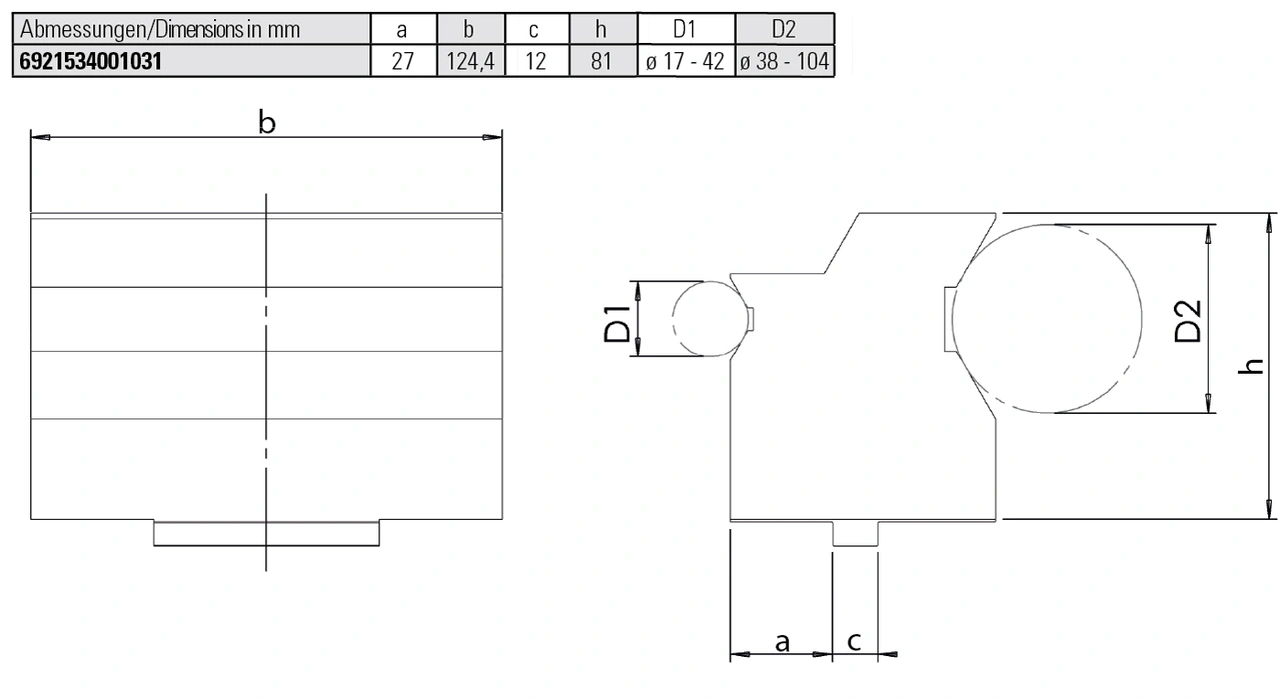

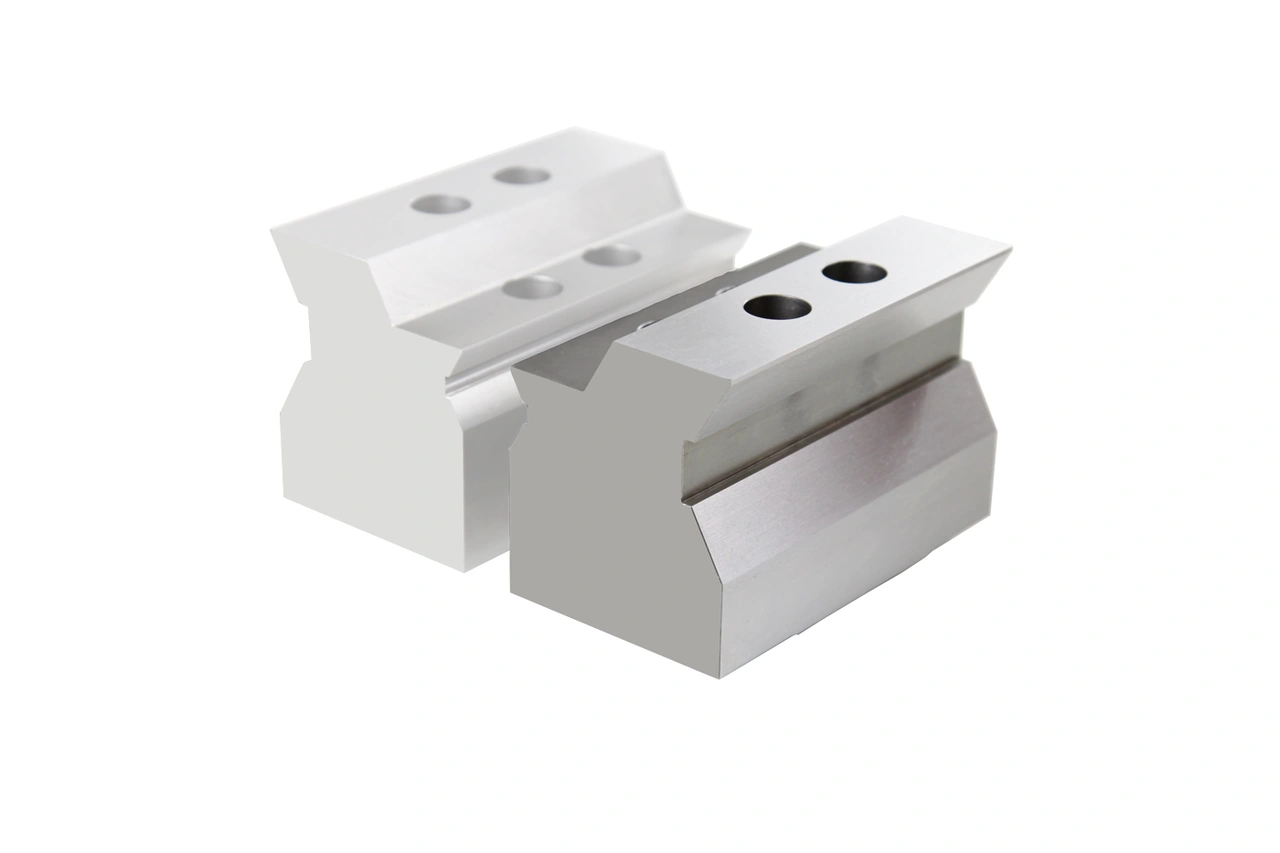

Artikelnr: 6921534001031

Description:

• Prism angle 120° - shaft height 53 mm on both sides
• Hardened and ground
• Jaws open far enough to allow the workpiece to be removed from above - even at maximum diameter
• Ideally suited for machining keyways on stepped shafts, for example, using two vices side-by-side

Scope of Supply:

• 1x Prismatic jaw, horizontal movable
• 2x Cylinder head screws DIN 912 M10x70
• 2x Cylinder head screws DIN 912 M10x85
