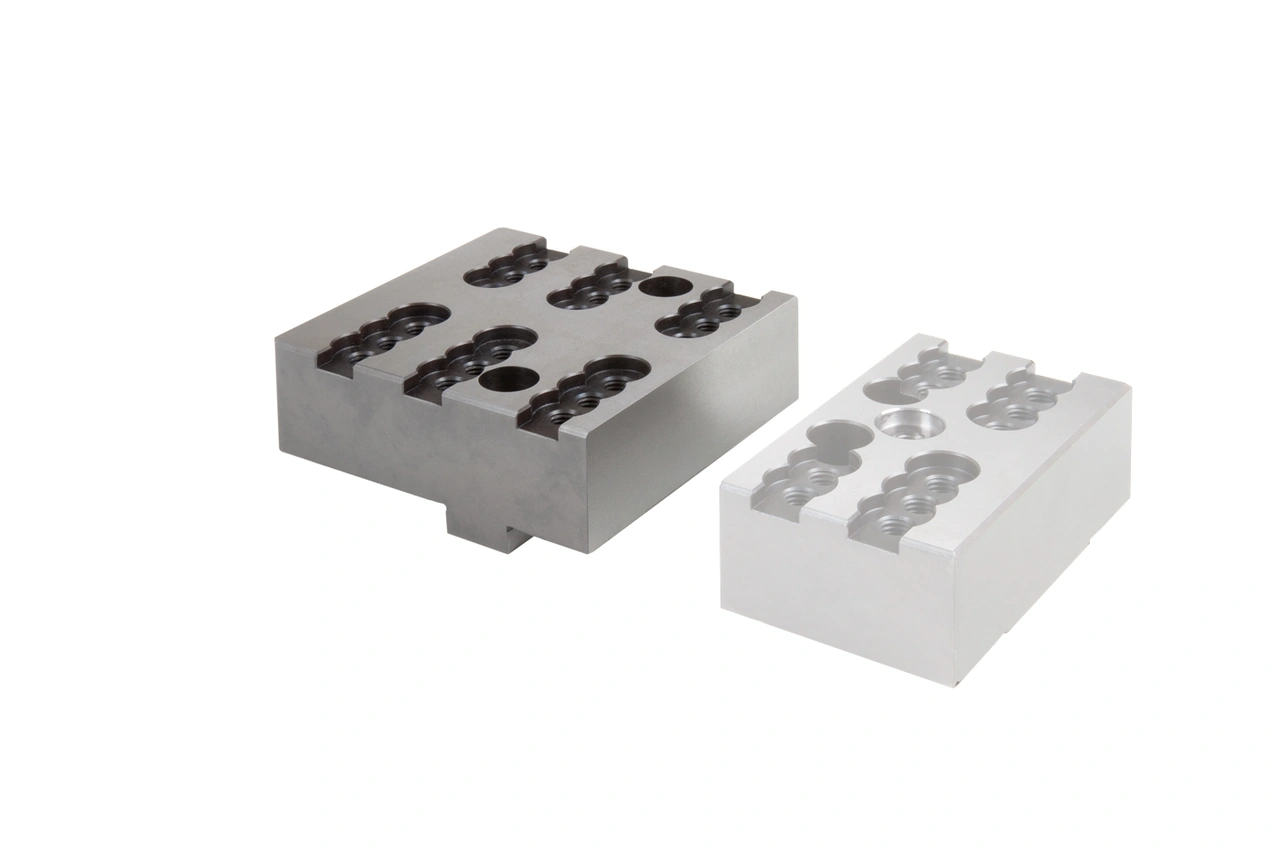

Allmatic
Artikelnr: 6921484005042
Description:
- Material: hardened steel
- Hardened 680 + 80 HV30; hardening depth 0,5 + 0,3
- For mounting the universal gripper set and the prismatic gripper
- For clamping unmachined parts
- For clamping pre-machined workpieces
- Front surface can be used as clamping surface
- Use of the Click system
- Universal gripper set not included
Scope of Supply:
- 1x Support jaw for universal gripper set fixed
- 2x Cylinder head screws DIN 912 M12x55
-

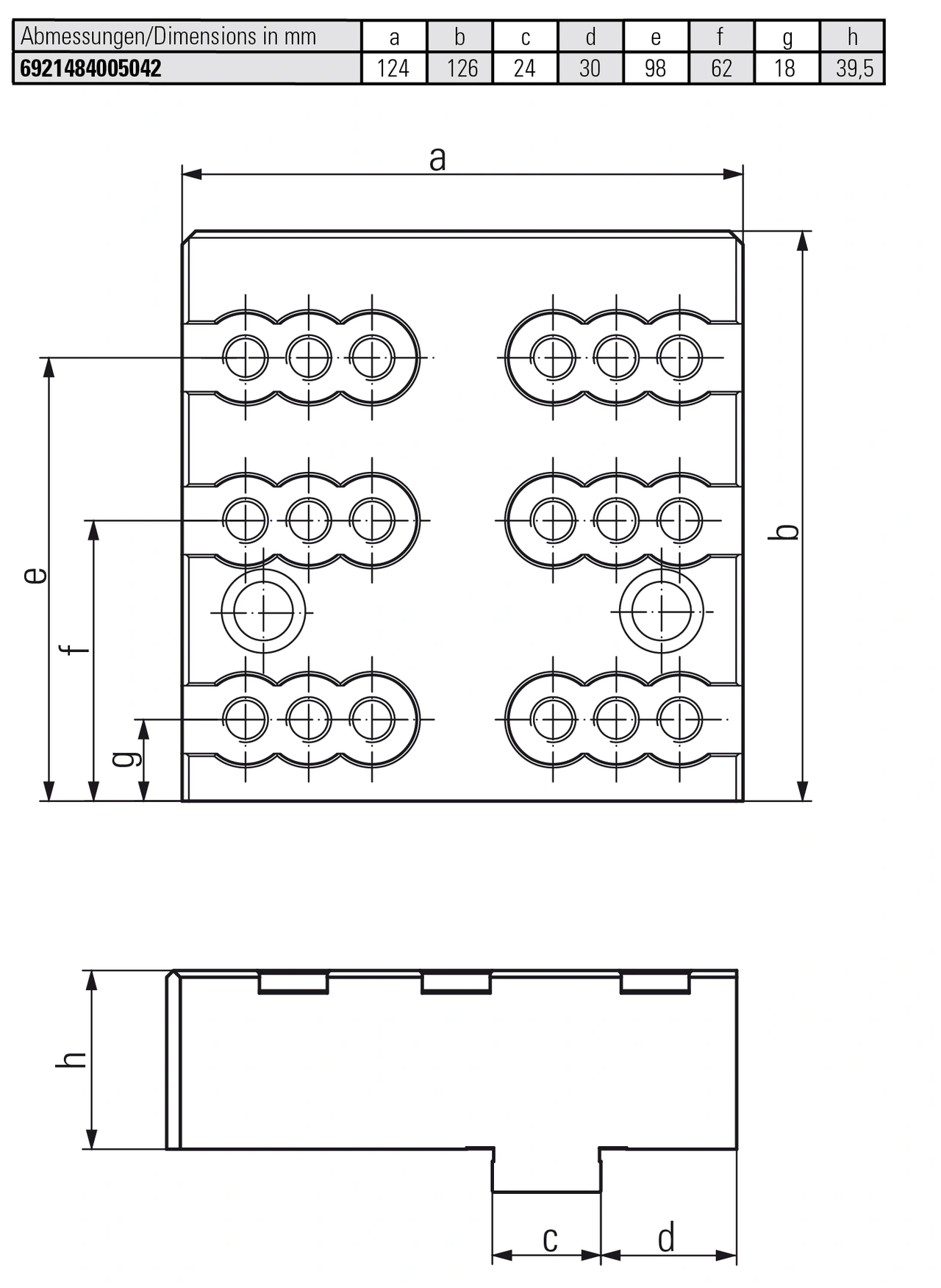

Specifikation
Dimension, a 124 Dimension, b 126 Dimension, c 24 Dimension, d 30 Dimension, e 98 Dimension, f 62 Dimension, g 18 Dimension, h 39.5
