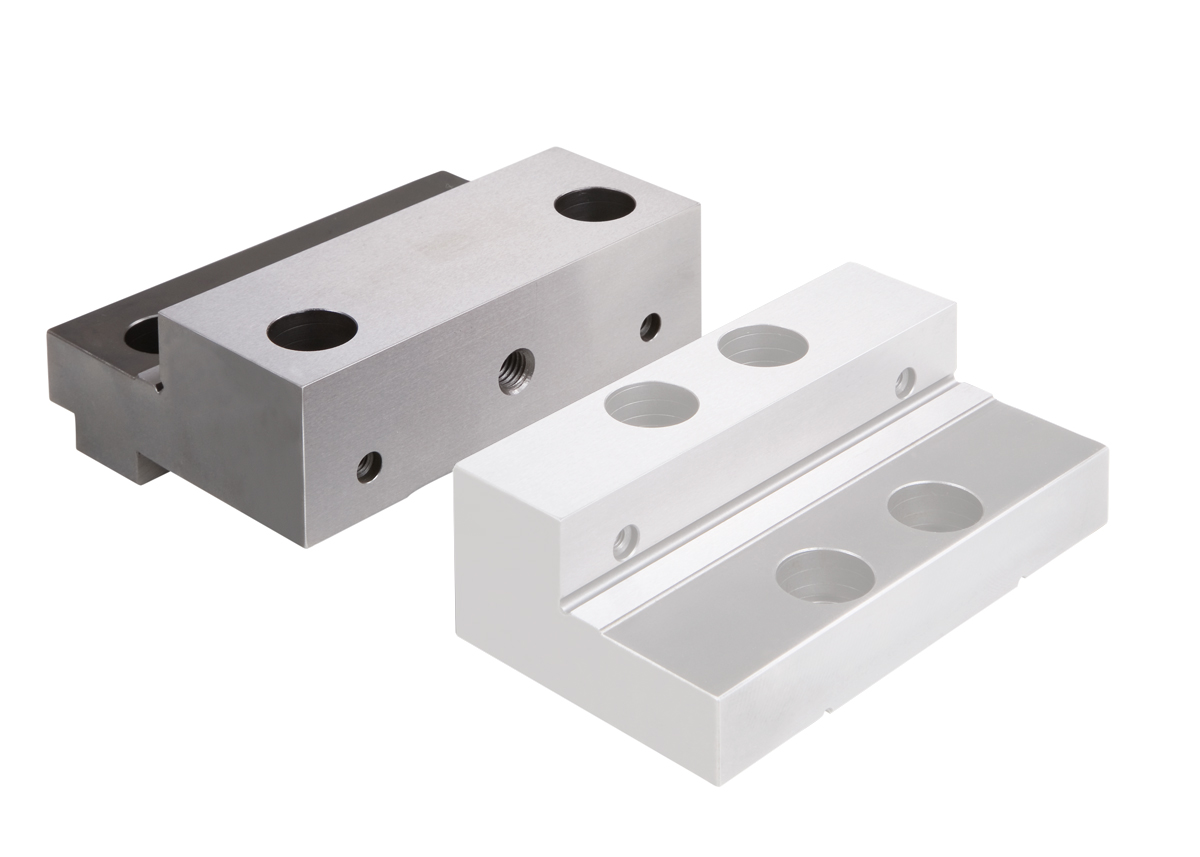

Allmatic
Artikelnr: 6921694006031
Description:
- Material: hardened steel
- Case-hardened and tempered 680 + 80 HV30; hardening depth 0,5 + 0,3
- High and step sides with thread for parallels
- Ground and polished clamping surfaces
- Additional thread on the high side for mounting HD jaws (type 125 - 200)
Scope of Supply:
- 1x Step jaw fixed
- 2x Cylinder head screws DIN 912 M16x30
- 2x Cylinder head screws DIN 912 M16x65
-

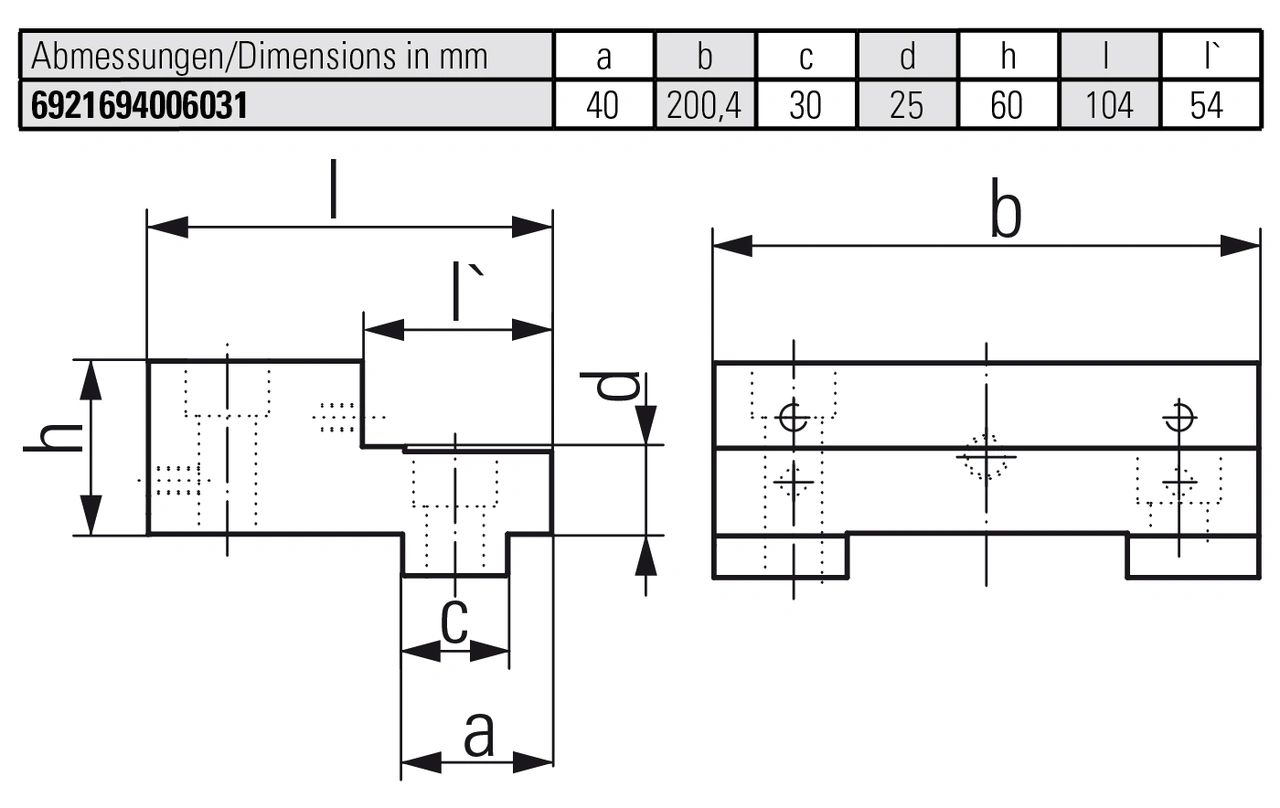

Specifikation
Dimension, a 40 Dimension, b 200.4 Dimension, c 30 Dimension, d 25 Dimension, h 60 Dimension, l 104 Dimension, l` 54
