Allmatic
Artikelnr: 6921674006731
Description:
- Material: hardened steel
- Case-hardened and tempered 680 + 80 HV30; hardening depth 0,5 + 0,3
- High and step sides with thread for parallels
- Ground and polished clamping surfaces
- Additional thread on the high side for mounting Hd jaws
- Click system on the high side
Scope of Supply:
- 2x Cylinder head screws DIN 912 M10x20
- 2x Cylinder head screws DIN 912 M10x35
-
Specifikation

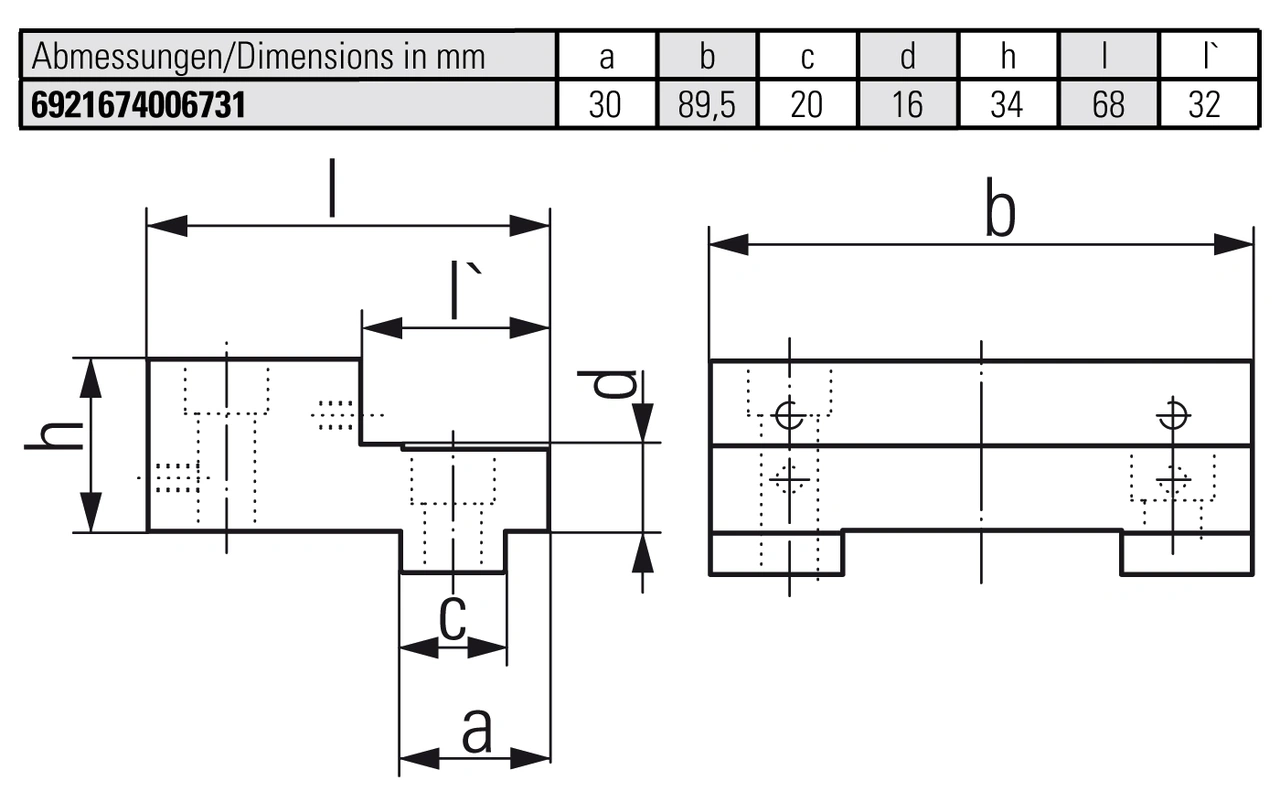

Dimension, a 30 Dimension, b 89.5 Dimension, c 20 Dimension, d 16 Dimension, h 34 Dimension, l 68 Dimension, l` 32
