Kennametal
Artikelnr: 5230VS12-A100Z6R133

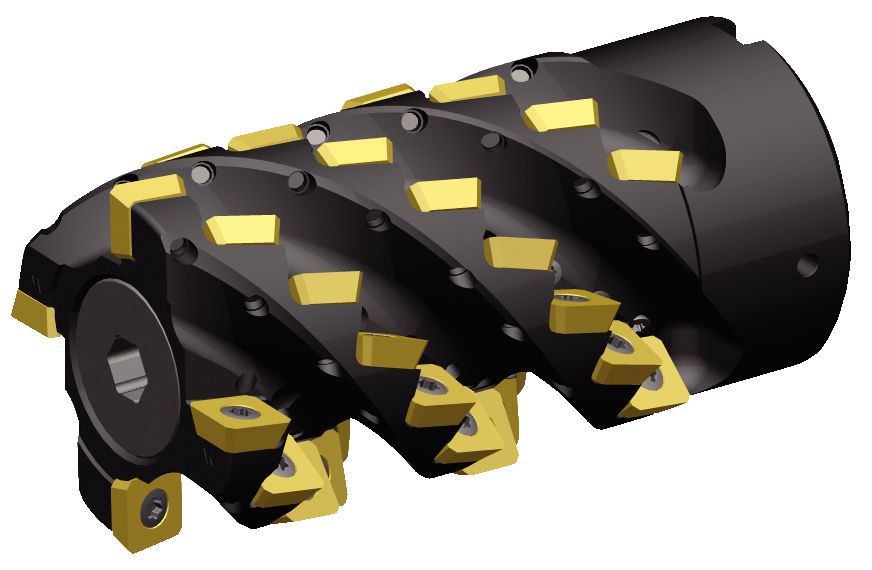

- High material removal rates, especially in titanium and high-temperature alloys.
- Chevron design improves stability and lowers power consumption.
- Insert positioning provide smooth progressive penetration and cutting action for extended tool life.
- Individual coolant jets to each insert provide constant chip evacuation and temperature stability in the cutting zone.
- NOTE: Ap2 max is the max Ap for slotting.
-
Specifikation

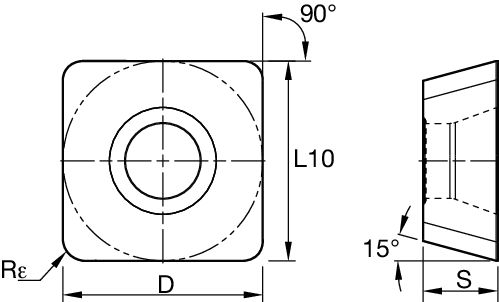

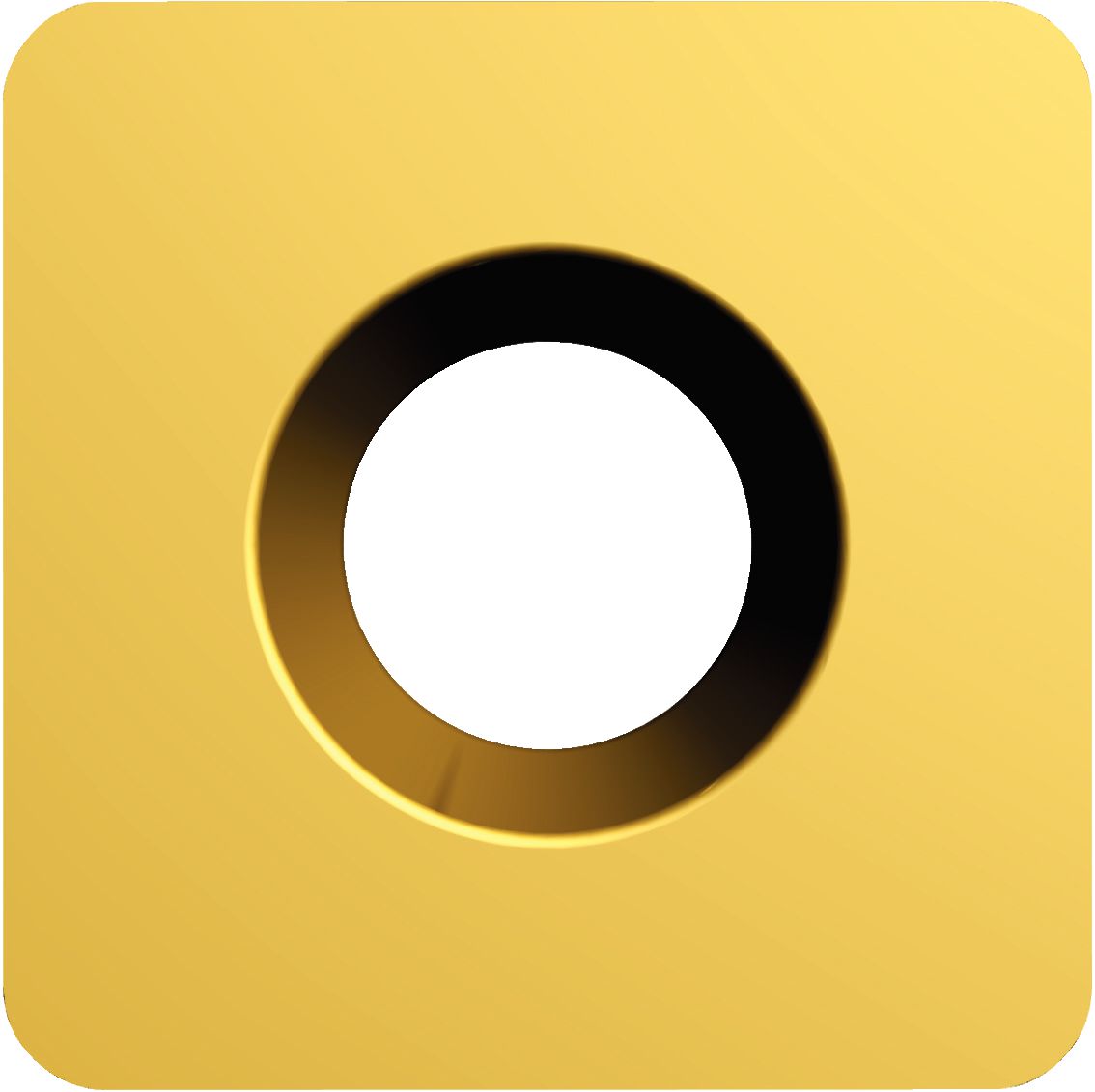

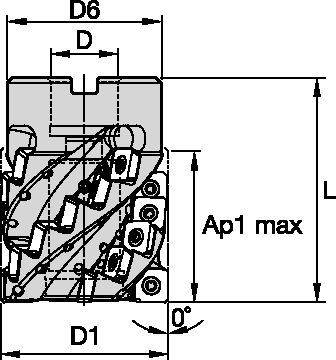

Nominell diameter, Ø 100 Diameter, D1 100 Max skärdjup, Ap1 max 133 Ställvinkel, Kr 90 Antal skär, Z 84 Antal effektiva skär, ZU 6 Valsfräs (ZU<Z) Ja Diameter, D 40 Diameter, D2 97.2 Diameter, D6 94 Längd, L 165 Max varvtal, max RPM 16000 Skärformat (Produktfamilj) SD..1204.. (5230VS) Rotationsriktning R - Höger Skaft/Adapter, typ Fräsdorn Invändig kylning/ Kylkanal Ja Produktfamilj 5230VS12 Artikelnummer 5230VS12-A100Z6R133 Beställningsnummer 5673169
