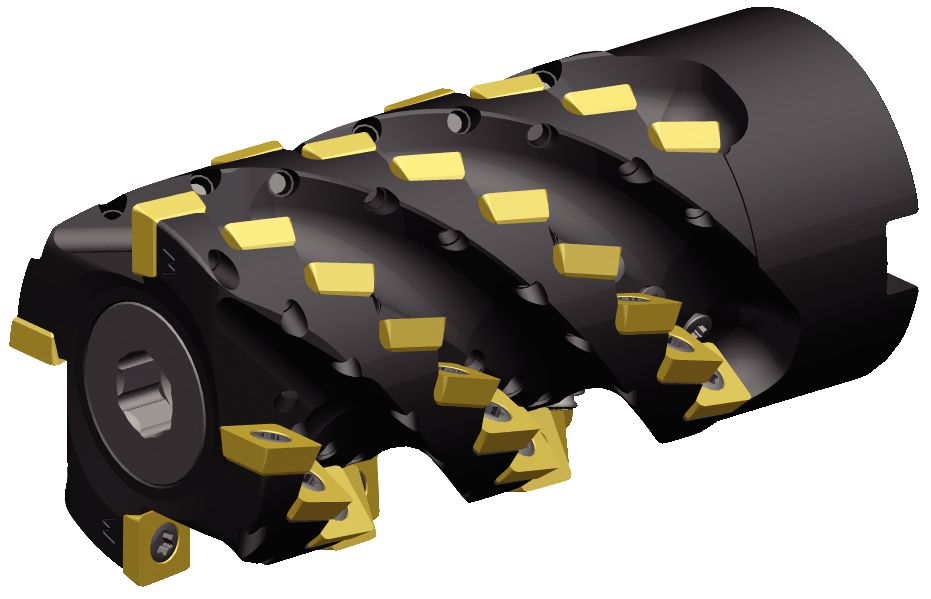

MILLING TOOLHOLDER

MILLING TOOLHOLDER

MILLING TOOLHOLDER

MILLING TOOLHOLDER

P

M

K

N

S

Kennametal

Artikelnr: 5230VS09-A050Z4R80

High material removal rates, especially in titanium and high-temperature alloys.
Chevron design improves stability and lowers power consumption.
Insert positioning provide smooth progressive penetration and cutting action for extended tool life.
Individual coolant jets to each insert provide constant chip evacuation and temperature stability in the cutting zone.
NOTE: Ap2 max is the max Ap for slotting.

MILLING TOOLHOLDER

Beskrivning
- High material removal rates, especially in titanium and high-temperature alloys.
- Chevron design improves stability and lowers power consumption.
- Insert positioning provide smooth progressive penetration and cutting action for extended tool life.
- Individual coolant jets to each insert provide constant chip evacuation and temperature stability in the cutting zone.
- NOTE: Ap2 max is the max Ap for slotting.

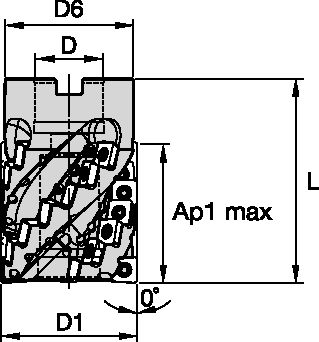

Nominell diameter, Ø	50
Diameter, D1	50
Max skärdjup, Ap1 max	80
Ställvinkel, Kr	90
Antal skär, Z	44
Antal effektiva skär, ZU	4
Valsfräs (ZU<Z)	Ja
Diameter, D	27
Diameter, D2	48.4
Diameter, D6	47.8
Längd, L	106
Max varvtal, max RPM	32500
Skärformat (Produktfamilj)	SD..09T3.. (5230VS)
Rotationsriktning	R - Höger
Skaft/Adapter, typ	Fräsdorn
Invändig kylning/ Kylkanal	Ja
Produktfamilj	5230VS09
Artikelnummer	5230VS09-A050Z4R80
Beställningsnummer	5673801
