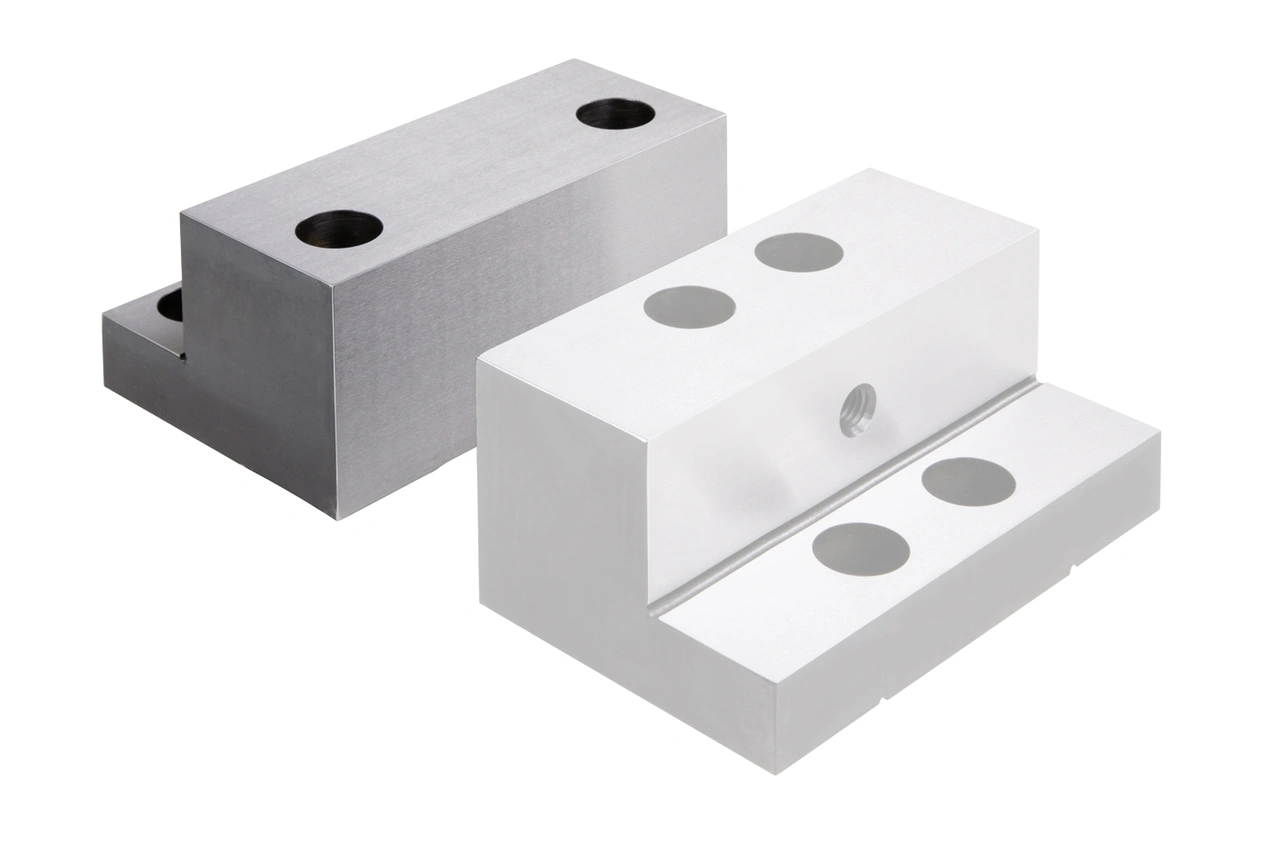

Allmatic
Artikelnr: 6921284012131
Description:
- Material: hardened steel
- High side of jaw hardened
- Additional thread on the high clamping surface for mounting the HD jaws
- Ground and polished clamping surfaces
- Click system on the high side
Scope of Supply:
- 1x Master jaw adapters fixed
- 2x Cylinder head screws DIN 912 M12x25
- 2x Cylinder head screws DIN 912 M12x60
-

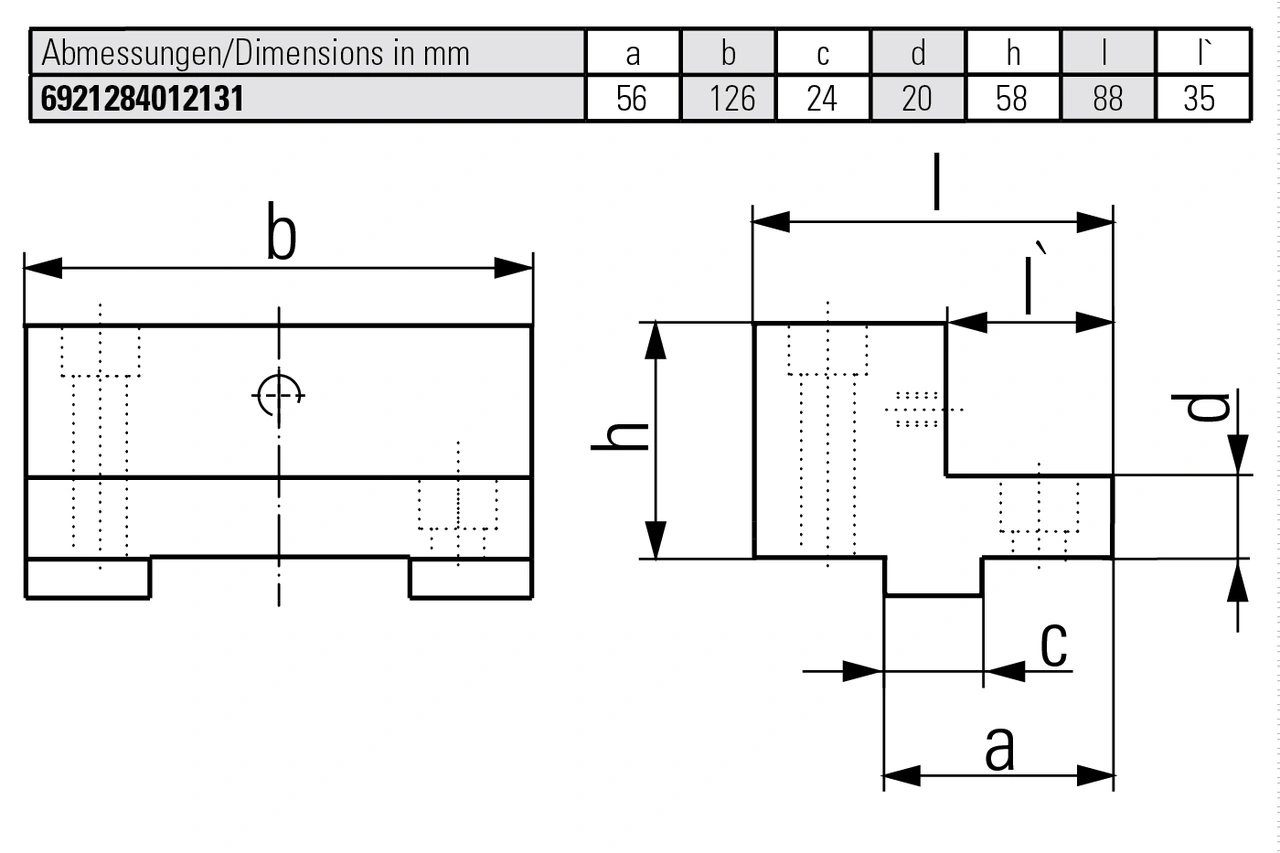

Specifikation
Dimension, a 56 Dimension, b 126 Dimension, c 24 Dimension, d 20 Dimension, h 58 Dimension, l 88 Dimension, l` 35 Dimension, h1 23 Dimension, h2 26
