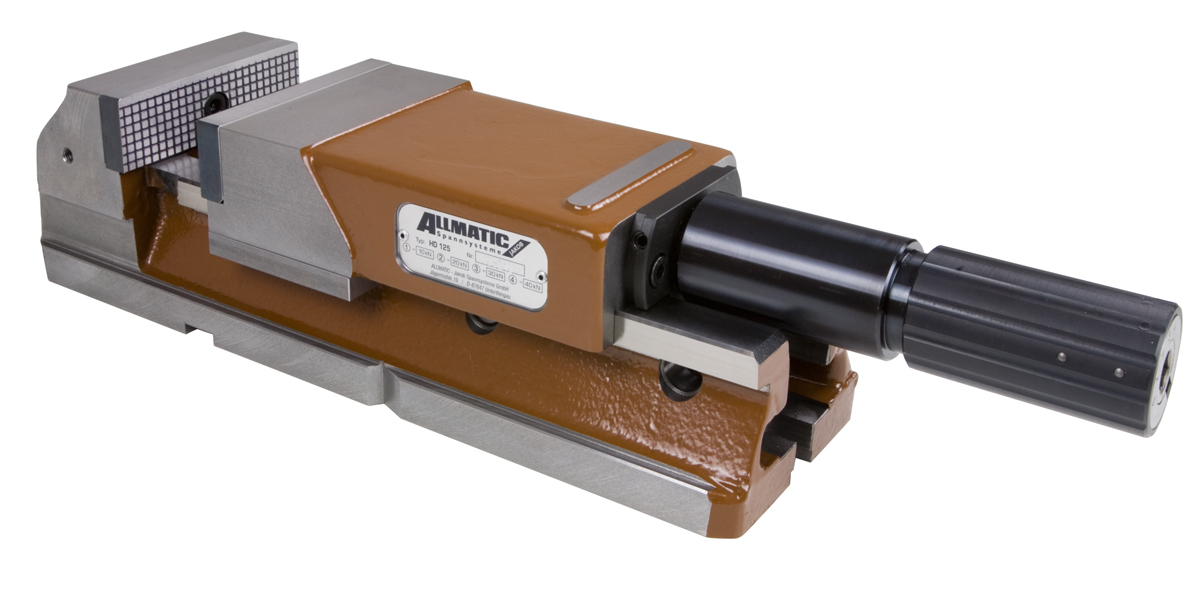

Allmatic
Artikelnr: 6921031000055
Description:
Product features:
- Clamping force preselection, 2 to 4 increments, allows accurate repetition (type 100 – 2 increments; types 125, 160 – 4 increments)
- Our tried and tested HD vice enables problem-free working with high clamping force and long-term reliability
- Suitable for heavy machining work, single pieces and small batches
- Designed particularly for use on conventional milling machines
Scope of Supply
- 1x high-pressure vice
- 4x side clamps
- 1x pair of serrated clamping jaws

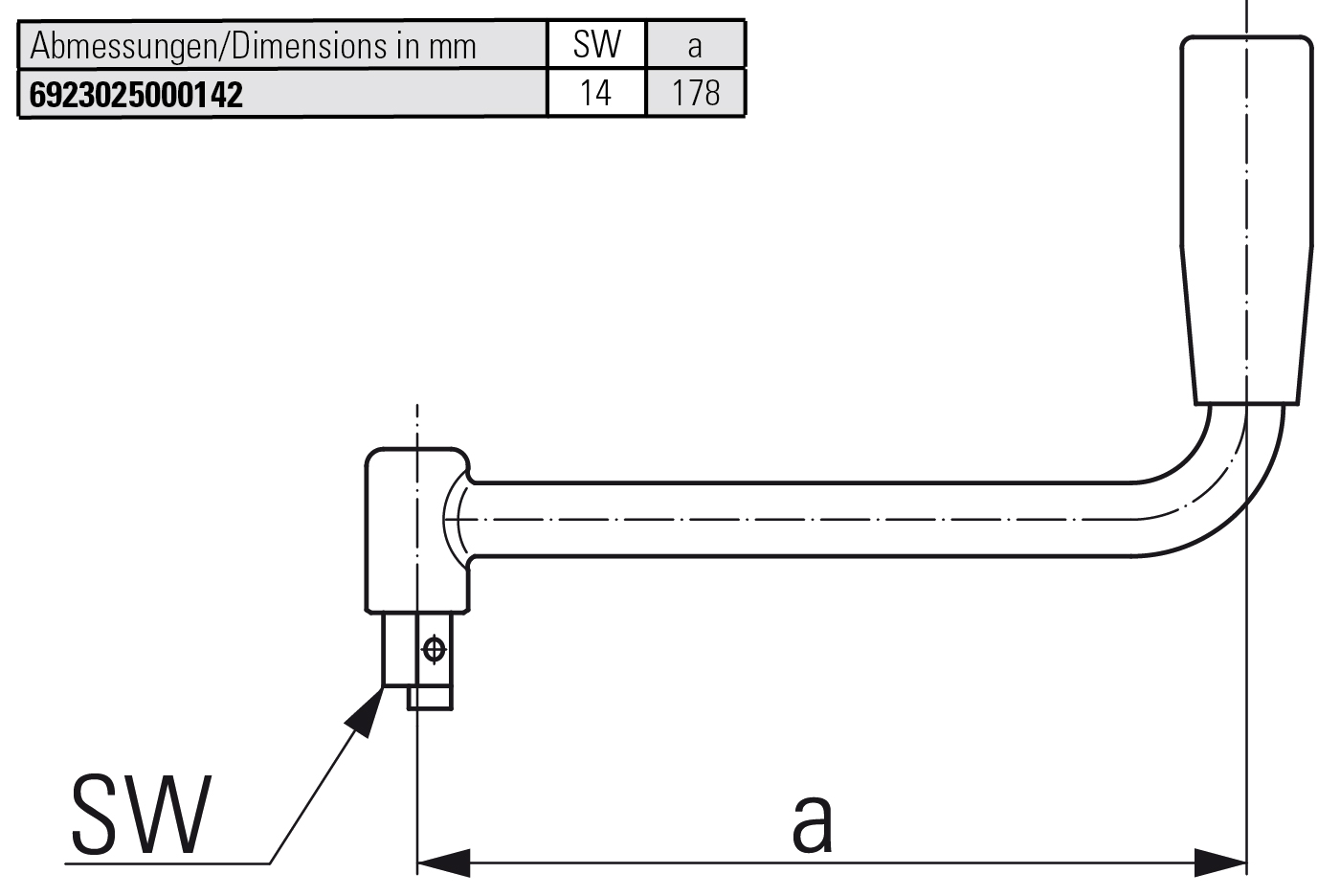

- 1x hand crank
-
Specifikation

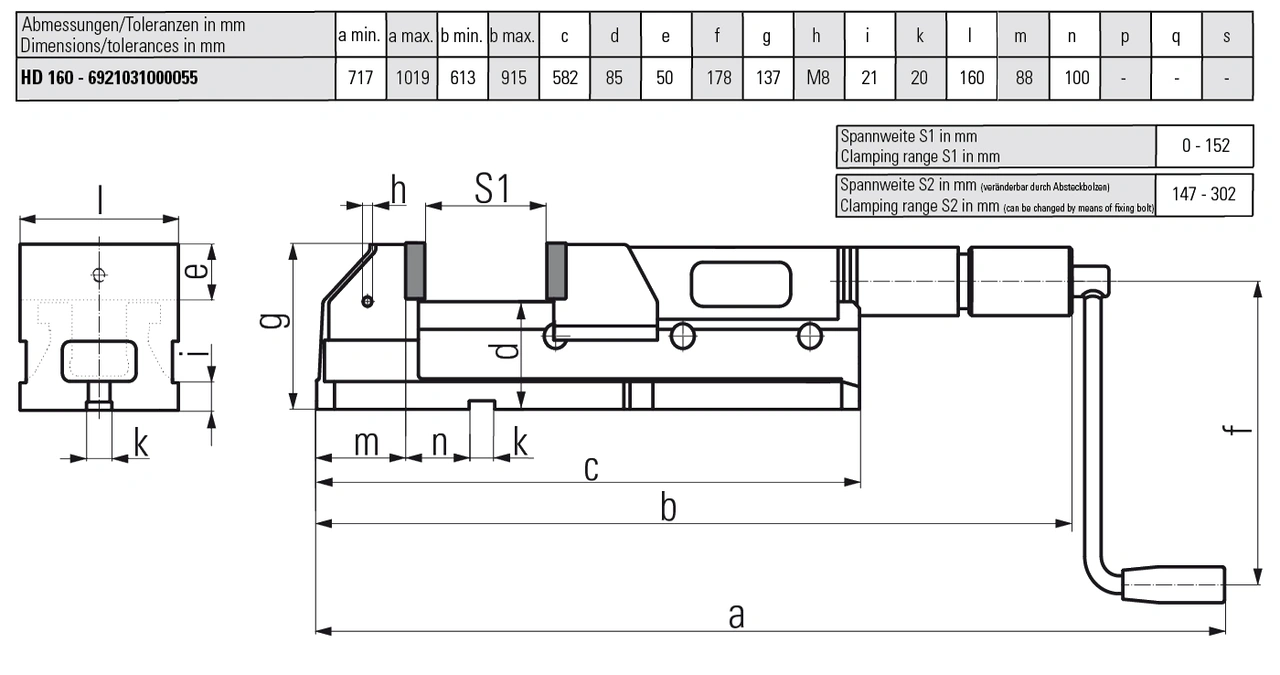

Spännområde, S1 (mm) 0-152 Spännområde, S2 (mm) 147-302 Nivåer för snabblåsning 4 Max spännkraft (kN) 60 Uppbyggnad Mechanical Användningsområde Pre-machined parts Backbredd (mm) 160 Max spännvidd (mm) 302 Min spännvidd (mm) 0 Dimension, a min 717 / max 1019 Dimension, b min 613 / max 915 Dimension, c 582 Dimension, d 85 Dimension, e 50 Dimension, f 178 Dimension, g 137 Dimension, h M8 Dimension, i 21 Dimension, k 20 Dimension, m 88 Dimension, n 100 Dimension, p - Dimension, q - Dimension, s - -
