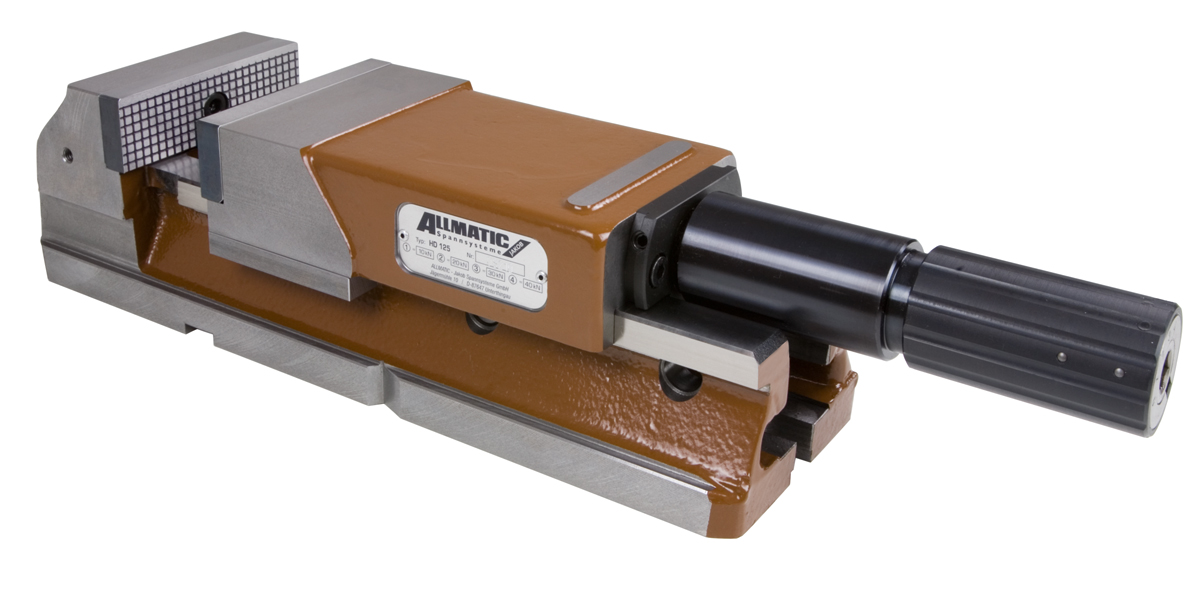

Allmatic
Artikelnr: 6921021000055
Description:
Product features:
- Clamping force preselection, 2 to 4 increments, allows accurate repetition (type 100 – 2 increments; types 125, 160 – 4 increments)
- Our tried and tested HD vice enables problem-free working with high clamping force and long-term reliability
- Suitable for heavy machining work, single pieces and small batches
- Designed particularly for use on conventional milling machines
Scope of supply:
- 1x high-pressure vice
- 4x side clamps
- 1x pair of serrated clamping jaws
- 1x hand crank
-
Specifikation

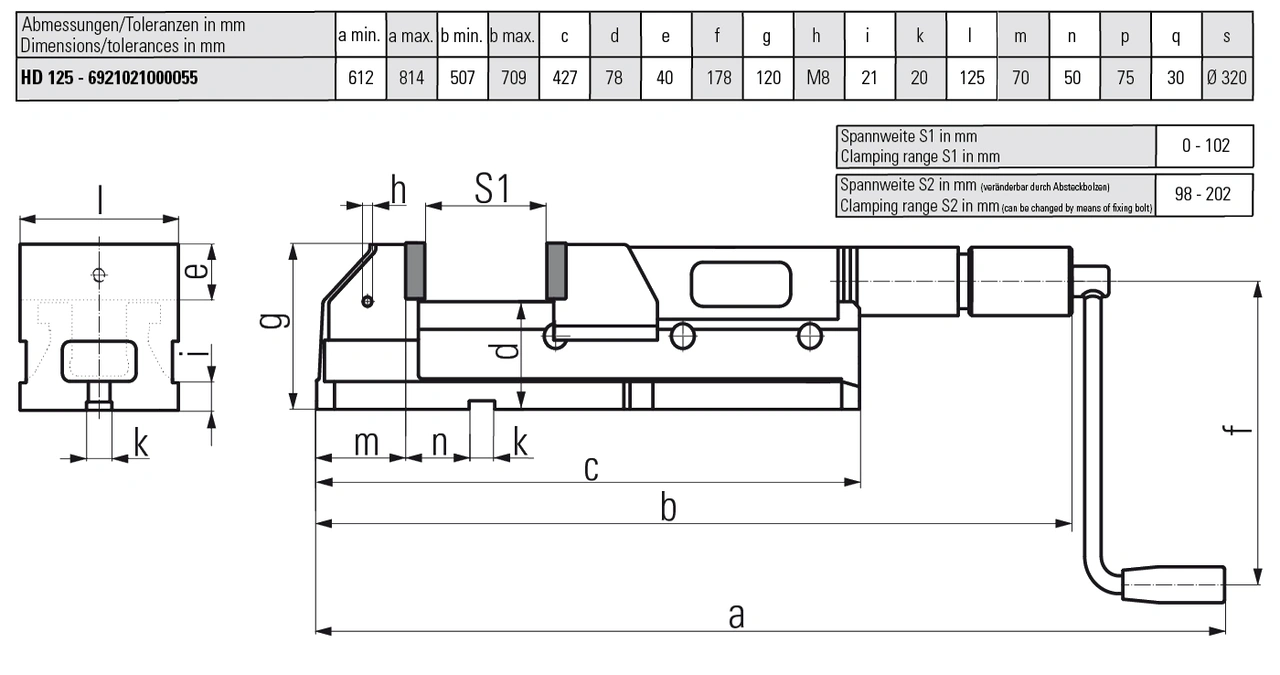

Spännområde, S1 (mm) 0-102 Spännområde, S2 (mm) 98-202 Nivåer för snabblåsning 4 Max spännkraft (kN) 40 Uppbyggnad Mechanical Användningsområde Pre-machined parts Backbredd (mm) 125 Max spännvidd (mm) 202 Min spännvidd (mm) 0 Dimension, a min 612 / max 814 Dimension, b min 507 / max 709 Dimension, c 427 Dimension, d 78 Dimension, e 40 Dimension, f 178 Dimension, g 120 Dimension, h M8 Dimension, i 21 Dimension, k 20 Dimension, m 70 Dimension, n 50 Dimension, p 75 Dimension, q 30 Dimension, s Ø320 -
