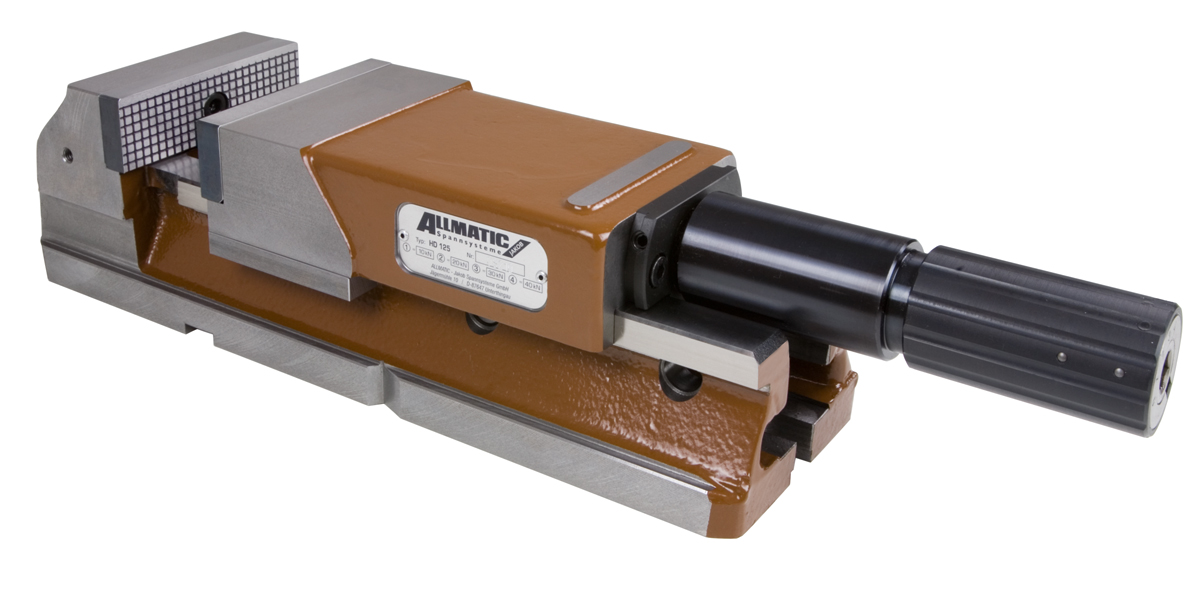

Allmatic
Artikelnr: 6921011000055
Description:
Product features:
- Clamping force preselection, 2 to 4 increments, allows accurate repetition (type 100 – 2 increments; types 125, 160 – 4 increments)
- Our tried and tested HD vice enables problem-free working with high clamping force and long-term reliability
- Suitable for heavy machining work, single pieces and small batches
- Designed particularly for use on conventional milling machines
Scope of Supply:
- 1x high-pressure vice
- 4x side clamps

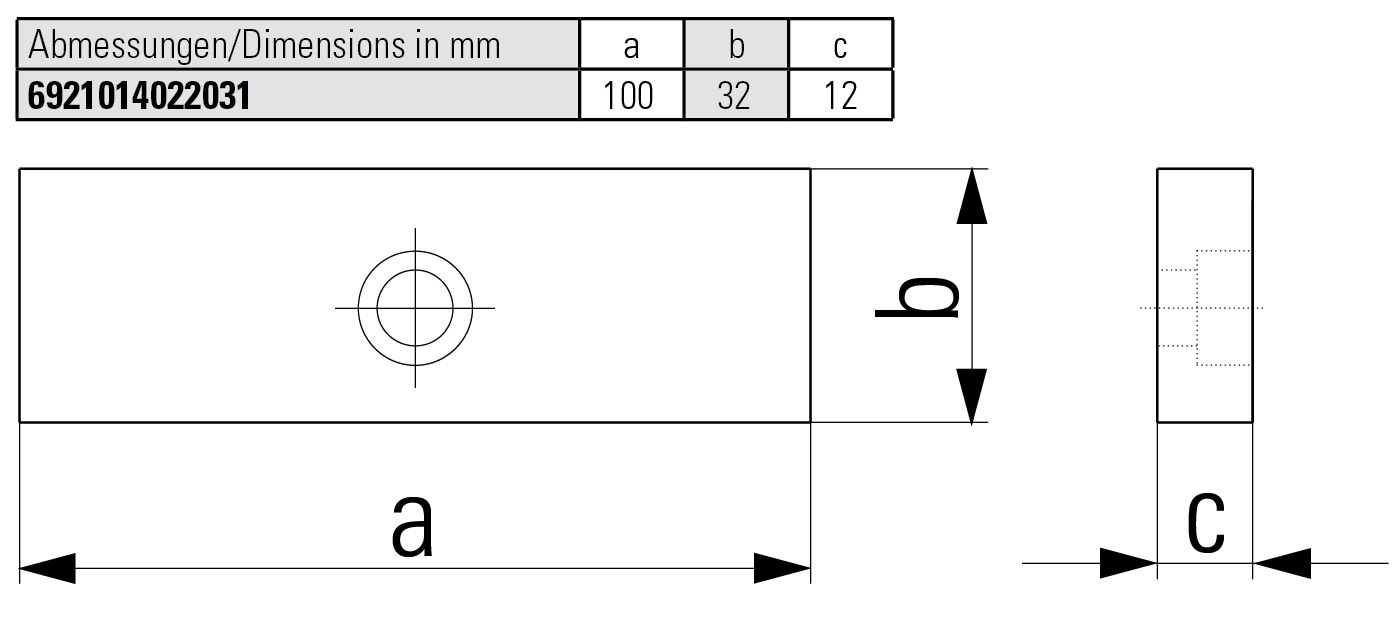

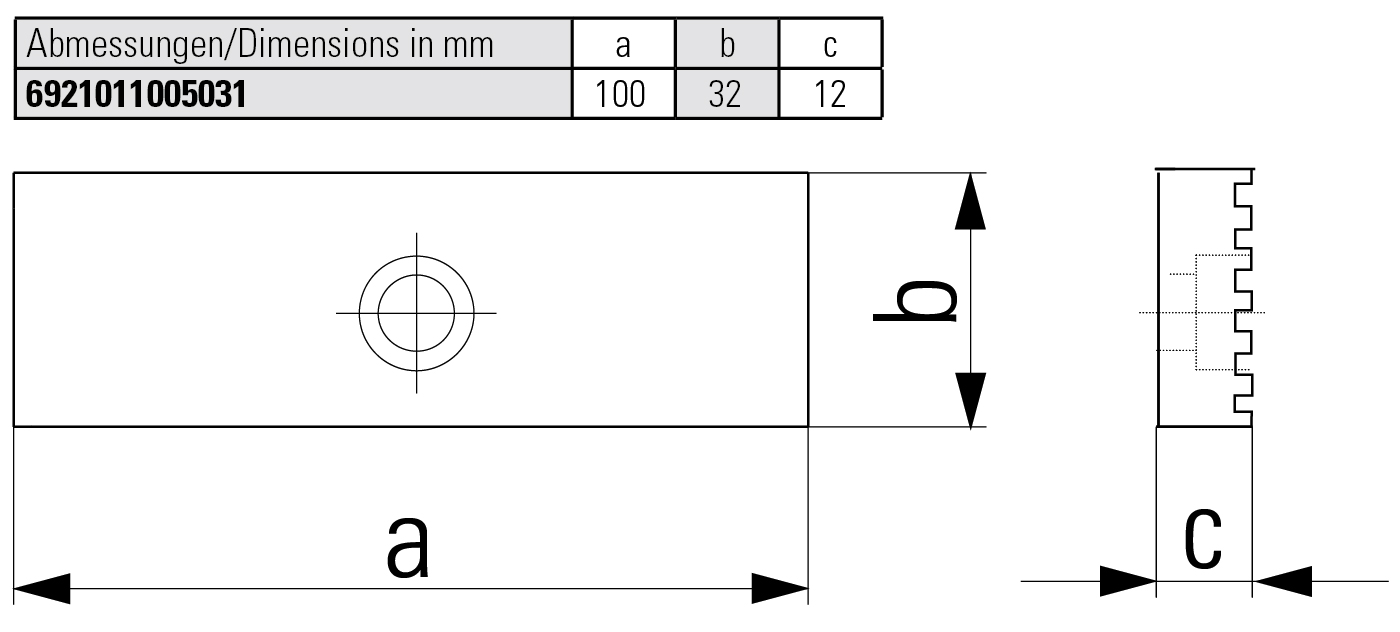

- 1x pair of serrated clamping jaws

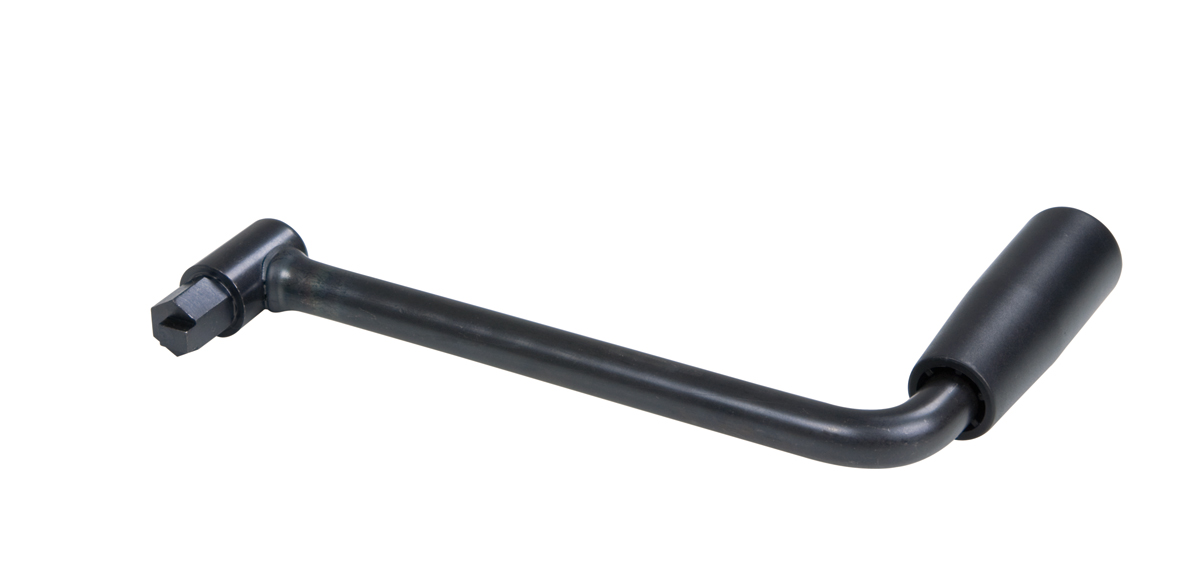

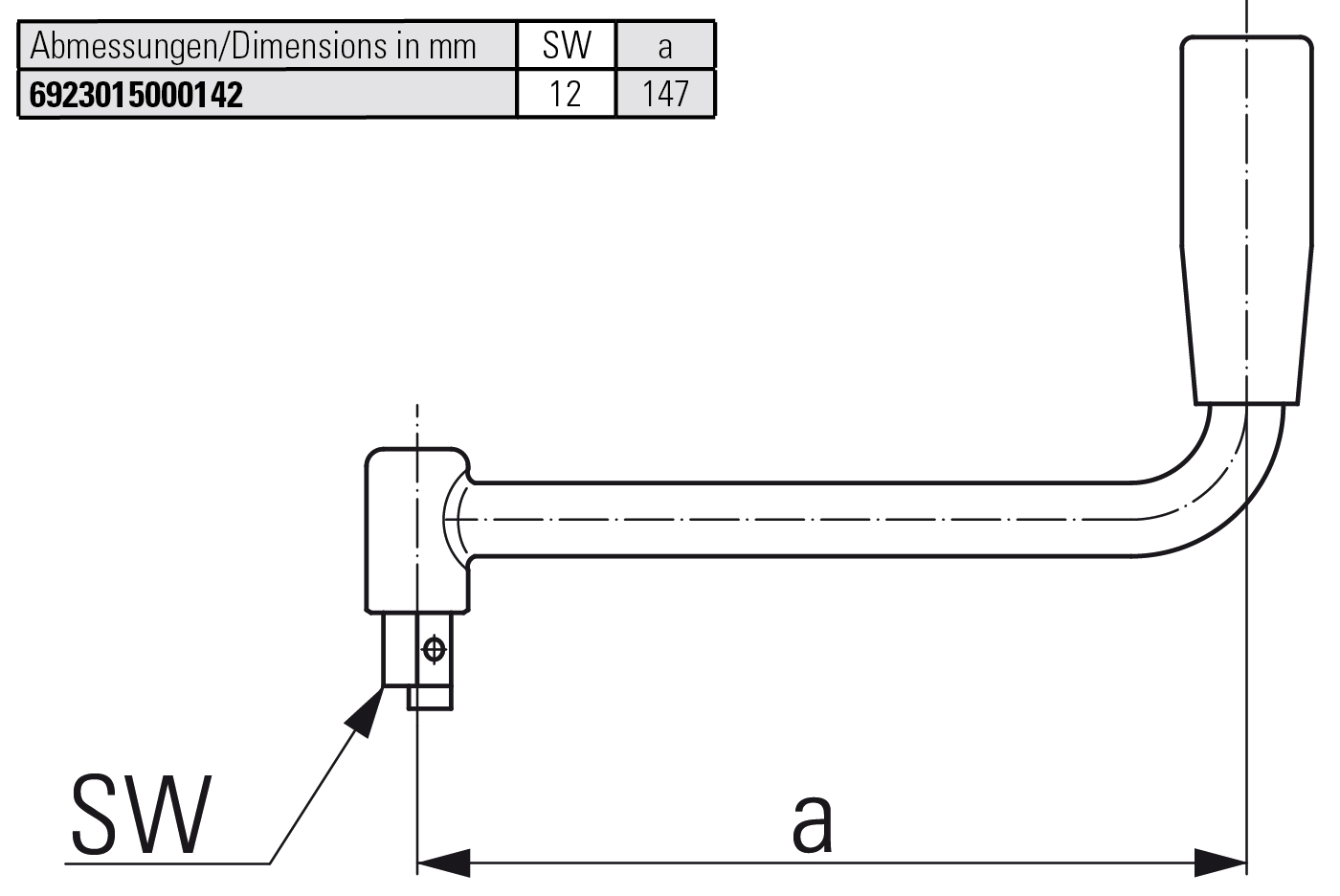

- 1x hand crank
-
Specifikation

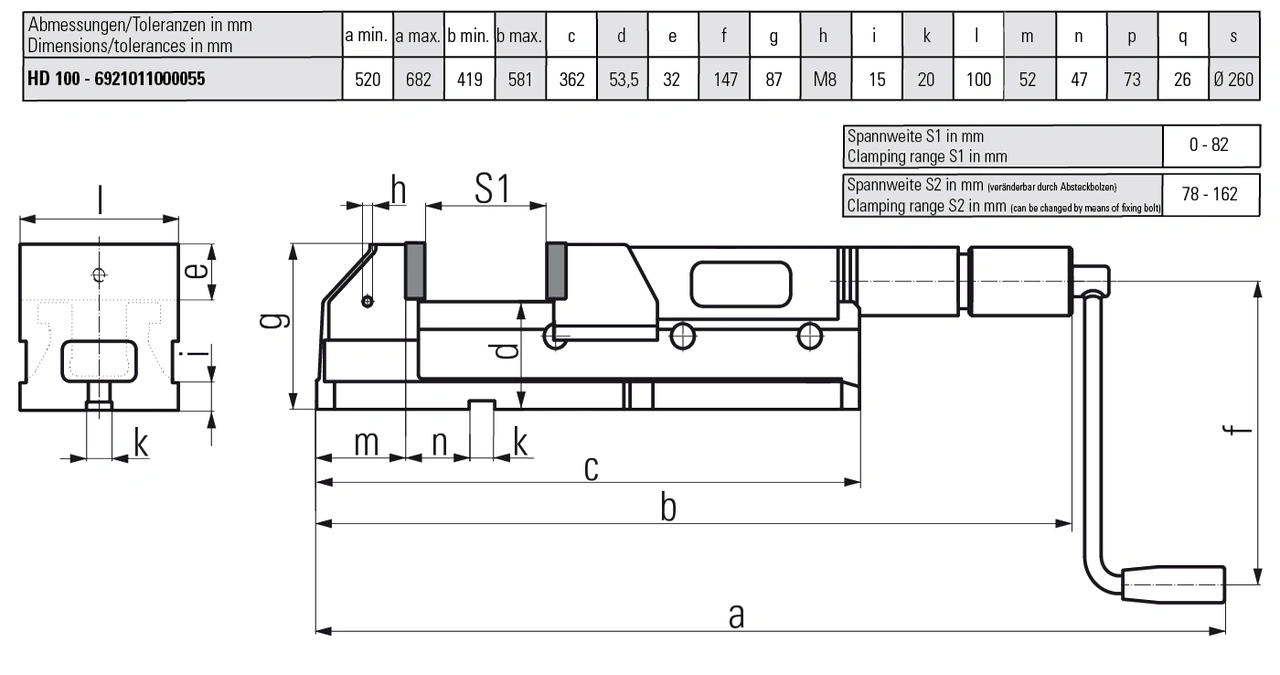

Spännområde, S1 (mm) 0-82 Spännområde, S2 (mm) 78-162 Nivåer för snabblåsning 2 Max spännkraft (kN) 30 Uppbyggnad Mechanical Användningsområde Pre-machined parts Backbredd (mm) 100 Max spännvidd (mm) 162 Min spännvidd (mm) 0 Dimension, a min 520 / max 682 Dimension, b min 419 / max 581 Dimension, c 362 Dimension, d 53.5 Dimension, e 32 Dimension, f 147 Dimension, g 87 Dimension, h M8 Dimension, i 15 Dimension, k 20 Dimension, m 52 Dimension, n 47 Dimension, p 73 Dimension, q 26 Dimension, s Ø260 -
