Allmatic
Artikelnr: 6921674004731
Description:
- Material: hardened steel
- Case-hardened and tempered 680 + 80 HV30; hardening depth 0,5 + 0,3
- One side smooth, ground and polished; one side serrated
- Additional thread for parallels and for mounting HD jaws on the smooth side
- Mounts for Click system on both sides of the jaw
Scope of Supply:
- 4x Cylinder head screws DIN 912 M10x30
-
Specifikation

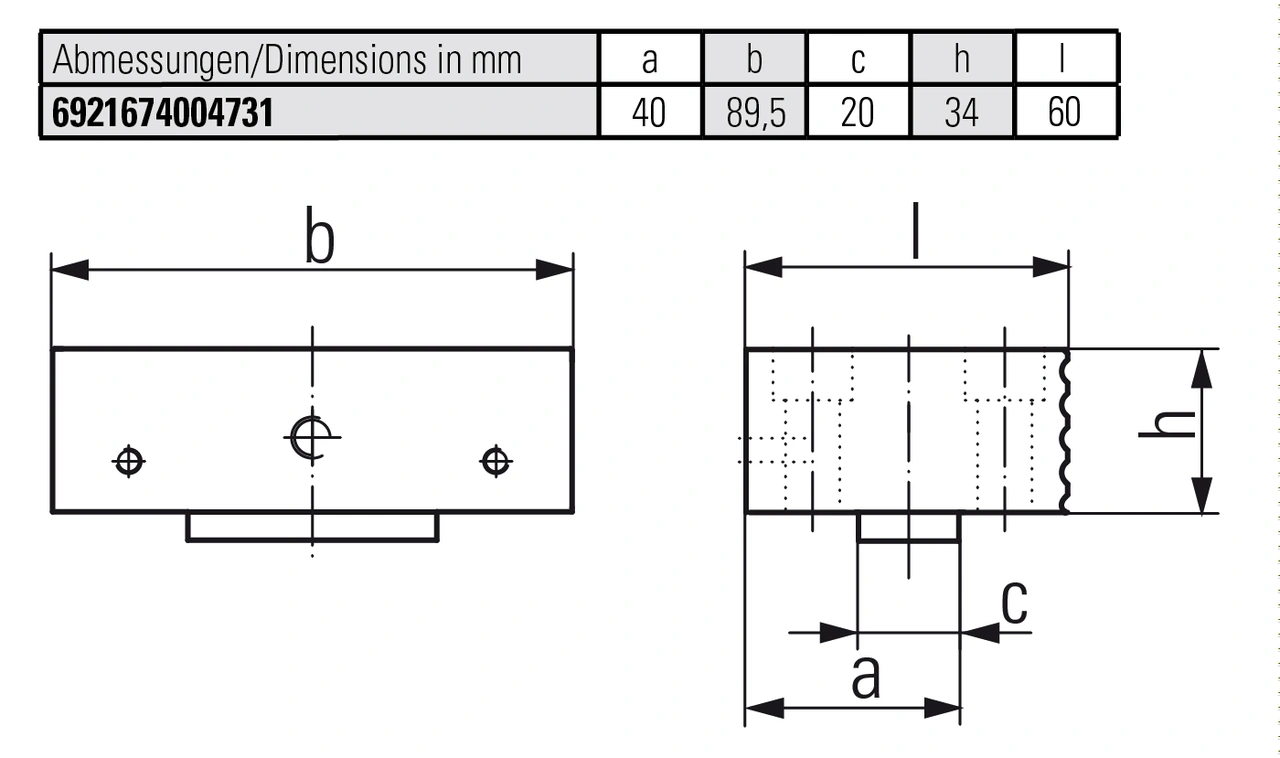

Dimension, a 40 Dimension, b 89.5 Dimension, c 20 Dimension, h 34 Dimension, l 60
