Artikelnr: 6921478000955
Description:
Product features:
- Extreme accuracy for your machining
- Clamping force can be preset in 6 increments. At most, 1 rotation is required to reach the max. clamping force
- For clamping two identical parts (dimensional differences of up to ± 3 mm are compensated for)
- Preselectable and reproducible clamping forces enable the workpiece position to be repeated within a tolerance of less than 0.01 mm
- Standard with locating holes Ø 25H6 M10 for zero-point clamping systems; Inside micrometre 200mm ± 0.01mm
- Horizontal installation – suitable for vertical CNC-controlled milling machines
- Lateral installation is also possible
Important:
- Workpieces must be placed in both stations before clamping begins.
- Type 90: drive head with finer clamping force presetting for delicate workpieces (6 increments)
Scope of Supply:

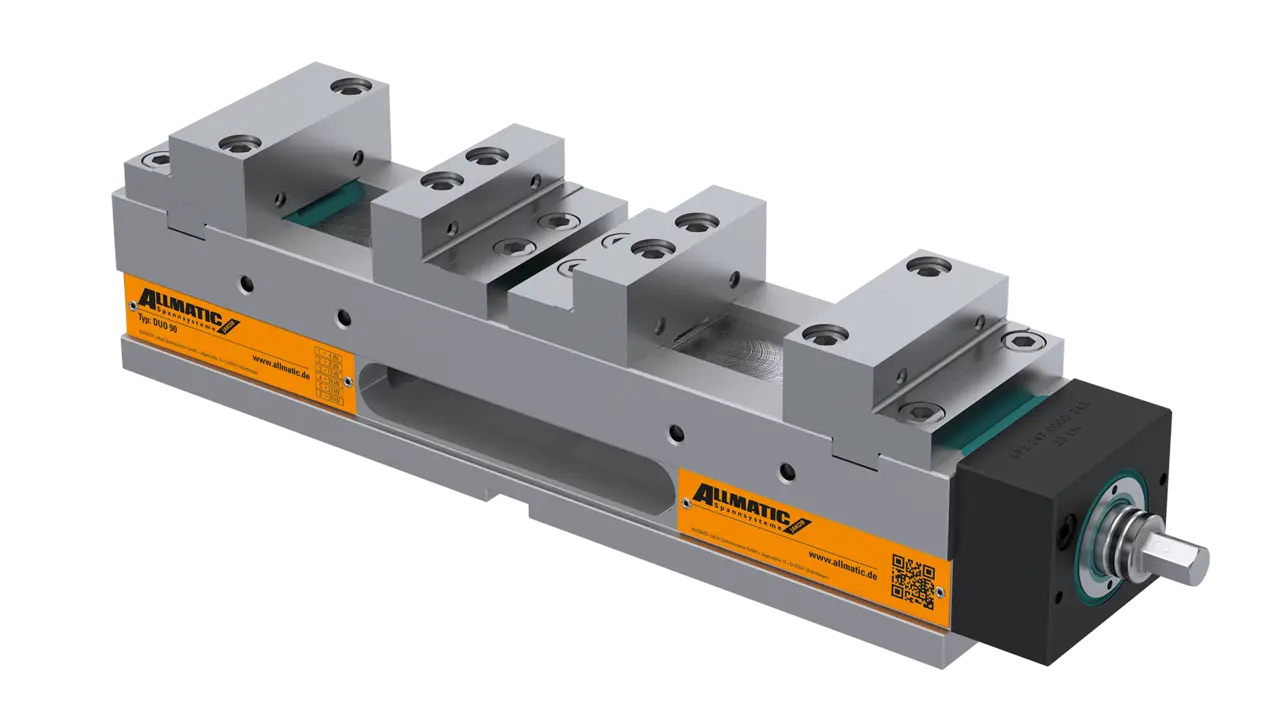

- 1x Vice DUO 90

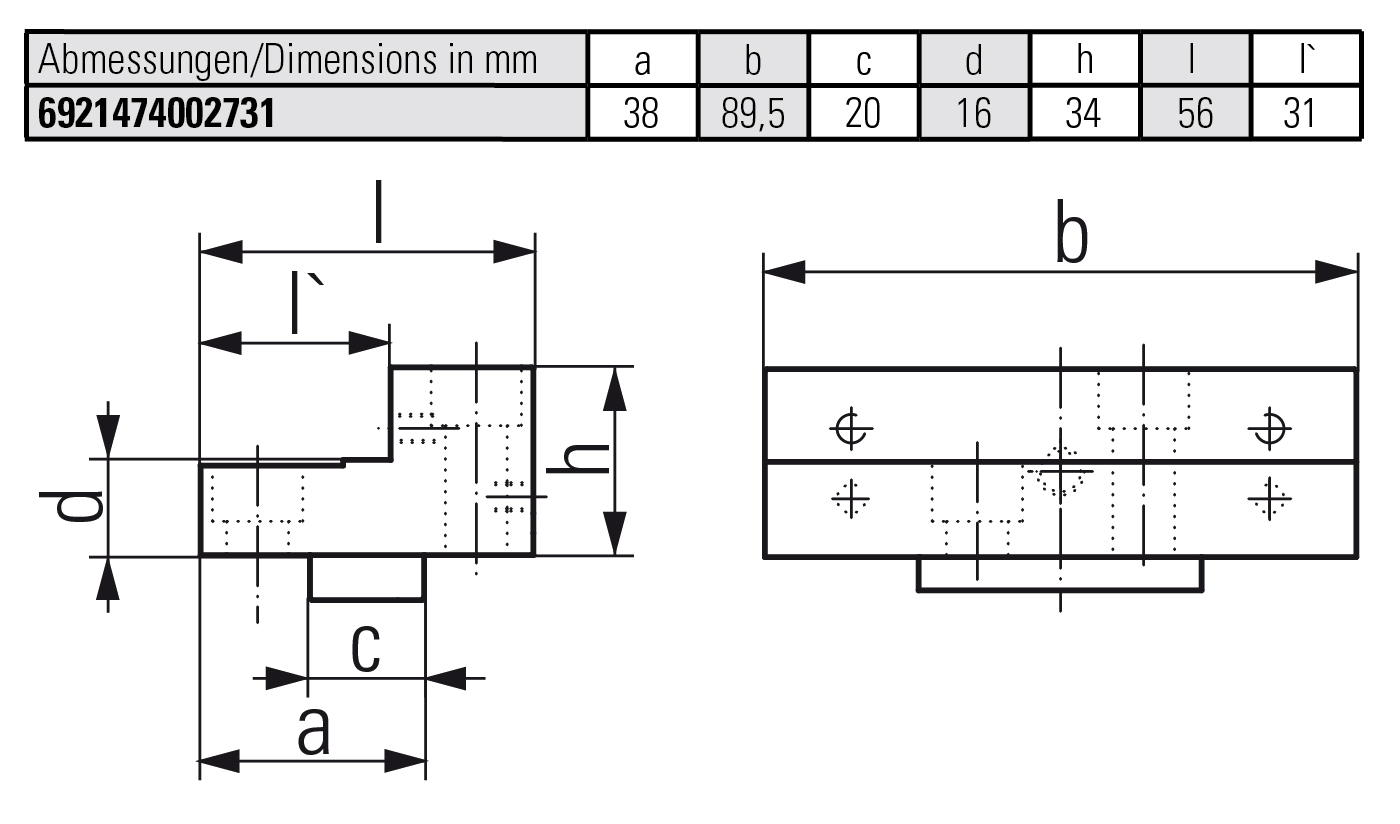

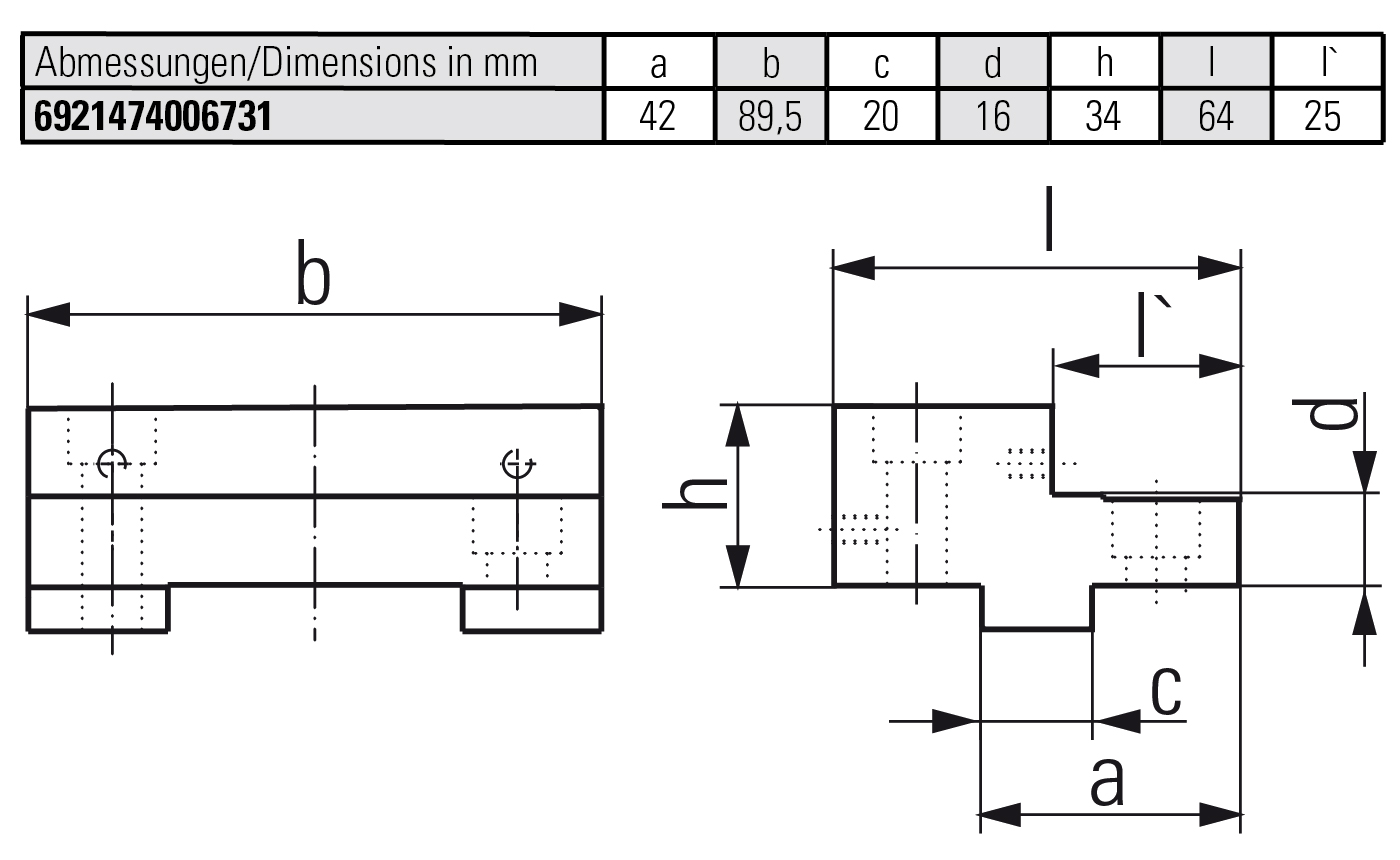

- 2x Step jaw fix
- 2x Step jaw movable

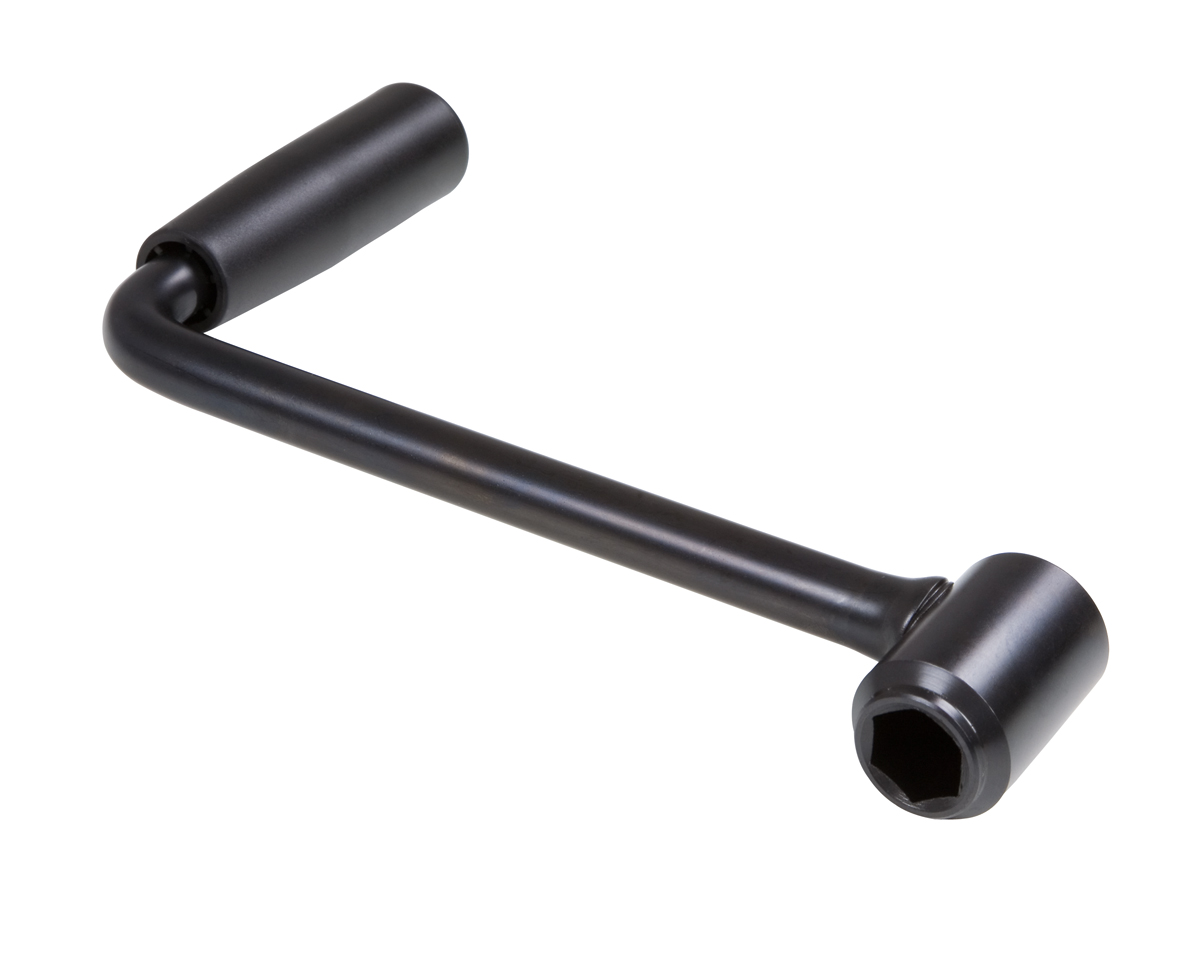

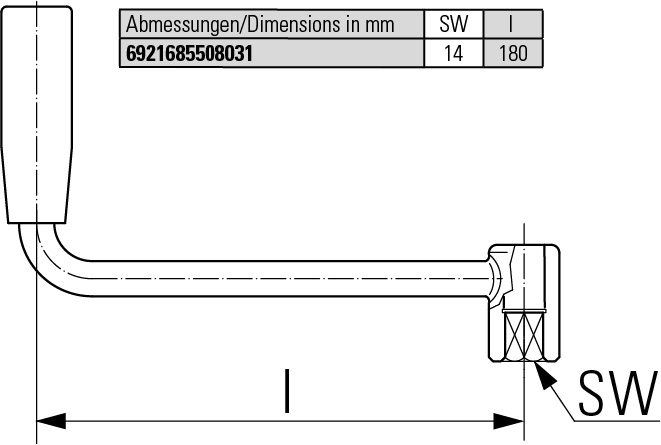

- 1x Hand crank
- 1x Hexagonal wrench 8-long
- 1x Hexagonal wrench 6-short
- 4x Clamping claws
- 1x Quick-Start-Guide
-
Specifikation

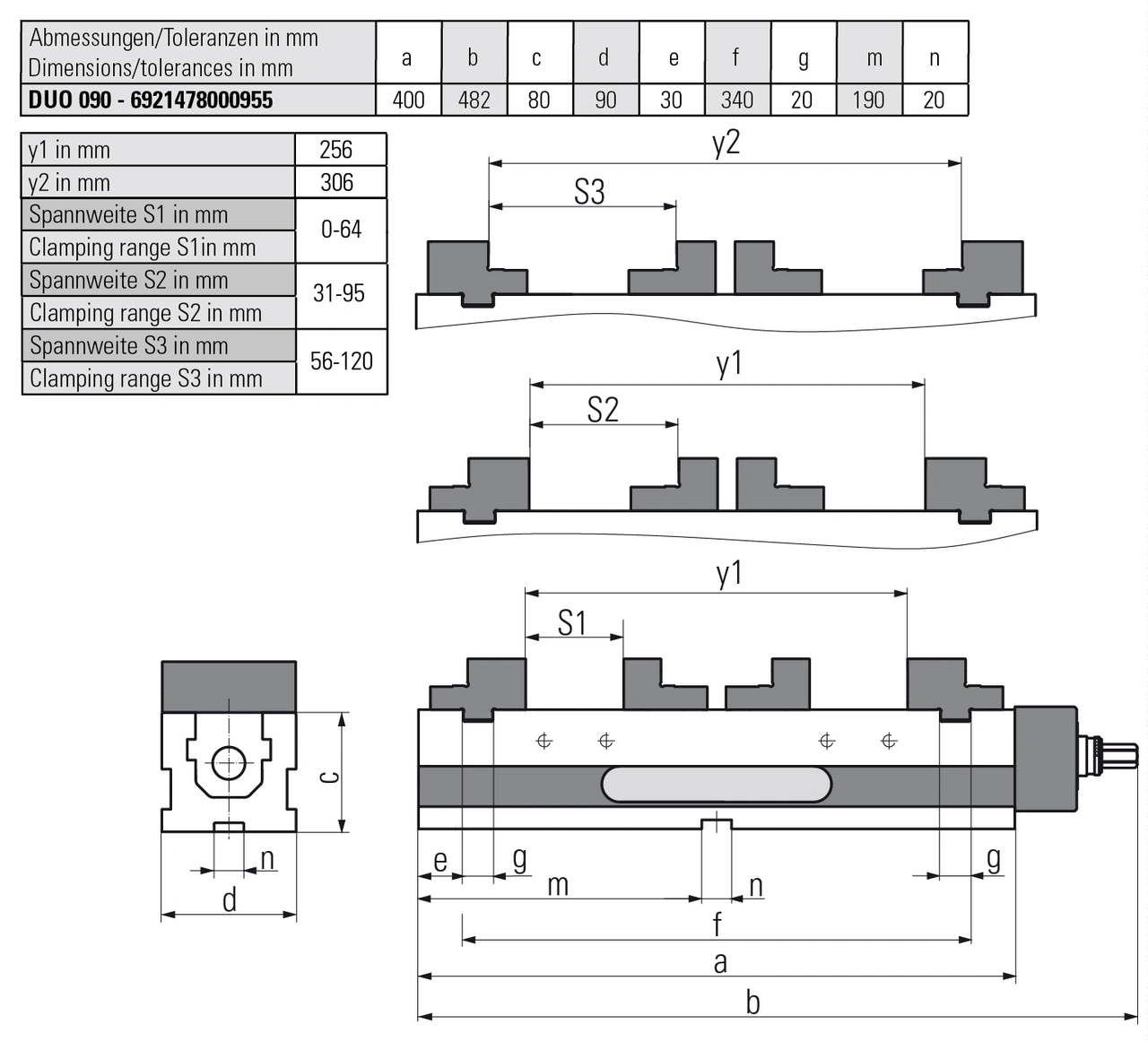

Spännområde, S1 (mm) 0-64 Spännområde, S2 (mm) 31-95 Spännområde, S3 (mm) 56-120 Nivåer för snabblåsning 6 Max spännkraft (kN) 28 Uppbyggnad Mechanical Användningsområde Pre-machined parts Backbredd (mm) 90 Max spännvidd (mm) 120 Min spännvidd (mm) 0 Dimension, a 400 Dimension, b 482 Dimension, c 80 Dimension, d 90 Dimension, e 30 Dimension, f 340 Dimension, g 20 Dimension, m 190 Dimension, n 20 -
